Edillas 1.57 Inch Kid Digital Watch Instruction Manual

Invoering

The Edillas 1.57 Inch Kid Digital Watch is designed for children aged 5-16, offering a large, easy-to-read display and multiple functions. This manual provides detailed instructions for setting up and operating your watch, ensuring you can utilize all its features effectively.

1.57-Inch Large Digital Display: Features oversized numerals for effortless time-telling.
Multi-Function Digital Watch: Includes date display, 12/24-hour format, alarm, stopwatch, and countdown timer.
LED-achtergrondverlichting: Maakt het gemakkelijk viewbij weinig licht.
Waterbestendigheid tot 30 meter: Suitable for daily use like hand washing and splashes, but not for swimming or diving.
Comfortable Adjustable Strap: Made with soft silicone for a customizable and comfortable fit.
Duurzame constructie: Features a scratch-resistant reinforced resin glass lens and sturdy build.

Waken overview

Familiarize yourself with the watch display and its various indicators.

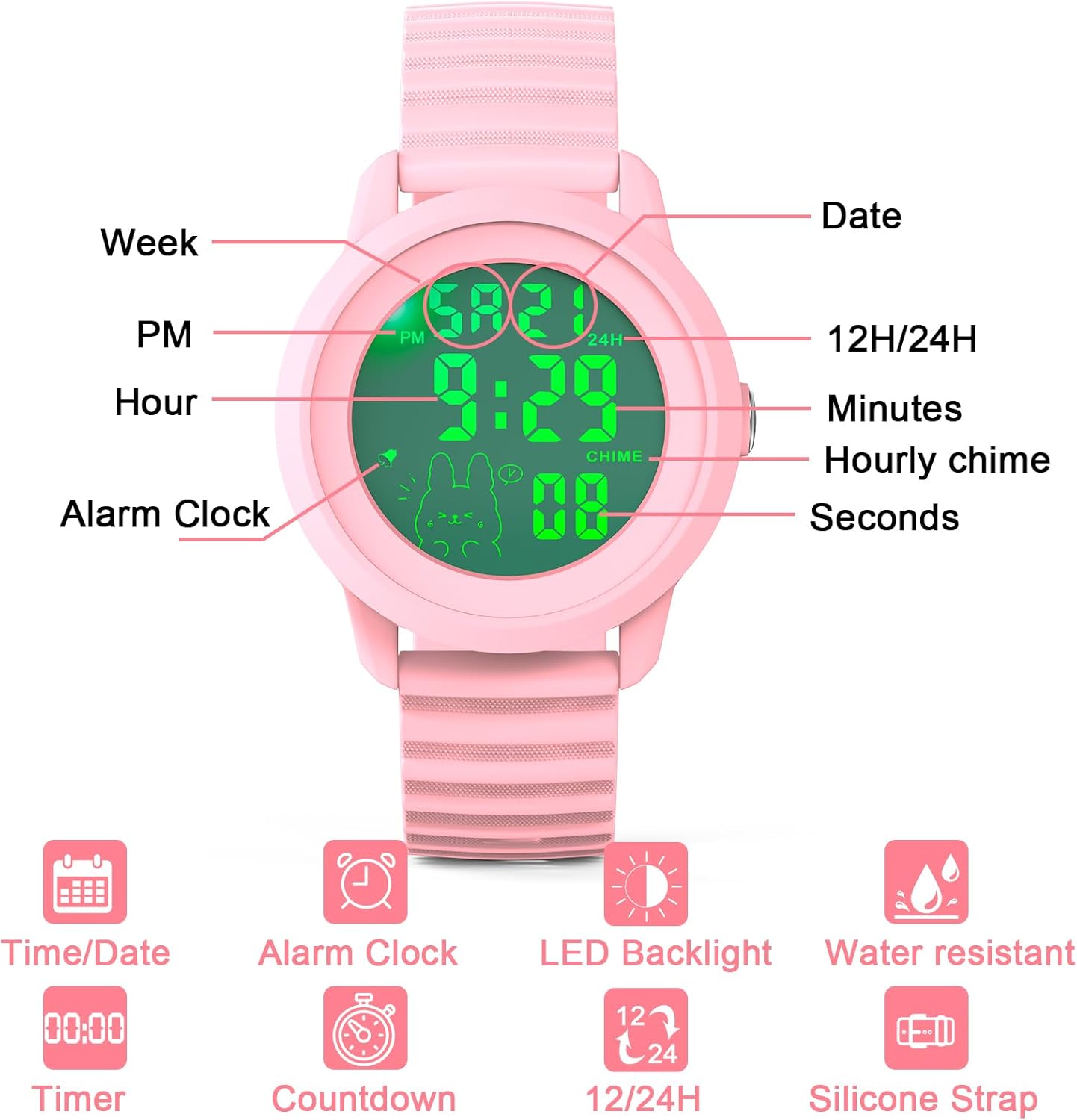

Edillas Digital Watch face with labels pointing to Week, Date, PM, Hour, 12H/24H, Minutes, Hourly chime, Alarm Clock, Seconds — **Figuur 1:** Watch Display Layout. This image illustrates the various indicators on the watch face, including the day of the week, date, PM indicator, hour, 12H/24H format, minutes, hourly chime indicator, alarm clock indicator, and seconds.

Installatie-instructies

Setting Time, Date, and Day of Week

Follow these steps to accurately set the time, date, and day of the week on your Edillas Digital Watch.

1 video: How to set the time, date, and day of the week. This video demonstrates the process of adjusting the watch's time, date, and day settings.

12-uurs/24-uurs tijdformaat

The watch supports both 12-hour and 24-hour time formats. This setting is typically adjusted within the time setting mode. Refer to Video 1 for detailed instructions on how to switch between these formats.

12/24H format icon — **Figuur 2:** 12H/24H Format Icon. This icon indicates the watch's capability to display time in either 12-hour or 24-hour format.

Gebruiksaanwijzing

Backlight-functie

To activate the backlight, press and hold the 'MODE' button for 2 seconds. The backlight will illuminate the display for 3 seconds, making it visible in the dark.

Edillas Digital Watch showing normal mode and green backlight mode at night — **Figuur 3:** Backlight in Normal and Light Mode. This image shows the watch display in normal mode and with the green backlight activated for night viewind.

2 video: How to activate the backlight. This video demonstrates how to turn on the watch's backlight feature.

Alarmfunctie

The alarm feature helps set reminders. You can set a specific alarm time and choose to activate or deactivate the hourly gong.

Wekker icoon — **Figuur 4:** Alarm Clock Icon. This icon represents the alarm function on the watch.

3 video: How to set the alarm time. This video guides you through setting a specific alarm time.

4 video: How to turn the alarm and hourly chime on and off. This video shows how to manage the alarm and hourly beltooninstellingen.

Afteltimer

The countdown timer is useful for various activities, from homework sessions to playtime limits.

Countdown timer icon — **Figuur 5:** Countdown Timer Icon. This icon represents the countdown timer function.

5 video: How to use and set the countdown function. This video demonstrates how to set and use the countdown timer.

Stopwatchfunctie

Use the stopwatch to measure elapsed time for sports, games, or other activities.

Stopwatch icoon — **Figuur 6:** Stopwatch Icon. This icon represents the stopwatch function.

6 video: How to use the stopwatch function. This video demonstrates how to operate the stopwatch.

Onderhoud

Waterbestendigheid

The Edillas Digital Watch features 30m water resistance, making it suitable for everyday activities such as hand washing, splashes, and light rain. However, it is not suitable for swimming, diving, or prolonged submersion in water. Avoid operating the buttons underwater to prevent water ingress.

Girl washing hands with Edillas Digital Watch, showing water resistance for soaking, getting wet, sweating, and doing chores — **Figuur 7:** Water Resistance in Daily Life. The watch is designed to withstand common water exposure from activities like hand washing, getting caught in the rain, sweating, and doing chores.

Edillas Digital Watch submerged in water — **Figuur 8:** Water Resistance Demonstration. This image shows the watch submerged in water, illustrating its water-resistant capabilities for brief exposure.

Levensduur van de batterij

The watch uses an imported battery designed for longevity, offering up to 5 years of use under normal conditions.

Comparison of traditional battery vs. imported battery for Edillas Digital Watch, highlighting 5-year battery life — **Figuur 9:** Extended Battery Life. This image highlights the watch's long-lasting imported battery, capable of up to 5 years of operation.

Duurzaamheid

Constructed with a scratch-resistant reinforced resin glass lens and sturdy materials, the watch is built to withstand everyday bumps and minor impacts. It has passed a 2-meter drop test, ensuring functionality even after accidental drops. Please note that drop resistance data is for reference only; intentional tests are not recommended.

Edillas Digital Watch undergoing a 2-meter drop test next to a cat — **Figuur 10:** Drop Test. This image illustrates the watch's durability, having passed a 2-meter drop test.

Probleemoplossing

Turning Off Hourly Bel

Als de hourly chime is active and you wish to turn it off:

Ensure the watch is in Time Display Mode.
Press and hold the 'MODE' button and the 'R' button simultaneously.
Repeat the action to toggle the hourly chime on or off.

For further assistance, please refer to the alarm setting video (Video 4) or contact customer support.

Specificaties

Functie	Detail
Modelnummer	Edi 918
Weergavetype	Digitaal
Schermgrootte	1.57 inch
Waterbestendigheid	30m (Not for swimming/diving)
Bandmateriaal	Zacht siliconen
Sluitingstype	Gesp
Batterij	1 niet-standaardbatterij (meegeleverd)
Productgewicht	1.41 ons (40 g)
Wijzerplaatdiameter	1.57 inch (4 cm)
Wijzerplaatdikte	0.47 inch (1.2 cm)
Bandlengte	9.84 inch (25 cm)
Bandbreedte	0.83 inch (2.1 cm)
Toepasselijke leeftijd	5-16 jaar

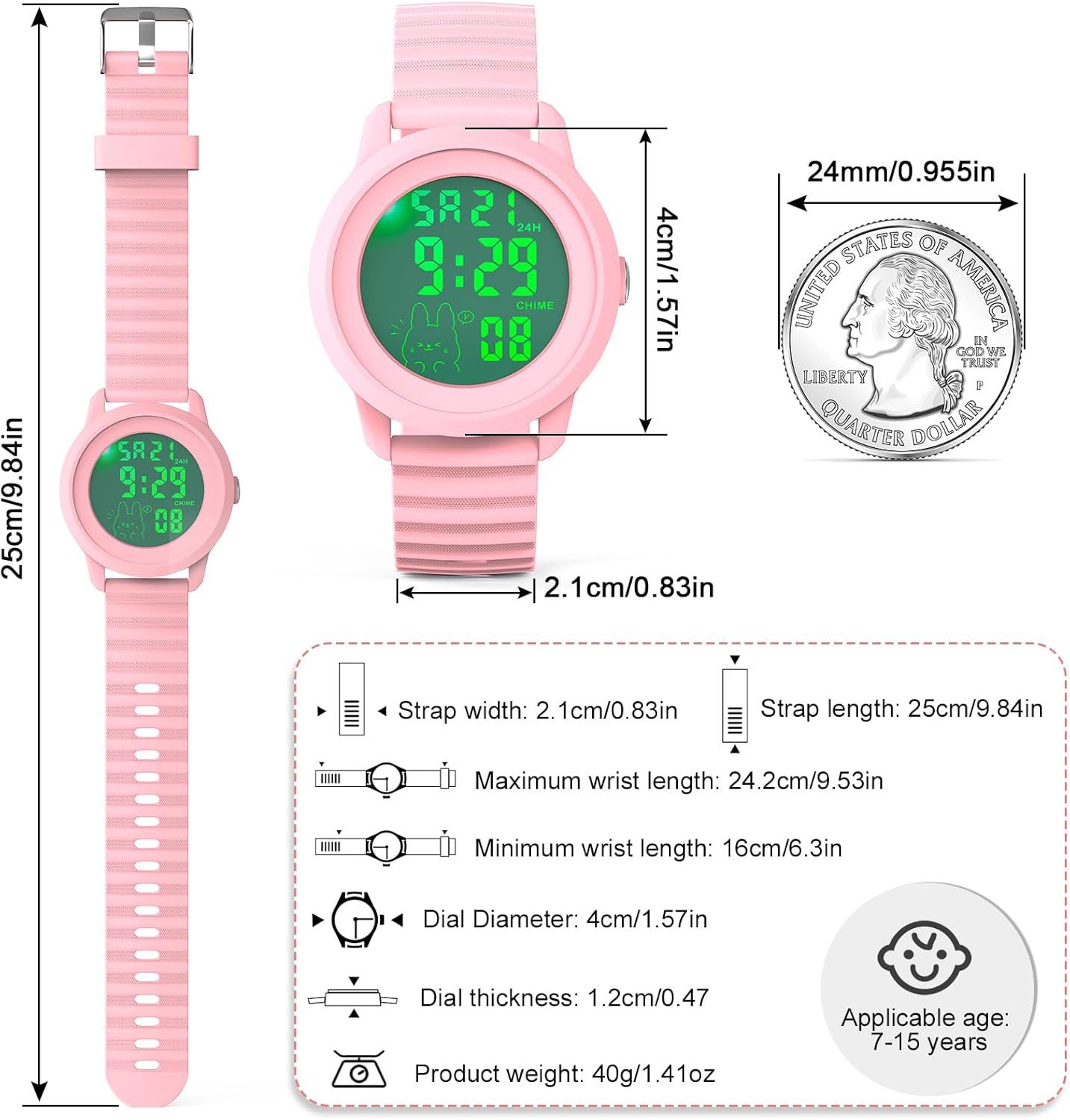

Edillas Digital Watch dimensions including strap width, strap length, maximum/minimum wrist length, dial diameter, dial thickness, and product weight — **Figuur 11:** Watch Dimensions. This image provides a visual representation of the watch's physical dimensions and weight.

Garantie en ondersteuning

Edillas is committed to providing reliable products and satisfactory service. Your purchase includes:

2 jaar garantie na aankoop: For any product-related issues.
30-Days No Reason Return: Probleemloos retourneren binnen 30 dagen na aankoop.
12-uurs online klantenservice: Dedicated support available to assist you.

If you have any questions, concerns, or require assistance, please do not hesitate to contact us.

Contact-e-mailadres: yadelaiiaftersale@163.com

Buyer Support information with 2-year after-sales, 30-day return, 12-hour customer service, and contact email — **Figuur 12:** Buyer Support Information. This image summarizes the available support and warranty details.
