HUPEJOS 4K Dual Dash Cam V100-2CH Instruction Manual

1. Wat zit er in de doos?

Verify all components are present before proceeding with installation.

• 4K Front Dash Camera (Main Unit)
• 1080P-achtercamera
• Autoladeradapter
• Type-C-kabel
• Zelfklevende pads
• Auto draad trim tool
• 19.6ft Achtercamerakabel
• Elektrostatische sticker (x2)
• Geheugenkaart van 64 GB
• Gebruiksaanwijzing

Image: All included components of the dash cam system.

2. Product voorbijview

The HUPEJOS V100-2CH dash cam features a main front unit with a 4-inch touch screen and a separate rear camera. Key ports and controls are located on the main unit for easy access.

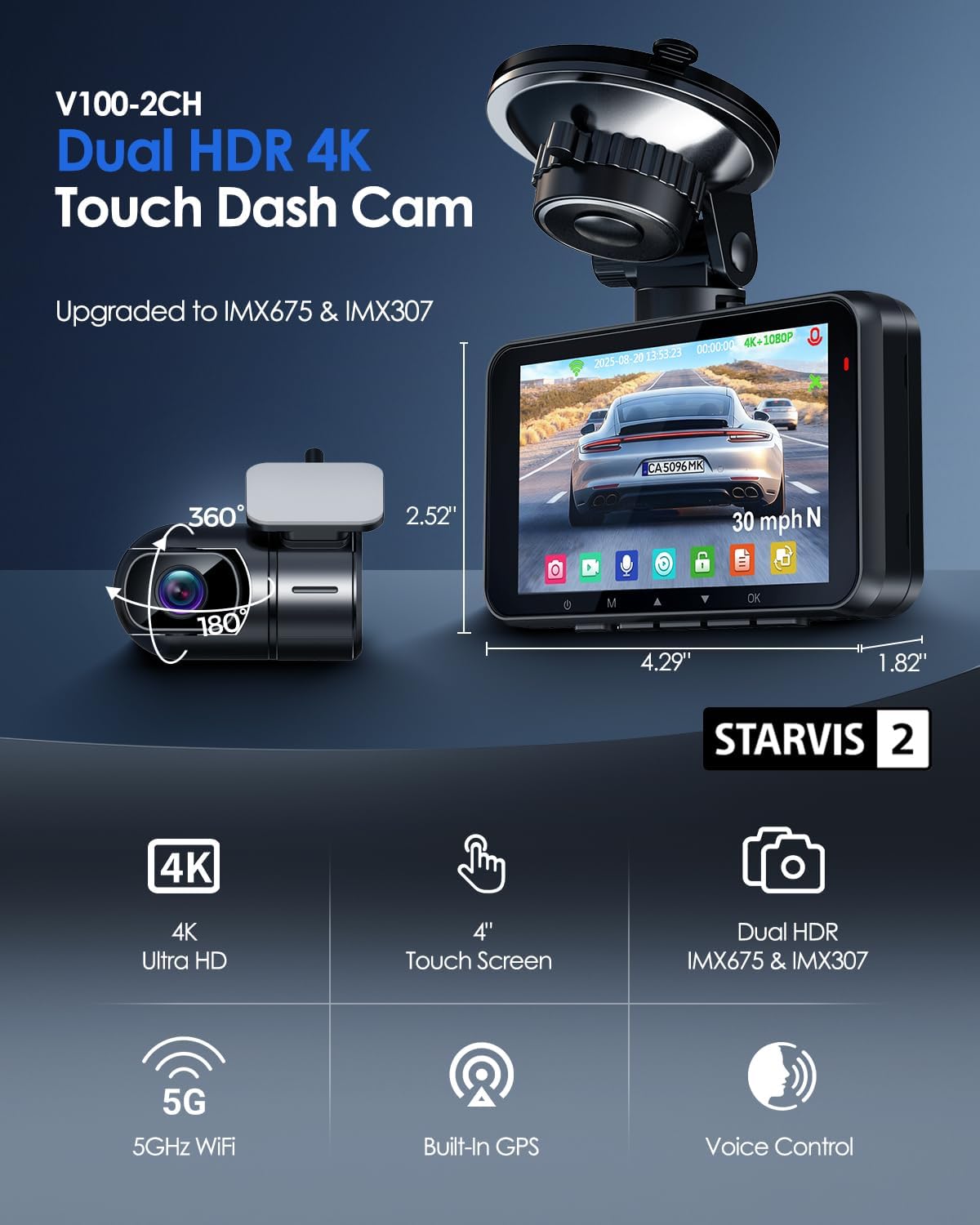

Image: Main dash cam unit and rear camera with dimensions.

Afbeelding: Gedetailleerd view of the main unit's ports and slots.

3. Installatie en installatie

Follow these steps for proper installation and initial setup of your dash cam.

1. Maak de voorruit klaar: Clean the chosen area on your windshield thoroughly. Apply an electrostatic sticker to the desired mounting spot to protect your windshield and ensure easy removal.
2. De hoofdeenheid monteren: Attach the suction cup mount to the electrostatic sticker. Secure the main dash cam unit to the mount. Adjust the camera angle as needed.
3. Achtercamera installeren: Mount the rear camera on the rear windshield using an electrostatic sticker and adhesive pad. Ensure the camera has a clear view.
4. Achteruitrijcamera aansluiten: Connect the 19.6ft rear camera cable to the 'REAR' port on the main unit and route the cable discreetly along the vehicle's interior trim using the provided trim tool.
5. Stroomaansluiting: Insert the 64GB memory card into the SD card slot. Connect the car charger adapter to your vehicle's 12V power outlet and the Type-C cable to the 'POWER' port on the main unit. Route the power cable neatly.
6. Initial Power On & Format SD Card: Once powered, the dash cam will turn on. Navigate to the settings menu via the touch screen and format the SD card before first use.

Image: Visual guide for dash cam installation steps.

4. Gebruiksaanwijzing

4.1. 4" Touch Screen Operation

The 4-inch IPS touch screen provides intuitive control over the dash cam's functions. Tap icons to access menus, adjust settings, and review footagrechtstreeks op het apparaat.

Image: Touch screen interface for easy navigation.

4.2. Stembesturing

Control your dash cam hands-free using simple voice commands. This feature enhances safety by allowing you to manage recording without taking your hands off the wheel.

• "Maak een foto"
• "Video stoppen"
• "Schakel wifi in"
• "Video start"
• "Turn on Screen"
• "Toon camera aan de voorzijde"

Image: Voice control commands for hands-free operation.

4.3. 5G wifi en app-bediening

Connect your dash cam to your smartphone via built-in 5G WiFi for seamless footage transfer and management using the dedicated app. The Wi-Fi range is 6-7 meters.

• View leef fotage
• Download recorded videos
• Pas de camera-instellingen aan
• Deel footage onmiddellijk

Image: Smartphone app interface for 5G WiFi control.

4.4. GPS-tracking

The integrated GPS module accurately records your vehicle's location, speed, and route data, providing crucial evidence for accident documentation and insurance claims. You can view GPS data on Google Maps via the app or the free GXPlayer on PC (Windows and Mac).

Image: Built-in GPS tracking visualization.

4.5. Loopopname en G-sensor

The dash cam features intelligent loop recording, which automatically overwrites the oldest unlocked files when the memory card is full, ensuring continuous recording. The built-in G-sensor detects sudden impacts or collisions, automatically locking and saving the current footage om te voorkomen dat het wordt overschreven.

Image: G-Sensor and Loop Recording functionality.

4.6. 24H Parking Surveillance Mode

For round-the-clock vehicle security, the 24-hour parking surveillance mode activates automatically upon detecting motion or impact. This feature requires a separate hardwire kit (ASIN: B0DBVDDT73) for continuous power supply.

Image: 24/7 Parking Surveillance Mode options.

5. Nachtzichtmogelijkheden

Equipped with STARVIS 2 sensors (IMX675 front, IMX307 rear) and Dual HDR technology, the dash cam delivers superior night vision, capturing clear and detailed footage even in low-light conditions for reliable evidence.

Image: Night vision comparison with STARVIS 2 and HDR.

6. Specificaties

7. Onderhoud

To ensure the longevity and optimal performance of your dash cam, regular maintenance is recommended:

• Schone lenzen: Regularly clean the front and rear camera lenses with a soft, lint-free cloth to prevent blurry footage.
• SD-kaart formatteren: Format the SD card monthly to maintain optimal recording performance and prevent data corruption. This can be done through the dash cam's settings menu.
• Controleer verbindingen: Periodically ensure all cables and mounts are securely connected.

8. Probleemoplossing

Als u problemen ondervindt, probeert u de volgende stappen:

• Dashcam gaat niet aan: Controleer de aansluiting van de autolader en zorg ervoor dat de stroomaansluiting van het voertuig werkt.
• Problemen met de opname: Ensure the SD card is properly inserted and formatted. If issues persist, try a different compatible SD card.
• Slechte videokwaliteit: Clean the camera lenses. Ensure the camera is securely mounted and not vibrating.
• Problemen met de wifi-verbinding: Ensure Wi-Fi is enabled on the dash cam and your smartphone. Check the Wi-Fi range (6-7 meters).
• GPS-tracking werkt niet: Zorg ervoor dat de dashcam een ​​duidelijk zicht heeft view van de hemel voor satellietontvangst.
• System Freeze/Unresponsive: Use a thin object (like a paperclip) to press the reset button located on the main unit.

9. Garantie en ondersteuning

Your HUPEJOS 4K Dual Dash Cam V100-2CH comes with an 18-month guarantee. For any questions, technical support, or warranty claims, please contact HUPEJOS customer support.

• E-mailadres: support@hupejos.com
• Webwebsite: www.hupejos.com
