1. Inleiding

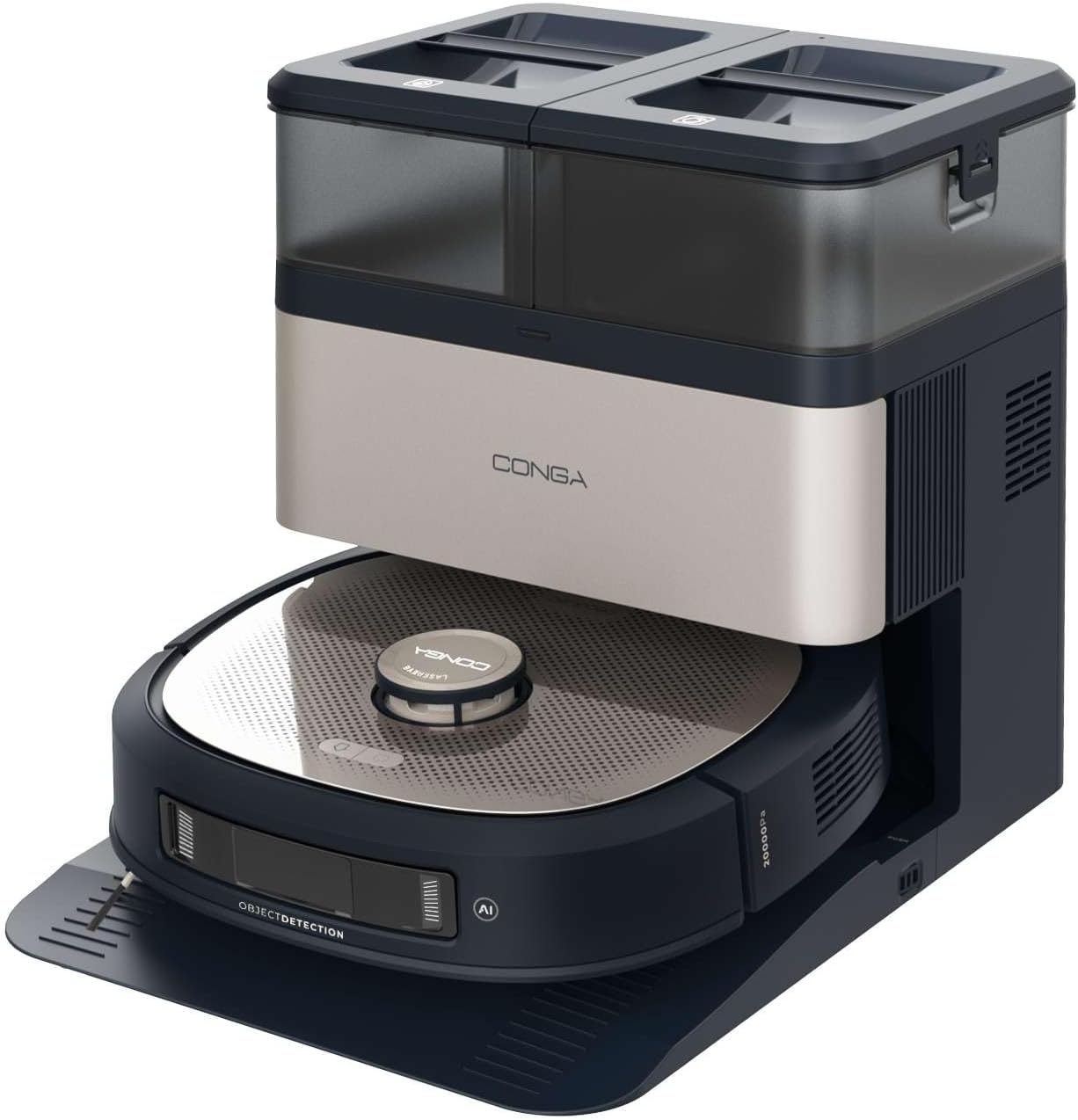

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Conga Z100 X-Treme Robot Vacuum and Mop. This advanced cleaning device combines powerful vacuuming with professional mopping, intelligent navigation, and a convenient self-emptying and mop-cleaning station.
Lees deze handleiding aandachtig door voordat u het product gebruikt en bewaar hem voor toekomstig gebruik.
2. Productcomponenten
The Cecotec Conga Z100 X-Treme package includes the following items:
- Robot Vacuum and Mop Unit
- Self-Emptying and Mop Cleaning Station
- Stroomadapter
- Side Brushes (2 units)
- Main Brush (silicone)
- Bimaterial Mop Pad
- Disposable Dust Bag (pre-installed in station)
- Clean Water Tank (in station)
- Dirty Water Tank (in station)
- Gebruikershandleiding (dit document)
3. Instellen
3.1 Uitpakken en voorbereiden
- Haal alle onderdelen voorzichtig uit de verpakking.
- Remove any protective films, stickers, or foam inserts from the robot and the station.
- Zorg ervoor dat alle onderdelen die in paragraaf 2 worden vermeld, aanwezig en onbeschadigd zijn.
3.2 Placing the Self-Emptying and Mop Cleaning Station
- Place the station on a hard, level surface against a wall.
- Ensure there is at least 1 meter (3 feet) of clear space in front of the station and 0.5 meters (1.5 feet) on either side to allow the robot to dock properly.
- Keep the station away from direct sunlight, heat sources, and areas with high humidity.
- Sluit de voedingsadapter aan op het laadstation en vervolgens op een stopcontact.
3.3 Het vullen van de schoonwatertank
- Open the lid of the clean water tank on the station.
- Fill the tank with clean tap water up to the MAX line. Do not use detergents or cleaning solutions not approved by Cecotec.
- Close the tank lid securely.
3.4 Zijborstels installeren
- Zet de robot ondersteboven.
- Align the side brushes with the corresponding posts (L for left, R for right) and press them down until they click into place.
3.5 Eerste keer opladen
- Place the robot onto the charging contacts of the station. Ensure the charging contacts on both the robot and the station are aligned.
- The robot will begin charging automatically. Allow it to fully charge before its first use (approximately 4-6 hours).
3.6 Verbinding met mobiele applicatie
- Download the official Cecotec Conga app from your smartphone's app store.
- Follow the in-app instructions to register an account and connect your Conga Z100 X-Treme robot. This typically involves connecting to the robot's Wi-Fi network during the setup process.
4. Gebruiksaanwijzing
4.1 In-/uitschakelen
- Inschakelen: Press and hold the power button on the robot until the indicator lights illuminate.
- Uitschakelen: Houd de aan/uit-knop ingedrukt totdat de indicatielampjes uitgaan.
4.2 Een reinigingscyclus starten
- Ensure the robot is fully charged and the clean water tank is filled (for mopping).
- Press the clean button on the robot or use the mobile app to start a cleaning cycle. The robot will automatically leave the station and begin cleaning.
- To pause cleaning, press the clean button once. Press again to resume.
- To send the robot back to the station, press the home button on the robot or use the app.
4.3 Reinigingsmodi
The robot offers various cleaning modes accessible via the mobile application:
- Automatische modus: De robot reinigt op intelligente wijze het gehele in kaart gebrachte gebied.
- Spot-modus: Cleans a specific small area with concentrated effort.
- Edge-modus: Reinigt langs muren en meubelranden.
- Zonereiniging: Allows you to define specific areas on the map for cleaning.
4.4 AI Navigation and Obstacle Avoidance
The Conga Z100 X-Treme utilizes AI with LaserEye technology for precise navigation. It identifies small objects, different floor types, and dirt levels, adapting its cleaning strategy accordingly. This allows it to navigate complex environments and avoid obstacles effectively.
4.5 AquaCycle Professional Mopping
The AquaCycle system ensures continuous mopping with clean water. The robot wets the bimaterial mop with clean water and wrings out dirty water into a separate tank, providing efficient and hygienic floor cleaning.
4.6 Wet&Protect Technology
The robot's intelligent mopping adapts to different surfaces. Its bimaterial mop provides deep cleaning with a super-absorbent side. When a carpet is detected, the robot activates CarpetCare mode and uses the smooth side of the mop to protect the carpet from moisture.
4.7 Zuigkracht
With an Ungravity motor providing 20000 Pa of suction power, the robot effectively cleans hidden dirt, even from high-pile carpets and deep tile grout.
5. Onderhoud
Regelmatig onderhoud zorgt voor optimale prestaties en verlengt de levensduur van uw robotstofzuiger en -dweil.
5.1 Self-Emptying Station Maintenance
- Vervangen van de stofzak: The station automatically empties the robot's dust bin into a disposable dust bag. Replace the dust bag when the indicator light on the station signals it is full (approximately every 12 weeks, depending on usage).
- Schoonwatertank: Refill with clean water before each mopping cycle.
- Vuilwatertank: Empty and rinse the dirty water tank after each mopping cycle to prevent odors and bacterial growth.
- Dweil drogen: The station dries the mop with hot air after cleaning. Ensure the mop is properly positioned for effective drying.
5.2 Reiniging van robotonderdelen
- Hoofdborstel: Regularly remove hair and debris from the main silicone brush. Use the cleaning tool provided.
- Zijborstels: Check for tangled hair or debris and clean as needed. Replace if worn or damaged.
- Bimaterial Mop Pad: Remove the mop pad after each mopping cycle and wash it thoroughly. It can be hand-washed or machine-washed (follow care instructions).
- Sensoren: Wipe the cliff sensors, wall sensors, and charging contacts with a clean, dry cloth to ensure proper function.
- Wielen: Verwijder al het haar en ander vuil van de wielen van de robot.
6. Probleemoplossing
If you encounter issues with your Conga Z100 X-Treme, refer to the following common problems and solutions:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Robot gaat niet aan. | Batterij bijna leeg; aan/uit-knop niet goed ingedrukt. | Place robot on charging station; press and hold power button for 3 seconds. |
| Robot kan laadstation niet vinden. | Station obstructed; robot too far from station. | Zorg voor voldoende vrije ruimte rondom het station; plaats de robot handmatig dichter bij het station. |
| Slechte reinigingsprestaties. | Brushes or filters dirty/worn; dust bin full. | Clean/replace brushes and filters; empty dust bin. |
| Robot loopt vaak vast. | Obstacles (cables, small objects); uneven surfaces. | Clear the cleaning area of obstacles; use virtual walls/no-go zones in app. |
| Problemen met de app-connectiviteit. | Incorrect Wi-Fi password; router too far; app outdated. | Verify Wi-Fi credentials; move robot closer to router; update app; reset robot's Wi-Fi. |
| Dweilen laat strepen achter of is niet effectief. | Mop pad dirty/worn; clean water tank empty; dirty water tank full. | Clean/replace mop pad; refill clean water tank; empty dirty water tank. |
| Fout in de waterpomp. | Pump malfunction; blockage in water lines. | Check for blockages; contact customer support if issue persists. |
For persistent issues not covered here, please refer to the official Cecotec support channels.
7. Specificaties
| Functie | Detail |
|---|---|
| Merk | Cecotec |
| Modelnaam | Conga Z100 X-Treme |
| Modelnummer | A01_EU01_119672 |
| Zuigkracht | 20000 jaar |
| Batterijcapaciteit | 5200mAh |
| Navigatietechnologie | AI with LaserEye |
| Dweilsysteem | AquaCycle Professional Mopping, Wet&Protect Technology, Bimaterial XXL Mop |
| Zelfledigend station | Yes, with hot air mop drying |
| Stofzak capaciteit | 3 liter |
| Capaciteit van de schoonwatertank | 3 liter |
| Capaciteit van de vuilwatertank | 3 liter |
| Afmetingen robot (L x B x H) | 35.2x35.2x10.5cm |
| Robotgewicht | 4.92 kg |
| Deeltage | 240 Volt |
| Controletype | App-besturing |
8. Garantie en ondersteuning
Your Cecotec Conga Z100 X-Treme Robot Vacuum and Mop is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical support, service, or to inquire about replacement parts and consumables, please contact Cecotec customer service through their official webwebsite of de contactgegevens die u in uw garantiedocumentatie vindt.
Always ensure you have your product model number (A01_EU01_119672) and proof of purchase available when contacting support.
