1. Inleiding
Thank you for choosing the Mova E40 Ultra Robot Vacuum and Mop. This device is designed to provide efficient and autonomous cleaning for your home, combining powerful vacuuming with effective mopping. Please read this manual thoroughly before using the product to ensure proper operation, maintenance, and safety.

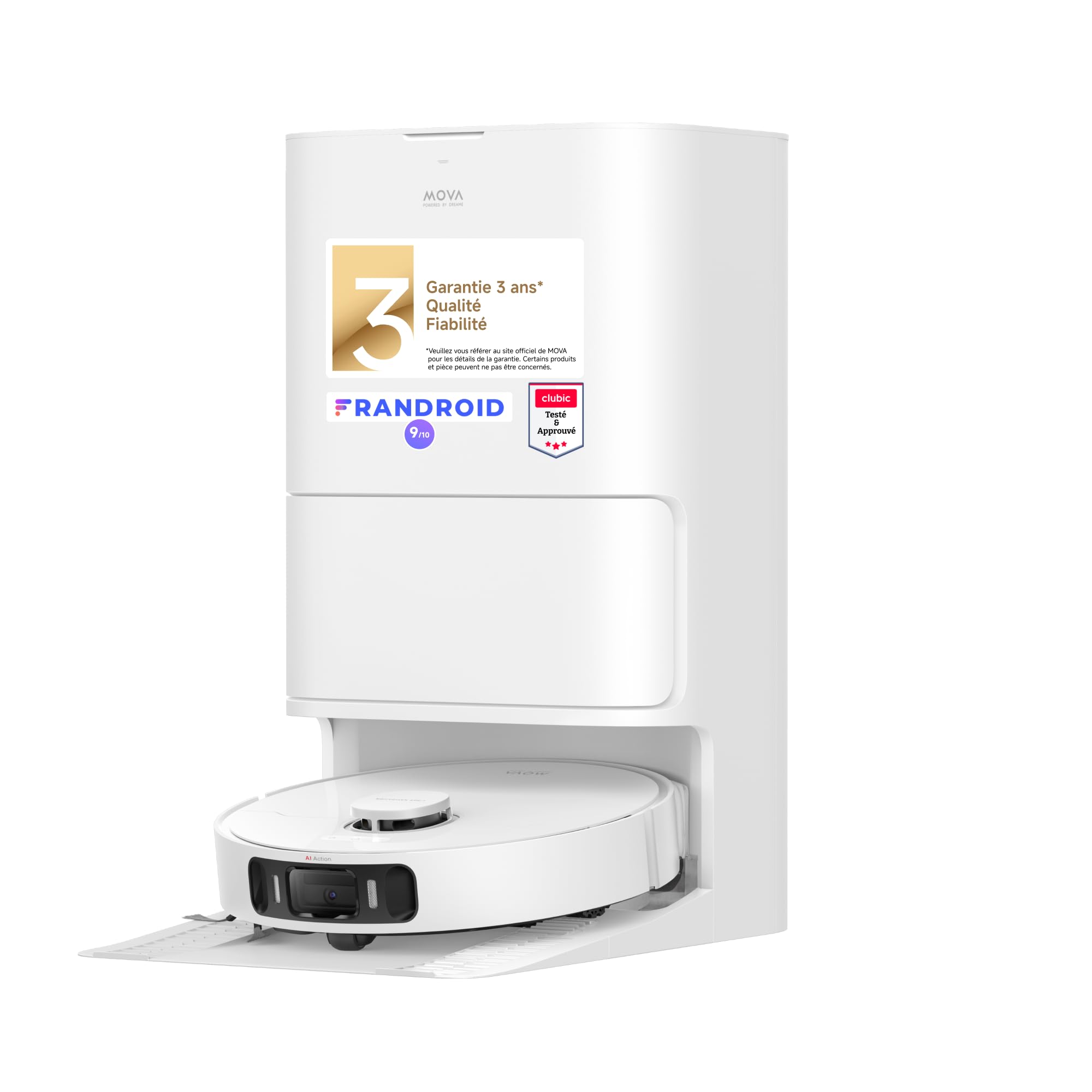

The Mova E40 Ultra robot vacuum and mop with its all-in-one base station.
2. Veiligheidsinstructies
Om het risico op letsel of schade te verminderen, dient u deze veiligheidsinstructies zorgvuldig te lezen en te bewaren voor toekomstig gebruik.
- Dit apparaat kan worden gebruikt door kinderen van 8 jaar en ouder en door personen met beperkte fysieke, sensorische of mentale vermogens of met een gebrek aan ervaring en kennis, mits zij onder toezicht staan of instructies hebben gekregen over het veilige gebruik van het apparaat en zij de gevaren begrijpen die ermee gepaard gaan.
- Kinderen moeten onder toezicht staan om ervoor te zorgen dat ze niet met het apparaat spelen.
- Kinderen mogen het apparaat niet zonder toezicht schoonmaken en onderhouden.
- Gebruik de robot niet in een omgeving met open vuur of kwetsbare voorwerpen.
- Ensure the charging base is placed on a flat surface against a wall, with adequate clear space around it.
- Gebruik de robot niet om groot vuil, vloeistoffen of brandende voorwerpen op te zuigen.
- Maak de borstels en sensoren regelmatig schoon om optimale prestaties te behouden.
3. Inhoud van het pakket
Controleer of alle componenten in het pakket aanwezig zijn:
- Mova E40 Ultra Robot Vacuum and Mop
- All-in-One Auto-Empty and Mop Washing Base Station
- Stofzak (voorgeïnstalleerd of reserve)
- Schoonwatertank
- Vuilwatertank
- Dweilpads (voorgeïnstalleerd of reserve)
- Side Brush (pre-installed or spare)
- Hoofdborstel
- HEPA-filter (voorgeïnstalleerd of reserve)
- Stroomkabel
- Gebruiksaanwijzing
4. Product voorbijview
Belangrijkste kenmerken
- Krachtige zuigkracht van 19,000 Pa: MOVA's exclusive 90,000 rpm TurboForce 6 motor delivers 19,000 Pa suction power for thorough, quiet cleaning.
- MaxiReach Mopping Technology: The automatic extendable mop allows the E40 Ultra to easily reach confined spaces, cleaning gaps under furniture and narrow corners up to 4 cm deep.
- Anti-klit zijborstel: Features a 45° angled rubber strip that guides hair downwards, dislodging it from the brush for tangle-free operation.
- All-in-One Base: Provides automatic mop washing, hot air drying for mop pads, and an automatic emptying system with a 3.2 L dust bag for up to 75 days of autonomous cleaning.
- Monoline Laser Obstacle Avoidance: Detects and bypasses objects, limiting collisions and ensuring uninterrupted cleaning.
- Integrated 80 mL Water Tank: Offers precise humidification of mop pads with three flow rates for various cleaning needs.
- Ultrasone tapijtdetectie: Automatically lifts mop pads by 10.5 mm when a carpet is detected to prevent wetting, and optimizes suction for deep carpet cleaning.
- 5200 mAh-batterij: Provides extended cleaning time with 30% faster recharging.
- Slimme kaartweergave: Creates detailed 3D maps of your home for customized cleaning zones, no-go areas, and scheduling via the smartphone app.
Componenten
Familiarize yourself with the main components of your Mova E40 Ultra and its base station.

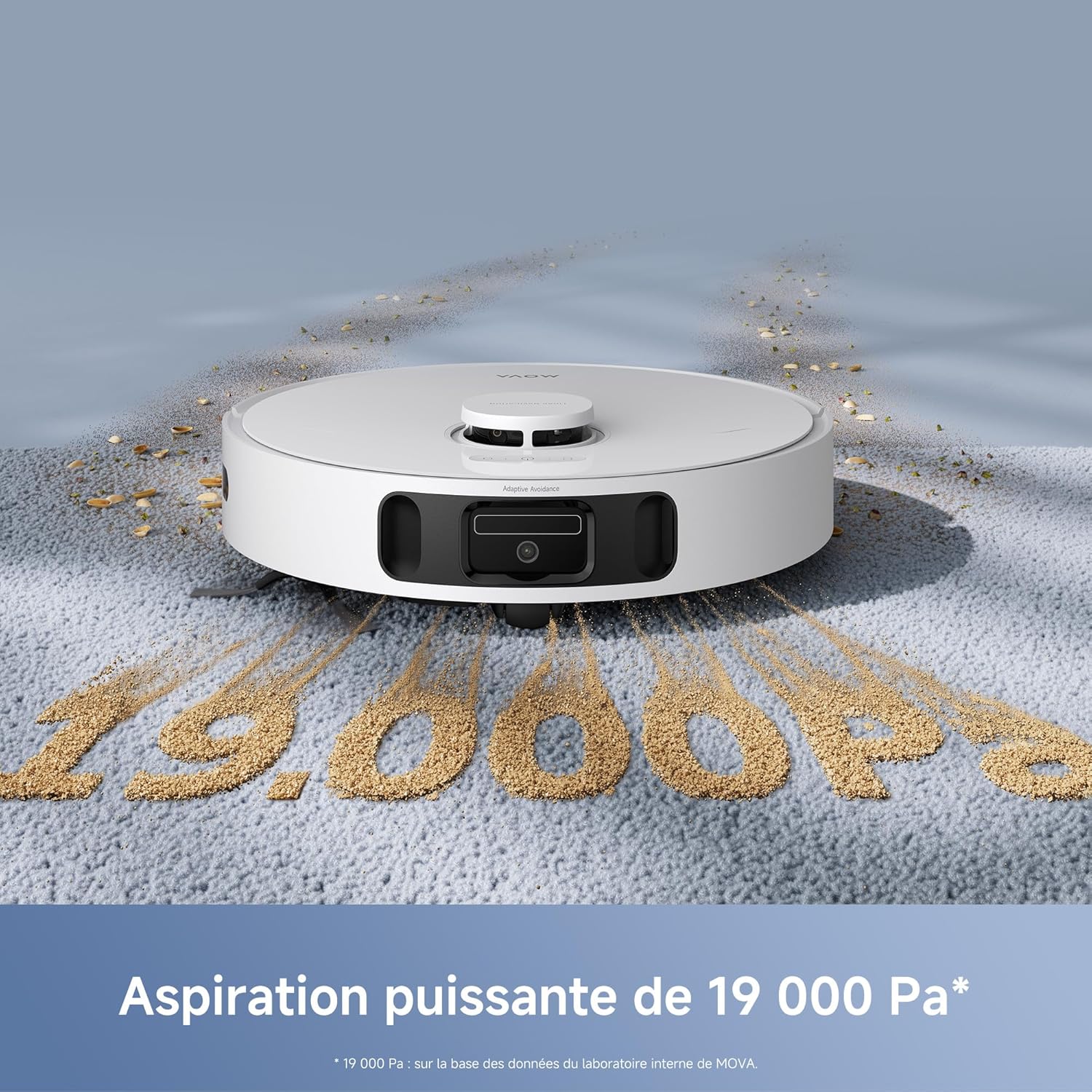

The Mova E40 Ultra robot vacuum on a carpet, illustrating its powerful 19,000 Pa suction capability, effectively collecting debris.
The Mova E40 Ultra robot mop extending its mop pads to clean close to furniture edges, showcasing the MaxiReach technology.
Een onderkant view of the Mova E40 Ultra, highlighting the anti-tangle side brush designed to prevent hair entanglement during cleaning.
The Mova E40 Ultra robot vacuum navigating a room, using its monoline laser system to detect and avoid obstacles like slippers and furniture.
5. Instellen
5.1 Uitpakken
Carefully remove all components from the packaging. Remove any protective films or stickers from the robot and the base station.
5.2 Plaatsing van het basisstation
Place the all-in-one base station on a hard, level surface against a wall. Ensure there is at least 0.5 meters (1.6 feet) of clear space on both sides and 1.5 meters (5 feet) in front of the base for optimal robot navigation and docking. Connect the power cord to the base station and plug it into a power outlet.
The Mova E40 Ultra robot docked at its all-in-one base station, showing the clean and dirty water tanks for automatic mop washing and refilling.
5.3 Initiële kosten
Place the robot onto the charging base. Ensure the charging contacts on the robot align with those on the base. The robot will automatically begin charging. For first-time use, fully charge the robot before operation (approximately 6 hours).
The Mova E40 Ultra robot vacuum charging at its base station, indicated by a lightning bolt icon.
5.4 App downloaden en verbinden
- Download the Mova app from your smartphone's app store (iOS or Android).
- Open de app en maak een account aan.
- Follow the in-app instructions to add your Mova E40 Ultra device. This typically involves pressing a button on the robot to enter pairing mode and connecting to your home Wi-Fi network.
The Mova E40 Ultra robot vacuum alongside a smartphone displaying its 3D mapping feature, allowing for customized cleaning zones and settings.
5.5 Initiële mapping
Once connected, initiate a mapping run through the app. The robot will navigate your home to create a detailed map without cleaning. This map is essential for advanced features like zone cleaning and setting no-go areas.
6. Gebruiksaanwijzing
6.1 Reiniging starten/stoppen
- Via app: Tap 'Start Cleaning' on the main screen of the Mova app.
- Via robotknop: Druk één keer op de aan/uit-knop van de robot om het schoonmaken te starten of te pauzeren.
6.2 Reinigingsmodi
The Mova E40 Ultra offers various cleaning modes, selectable via the app:
- Alleen vacuüm: Voor het verzamelen van droog puin.
- Alleen dweilen: Voor natte reiniging (zorg ervoor dat het waterreservoir gevuld is).
- Stofzuigen en dweilen: Simultaneous vacuuming and mopping. The robot will lift mops on carpets.
- Zonereiniging: Select specific areas on the map for cleaning.
- Vlekreiniging: Geef de robot de opdracht om een klein, geconcentreerd gebied schoon te maken.
6.3 Water Level Adjustment for Mopping
The integrated 80 mL water tank allows for precise control over mop pad humidification. Adjust the water flow rate (Low, Medium, High) via the Mova app to suit different floor types and cleaning needs.
Een close-up view of the Mova E40 Ultra's integrated 80ml water tank, which precisely humidifies the mop pads during operation.
6.4 Planning en aanpassing
Use the Mova app to:
- Stel schoonmaakschema's in voor specifieke tijden en dagen.
- Define no-go zones or virtual walls to restrict the robot from certain areas.
- Pas de zuigkracht en de waterstroom aan.
- Manage and edit saved maps.
7. Onderhoud
Regular maintenance ensures optimal performance and extends the lifespan of your Mova E40 Ultra.
7.1 All-in-One Base Maintenance
- Vervangen van de stofzak: The 3.2 L dust bag in the base station needs replacement approximately every 75 days, depending on usage. The app will notify you when it's full.
- Schoon-/vuilwatertanks: Regularly empty the dirty water tank and refill the clean water tank. Clean both tanks periodically to prevent mold or odors.
- Dweilwasbak: Clean the mop washing tray in the base station to remove accumulated dirt and debris.
7.2 Robotcomponenten
- Dweilpads: The robot automatically washes and hot-air dries the mop pads. Replace mop pads when they show signs of wear or reduced cleaning effectiveness.
- Zijborstel: Regularly check and clean the anti-tangle side brush for any hair or debris. Replace if bristles are damaged.
- Hoofdborstel: Remove the main brush cover and clean the main brush. Use the cleaning tool to cut and remove tangled hair.
- HEPA filter: Tap the filter to remove dust or rinse it under running water (ensure it's completely dry before reinstallation). Replace every 3-6 months.
- Sensoren: Wipe all sensors (cliff sensors, obstacle avoidance sensors, charging contacts) with a clean, dry cloth.
Een gedetailleerde view of the optional CleanChop Brush 3.0, showing its precision cutting heads designed to prevent hair entanglement on the main brush.
8. Probleemoplossing
If you encounter issues with your Mova E40 Ultra, refer to the following common problems and solutions:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Robot gaat niet aan en laadt niet op. | Low battery; charging contacts are dirty; power cord not connected. | Ensure robot is on the charging base; clean charging contacts; check power connection. |
| Robot loopt vaak vast. | Obstacles in the path; sensors are dirty. | Clear obstacles; clean all sensors. |
| Poor vacuuming performance. | Dust bag full; main brush or side brush tangled; filter clogged. | Replace dust bag; clean brushes; clean/replace filter. |
| Poor mopping performance or streaks. | Water tank empty; mop pads dirty or worn; incorrect water flow setting. | Refill water tank; clean/replace mop pads; adjust water flow in app. |
| De robot kan niet terugkeren naar het laadstation. | Base station obstructed; robot too far from base; base station not powered. | Ensure clear path to base; place robot closer to base; check base power. |
For further assistance, please refer to the Mova app or contact customer support.
9. Specificaties
| Functie | Specificatie |
|---|---|
| Merk | Mova |
| Modelnaam | Mova E40 Ultra |
| Modelnummer | RLE21SE |
| Zuigkracht | 19,000 jaar |
| Batterijtype | Lithium-ion |
| Batterijcapaciteit | 5200mAh |
| Dust Bag Capacity (Base) | 3.2 L (up to 75 days autonomous cleaning) |
| Integrated Water Tank Capacity | 80 ml |
| Productafmetingen (L x B x H) | 35L x 35B x 9.7H cm |
| Artikelgewicht | 12.35 kilogram |
| Geluidsniveau | 56 decibel |
| Filtertype | HEPA |
| Controlemethoden | App Control, Button Control, Voice Control, Remote Control, Touch |
| Speciale kenmerken | Anti-Fall, Anti-collision, Automatic Dust Collection, Advanced Customized Cleaning, Smart Mapping, MaxiReach Mopping, Anti-Tangle Side Brush, Ultrasonic Carpet Detection |
| Aanbevolen toepassingen | Floor Cleaning, Carpet, Hard Floors |
| Land van herkomst | China |
A comparison table highlighting key features and differences between the Mova E40 Ultra and Mova E30 Ultra robot vacuums, including suction power, mopping technology, and base station capabilities.
10. Garantie en ondersteuning
10.1 Garantie-informatie
The Mova E40 Ultra comes with a 3 jaar garantie, ensuring reliability and quality. Please retain your proof of purchase for warranty claims.
10.2 Klantenservice
For technical support, troubleshooting assistance, or warranty inquiries, please contact Mova customer service through the official Mova website or the support section within the Mova app. You can also refer to the FAQ section on the Mova webWebsite voor veelgestelde vragen.
