Invoering
This manual provides essential information for the safe and efficient use of your Indesit IM 862 MY TIME IT front-load washing machine. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.
Instellen
1. Uitpakken
Remove all packaging materials from the washing machine. Check the appliance for any transport damage. Ensure all accessories are present. Dispose of packaging materials responsibly.
2. Positionering
Place the washing machine on a firm, flat, and stable floor. Ensure there is adequate space around the appliance for ventilation and access. Avoid placing it on carpets or uneven surfaces that could obstruct ventilation openings.
Image: The Indesit IM 862 MY TIME IT washing machine positioned in a dedicated laundry area, demonstrating typical installation space requirements.
3. Nivellering
Adjust the adjustable feet at the bottom of the washing machine to ensure it is perfectly level. Use a spirit level to verify. Proper leveling prevents excessive vibration and noise during operation.
4. Wateraansluiting
Connect the cold water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during draining.
5. Elektrische verbinding
Sluit het netsnoer aan op een geaard stopcontact. Zorg ervoor dat het volumetage en frequentie overeenkomen met de specificaties van uw apparaat. Gebruik geen verlengsnoeren of adapters.
6. Afmeting
Image: Technical diagram illustrating the width (600 mm), depth (546 mm), and height (845 mm) of the washing machine, along with recommended clearances.
Gebruiksaanwijzing
1. Configuratiescherm voorbijview
The control panel features a program selector dial, function buttons, and a digital display. Familiarize yourself with these components before operating the machine.
Afbeelding: Een gedetailleerde view of the Indesit IM 862 MY TIME IT control panel, showing the program selection dial, function buttons, and digital display.
2. Wasgoed inladen
Open the washing machine door. Load laundry into the drum, ensuring not to overload the machine. An 8 kg capacity is recommended for optimal washing performance. Close the door firmly.

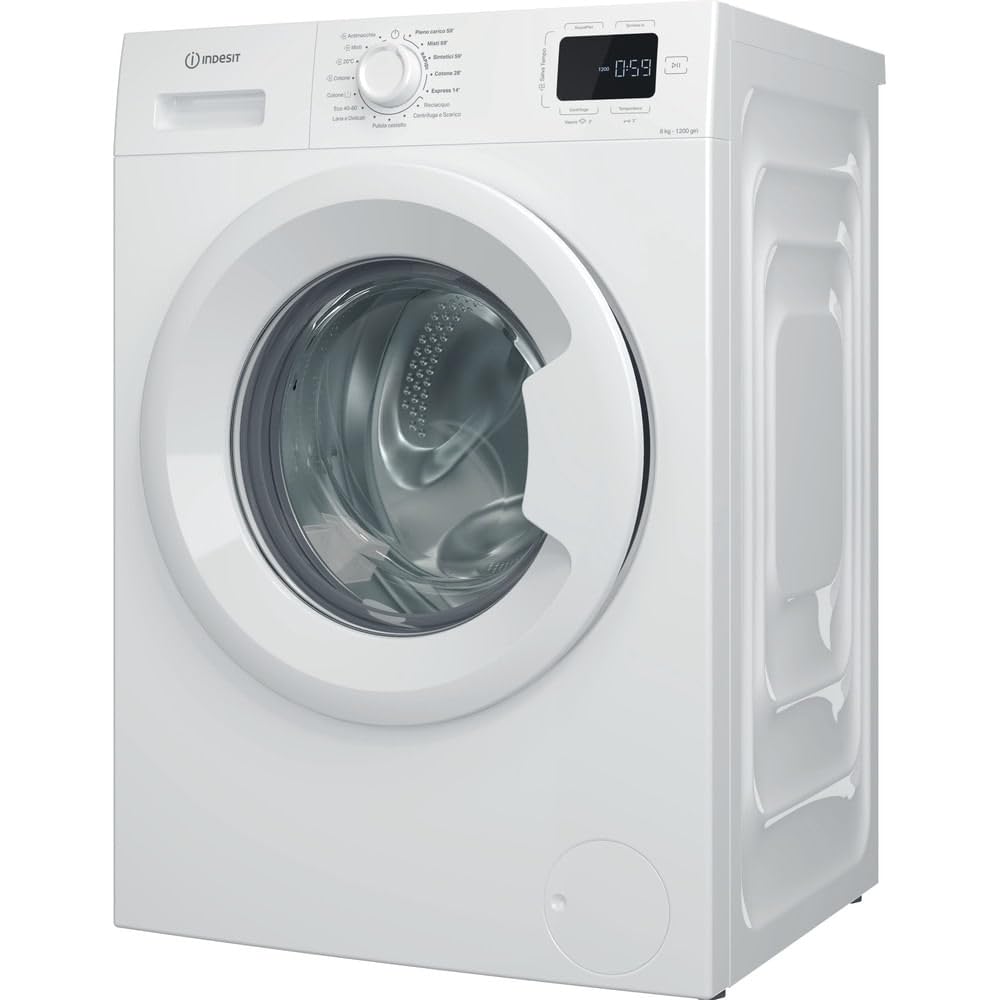

Image: The Indesit IM 862 MY TIME IT washing machine with its front door open, revealing the stainless steel drum, ready for loading laundry.
3. Wasmiddel en additieven toevoegen
Trek de wasmiddellade naar buiten. Voeg de juiste hoeveelheid wasmiddel toe aan het hoofdwasvakje en wasverzachter aan het daarvoor bestemde vakje. Raadpleeg de wasmiddelverpakking voor de aanbevolen dosering.
4. Een wasprogramma selecteren
Turn the program selector dial to choose the desired wash program. The machine offers 15 programs, including:
- Antistain: For heavily soiled items with stubborn stains.
- Gemengd: For a mixed load of cottons and synthetics.
- 20°C: Energy-saving wash for lightly soiled items.
- Katoen: Standaardprogramma voor katoenen kledingstukken.
- Eco 40-60: Energy-efficient program for normally soiled cottons at 40-60°C.
- Wool & Delicates: Gentle wash for wool and delicate fabrics.
- Trommel schoon: Programma voor het reinigen van de trommel van de wasmachine.
- Full Load 59': Quick wash for a full load in 59 minutes.
- Synthetisch: Voor synthetische kledingstukken.
- Cotton 29': Fast wash for cottons in 29 minutes.
- Express 14': Ultra-fast wash for small, lightly soiled loads.
- Spoelen: Extra spoelcyclus.
- Centrifugeren en aftappen: Voert het water af en voert een centrifugecyclus uit.
5. Starting and Pausing
Press the Start/Pause button to begin the selected wash program. To pause a running program, press the Start/Pause button again. Press it once more to resume.
Onderhoud
1. Het wasmiddelbakje schoonmaken
Regularly remove and clean the detergent dispenser drawer to prevent detergent residue buildup. Rinse it under running water and use a brush if necessary.
2. Het pompfilter reinigen
Periodically clean the pump filter, located at the bottom front of the machine. This prevents blockages and ensures proper drainage. Refer to the diagram in the full manual for exact location and procedure.
3. De buitenkant schoonmaken
Veeg de buitenkant van de wasmachine af met een zachte, vochtige doek.amp doek. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
4. De deurafdichting schoonmaken
After each wash, wipe the rubber door seal to remove any lint or residue, preventing mold and odors.
Probleemoplossing
Als u problemen ondervindt met uw wasmachine, raadpleeg dan de volgende veelvoorkomende problemen en oplossingen:
- Machine start niet: Controleer of de stekker in het stopcontact zit, de deur goed gesloten is en de Start/Pauze-knop is ingedrukt. Controleer of de waterkraan openstaat.
- Water does not fill: Check if the water inlet hose is connected and the water tap is open. Ensure there are no kinks in the hose.
- Water loopt niet weg: Check if the drain hose is kinked or blocked. Clean the pump filter.
- Overmatige trillingen of lawaai: Ensure the machine is level and all transport bolts have been removed. Check that the load is balanced inside the drum.
- Wasmiddelresten in de dispenser: Clean the detergent dispenser. Ensure water pressure is adequate.
For more complex issues, contact customer support.
Specificaties
| Functie | Specificatie |
|---|---|
| Modelnaam | IK BEN 862 MIJN TIJD HET |
| Type lading | Voorlading |
| Capaciteit | 8 kg |
| Maximale centrifugeersnelheid | 1200 tpm |
| Energie-efficiëntieklasse | A |
| Geluidsniveau (centrifugeren) | 74dB |
| Aantal wasprogramma's | 15 |
| Afmetingen (B x D x H) | 600mm x 546mm x 845mm |
| Controletype | Aanraken |
| Speciale kenmerken | Silent wash function, Advanced wash programs, Compact design |
Image: The energy label for the Indesit IM 862 MY TIME IT, indicating its Class A energy efficiency, 8 kg capacity, 47 kWh/100 cycles energy consumption, 3:38 program duration, 45 L water consumption, and 74 dB spin noise level.
Garantie en ondersteuning
Your Indesit IM 862 MY TIME IT washing machine comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions. For technical assistance, spare parts, or customer service, please contact your local Indesit service center or authorized dealer. Ensure you have your model number and purchase date available when contacting support.
