1. Inleiding
Thank you for choosing the Dreo 110-Pint Smart Dehumidifier. This appliance is designed to efficiently remove excess moisture from large spaces up to 4500 square feet, such as basements, bedrooms, living rooms, bathrooms, and laundry rooms. Featuring smart controls, multiple operating modes, and dual drainage options, it provides a comfortable and healthy environment by maintaining optimal humidity levels. Please read this manual thoroughly before operation to ensure proper use and maintenance.
2. Belangrijke veiligheidsinstructies
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when operating this appliance.
- Lees alle instructies voordat u de luchtontvochtiger gebruikt.
- Dit apparaat is uitsluitend bestemd voor gebruik binnenshuis.
- Zorg ervoor dat de voeding overeenkomt met de voltagzoals vermeld op het classificatielabel.
- Gebruik de luchtontvochtiger niet als het snoer of de stekker beschadigd is.
- Always unplug the unit before cleaning, servicing, or moving.
- Blokkeer de luchtinlaten en -uitlaten niet.
- Keep the unit upright for at least 24 hours before plugging it in after transport.
- The Dreo Dehumidifier is ETL-certified to meet stringent electrical safety standards, featuring a 90° tilt waterproof design that automatically powers off when tilted, along with comprehensive thermal protection (23°F to 248°F) to prevent overheating and 15A overcurrent protection against power surges.
3. Product voorbijview
3.1. Components
The Dreo 110-Pint Smart Dehumidifier is designed for efficient and user-friendly operation. Below are the main components:
- Configuratiescherm: Located on the top, with touch buttons and a digital display.
- Luchtuitlaat: Top-mounted for efficient moisture expulsion.
- Luchtinlaat: Rear-mounted for air intake.
- Waterreservoir: Front-loading, 2-gallon (8L) capacity with a visible water level indicator.
- Drain Hose Outlet: Located at the rear for continuous drainage.
- Zwenkwielen: 360° smooth-rolling wheels for easy mobility.
- Draaggrepen: Integrated on the sides for convenient lifting.
- Wasbaar filter: Easily accessible for cleaning to maintain air quality.

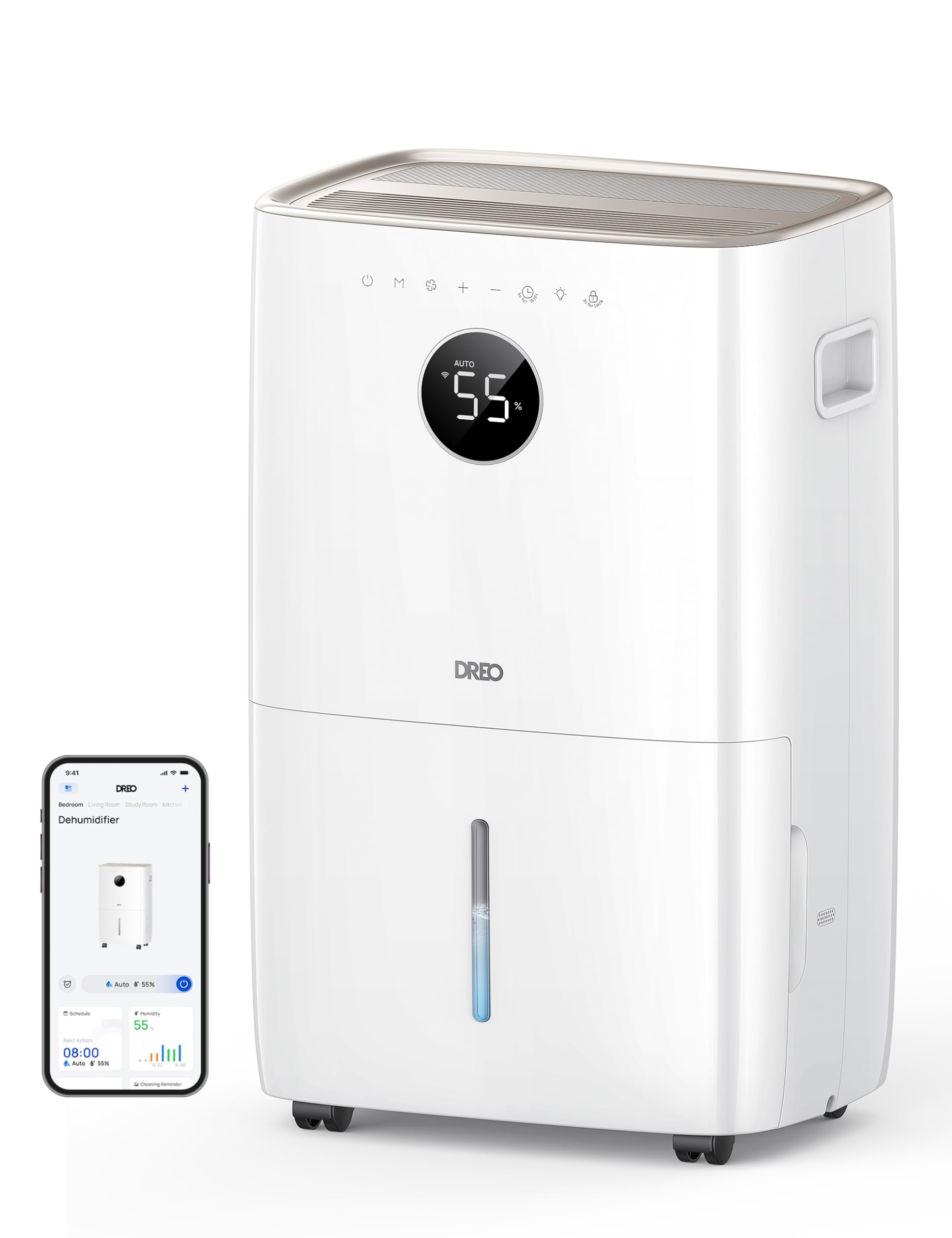

Afbeelding: Voorzijde view of the Dreo 110-Pint Smart Dehumidifier, highlighting its compact design and dimensions (11.3"D x 15.4"W x 24.4"H).
3.2. Bedieningspaneel
The intuitive control panel allows for easy operation and monitoring of your dehumidifier.
- Aan/uit-knop: Hiermee schakelt u het apparaat in of uit.
- Modusknop: Cycles through Auto, Comfort, and Continuous modes.
- Ventilatorsnelheidsknop: Hiermee kunt u de ventilatorsnelheid aanpassen (Laag, Gemiddeld, Hoog).
- Humidity Adjustment Buttons (+/-): Stelt het gewenste vochtigheidsniveau in de automatische modus in.
- Timerknop: Sets a 24-hour timer for automatic on/off.
- Wi-Fi-indicator: Geeft de status van de wifi-verbinding weer.
- Kinderslotknop: Vergrendelt het bedieningspaneel om onbedoelde wijzigingen te voorkomen.
- Filter reset-indicator: Lights up when the filter needs cleaning.
- Water Full Alert: Illuminates when the water tank is full, and the unit stops operation.
- Ontdooi-indicator: Activates automatically at 41°F (5°C) for optimal performance in cold environments.
Image: Close-up of the dehumidifier's control panel, showing the digital display set to 55% humidity in Auto Mode, with various function icons.
4. Instellen
4.1. Uitpakken en plaatsen
- Haal de luchtontvochtiger voorzichtig uit de verpakking.
- Place the unit upright on a flat, stable surface. Ensure there is at least 8 inches (20 cm) of space around the air inlets and outlets for proper airflow.
- Laat het apparaat minstens 24 uur rechtop staan voordat u het aansluit, zodat het koelmiddel zich kan stabiliseren.
4.2. Stroomaansluiting
Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the electrical requirements of the dehumidifier.
4.3. Afvoeropties
The Dreo dehumidifier offers two drainage methods: manual emptying of the water tank or continuous drainage via a hose.
Image: The dehumidifier illustrating both the manual water tank removal and the continuous drainage hose connection.
4.3.1. Handmatige drainage
- When the water tank is full, the unit will automatically stop and display a "Water Full" alert.
- Carefully pull out the water tank from the front of the unit using the integrated handle.
- Giet het verzamelde water in een gootsteen of afvoer.
- Slide the empty water tank back into the unit until it clicks into place. The dehumidifier will resume operation.
4.3.2. Continue drainage
- Locate the drain hose outlet at the rear of the dehumidifier.
- Remove the rubber stopper from the outlet.
- Connect the provided drain hose (or a standard garden hose) to the outlet. Ensure the connection is secure to prevent leaks.
- Route the hose to a suitable drain point (e.g., floor drain, sink, or sump pump). Ensure the hose is sloped downwards to allow gravity to drain the water and is free of kinks.
- The dehumidifier will now continuously drain water without needing to empty the tank manually.
5. Gebruiksaanwijzing
Druk op de Aan/uit-knop to turn the dehumidifier on. The unit will start operating in its last used mode and settings.
5.1. Bedrijfsmodi:
Druk op de Modusknop to cycle through the available operating modes:
- Automatische modus: The dehumidifier intelligently adjusts fan speed to maintain your target humidity level within a 5% tolerance. Use the +/- knoppen to set your desired humidity (e.g., 45-55% is generally recommended).
- Comfortmodus: The unit operates to maintain a comfortable humidity level based on ambient temperature.
- Continue modus: The dehumidifier runs continuously at the selected fan speed, regardless of the ambient humidity. This is ideal for very damp conditions or for continuous drainage.
5.2. Ventilatorsnelheid aanpassen
In Auto or Continuous mode, press the Ventilatorsnelheidsknop to select between Low, Medium, or High fan speeds.
5.3. Timerfunctie
Druk op de Timer-knop to set a desired operating duration (from 1 to 24 hours). The unit will automatically turn on or off after the set time has elapsed.
5.4. Smart Control (DREO App)
The Dreo 110-Pint Smart Dehumidifier can be controlled remotely via the DREO app on your smartphone or through voice assistants like Alexa and Google Home.
Image: A smartphone displaying the DREO app interface, showing remote control capabilities for the dehumidifier.
5.4.1. Connecting to the DREO App
- Download the DREO app from your smartphone's app store (available on iOS and Android).
- Maak een account aan of log in.
- Follow the in-app instructions to add your Dreo 110-Pint Smart Dehumidifier (Model DH711S). Ensure your phone is connected to a 2.4GHz Wi-Fi network.
Video: This video demonstrates the process of downloading the DREO app and creating a new user account to manage your smart dehumidifier.
Video: This video provides a step-by-step guide on how to connect your Smart Dehumidifier DH711S to the DREO app for remote control and smart features.
5.4.2. App-functies
Through the DREO app, you can:
- Monitor de luchtvochtigheid in realtime.
- Stel schema's en timers in.
- Adjust operating modes and fan speeds.
- Receive notifications (e.g., water tank full, filter cleaning reminder).
- Control the unit using voice commands with Alexa or Google Home.
6. Onderhoud
Regelmatig onderhoud zorgt ervoor dat uw luchtontvochtiger optimaal presteert en lang meegaat.
6.1. Het luchtfilter reinigen
The filter reset indicator will light up after approximately 250 hours of operation, signaling that the filter needs cleaning.
- Haal de stekker van de luchtontvochtiger uit het stopcontact.
- Verwijder het luchtfilter aan de achterkant van het apparaat.
- Wash the filter with clean water (no hotter than 104°F / 40°C) and a mild detergent.
- Spoel het grondig af en laat het volledig aan de lucht drogen voordat u het opnieuw installeert.
- Once the filter is reinstalled, plug in the unit and press the Filter Reset-knop for 3 seconds to clear the indicator.
Image: A hand removing the washable air filter from the back of the dehumidifier for cleaning.
6.2. Het waterreservoir reinigen
Reinig het waterreservoir regelmatig om schimmelvorming te voorkomen.
- Remove the water tank as described in the Manual Drainage section.
- Reinig de tank met warm water en een mild reinigingsmiddel.
- Rinse thoroughly and dry completely before placing it back into the unit.
6.3. Algemene schoonmaak
Veeg de buitenkant van de luchtontvochtiger schoon met een zachte, damp lap. Gebruik geen agressieve chemicaliën of schurende schoonmaakmiddelen.
7. Probleemoplossing
Als u problemen ondervindt met uw luchtontvochtiger, raadpleeg dan de volgende veelvoorkomende problemen en oplossingen:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Luchtontvochtiger gaat niet aan. | No power, power cord loose, water tank full. | Check power connection, ensure plug is secure, empty water tank. |
| Unit is not collecting water. | Humidity level too low, room temperature too low, air filter clogged. | Increase target humidity, ensure room temp is above 41°F (5°C), clean air filter. |
| Eenheid maakt lawaai. | Apparaat staat niet op een vlakke ondergrond, luchtfilter verstopt. | Plaats het schone luchtfilter op een vlak oppervlak. |
| Er lekt water uit het apparaat. | Water tank not properly installed, continuous drain hose is loose or kinked. | Reinstall water tank correctly, check drain hose connection and ensure no kinks. |
| Display shows fluctuating numbers. | Normal adjustment to current humidity. | This is normal operation as the sensor adjusts to ambient conditions. |
| Unit isn't defrosting automatically. | Issue with the condenser. | Neem contact op met de klantenservice voor hulp. |
8. Specificaties
| Functie | Detail |
|---|---|
| Merk | Droevig |
| Modelnaam | DR-HDH001S |
| Capaciteit | 110 Pints (at 86°F, RH 90%) / 50 Pints per Day (DOE Standard) |
| Dekkingsgebied | Tot 4500 vierkante meter |
| Watertankvolume | 2 gallon (8L) |
| Werkingsmodi | Auto, Comfort, Continuous |
| Ventilatorsnelheden | 3 (laag, gemiddeld, hoog) |
| Luchtstroomcapaciteit | 210 kubieke voet per minuut (CFM) |
| Vochtigheidsregeling | Adjustable, with ±5% precision sensor |
| Speciale kenmerken | Smart Control (DREO App, Alexa, Google Home), Auto-Defrost, 90° Tilt Waterproof Design, Thermal Protection, 15A Overcurrent Protection, Washable Filter, 360° Caster Wheels |
| Productafmetingen | 11.3"D x 15.4"B x 24.4"H |
| Artikelgewicht | 43.7 pond |
| Materiaal | Metaal, kunststof |
| Certificeringen | ETL-gecertificeerd |
9. Garantie en ondersteuning
Dreo products come with a standard warranty. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official Dreo webplaats.
9.1. Klantenservice
If you have any questions, concerns, or require assistance with your Dreo 110-Pint Smart Dehumidifier, please contact Dreo Customer Support:
- E-mailadres: ondersteuning@dreo.com
- Webwebsite: www.dreo.com
Please have your model number (DR-HDH001S) and purchase information ready when contacting support.
