1. Inleiding

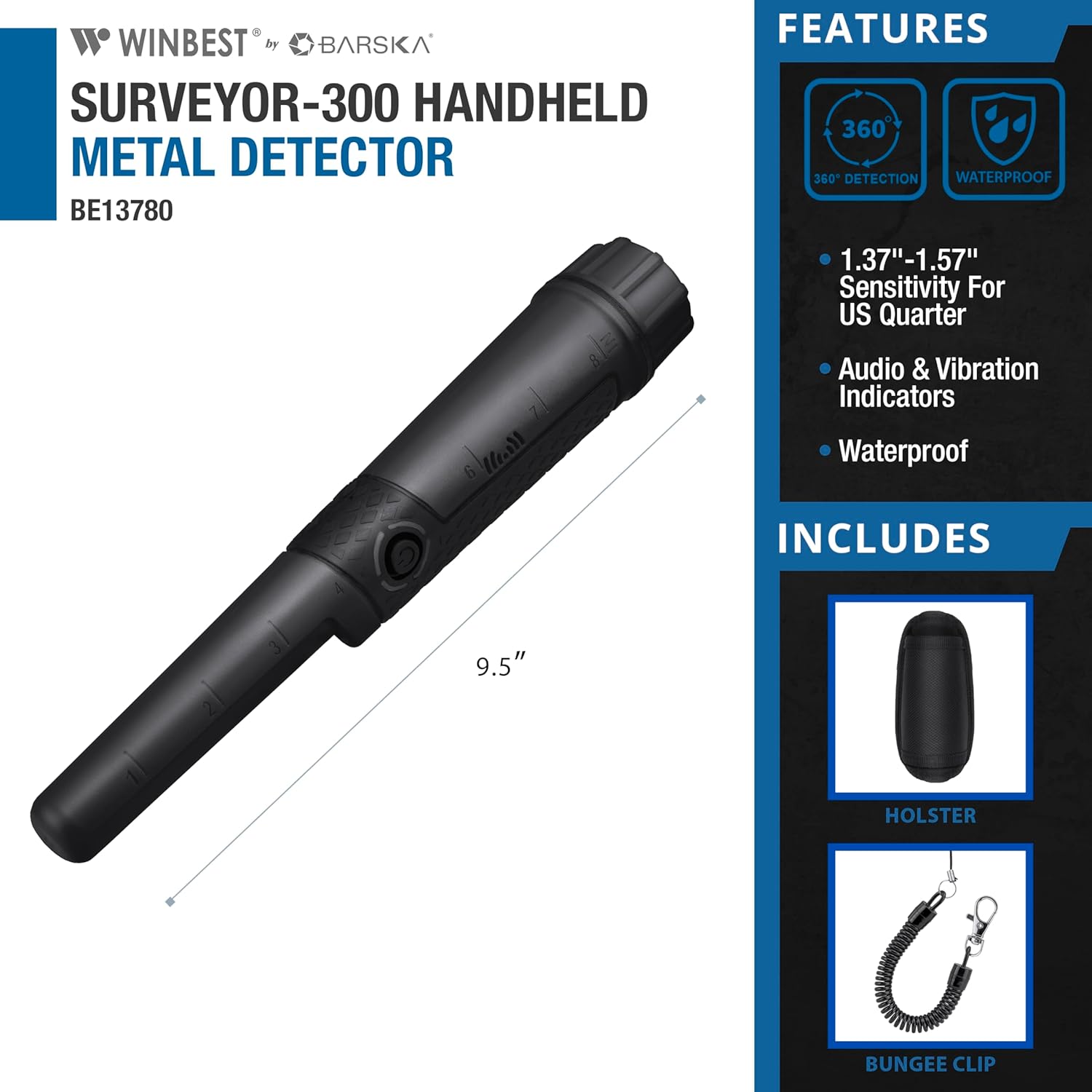

The winbest SURVEYOR-300 is a waterproof handheld pinpointer metal detector designed for precise target location. This device features an LCD display, sound and vibration alerts, and a built-in LED flashlight, making it suitable for various treasure hunting environments. This manual provides essential information for the proper setup, operation, and maintenance of your SURVEYOR-300.
2. Veiligheidsinformatie
Belangrijke veiligheidswaarschuwingen:
- Niet gebruiken in de buurt van luchthavens, hoogspanningsleidingen of andere gevoelige gebieden.
- Keep away from water; this detector is waterproof but not submersible. Avoid prolonged submersion.
- Always ensure the battery compartment is securely sealed before use, especially in wet conditions.
- Gooi batterijen op verantwoorde wijze weg, volgens de plaatselijke voorschriften.
3. Inhoud van het pakket
Controleer of alle artikelen in uw pakket aanwezig zijn:
- winbest SURVEYOR-300 Pinpointer Metal Detector
- Holster
- Bungee Clip/Lanyard
- Gebruikershandleiding (dit document)
4. Producteigenschappen
The SURVEYOR-300 is equipped with several features to enhance your metal detecting experience:
- Waterdicht ontwerp: Allows for use in wet conditions, though not fully submersible.
- LCD-scherm: Provides visual feedback on detection strength and settings.
- Sound & Vibration Alerts: Notifies you of detected metal objects through audible tones and tactile vibrations.
- Ingebouwde LED-zaklamp: Illuminates your search area in low-light conditions.
- 360-graden detectie: Offers broad detection coverage around the probe tip.
- Instelbare gevoeligheid: Fine-tune detection for various target sizes and ground conditions.
5. Instellen
5.1 Batterij installatie
- Unscrew the battery cap located at the end of the handle by turning it counter-clockwise.
- Insert a 9V battery (not included) into the battery compartment, ensuring correct polarity (+/-).
- Screw the battery cap back on clockwise until it is securely tightened to maintain the waterproof seal.
5.2 Attaching the Holster and Lanyard
The included holster and bungee clip provide convenient carrying and security for your pinpointer.
- Attach the bungee clip to the loop on the pinpointer's battery cap.
- Secure the other end of the bungee clip to your belt or gear.
- Slide the pinpointer into the holster for easy access and protection. The holster can be attached to a belt using its integrated loop.
6. Gebruiksaanwijzing
6.1 In-/uitschakelen
- To power on, press and hold the power button (usually located on the side of the unit) for approximately 2 seconds until you hear a short beep and/or feel a vibration.
- To power off, press and hold the power button again for approximately 2 seconds until the unit shuts down.
6.2 Metaaldetectie
- Once powered on, hold the pinpointer with the tip pointed towards the area you wish to scan.
- Slowly sweep the tip of the pinpointer over the target area.
- When a metal object is detected, the unit will emit an audible alert and/or vibrate. The intensity of the alert typically increases as you get closer to the target.
- Use the LCD display to observe the signal strength, which can help in pinpointing the exact location of the object.
6.3 De LED-zaklamp gebruiken
- The built-in LED flashlight activates automatically when the unit is powered on, providing illumination for your search area.
- In some models, a quick press of the power button (while the unit is on) may toggle the flashlight on or off independently. Refer to the specific button functions on your device.
7. Onderhoud
Proper maintenance ensures the longevity and optimal performance of your SURVEYOR-300:
- Schoonmaak: After each use, especially in wet or dirty conditions, wipe down the pinpointer with a damp doek. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
- batterij zorg: Verwijder de batterij als u het apparaat gedurende langere tijd niet gebruikt, om lekkage te voorkomen.
- Opslag: Store the pinpointer in a cool, dry place, away from direct sunlight and extreme temperatures.
- Waterdichte afdichting: Regularly inspect the battery cap's O-ring for any signs of wear or damage. Replace if necessary to maintain the waterproof integrity.
8. Probleemoplossing
Raadpleeg de onderstaande tabel voor veelvoorkomende problemen en mogelijke oplossingen:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Apparaat gaat niet aan. | Batterij is leeg of verkeerd geplaatst. | Replace battery with a fresh 9V battery, ensuring correct polarity. |
| Geen detectie of zwak signaal. | Low battery; environmental interference; target too deep. | Replace battery; move away from strong electromagnetic sources; ensure target is within detection range. |
| Constant false signals. | High mineralized ground; electromagnetic interference. | Try adjusting sensitivity if available; move to a different location. |
| Water ingress after use in wet conditions. | Battery cap not securely tightened; damaged O-ring. | Ensure battery cap is fully tightened before use; inspect and replace O-ring if damaged. |
9. Specificaties
| Functie | Detail |
|---|---|
| Merk | winbest |
| Modelnummer | BE13780 |
| Energiebron | Battery Powered (9V battery, not included) |
| Detectietype | Pinpoint, 360-degree detection |
| Waarschuwingen | Audio, Vibration |
| Weergave | LCD |
| Speciale kenmerken | Waterproof (not submersible), Built-in LED Flashlight |
| Materiaal | Mengen |
| Artikelgewicht | 2.1 pond |
| Productafmetingen | 36"L x 26"W x 36"H (Note: These dimensions seem generic and may not reflect the actual pinpointer size. Refer to product packaging for precise dimensions.) |
| Aanbevolen toepassingen | Metal Detection, Treasure Hunting |
10. Garantie en ondersteuning
For warranty information, technical support, or service inquiries regarding your winbest SURVEYOR-300, please refer to the contact information provided on the product packaging or visit the official winbest webwebsite. Bewaar uw aankoopbewijs voor eventuele garantieclaims.
Voor aanvullende bronnen en productinformatie kunt u terecht op de winbest Store on Amazon.
