Invoering
Thank you for choosing the MCombo Dual Motor Power Lift Recliner Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new recliner. Please read all instructions carefully before use and retain this manual for future reference.
This chair features a dual motor design for independent backrest and footrest adjustment, a power lift mechanism, full-body vibration massage, and lumbar heating for enhanced comfort and support. It is designed for users with a recommended height of 5'7"-6'2" and a maximum weight capacity of 350 pounds.
Belangrijke veiligheidsinstructies
To reduce the risk of electric shock, fire, and injury, please adhere to the following safety guidelines:
- Always use the remote control to adjust the chair's position. Do not attempt to manually lift or move the chair while in use.
- Plaats de stoel op een stabiele, vlakke ondergrond.
- Overschrijd het maximale draagvermogen van 350 pond niet.
- Allow the chair to fully extend before attempting to stand up.
- Keep the chair away from heat sources and liquids to prevent damage to the electronic parts.
- Volg altijd de montage-instructies zorgvuldig op om ervoor te zorgen dat de stoel correct gemonteerd en stabiel is.
- Ensure all electrical connections are secure and not pinched by moving parts.
- Houd kinderen en huisdieren uit de buurt van de bewegende delen van de stoel.
Inhoud van het pakket
Your MCombo Power Lift Recliner Chair is shipped in three (3) boxes. Please ensure all components are present before beginning assembly.
- rug
- Armleuningen (links en rechts)
- Base (Seat and Footrest Assembly)
- Accessories Box (includes Remote Controls, Power Adapter, Cables, and other small parts)
- Gebruiksaanwijzing
Montage-instructies
Assembly of the MCombo Power Lift Recliner Chair is designed to be straightforward and typically requires no tools. An estimated assembly time for a novice is 15-20 minutes.
- Componenten uitpakken: Carefully remove all parts from the three boxes. Place them on a soft, clean surface to prevent damage.
- Rugleuning bevestigen: Slide the backrest onto the base until it clicks securely into place. Ensure both sides are fully engaged.
- Armleuningen bevestigen: Slide the left and right armrests onto their respective slots on the base. Ensure they are firmly attached.
- Kabels aansluiten: Locate the various cables from the backrest, armrests, and base. Connect them according to the labels. Refer to the detailed diagrams in the included paper manual for specific cable connections. Ensure all connections are snug.
- Sluit stroom aan: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.
- Testfuncties: Use the remote control to test all chair functions (lift, recline, heat, massage) to ensure proper operation.

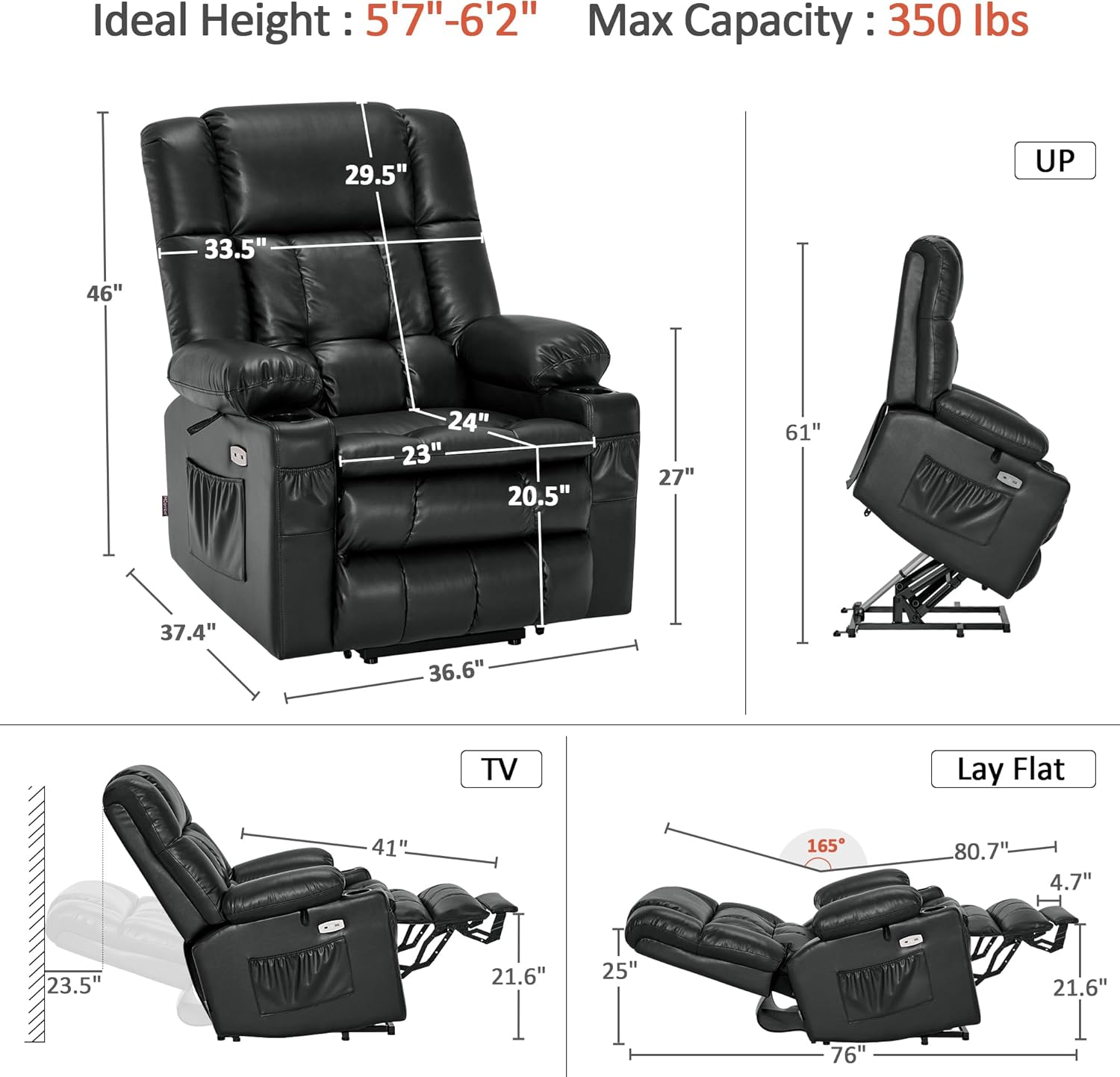

Figure 1: Product Dimensions and Positions
Video 1: Product Assembly and Feature Overview
Gebruiksaanwijzing
Dual Motor Functionality
The MCombo Power Lift Recliner features a dual motor system, allowing for independent adjustment of the backrest and footrest. This provides greater flexibility to find your preferred position, from upright to a full lay-flat recline (up to 165°).

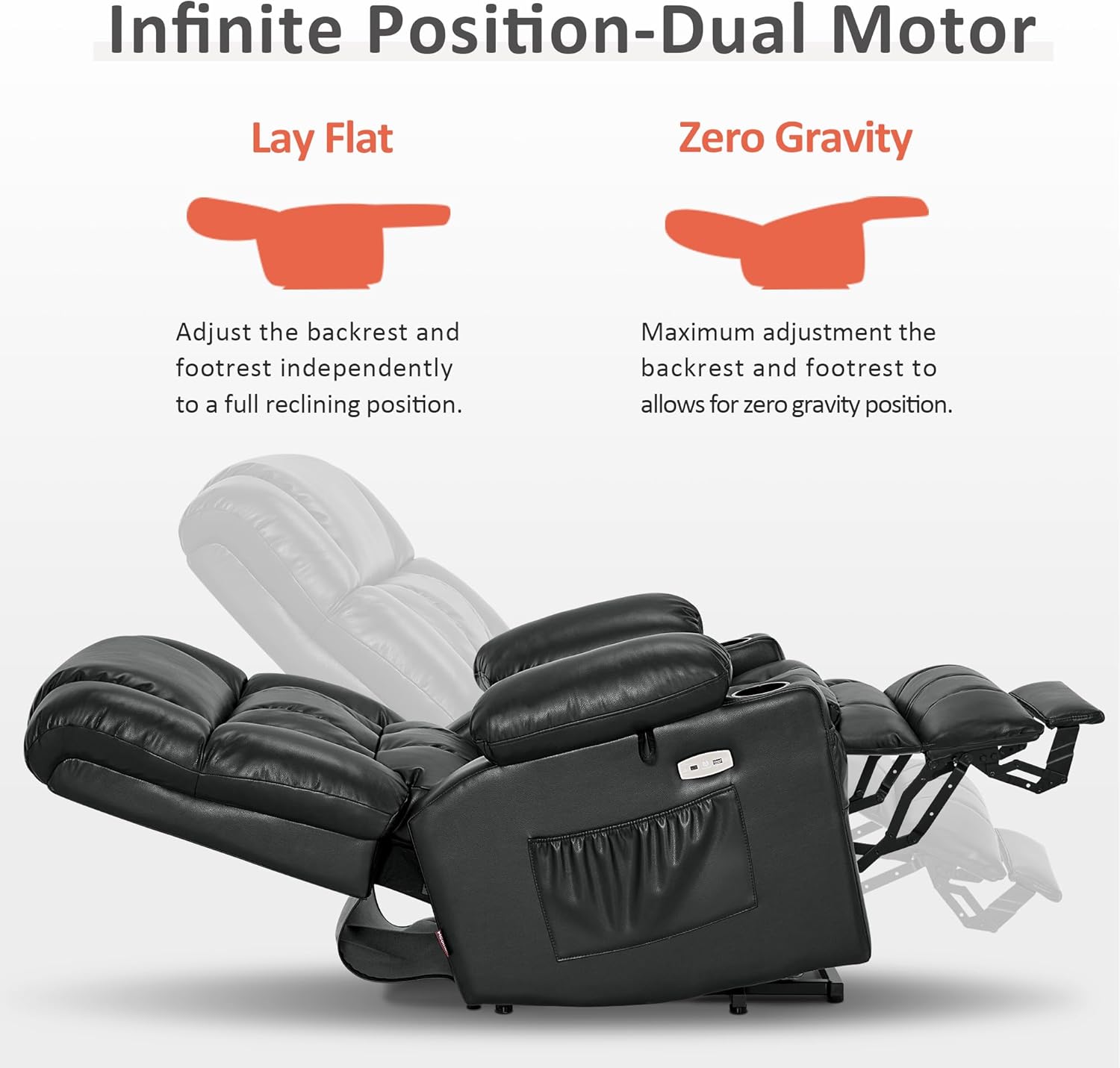

Figure 2: Infinite Position Dual Motor Adjustment
Afstandsbediening
The chair is operated using the wired remote control. Familiarize yourself with the buttons:
- OMHOOG/OMLAAG-pijlen: Adjust the backrest and footrest simultaneously for general reclining.
- Thuis knop: Press to return the chair to the sitting upright position within approximately 16 seconds. When raising from a reclined position, the backrest will move first for safety.
- Lift Button: Raises the chair to assist with standing.
- Lay-Flat Button: Moves the chair to a fully reclined, lay-flat position.
- TV Position Button: Adjusts the chair to a comfortable viewhoek.
Figuur 3: Functies van de afstandsbediening
Heat and Massage Functions
The chair is equipped with 8 vibrating points and 1 lumbar heating point. These functions operate independently of each other.
- Trilling: Use the massage remote to select from 3 massage modes and 3 intensity levels. The massage function can be set with a timer for 10, 20, or 30 minutes.
- Lumbaalverwarming: Activate the lumbar heating function separately for soothing warmth.
Figure 4: Lumbar Heating and Massage System
USB Charging Ports & Cup Holders
The chair includes dual USB & Type-C charging ports for your mobile devices and convenient cup holders integrated into the armrests.
Figure 5: Integrated USB Ports and Cup Holders
Producteigenschappen
- Verlengde voetensteun: A 4.7-inch extended footrest allows for full body stretch and proper foot support, preventing circulation cutoff.
- Vulling van spons met hoge dichtheid: Cushions are filled with high-density, CertiPUR-US certified sponge for enduring resilience and enhanced comfort.
- Durable Faux Leather: The chair is upholstered in high-quality faux leather, offering a comfortable and easy-to-maintain surface.
- Certificeringen: The wooden frame is FSC certified, ensuring it comes from sustainably managed forests. The foam is CertiPUR-US certified, indicating it is made without harmful chemicals. The fabric is OEKO-TEX Standard 100 certified, meaning it is skin-friendly and free from harmful substances.
Figure 6: Thickened Seat Cushion Construction
Figure 7: CertiPUR-US and FSC Certifications
Figure 8: OEKO-TEX Certified Faux Leather
Specificaties
| Functie | Specificatie |
|---|---|
| Merk | MCombo |
| Modelnaam | 6160-7890PU |
| Kleur | Zwart |
| Maat | Groot |
| Productafmetingen (staand) | 37.4"D x 36.6"B x 46"H |
| Artikelgewicht | 133.2 pond |
| Maximaal gewichtsadvies | 350 pond |
| Aanbevolen hoogte | 135 cm - 211 cm |
| Materiaal | Faux Leather (Finish Type), Wood (Frame), Foam (Fill Material) |
| Speciale kenmerken | Adjustable Backrest, Heated, Power Lift, Power Recliner, Zero Gravity, Dual Motor, Vibration Massage, USB & Type-C Ports, Cup Holders |
| Aantal liggende posities | Infinite (up to 165° lay-flat) |
| Montagetijd (geschat) | 15-20 minutes (No Tools Required) |
Onderhoud
Goed onderhoud verlengt de levensduur en het uiterlijk van uw relaxfauteuil.
- Schoonmaak: Reinig de kunstleren bekleding plaatselijk met een reinigingsmiddel.amp doek en milde zeep. Vermijd agressieve chemicaliën of schurende reinigingsmiddelen.
- morsen: Dep gemorste vloeistoffen onmiddellijk op met een schone, droge doek.
- Afstoffen: Stof de stoel regelmatig af met een zachte, droge doek.
- Inspectie: Periodically check all connections and moving parts for wear or damage. Ensure power cords are not pinched or frayed.
- Plaatsing: Plaats de stoel niet in direct zonlicht of in de buurt van warmtebronnen om materiaalbeschadiging te voorkomen.
Probleemoplossing
If you encounter issues with your recliner, refer to the following common solutions:
- Voorzitter reageert niet:
- Ensure the power cord is securely plugged into both the chair and a working wall outlet.
- Check all internal cable connections within the chair (refer to assembly instructions).
- Controleer of het stopcontact werkt door er een ander apparaat op aan te sluiten.
- Incomplete Movement:
- Ensure no obstructions are blocking the chair's movement.
- Check that the remote control cable is securely connected.
- Heat/Massage Not Working:
- Confirm the massage remote is properly connected and powered.
- Ensure the heat function is activated separately from the massage.
If problems persist after attempting these solutions, please contact MCombo customer support.
Garantie en ondersteuning
Your MCombo Dual Motor Power Lift Recliner Chair comes with a 2 jaar beperkte garantieDeze garantie dekt:
- Reclining and Lift Mechanism
- Elektrische onderdelen
- Bekledingsmateriaal
- Kussens
- Houten en metalen frame
For warranty claims, technical assistance, or any questions regarding your product, please contact MCombo customer support through the retailer where you purchased the chair or visit the official MCombo webwebsite voor contactgegevens.
