LUTEC Outdoor Solar Lamp Postlicht handleiding

Invoering

Deze handleiding bevat gedetailleerde instructies voor de installatie, bediening en het onderhoud van uw LUTEC Outdoor Solar Lamp Post Light. Designed for outdoor use, this solar-powered fixture offers efficient lighting with multiple brightness settings and flexible mounting options. Please read this manual thoroughly before installation and retain it for future reference.

Belangrijkste kenmerken:

• Op zonne-energie: Equipped with four solar panels for energy efficiency.
• Sensor van schemer tot zonsopgang: Automatically charges during the day and illuminates at night.
• Drie helderheidsmodi: Adjustable light output for varying needs.
• Dubbele montageopties: Compatible with standard 3-inch lamp posts or 3-inch pier bases.
• Duurzame constructie: Aluminum body with solid tempered glass, weather-resistant design.

Instellen en installeren

No wiring is required for the installation of your solar lamp post light. Ensure the chosen location receives direct sunlight for optimal charging.

1. Uitpakken en eerste inspectie

Carefully remove all components from the packaging. Verify that all parts are present and undamaged. The package includes the lamp fixture, an E26 bulb, and mounting hardware.

2. Selecting a Mounting Location

Choose a location that receives at least 6-8 hours of direct sunlight daily. This is crucial for the solar panels to charge the battery effectively.

3. Montageopties

De LUTEC Solar Lamp Post Light offers two primary mounting methods:

• Paalbevestiging: Fits on standard 3-inch lamp posts (post not included).
• Piermontage: Utilizes the included 3-inch pier base for installation on flat surfaces like pillars or walls.

Figure 1: Two available mounting methods for the solar lamp post licht.

4. Lampinstallatie

1. Gently remove the top cover of the lamp fixture to access the bulb socket.
2. Carefully screw the provided E26 LED bulb into the socket until secure.
3. Ensure the bulb is properly seated to establish electrical contact.

Figure 2: Components of the solar lamp post light, including the E26 bulb.

5. Het vastzetten van het bevestigingspunt

Once the bulb is installed and the desired brightness mode is selected (see Operating section), reattach the top cover. Secure the lamp fixture to your chosen post or pier base using the provided screws. Ensure the fixture is stable and level.

Gebruiksaanwijzing

De LUTEC Solar Lamp Post Light features a built-in dusk-to-dawn sensor and adjustable brightness modes.

1. Initiële activering

Before first use, ensure the light is placed in direct sunlight for at least 6-8 hours to allow the battery to fully charge. Locate the internal switch, typically found near the bulb socket, to select your desired brightness mode.

2. Brightness Modes

The light offers three distinct brightness settings:

• H (hoog): 100% brightness (200 lumens), providing illumination for up to 6 hours.
• M (gemiddeld): 50% brightness (100 lumens), providing illumination for up to 12 hours.
• L (laag): 10% brightness (20 lumens), providing illumination for up to 60 hours.

Figure 3: Brightness modes and their approximate duration.

3. Automatische bediening

Once a brightness mode is selected and the light is charged, the integrated dusk-to-dawn sensor will automatically turn the light on at dusk and off at dawn. The duration of illumination depends on the selected brightness mode and the amount of charge received during the day.

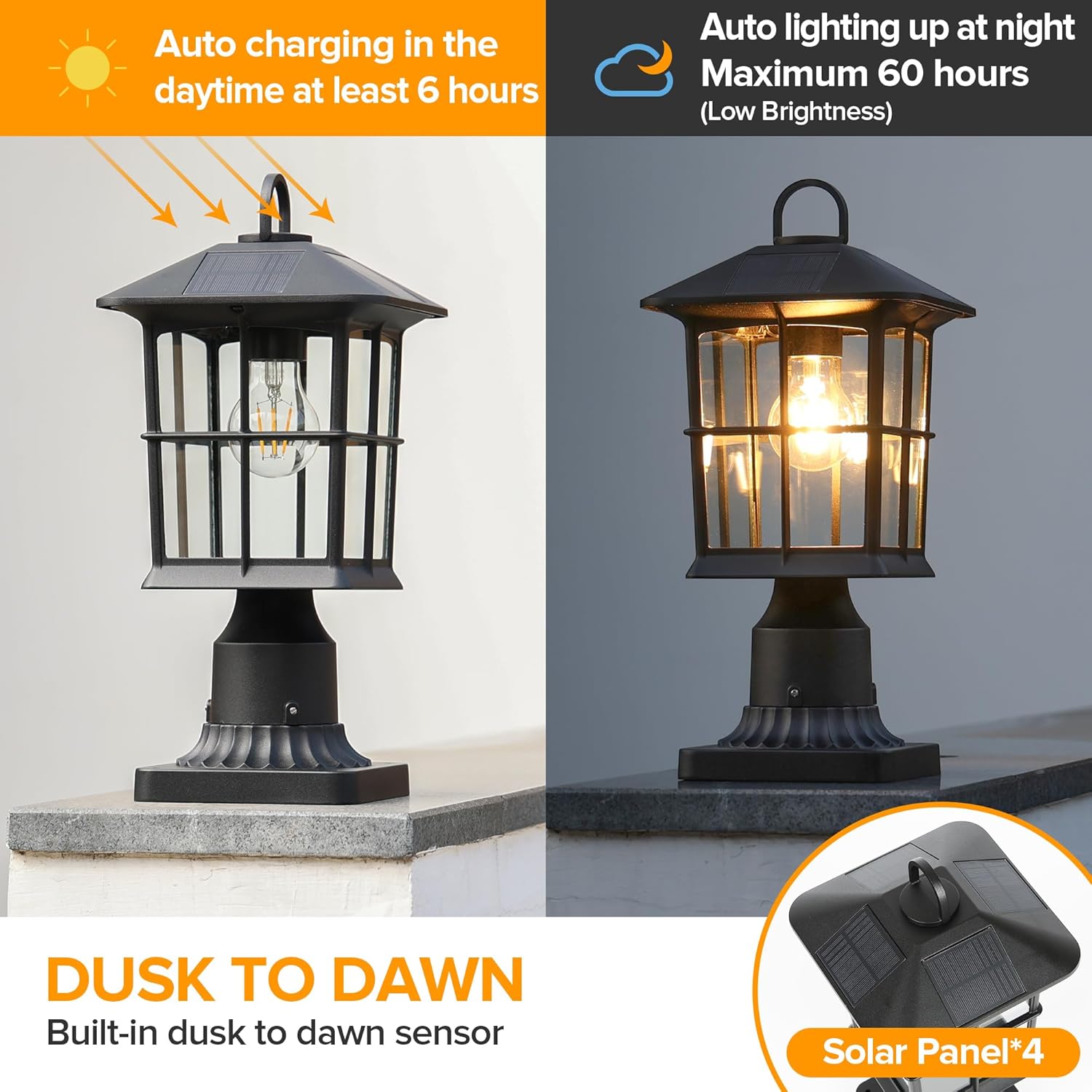

Figure 4: Automatic charging during the day and lighting at night.

Onderhoud

Regelmatig onderhoud garandeert optimale prestaties en een lange levensduur van uw zonnepanelen.amp post licht.

• Zonnepanelen schoonmaken: Periodically wipe the solar panels with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption and charging efficiency.
• Lamp vervangen: The included E26 LED bulb is designed for long life. If replacement is needed, ensure the new bulb is compatible with solar-powered fixtures.
• Batterij vervangen: The rechargeable Lithium Ion battery (1 included) is replaceable. Refer to the product specifications for battery type and capacity if replacement becomes necessary.
• Algemene schoonmaak: Clean the glass panels and aluminum body with a mild soap solution and a soft cloth. Avoid abrasive cleaners that could scratch the surfaces.
• Afvoergat: The fixture includes a drain hole to prevent water accumulation. Ensure it remains clear of obstructions.

Probleemoplossing

If you encounter issues with your solar lamp post light, refer to the following common solutions:

• Het licht gaat 's nachts niet aan:
  • Ensure the internal switch is set to H, M, or L, not OFF.
  • Verify the solar panels are receiving at least 6-8 hours of direct sunlight daily.
  • Check for obstructions (e.g., leaves, dirt) on the solar panels and clean them.
  • Controleer of de lamp goed in de fitting is geschroefd.
• Light is dim or stays on for a short duration:
  • The battery may not be fully charged. Ensure adequate sunlight exposure for several days.
  • Clean the solar panels to maximize charging efficiency.
  • Consider changing the brightness mode to M or L for longer illumination times.
  • Battery performance can degrade over time. If the issue persists after prolonged use, the battery may need replacement.
• Water inside the fixture:
  • While waterproof, extreme weather can sometimes challenge seals. Ensure all screws are tightened.
  • Check the drain hole for any blockages.

Specificaties

Figuur 5: Overview of product specifications and features.

Figure 6: Weather resistance features of the lamp post licht.

Garantie en ondersteuning

LUTEC provides 7*24h after-sales service for this product. For any issues or inquiries, please contact LUTEC customer support. Refer to your purchase documentation for specific warranty terms and contact information.
