JINDOLI 36-inch Black Wall Mounted Vanity Instruction Manual

1. Inleiding

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your JINDOLI 36-inch Black Wall Mounted Vanity. This vanity features a floating design, U-shaped drawers for plumbing, soft-closing drawer slides, and a durable ceramic sink. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use.

Figure 1.1: JINDOLI 36-inch Black Wall Mounted Vanity

The JINDOLI 36-inch Black Wall Mounted Vanity is designed to offer both functionality and a modern aesthetic to your bathroom. Its wall-mounted structure helps protect against moisture and simplifies cleaning. The vanity includes two spacious drawers, with the top drawer featuring a U-shaped cutout to accommodate plumbing, ensuring efficient use of space. The ceramic sink is integrated for easy cleaning and maintenance.

2. Veiligheidsinformatie

Belangrijke veiligheidsinstructies:

• Always ensure the cabinet is securely mounted to the wall using appropriate hardware.
• Use a level to ensure the cabinet is straight and plumb during installation.
• Do not overload the cabinet, as this could cause it to become unstable and potentially fall, leading to injury or damage.
• Always use appropriate safety gear, such as gloves and eye protection, when installing the cabinet to prevent injuries.
• Houd alle kleine onderdelen en verpakkingsmaterialen buiten bereik van kinderen.

3. Inhoud van het pakket

The JINDOLI 36-inch Black Wall Mounted Vanity is shipped in two separate packages. Please verify that all components listed below are present and undamaged before beginning assembly.

• Bathroom Cabinet (main vanity unit)
• Keramische gootsteen
• Gebruiksaanwijzing (dit document)
• Assembly Parts & Components (hardware, drawer slides, handles)

Opmerking: Faucet, overflow drain, and mirror are not included with this product.

Afbeelding 3.1: Inhoud van de verpakkingview

4. Specificaties

Figuur 4.1: Productafmetingen en belangrijkste kenmerken

5. Installatie en installatie

This section outlines the general steps for assembling and installing your wall-mounted vanity. A detailed instruction manual with diagrams is included in your package for specific step-by-step guidance.

5.1 Controles vóór installatie

• Ensure all parts are present and undamaged (refer to Section 3).
• Gather necessary tools (e.g., drill, level, screwdriver, measuring tape).
• Identify the exact location for the vanity, ensuring it aligns with existing plumbing.
• Verify wall structure can support the vanity's weight (103 lbs) plus contents. Reinforcement may be necessary.

5.2 Montagestappen

1. Assemble the cabinet frame according to the included detailed instructions.
2. Install the drawer slides onto the cabinet. Ensure they are properly aligned for smooth operation.
3. Attach the L-shaped metal handles to the drawer fronts.
4. Carefully place the ceramic sink onto the cabinet.

Figure 5.1: L-Shaped Metal Handles

5.3 Wandmontage

1. Mark the mounting points on the wall using a level and the vanity's dimensions.
2. Drill pilot holes and install appropriate wall anchors or studs as required for secure mounting.
3. Carefully lift and secure the vanity cabinet to the wall using the provided mounting hardware. Ensure it is level and firmly attached.

5.4 Loodgietersaansluiting

The top drawer features a U-shaped design to facilitate plumbing installation. This design allows the drain pipe to pass through without obstructing the drawer's functionality.

Figure 5.2: U-Shaped Drawers for Plumbing

• Connect the faucet and drain according to their respective manufacturer's instructions.
• Zorg ervoor dat alle verbindingen waterdicht zijn om lekkages te voorkomen.
• Test the water supply and drainage for any leaks before fully closing the drawers.

6. De wastafel bedienen

The JINDOLI vanity is designed for straightforward operation and storage.

6.1 Functionaliteit van de lade

The vanity is equipped with two drawers featuring premium DTC guide rails. These rails ensure a quiet and smooth closure, preventing slamming and extending the lifespan of the drawers.

Figure 6.1: Durable Drawer Slides

To open, gently pull the L-shaped metal handles. To close, push the drawers back into the cabinet. The soft-closing mechanism will engage automatically.

6.2 Opslagcapaciteit

The two large drawers provide ample space for organizing bathroom essentials. The U-shaped design of the top drawer maximizes usable space around the plumbing.

Figuur 6.2: Ample Drawer Storage

7. Onderhoud

Proper care and maintenance will ensure the longevity and appearance of your JINDOLI vanity.

7.1 Cleaning the Sink

The ceramic sink surface is smooth and non-porous, making it easy to clean.

• Use a soft cloth or sponge with mild soap and water for regular cleaning.
• Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the ceramic finish.
• Spoel grondig af met schoon water en droog af met een zachte doek om watervlekken te voorkomen.

Figure 7.1: Easy-To-Clean Sink Surface

7.2 De kast schoonmaken

The vanity cabinet is made from engineered wood with a painted finish, designed to be moisture-resistant and dustproof.

• Veeg de oppervlakken van de kast af met een zachte, damp lap.
• For stubborn marks, use a small amount of mild, non-abrasive cleaner specifically designed for painted wood surfaces.
• Avoid excessive moisture and promptly wipe up any spills to prevent water damage.
• Do not use harsh chemicals, ammonia-based cleaners, or abrasive materials.

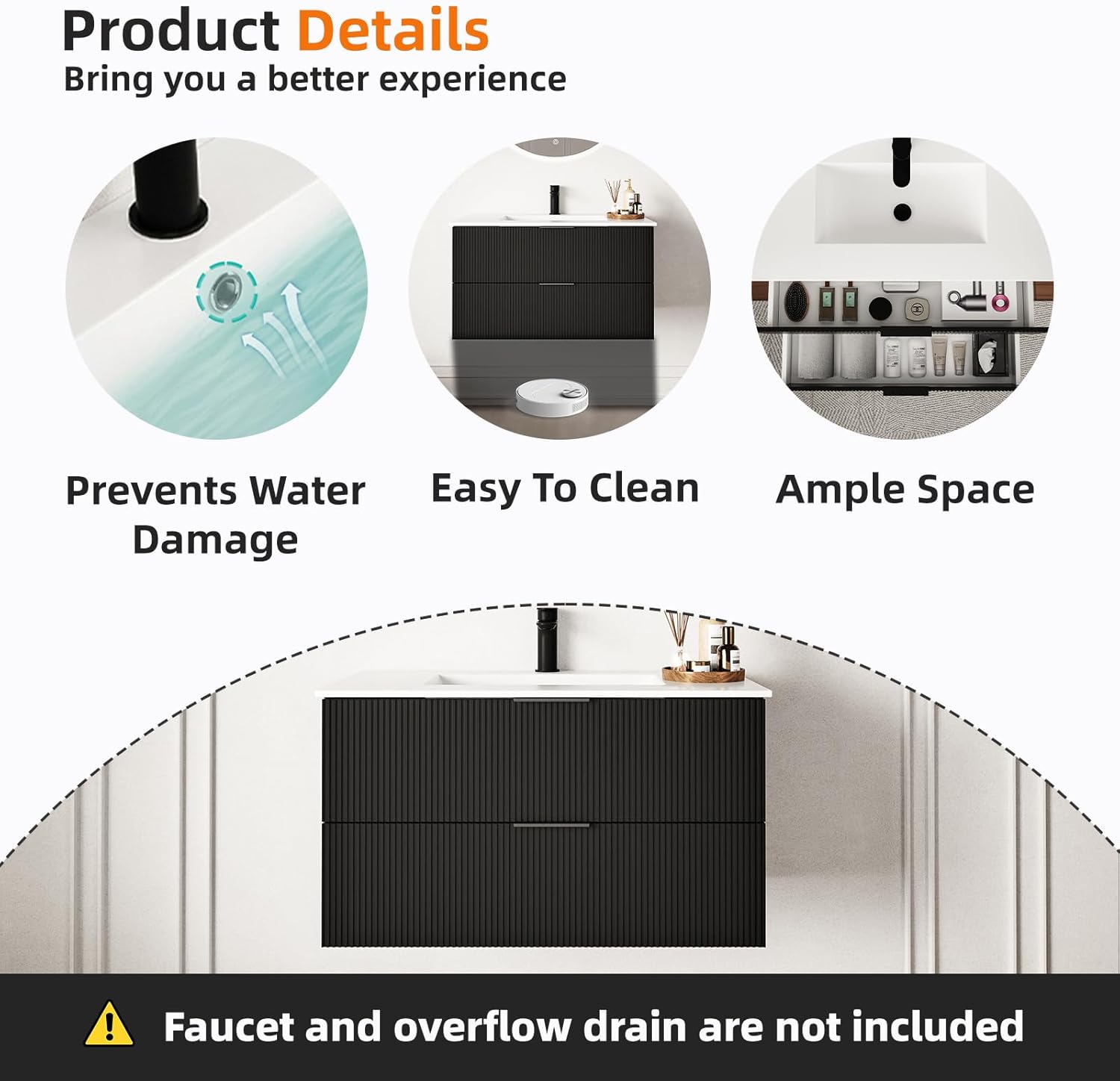

Figure 7.2: Water Damage Prevention Features

7.3 Algemeen onderhoud

• Regularly check all hardware and connections to ensure they remain tight and secure.
• Avoid placing extremely hot or cold items directly on the vanity surface without protection.
• The vanity is constructed from eco-friendly, sustainably sourced wood, ensuring durability and long-term use.

Figure 7.3: Eco-Friendly Wood Construction

8. Probleemoplossing

In dit gedeelte worden veelvoorkomende problemen besproken die u met uw badkamermeubel kunt tegenkomen.

8.1 Drawers Not Closing Smoothly

• Controleer op obstakels: Ensure nothing is blocking the drawer slides or the back of the drawer.
• Verify Slide Alignment: Confirm that the drawer slides are properly aligned and securely fastened to both the drawer and the cabinet. Adjust if necessary.
• Overbelasting: Ensure the drawer is not overloaded, which can hinder smooth operation.

8.2 Leaks from Plumbing

• Verbindingen vastdraaien: Check all plumbing connections (faucet, drain, supply lines) for tightness. Do not overtighten.
• Afdichtmiddel: Ensure appropriate plumbing sealant or tape was used on threaded connections.
• Drain Gasket: Verify the drain gasket is correctly seated and not damaged.

8.3 Vanity Appears Unstable

• Wandmontage: Re-check the wall mounting hardware and ensure it is securely fastened to the wall studs or appropriate anchors.
• Nivellering: Use a level to confirm the vanity is installed straight and plumb. Adjust as needed.
• Gewichtsverdeling: Ensure items stored in the vanity are evenly distributed and not exceeding the weight capacity.

9. Garantie-informatie

Specific warranty details for the JINDOLI 36-inch Black Wall Mounted Vanity are not provided in this document. For information regarding product warranty, please refer to the purchase documentation or contact JINDOLI customer support directly.

10. Ondersteuning

For further assistance, questions, or to report any issues, please contact JINDOLI customer support. You can find more information and contact details by visiting the official JINDOLI store:
