1. Inleiding
Thank you for choosing the Broan-NuTone MTR1303SS 30-Inch Under Cabinet Range Hood. This Energy Star certified range hood is engineered to provide superior ventilation, effectively removing smoke and odors from your kitchen with a powerful 350 Max Blower CFM. Designed for quiet operation at 1.5 sones, it ensures a peaceful cooking environment. The EZ1 Install System simplifies installation, making it a convenient choice for both professionals and DIY enthusiasts. This manual provides essential information for safe installation, operation, and maintenance of your new range hood.
Belangrijkste kenmerken:
- 30-inch under cabinet design with 50 points of inspection for durability.
- 350 Max Blower CFM for 20% more effective pollutant removal.
- Up to 44% quieter operation at 1.5 sones.
- EZ1 Install System for quick and easy one-person installation.
- ENERGY STAR Certified and Title 24 Compliant (with electric ranges only) for energy efficiency.
- 1-Level LED lighting and 2-Speed hidden rocker controls.
2. Veiligheidsinformatie
WAARSCHUWING: Om het risico op brand, elektrische schokken of persoonlijk letsel te verminderen, dient u het volgende in acht te nemen:
- Installeer deze afzuigkap volgens alle aangegeven instructies.
- Schakel altijd de stroom uit via het servicepaneel voordat u het apparaat gaat onderhouden of reinigen.
- Ensure proper ventilation to avoid back-drafting of combustion gases from fuel-burning equipment.
- Gebruik dit apparaat niet met een solid-state snelheidsregelaar.
- Reinig de vetfilters regelmatig. Er mag zich geen vet ophopen op de ventilator of het filter.
- Laat kookplaten nooit onbeheerd achter op een hoge stand. Overkoken veroorzaakt rook en vettige vloeistoffen die vlam kunnen vatten.
- Gebruik de juiste panmaat. Gebruik altijd kookgerei dat geschikt is voor de grootte van het oppervlakte-element.
3. Wat zit er in de doos?
Your Broan-NuTone MTR1303SS Range Hood package includes the following components:
- Afzuigkap
- Filters (Mesh type)
- EZ1-beugels
- Bevestigingsmateriaal (schroeven, ringen)
- Bulbs (LED)
- Damper
- User Manual & Owner Guide
- Top Rectangular Exhaust Adapter
- Top Round Exhaust Adapter
- Microvezel schoonmaakdoekje
Figuur 1: Voorzijde view of the Broan-NuTone MTR1303SS Range Hood, showcasing het strakke ontwerp van roestvrij staal.
4. Specificaties
| Functie | Specificatie |
|---|---|
| Modelnummer | MTR1303SS |
| Afmetingen (D x B x H) | 19.68 x 29.92 x 5.24 inch |
| Luchtstroomcapaciteit | 350 kubieke voet per minuut (CFM) |
| Geluidsniveau | 1.5 Zonen |
| Materiaal | Roestvrij staal |
| Montagetype | Onder kastmontage |
| Bedieningstype | Push Button (2-Speed Hidden Rocker Controls) |
| Aantal snelheden | 2 |
| Lichtbrontype | LED (1-Level) |
| Wattage | 96 watt |
| Filtertype | Gaas |
| Ventilatietype | Converteerbaar |
| Certificering | ENERGY STAR, Title 24 Compliant (with electric ranges only) |
| Artikelgewicht | 19.18 pond |
Figure 2: Technical diagram illustrating the dimensions and various certifications of the range hood, including ENERGY STAR and EZ1 installation.
5. Installatie
The Broan-NuTone MTR1303SS features the EZ1 Install System, designed for quick and easy one-person installation. Please follow the detailed instructions provided in the included User Manual & Owner Guide for specific steps. Ensure all local codes and ordinances are followed.
Belangrijkste installatiestappen:
- Voorbereiding: Before beginning, ensure power is disconnected at the circuit breaker. Unpack all components and verify against the 'What's in the Box' section.
- Montage: Utilize the EZ1 Brackets for simplified mounting. These brackets allow for easy alignment and secure attachment to the underside of your cabinet.
- Kanalen: This range hood is convertible, supporting both ducted and non-ducted (recirculating) installations. Use the appropriate Top Rectangular or Top Round Exhaust Adapter based on your existing ductwork. For non-ducted installations, ensure charcoal filters are installed (sold separately if not included).
- Elektrische aansluiting: Connect the range hood to a standard 120V electrical outlet. Ensure all wiring is secure and meets electrical codes.
- Eindmontage: Install the mesh filters and LED bulbs.
Figuur 3: Close-up view of the EZ1 installation brackets, highlighting the design for simplified one-person mounting.
Video 1: Broan-NuTone Features and Benefits. This video demonstrates the EZ1 installation system and highlights other key features of the range hood, providing a visual guide for setup.
6. Bediening
Your range hood is equipped with user-friendly controls for efficient operation.
Bediening:
- Ventilatorsnelheid: The 2-Speed hidden rocker controls allow you to select between two fan speeds (Low and High) to adjust ventilation power according to your cooking needs.
- Verlichting: The 1-Level LED lighting provides bright illumination for your cooking surface. Use the dedicated switch to turn the lights on or off.
The MTR1303SS operates at a quiet 1.5 sones on its working speed, comparable to the sound of a refrigerator, ensuring minimal disruption in your kitchen.

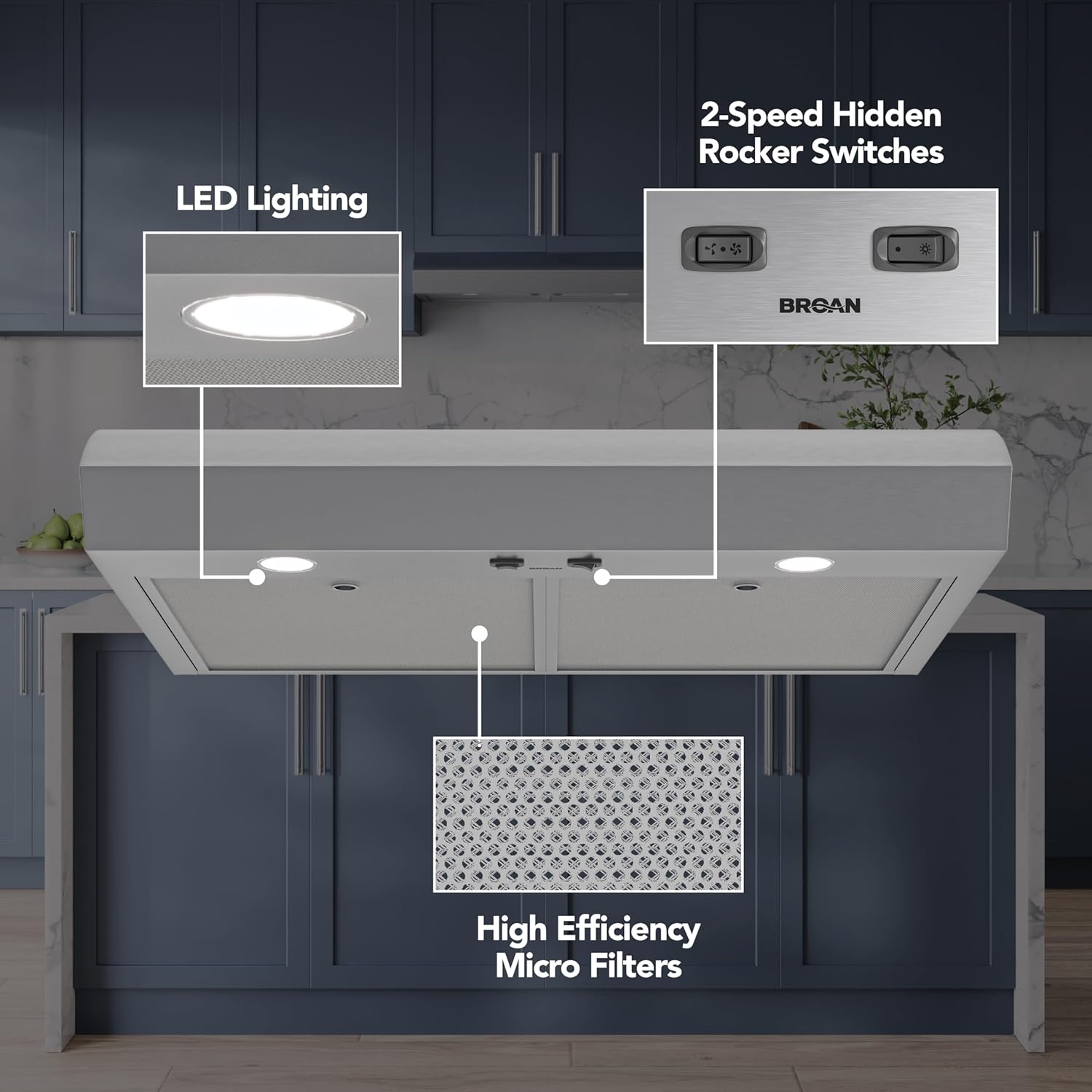

Afbeelding 4: Gedetailleerd view of the range hood's LED lighting, 2-Speed hidden rocker switches, and high-efficiency micro filters.
Figure 5: A chart comparing the noise level of 1.5 sones to common household appliances, illustrating the quiet operation of the range hood.
7. Onderhoud
Regelmatig onderhoud zorgt ervoor dat uw afzuigkap optimaal presteert en lang meegaat.
Filters reinigen:
- The mesh filters should be cleaned regularly to prevent grease buildup.
- To remove filters, locate the small handles or clips and gently pull down or slide out.
- Clean filters with warm, soapy water or in a dishwasher. Ensure they are completely dry before re-installing.
Cleaning Stainless Steel Surfaces:
- Veeg roestvrijstalen oppervlakken af met een zachte doek en een niet-schurend reinigingsmiddel voor roestvrij staal.
- Veeg altijd in de richting van de houtnerf om krassen te voorkomen.
- The included microfiber cleaning cloth is ideal for maintaining the finish.
LED-lamp vervangen:
- The LED bulbs are designed for long life. If replacement is necessary, refer to your User Manual for specific instructions on accessing and replacing the bulbs.
Video 2: Broan-NuTone Range Hood Product Line. This video provides a general overview of Broan-NuTone range hoods, including aspects of their design and ease of maintenance, such as filter cleaning.
8. Probleemoplossing
If you experience any issues with your Broan-NuTone MTR1303SS Range Hood, please consult the following common troubleshooting tips before contacting customer support:
- Geen stroom: Check if the unit is properly plugged into a working electrical outlet. Verify the circuit breaker has not tripped.
- Ventilator werkt niet: Ensure the fan speed control is set to 'Low' or 'High'. Check for any obstructions in the fan blades or ductwork.
- Slechte zuigkracht: Clean or replace the grease filters. Ensure the damper is opening correctly and there are no blockages in the ducting.
- Verlichting werkt niet: Check if the light switch is in the 'On' position. Verify that the LED bulbs are securely seated and not damaged.
- Overmatig lawaai: Ensure the unit is securely mounted and all screws are tightened. Check for any loose parts or obstructions in the fan.
For more detailed troubleshooting, refer to the comprehensive guide in your User Manual.
9. Garantie en ondersteuning
Your Broan-NuTone MTR1303SS Range Hood comes with a manufacturer's warranty. Please refer to the User Manual & Owner Guide for complete warranty details, including coverage period and terms. For any product-related inquiries, technical support, or warranty claims, please contact Broan-NuTone customer service.
You can also visit the official Broan-NuTone Store for additional product information and support resources: Broan-NuTone Winkel
