1. Inleiding
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Panasonic NA-149MR2L01 9 kg Fully Automatic Front Loading Washing Machine. Please read these instructions thoroughly before using the appliance and retain them for future reference.
Figuur 1.1: Voorkant view of the Panasonic NA-149MR2L01 washing machine with the door closed.
2. Veiligheidsinformatie
To prevent injury to yourself and others, and to avoid damage to the appliance, observe the following safety precautions:
- Elektrische veiligheid: Ensure the power supply matches the rating on the appliance. Do not use extension cords. Always unplug the machine before cleaning or maintenance.
- Wateraansluiting: Use new hose sets provided with the appliance. Do not reuse old hose sets. Ensure all connections are secure to prevent leaks.
- Veiligheid voor kinderen: Keep children away from the appliance during operation. Enable the Child Lock feature to prevent unintended use.
- Installatie: The appliance must be installed on a firm, level surface. Remove all transit bolts before operation.
- Brandbare materialen: Was geen items die zijn schoongemaakt, gewassen, geweekt of waarop brandbare of explosieve stoffen zijn aangebracht.
3. Installatie en installatie
3.1 Uitpakken
Carefully remove all packaging materials. Inspect the machine for any damage. Keep packaging materials out of reach of children.
3.2 Locatievereisten
Place the washing machine on a solid, level floor. Ensure there is adequate space for ventilation and access to water and drain connections. Avoid direct sunlight or extreme temperatures.
3.3 Transportbouten verwijderen
Voordat u de machine bedient, all transit bolts must be removed. These bolts secure the drum during transport. Failure to remove them will cause severe vibration and damage to the machine.
Figuur 3.1: Achterkant view of the washing machine, indicating transit bolt positions and hose connections.
3.4 Water- en afvoeraansluiting
Connect the water inlet hose to a cold water tap and the machine's inlet valve. Ensure the drain hose is properly secured to a standpipe or laundry tub, preventing kinks or blockages. The included rat cover should be installed as per instructions to prevent rodent entry.
3.5 Stroomaansluiting
Sluit het netsnoer aan op een geaard stopcontact. Gebruik geen adapters of verlengsnoeren.
4. Gebruiksaanwijzing
4.1 Wasgoed laden
Open the door and load items loosely into the drum. Do not overload the machine. For optimal washing, ensure items can move freely.
Figuur 4.1: Voorkant view of the washing machine with the door open, ready for loading.
4.2 Wasmiddel en additieven toevoegen
Add the appropriate amount of detergent to the main wash compartment of the dispenser drawer. Fabric softener or other additives should be placed in their designated compartments.
4.3 Een wasprogramma selecteren
Turn the program selector dial to choose one of the 15 available wash programs. Refer to Section 5 for details on each program. The display will show the default settings for the selected program.
4.4 Een cyclus starten
Press the 'Start/Pause' button to begin the wash cycle. The door will lock, and the machine will start filling with water.
4.5 Speciale functies
- Pause & Add Garment: Press 'Start/Pause' during the initial stages of a cycle to add forgotten items. Wait for the door to unlock before opening.
- Kinderslot: Activate this feature to prevent children from changing settings or operating the machine. Refer to the control panel instructions for activation.
- Automatisch opnieuw opstarten: In geval van een stroomstoringtage, the machine will automatically resume the cycle from where it left off once power is restored.
5. Wasprogramma's
Your Panasonic NA-149MR2L01 offers 15 wash programs designed for various fabric types and soil levels. Some key programs include:
- Rapid 45' min wash: For lightly soiled items requiring a quick wash.
- Quick 15 min wash: An ultra-fast cycle for very small loads or refreshing clothes.
- Bulky Wash: Optimized for larger items like blankets or duvets.
- Fijne was: Gentle cycle for fragile garments.
- Eco-was: Energy-efficient program for normal soiled cottons.
- Drynamische spin: A dedicated spin-only cycle to reduce moisture content, aiding faster drying.
- Built-In Heater Programs: Utilize the integrated heater for intensive stain removal and sanitization.
6. Onderhoud en verzorging
Regelmatig onderhoud zorgt ervoor dat uw wasmachine optimaal presteert en lang meegaat.
6.1 Het wasmiddelbakje reinigen
Verwijder en reinig regelmatig het wasmiddelbakje om te voorkomen dat er resten achterblijven.
6.2 De trommel reinigen
Run a maintenance wash (e.g., a hot cycle with no laundry and a drum cleaner) regularly to keep the stainless steel drum clean and odor-free.

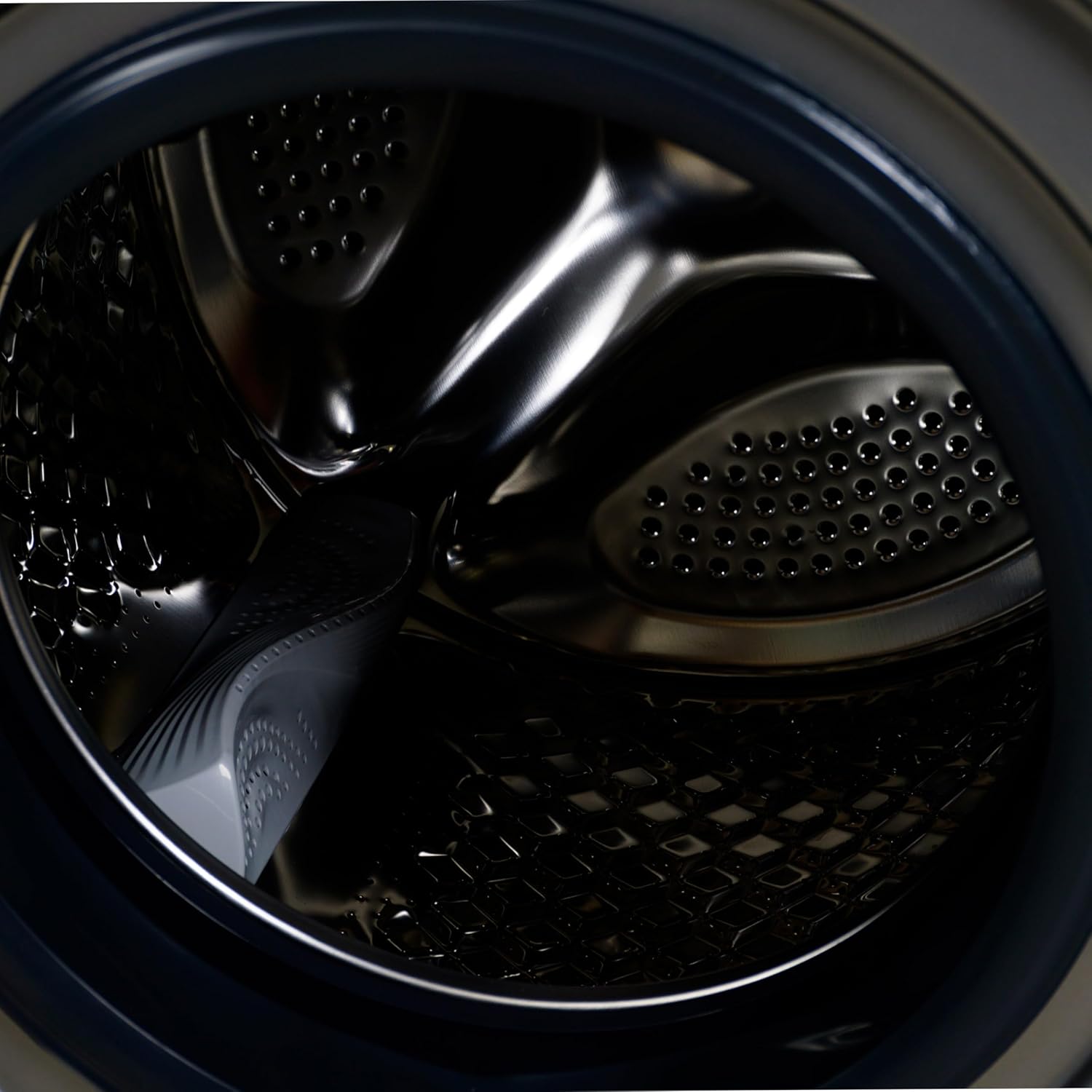

Figuur 6.1: Close-up of the stainless steel drum, designed for efficient washing.
6.3 Cleaning the Anti Bacterial Door Gasket
Wipe the door gasket after each wash to remove moisture and lint. This helps maintain its anti-bacterial properties and prevents mold growth.
6.4 Het filter reinigen
Locate and clean the drain pump filter periodically to remove lint, coins, or other small objects that may obstruct drainage.
6.5 Buitenreiniging
Veeg de buitenkant van de machine af met een zachte, damp doek. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
7. Probleemoplossing
Raadpleeg, voordat u contact opneemt met de klantenservice, de volgende tabel voor veelvoorkomende problemen en hun oplossingen:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Machine start niet | Power cord unplugged, door not closed properly, 'Start/Pause' not pressed. | Controleer de stroomaansluiting, zorg ervoor dat de deur goed gesloten is en druk op 'Start/Pauze'. |
| Overmatige trillingen/geluid | Transportbouten niet verwijderd, machine niet waterpas, ongelijkmatige lading. | Verwijder de transportbouten, stel de stelvoeten bij en verdeel het wasgoed opnieuw. |
| Waterlekkage | Losse slangaansluitingen, verstopt afvoerfilter, te veel reinigingsmiddel. | Tighten hoses, clean drain filter, use recommended detergent amount. |
| Water loopt niet weg | Afvoerslang geknikt of verstopt, filter van afvoerpomp verstopt. | Maak de afvoerslang recht en reinig het filter van de afvoerpomp. |
8. Specificaties
| Functie | Specificatie |
|---|---|
| Modelnummer | NA-149MR2L01 |
| Capaciteit | 9 kilogram |
| Energieklasse | 5 sterren |
| Omwentellingsnelheid | 1400 toeren per minuut |
| Wasprogramma's | 15 |
| Trommelmateriaal | Roestvrij staal |
| Afmetingen (LxBxH) | 56.5D x 59.5B x 85H centimeter |
| Artikelgewicht | 71 kilogram |
| Deeltage | 230 Volt |
| Speciale kenmerken | Auto Restart, Child Lock, High Efficiency, Inbuilt Heater |
Figuur 8.1: Energy Power Savings Guide for the NA-149MR2L01 model.
9. Garantie en ondersteuning
9.1 Garantie-informatie
Your Panasonic NA-149MR2L01 washing machine comes with a 2 jaar uitgebreide garantie op het apparaat en een 10 Year Motor Warranty Vanaf de aankoopdatum. Bewaar uw aankoopbewijs voor garantieclaims.
9.2 Klantenservice
For technical assistance, service requests, or any queries regarding your appliance, please contact Panasonic Life Solutions India Private Limited customer support:
- Helpline Numbers: 1800 108 1333 en 1800 103 1333
- Adres van de fabrikant: Panasonic Life Solutions India Private Limited Unit D, Village Bid Dadri, Tehsil and District: Jhajjar-124103, Haryana, India
