Handleiding voor de Intel Wi-Fi 7 BE200 netwerkkaart

1. Product voorbijview

The Intel Wi-Fi 7 BE200.NGWG.NV is an advanced wireless network adapter designed to provide high-speed internet connectivity and Bluetooth capabilities for compatible desktop and laptop systems. Utilizing the latest Wi-Fi 7 (802.11be) standard, this module offers enhanced performance, lower latency, and improved efficiency, making it ideal for demanding applications such as online gaming, 4K/8K video streaming, and large file transfers. It supports dual-band (2.4 GHz, 5 GHz) and tri-band (6 GHz) operation, along with Bluetooth 5.4 for seamless peripheral connectivity.

Figuur 1.1: Voorzijde view of the Intel Wi-Fi 7 BE200 network card, showing the Intel branding, model number, and various regulatory markings.

2. Belangrijkste kenmerken

• Wi-Fi 7 (802.11be) Standard: Supports the latest Wi-Fi standard for next-generation wireless performance.
• Hoge doorvoer: Achieves a maximum speed of 5.8 Gbps across 2.4, 5, and 6 GHz bands.
• 2x2 TX/RX Streams: Features two transmit and two receive streams for robust and efficient data transfer.
• 320 MHz kanaalbandbreedte: Utilizes wider channels for increased data capacity.
• 4K QAM: Employs higher-order modulation for greater data density per signal.
• Bluetooth 5.4: Provides advanced Bluetooth connectivity for peripherals and accessories.
• MU-MIMO (meerdere gebruikers, meerdere ingangen, meerdere uitgangen): Enhances network efficiency by allowing the router to communicate with multiple devices simultaneously.
• OFDMA (Orthogonal Frequency-Division Multiple Access): Improves spectral efficiency and reduces latency in dense environments.
• Bedrijfstemperatuurbereik: Designed to operate reliably from 0°C to 80°C.
• Compact M.2 2230 Form Factor: Suitable for integration into a wide range of compatible devices.

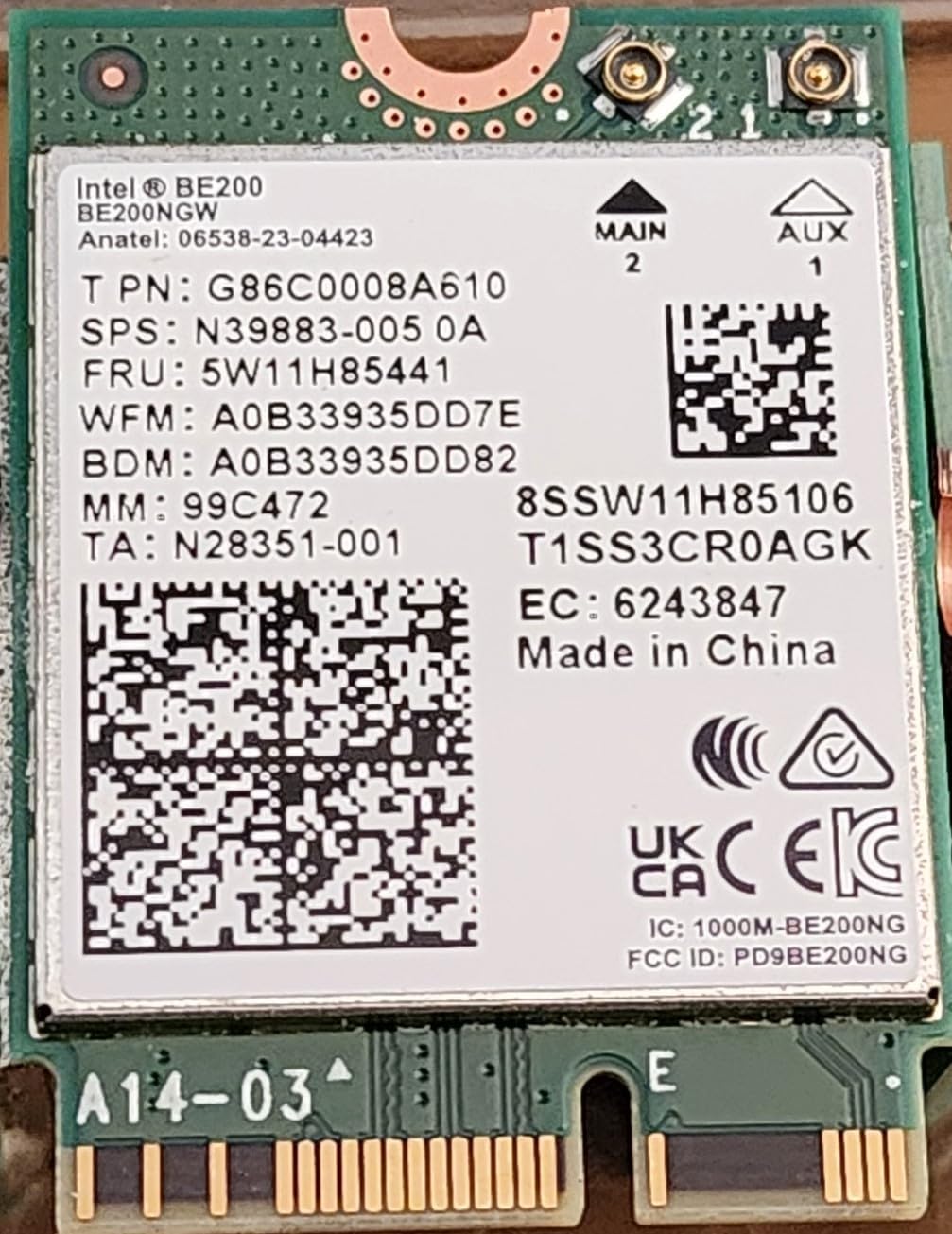

Figuur 2.1: Close-up view of the Intel BE200 network card's label, displaying the model number (BE200NGW), Anatel certification, TPN, SPS, FRU, WFM, BDM, MM, TA, and QR codes.

Figure 2.2: Diagram explaining Intel Wi-Fi 7's Multi-link Operation, showcasing Enhanced Multi-Link Single-Radio (eMLSR) and Multi-Link Multi-Radio (MLMR) for more reliable connections and low latency applications.

3. Instellen en installeren

3.1. Veiligheidsmaatregelen

• Always disconnect the power cable and turn off your computer before opening the case.
• Discharge any static electricity by touching a grounded metal object (e.g., the computer chassis) before handling components. Consider using an anti-static wrist strap.
• Handle the network card by its edges to avoid touching the gold connectors or sensitive components.
• Ensure proper ventilation and a clean workspace.

3.2. Systeemvereisten

• Available M.2 slot (Key E) on your motherboard or laptop.
• Supported Operating Systems: Windows 11, Windows 10, Linux (specific kernel versions may be required for full functionality).
• Compatible Wi-Fi 7 router/access point for optimal performance.

3.3. Installation Steps (Desktop PC)

1. Bereid uw systeem voor: Schakel uw computer uit en koppel alle kabels los. Open de computerkast.
2. Zoek de M.2-sleuf: Identify an available M.2 slot on your motherboard. It is typically labeled and may have a pre-installed standoff screw.
3. Plaats de kaart: Gently align the Intel BE200 network card with the M.2 slot's keying notch. Insert the card at a slight angle (approximately 30 degrees) into the slot until the gold contacts are fully seated.
4. Beveilig de kaart: Press the card down towards the motherboard. Secure it with the small screw provided with your motherboard or the network card, fastening it to the standoff.
5. Antennes aansluiten (indien van toepassing): If your system uses external antennas, carefully connect the antenna cables to the corresponding connectors on the network card (usually labeled MAIN and AUX).
6. Sluit de behuizing en schakel het apparaat in: Sluit de computerkast, sluit alle kabels weer aan en schakel het systeem in.

Afbeelding 3.1: Terug view of the Intel BE200 network card, showing the PCB and additional markings.

Figure 3.2: Multiple Intel BE200 network cards, illustrating their compact M.2 form factor.

4. Gebruiksaanwijzing

4.1. Stuurprogramma-installatie

After physical installation, you will need to install the appropriate drivers for the Intel Wi-Fi 7 BE200 to function correctly. Your operating system may automatically detect and install generic drivers, but for optimal performance and full feature support, it is recommended to install the latest drivers directly from Intel's official webplaats.

1. Stuurprogramma's downloaden: Visit the official Intel Download Center (www.intel.com/downloadcenter). Zoeken naar "Intel Wi-Fi 7 BE200" or navigate to the wireless adapters section. Download the latest Wi-Fi and Bluetooth drivers compatible with your operating system (Windows 11, Windows 10, or Linux).
2. Installeer stuurprogramma's: Run the downloaded installer executable. Follow the on-screen prompts to complete the installation. You may need to restart your computer after installation.
3. Installatie verifiëren: Open Device Manager (Windows) and check under "Network adapters" and "Bluetooth" to ensure the Intel Wi-Fi 7 BE200 and its Bluetooth component are listed and functioning without errors.

4.2. Verbinding maken met een Wi-Fi-netwerk

Once drivers are installed, your system will be able to detect available Wi-Fi networks.

1. Toegang tot netwerkinstellingen: Click on the Wi-Fi icon in your system tray (Windows) or navigate to network settings (Linux).
2. Selecteer netwerk: Kies het gewenste wifi-netwerk uit de lijst met beschikbare netwerken.
3. Voer wachtwoord in: If prompted, enter the network security key (password) and click "Connect".
4. Controleer de verbinding: Confirm that your device is connected to the internet.

4.3. Bluetooth-koppeling

Om Bluetooth-apparaten te verbinden:

1. Bluetooth inschakelen: Ensure Bluetooth is enabled on your computer and the device you wish to pair.
2. Ga naar de koppelingsmodus: Put your Bluetooth device into pairing mode (refer to the device's manual).
3. Apparaat toevoegen: On your computer, go to Bluetooth settings (e.g., Settings > Bluetooth & devices on Windows) and click "Add device" or "Pair new device".
4. Selecteer en combineer: Select your Bluetooth device from the list and follow any on-screen prompts to complete the pairing process.

5. Onderhoud

To ensure optimal performance and longevity of your Intel Wi-Fi 7 BE200 network card, consider the following maintenance practices:

• Houd stuurprogramma's bijgewerkt: Regularly check Intel's official website for the latest Wi-Fi and Bluetooth drivers. Driver updates often include performance improvements, bug fixes, and security enhancements.
• Besturingssysteemupdates: Ensure your operating system (Windows, Linux) is kept up-to-date. OS updates can include network stack improvements and compatibility fixes that benefit your wireless adapter.
• Zorg voor een goede ventilatie: Ensure your computer's cooling system is functioning correctly to prevent overheating, which can affect the performance and lifespan of internal components.
• Schoonheid: Periodically clean the interior of your computer case to prevent dust buildup, which can impede airflow and lead to overheating. Use compressed air for this purpose.

6. Probleemoplossing

If you encounter issues with your Intel Wi-Fi 7 BE200 network card, try the following troubleshooting steps:

6.1. No Wi-Fi or Bluetooth Connectivity

• Controleer fysieke installatie: Ensure the card is securely seated in the M.2 slot and any antenna cables are properly connected.
• Verify Drivers: Open Device Manager (Windows) and check if the Intel Wi-Fi 7 BE200 and Bluetooth devices are listed without yellow exclamation marks or red 'X's. If not, reinstall the drivers.
• Enable Wireless/Bluetooth: Ensure Wi-Fi and Bluetooth are enabled in your operating system settings and/or via any physical switches or keyboard shortcuts on your laptop.
• BIOS/UEFI-instellingen: Some motherboards have options to enable/disable M.2 slots or integrated wireless. Check your system's BIOS/UEFI settings.

6.2. Trage wifi-snelheid of onderbroken verbinding

• Stuurprogramma's bijwerken: Ensure you have the latest Wi-Fi drivers from Intel's webplaats.
• Router/Access Point: Verify your router supports Wi-Fi 7 (802.11be) and is configured for optimal performance (e.g., using 6 GHz band if available, appropriate channel width).
• Signaalsterkte: Check your Wi-Fi signal strength. Move closer to the router or consider using a Wi-Fi extender if the signal is weak.
• Interferentie: Other wireless devices (cordless phones, microwaves, other Wi-Fi networks) can cause interference. Try changing the Wi-Fi channel on your router.
• Netwerk resetten: On Windows, try using the "Network Reset" feature (Settings > Network & Internet > Advanced network settings > Network reset).

6.3. Bluetooth Device Not Pairing

• Device Pairing Mode: Ensure the Bluetooth device you are trying to pair is in discoverable/pairing mode.
• Remove Existing Pairings: If the device was previously paired with another system, remove that pairing first.
• Restart Bluetooth Service: On Windows, you can restart the Bluetooth Support Service via Services (services.msc).

7. Technische specificaties

8. Garantie en ondersteuning

8.1. Garantie-informatie

Intel products are typically covered by a limited warranty. The specific terms and duration of the warranty for your Intel Wi-Fi 7 BE200 network card may vary based on your region and the retailer from whom you purchased the product. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please refer to Intel's official warranty policy available on their webwebsite of neem contact op met uw verkooppunt.

8.2. Technische ondersteuning

For further technical assistance, driver downloads, or product information, please visit the official Intel Support webwebsite:

Intel Support Center

You can also find community forums and knowledge base articles that may help resolve common issues.
