Walrus Audio Mako Series MKII D1 High-Fidelity Delay Pedal

Model: 900-1051mkII

Invoering

The Walrus Audio Mako Series MKII D1 is a high-fidelity stereo delay pedal designed to provide a wide range of delay effects for musical applications. It features six distinct delay algorithms, comprehensive control over delay parameters, and advanced connectivity options including MIDI and presets. This manual provides detailed instructions for setting up, operating, and maintaining your D1 MKII pedal.

Belangrijkste kenmerken

Six carefully crafted delay algorithms: Digital, Mod, Vintage, Dual, Reverse, and Grain.
Complete BPM control with on-screen readout and up to 128 presets.
New Grain Delay Program and redesigned Dual Mode for unique tap divisions on each channel.
Modulation capabilities with six wave shapes (sine, square, triangle, ramp, reverse ramp, random).
Navigation menu screen for easy adjustment of secondary controls, BPM, and preset access.
High-fidelity stereo input and output.
MIDI In/Thru and USB-C connectivity for advanced control and firmware updates.

Bedieningselementen en aansluitingen

Walrus Audio Mako Series MKII D1 High-Fidelity Delay Pedal Front View

Figuur 1: Voorzijde view of the Walrus Audio D1 MKII pedal, showing all top-panel controls and footswitches.

Bedieningselementen op het bovenpaneel

TIME-knop: Past de vertragingstijd aan.
REPEATS Knob: Controls the number of delay repeats (feedback).
MIX-knop: Sets the blend between the dry signal and the wet (effected) signal.
TWEAK-knop: Multi-function knob for adjusting secondary parameters depending on the selected algorithm.
PROGRAMMA-selector: Rotary switch to select one of the six delay algorithms: Digital, Mod, Vintage, Dual, Reverse, Grain.
ATTACK Knob: Multi-function knob for adjusting secondary parameters, often related to the attack or character of the delay.
BYPASS-voetschakelaar: Engages or disengages the effect.
TAP-voetschakelaar: Used for tap tempo input and preset cycling.
OLED-scherm: Shows current settings, BPM, and menu navigation.

Walrus Audio Mako Series MKII D1 Input Side View

Figure 2: Input side view of the D1 MKII pedal, showing the Mono (L) and Stereo (R) input jacks.

Side Panel Connections (Input)

IN (Mono L) Jack: Hoofdaudio-ingang. Gebruik deze voor mono-ingang.
STEREO (R) Jack: Right channel audio input. Use in conjunction with the Mono (L) jack for stereo input.

Walrus Audio Mako Series MKII D1 Output Side View

Figure 3: Output side view of the D1 MKII pedal, showing the Mono (L) and Stereo (R) output jacks and power input.

Side Panel Connections (Output & Power)

OUT (Mono L) Jack: Hoofdaudio-uitgang. Gebruik deze voor mono-uitvoer.
STEREO (R) Jack: Right channel audio output. Use in conjunction with the Mono (L) jack for stereo output.
9VDC, 300mA Power Input: Connect a standard 9V DC power supply (center negative, 300mA minimum).

Walrus Audio Mako Series MKII D1 Rear View

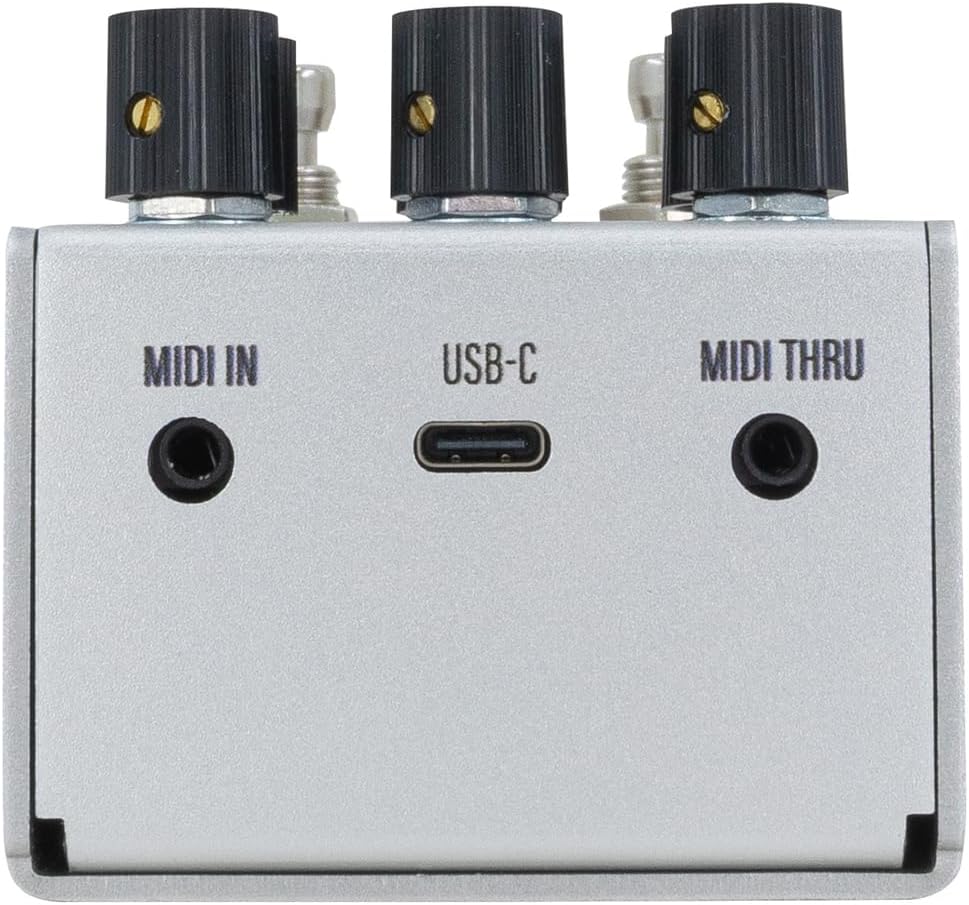

Afbeelding 4: Achter view of the D1 MKII pedal, showing MIDI In, USB-C, and MIDI Thru ports.

Aansluitingen op het achterpaneel

MIDI-INGANG: Connect to a MIDI controller for external control.
USB-C: For firmware updates and potential future functionality.
MIDI-DOORGANG: Passes MIDI data to other MIDI devices in a chain.

Instellen

Stroomaansluiting: Connect a 9V DC (center negative, 300mA minimum) power supply to the 9VDC input jack.
Audio-ingang:
- For mono operation, connect your instrument or preceding effects pedal to the IN (Mono L) krik.
- For stereo operation, connect the left channel to IN (Mono L) and the right channel to STEREO (R).
Audio-uitvoer:
- For mono output, connect the OUT (Mono L) jack naar je amplifier or next effects pedal.
- For stereo output, connect the left channel to OUT (Mono L) and the right channel to STEREO (R).
MIDI (Optional): If using MIDI control, connect your MIDI controller to the MIDI-ingang haven.

Operating Modes (Delay Algorithms)

The D1 MKII offers six distinct delay algorithms, each with unique characteristics and adjustable parameters via the TWEAK and ATTACK knobs.

1. Digitaal

A pristine, clear delay with high-fidelity repeats. Ideal for rhythmic delays where clarity is paramount.

2. Mod

Adds modulation to the delay repeats, creating lush, swirling textures. The TWEAK and ATTACK knobs control modulation depth and rate.

3. Vintage

Emulates the warm, decaying repeats of analog and tape delays. Repeats gradually lose fidelity and clarity.

4. Dubbel

Features two independent delay lines that can be set to different subdivisions, creating complex rhythmic patterns. The redesigned Dual mode allows for unique tap divisions on each channel.

Walrus Audio Mako Series MKII D1 OLED Display showing Dual mode

Figure 5: OLED display showing parameters for the Dual delay algorithm.

5. Omgekeerd:

Plays delay repeats backward, creating ethereal and atmospheric effects. The TWEAK and ATTACK knobs can control the attack and decay of the reversed repeats.

6. Grain

A granular delay algorithm that slices the audio into small "grains" and manipulates them to create unique textures, from shimmering ambient washes to glitchy stutters. This is an all-new program for the MKII.

Walrus Audio Mako Series MKII D1 OLED Display showing Grain mode

Figure 6: OLED display showing parameters for the Grain delay algorithm.

Voorinstellingen

The D1 MKII allows users to save and recall up to 128 presets, providing quick access to your favorite delay settings. Presets can be accessed and managed via the OLED display and footswitches, or through MIDI control.

Een voorinstelling opslaan: Adjust the pedal to your desired settings. Refer to the on-screen menu for specific instructions on how to save the current state to a preset slot.
Een voorinstelling oproepen: Use the TAP footswitch to cycle through presets or navigate the menu to select a specific preset.

MIDI-besturing

The D1 MKII supports MIDI control for advanced integration into your rig. MIDI allows for remote control of parameters, program changes (preset recall), and synchronization with other MIDI-enabled devices.

Connect your MIDI controller to the MIDI-ingang haven.
De MIDI-DOORGANG port can be used to daisy-chain MIDI data to other pedals.
Refer to the Walrus Audio website for detailed MIDI implementation charts and CC messages.

Onderhoud

Schoonmaak: Gebruik een zachte, droge doek om de buitenkant van het pedaal schoon te maken. Vermijd schurende reinigingsmiddelen of oplosmiddelen.
Opslag: Bewaar het pedaal op een koele, droge plaats, uit de buurt van direct zonlicht en extreme temperaturen, wanneer het niet in gebruik is.
Voeding: Always use a regulated 9V DC, center-negative power supply with a minimum of 300mA. Using an incorrect power supply can damage the unit and void the warranty.
Firmware-updates: Periodically check the Walrus Audio website for firmware updates via the USB-C port to ensure optimal performance and access to new features.

Probleemoplossing

Probleem	Mogelijke oorzaak / oplossing
Geen geluid of een zwak signaal.	Controleer of alle audiokabels goed zijn aangesloten en intact zijn. Ensure the power supply is correctly connected and providing sufficient power (9V DC, 300mA minimum). Verify the pedal is engaged (Bypass LED is on). Check the MIX knob setting; if set to dry, no effect will be heard.
Unexpected noise or hum.	Zorg ervoor dat u een hoogwaardige, geïsoleerde voeding gebruikt. Controleer op aardlussen in uw signaalketen. Probeer verschillende kabels.
Pedal does not respond to footswitches.	Verify the power supply is connected and functioning. If using MIDI, ensure there are no conflicting MIDI messages.

Specificaties

Functie	Detail
Modelnummer	900-1051mkII
Afmetingen	5.8 x 4.2 x 2.7 cm (14.7 x 10.7 x 6.9 inch)
Artikelgewicht	12.7 ounces (361 gram)
Vermogensvereiste	9V DC, 300mA minimum, center-negative
Connectiviteit	Stereo In/Out, MIDI In/Thru, USB-C
Voorinstellingen	Tot 128
UPC	810424036352

Garantie en ondersteuning

Walrus Audio products are built with quality and care. For information regarding warranty coverage, product registration, and technical support, please visit the official Walrus Audio webwebsite of neem contact op met hun klantenservice. Bewaar uw aankoopbewijs voor garantieclaims.

For the latest firmware updates and detailed MIDI implementation, please visit: www.walrusaudio.com
