Eujgoov QJB-55 Music Boxing Target User Manual

1. Inleiding

Thank you for choosing the Eujgoov QJB-55 Music Boxing Target. This intelligent wall-mounted fitness equipment is designed to enhance your reactive speed, physical coordination, and overall fitness through engaging music-synchronized boxing training. This manual provides essential information for the proper setup, operation, and maintenance of your device.

2. Inhoud van het pakket

Controleer of alle hieronder vermelde artikelen in uw pakket zijn opgenomen:

• 1 x Music Boxing Target Unit
• 2 x Boxing Gloves (1 Pair)
• 4 x Fasteners (for mounting)
• 1 x USB-oplaadkabel
• 1 x Adhesive Plate (for mounting)

Image 2.1: Contents of the Eujgoov QJB-55 Music Boxing Target package. Shown are the main boxing target unit, a pair of boxing gloves, four fasteners, a USB charging cable, and an adhesive plate for installation.

3. Specificaties

4. Installatie en installatie

The Eujgoov QJB-55 Music Boxing Target is designed for wall-mounted installation to optimize space and convenience. Follow these steps for proper setup:

4.1 Het apparaat opladen

1. Locate the USB charging port on the boxing target.
2. Connect the provided USB charging cable to the target and a suitable USB power adapter (not included).
3. Allow 3-5 hours for a full charge. The LED indicator will typically change to show charging status.

4.2 Wandmontage

The boxing target can be fixed to a wall using either the provided double-sided adhesive plate or nylon fasteners, depending on your wall surface and preference.

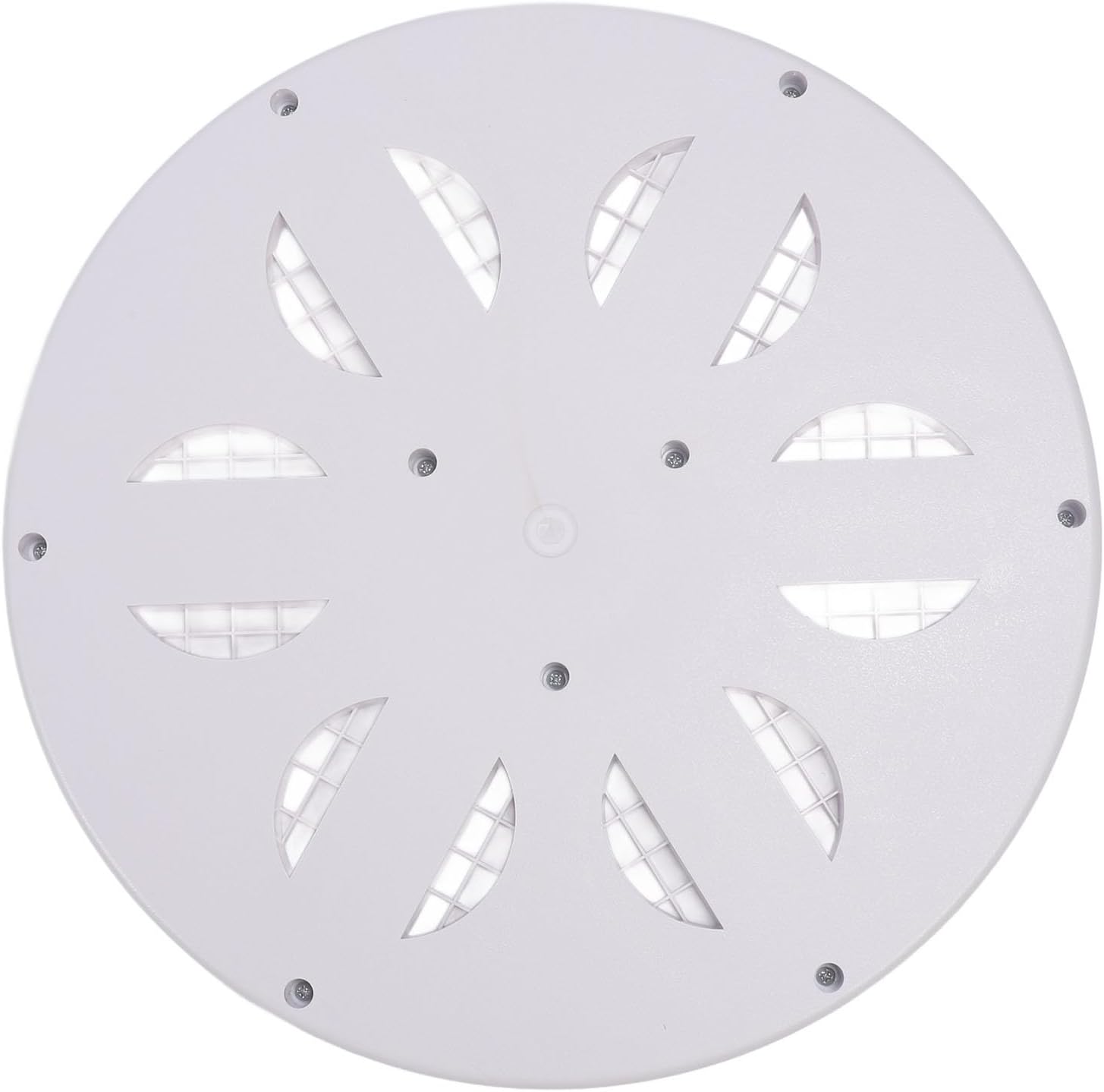

Afbeelding 4.1: Achterkant view of the Eujgoov QJB-55 Music Boxing Target, illustrating the design of the back panel and potential mounting points.

Image 4.2: The Eujgoov QJB-55 Music Boxing Target securely mounted on a wall, ready for use in a home environment.

Method 1: Using Adhesive Plate (for smooth, non-porous surfaces)

1. Choose a clean, dry, and smooth wall surface. Ensure it is free from dust, oil, or moisture.
2. Peel off the protective film from one side of the adhesive plate and firmly press it onto the back of the boxing target.
3. Peel off the protective film from the other side of the adhesive plate.
4. Carefully position the boxing target on the desired wall location and press firmly for at least 30 seconds to ensure strong adhesion.
5. Allow the adhesive to set for several hours (e.g., 24 hours) before initial use to ensure maximum bond strength.

Method 2: Using Fasteners (for more secure or textured surfaces)

1. Identify the appropriate mounting points on the back of the boxing target.
2. Mark the corresponding positions on your wall. Use a level to ensure the target will be mounted straight.
3. Drill pilot holes at the marked locations if necessary, suitable for the provided fasteners.
4. Secure the boxing target to the wall using the fasteners. Ensure it is tightly affixed and stable before use.

5. Gebruiksaanwijzing

The Eujgoov QJB-55 Music Boxing Target offers an interactive training experience with multiple modes and adjustable settings.

Image 5.1: The Eujgoov QJB-55 Music Boxing Target, showing its central LED display and control buttons for volume, mode, and power.

5.1 In-/uitschakelen

• Houd de Vermogen/Modus button located in the center of the target to turn the device on or off.

5.2 Selecting Modes and Speed

• Druk na het inschakelen kort op de knop. Vermogen/Modus button to cycle through different training modes and speed gears. The LED display will indicate the current mode or speed setting.
• The device features multiple modes and speed gears to accommodate various training levels and preferences.

5.3 Volume aanpassen

• Gebruik de VOL+ En VOL- buttons to adjust the audio volume. There are 16 levels of volume available.

5.4 Music Connection

• The intelligent boxing machine supports connecting to music. Refer to the device's specific instructions for Bluetooth pairing or other audio input methods to play your favorite songs during training.

5.5 Training Operation

• When the boxing target is active, specific target positions will light up.
• Strike the illuminated targets with your fists. The device will register each hit and display your hit count on the LED screen.
• The included boxing gloves are recommended to prevent hand injury during training.

Image 5.2: An individual engaged in a boxing training session, striking a target while wearing protective gloves.

6. Onderhoud

Proper maintenance ensures the longevity and optimal performance of your Eujgoov QJB-55 Music Boxing Target.

• Schoonmaak: The punching surface is made of high-elasticity foam with a stylish and smooth appearance. Wipe the surface with a soft, damp doek. Gebruik geen schuurmiddelen of oplosmiddelen die het materiaal kunnen beschadigen.
• Opslag: Wanneer u het apparaat gedurende langere tijd niet gebruikt, bewaar het dan op een koele, droge plaats, uit de buurt van direct zonlicht en extreme temperaturen.
• batterij zorg: To maintain battery health, avoid fully discharging the battery frequently. Recharge the device when the battery level is low. If storing for a long time, charge the battery to approximately 50% every few months.
• Inspectie: Periodically check the mounting for stability and ensure all components are secure.

7. Probleemoplossing

If you encounter issues with your Eujgoov QJB-55 Music Boxing Target, refer to the following common solutions:

• Apparaat gaat niet aan: Ensure the battery is sufficiently charged. Connect the USB cable and charge for 3-5 hours.
• Targets not lighting up: Check if the device is powered on and in an active training mode. If the issue persists, try restarting the device.
• Geen geluid of laag volume: Adjust the volume using the VOL+ button. Ensure the device is not muted. If connected via Bluetooth, check the volume on your connected audio source.
• Inaccurate hit count: Ensure you are striking the illuminated targets directly and with sufficient force. The sensor may not register light taps.
• Problemen met Bluetooth-verbinding: Ensure the device is in pairing mode (if applicable) and within range of your audio source. Disconnect and reconnect if necessary.

Als het probleem met deze stappen niet is opgelost, neem dan contact op met de klantenservice voor verdere hulp.

8. Veiligheidsinformatie

Please read and adhere to the following safety guidelines to prevent injury and ensure safe operation:

• Always wear the provided boxing gloves or other appropriate hand protection during use to prevent injury.
• Ensure the boxing target is securely mounted to a stable wall surface before each use. Regularly check the mounting for any signs of loosening.
• Do not strike the target with excessive force that could damage the device or cause personal injury.
• Houd kinderen en huisdieren uit de buurt van het apparaat tijdens het gebruik.
• Do not attempt to disassemble or modify the device. This could void the warranty and pose safety risks.
• Avoid exposing the device to water or extreme humidity.
• If you experience pain or discomfort during exercise, stop immediately and consult a healthcare professional.

9. Garantie en ondersteuning

Eujgoov products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or replacement parts, please refer to the warranty card included with your purchase or contact Eujgoov customer service directly.

• Klantenservice: Please refer to the contact information provided on the product packaging or the official Eujgoov webplaats.
• Online bronnen: Visit the Eujgoov website for FAQs, additional product information, and support.
