MCombo Power Lift Recliner Chair R7096 User Manual

1. Inleiding

This manual provides essential information for the safe and effective use of your MCombo Power Lift Recliner Chair, model R7096. Please read these instructions thoroughly before assembly and operation to ensure proper function and to prevent injury.

The MCombo Power Lift Recliner Chair is designed to provide comfort and assistance, featuring a power lift mechanism, heat, and massage functions. It is constructed with OEKO-TEX (Standard 100) certified fabric and CertiPUR-US certified sponge for safety and environmental responsibility.

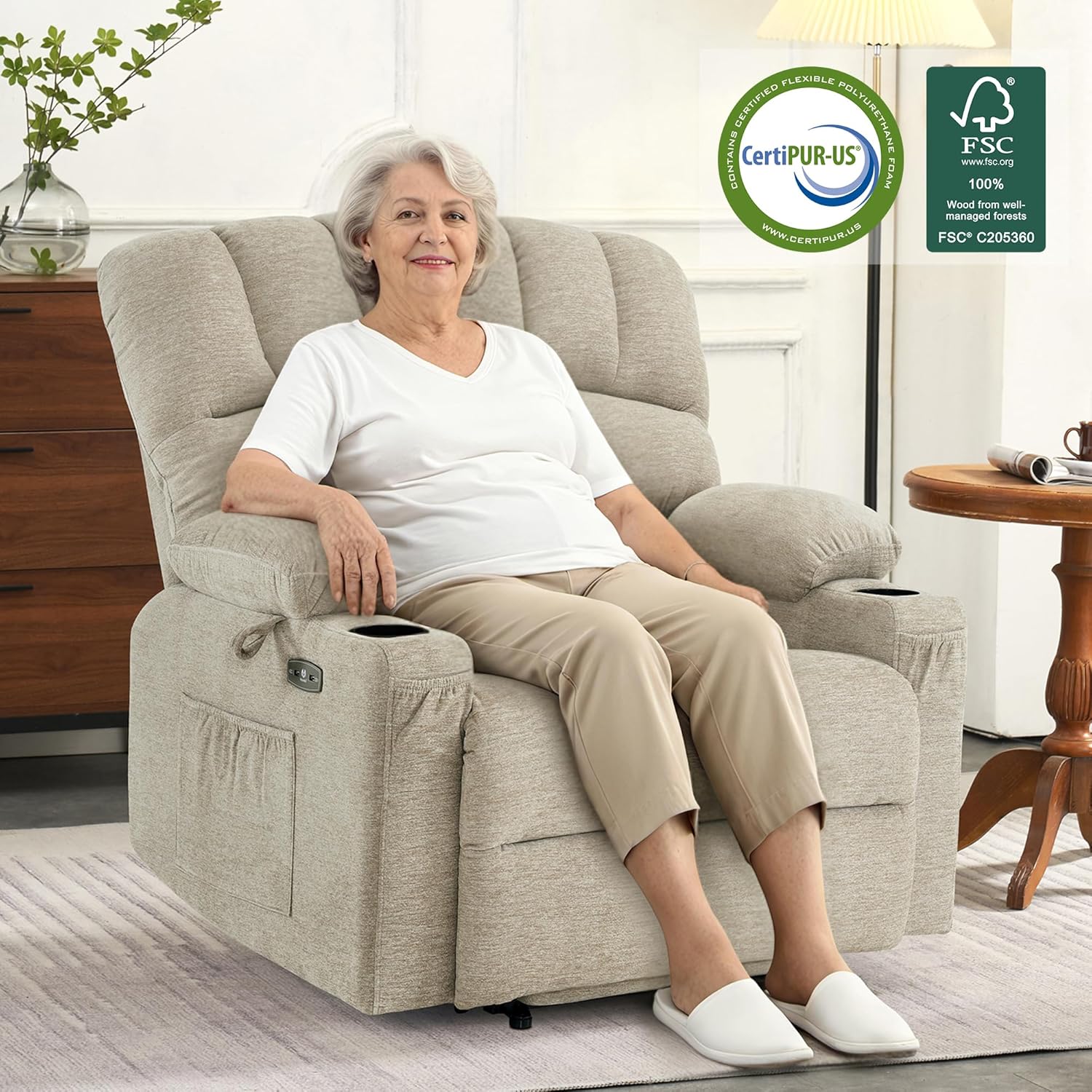

Image: An elderly woman seated in the MCombo Power Lift Recliner Chair, highlighting its comfortable design and suitability for users.

2. Veiligheidsinformatie

Belangrijke veiligheidsinstructies:

• Overschrijd het maximale draagvermogen van 158 kg niet.
• Use the lift mechanism with caution to avoid injury.
• Keep fingers, clothing, and other body parts away from moving parts of the chair, especially during recline and lift operations.
• Always follow the assembly and operation instructions provided in this manual.
• Zorg ervoor dat de stoel op een vlakke ondergrond staat.
• Houd kinderen en huisdieren uit de buurt van de bewegende delen van de stoel.
• Haal de stekker van de stoel uit het stopcontact voordat u hem reinigt of onderhoudt.
• Gebruik de stoel niet als het netsnoer of de stekker beschadigd is. Neem contact op met de klantenservice voor hulp.
• Avoid placing liquids directly on the chair's controls or electrical components.

Image: Certifications for the chair's materials, including CertiPUR-US for foam, OEKO-TEX Standard 100 for fabric, and FSC for wood, ensuring safety and sustainability.

3. Inhoud van het pakket

Before beginning assembly, ensure all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Armleuningen (links en rechts)
• rug
• Base (Seat Frame with Mechanism)
• Accessories Box (contains power adapter, remote controls, anti-falling ropes)
• Gebruiksaanwijzing

4. Montage-instructies

Assembly is designed to be straightforward and typically takes about 20 minutes for one person, with no additional tools required. It is recommended to have two people for moving the boxes due to weight.

1. Componenten uitpakken: Carefully remove all parts from the packaging. Keep packaging materials until assembly is complete in case of returns.
2. Armleuningen bevestigen: Slide the left and right armrests onto the corresponding metal brackets on the chair base until they click securely into place.
3. Rugleuning verbinden: Align the backrest with the receiving brackets on the chair base and push down firmly until it locks into position.
4. Bedrading aansluiten: Locate the electrical cables extending from the backrest and base. Connect them according to the color-coded or labeled connectors. Ensure all connections are secure.
5. Sluit stroom aan: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.
6. Secure Anti-Falling Ropes (if applicable): Attach the anti-falling ropes to the designated points on the chair and to a stable wall or furniture piece to prevent tipping during full recline or lift.

For visual guidance, please refer to the assembly video below:

5. Gebruiksaanwijzing

Your MCombo Power Lift Recliner Chair comes with two remote controls: one for the power lift and recline functions, and another for the heat and massage features.

5.1 Elektrische lift- en ligfuncties

Use the 2-button remote control for adjusting the chair's position.

• Leunen: Houd de pijl naar beneden button. The chair will smoothly recline backward, and the footrest will extend. Release the button when you reach your desired position. The chair can recline up to 150 degrees.
• To Lift/Stand: Houd de pijl omhoog button. The chair will gently lift and tilt forward, assisting you to a standing position. Release the button when you are ready to stand.
• Om terug te keren naar de rechtopstaande positie: From a reclined position, press and hold the pijl omhoog button. The footrest will retract, and the backrest will return to an upright sitting position.

Image: The simple two-button remote control for operating the chair's lift and recline functions.

Image: The chair fully reclined, illustrating the extended footrest and comfortable angle for relaxation.

5.2 Heat and Massage Functions

Use the multi-button remote control for activating and adjusting the heat and massage features.

• Aan/uit: Druk op de STROOM button to turn the massage and heat functions on or off.
• Warmte Functie: Druk op de WARMTE button to activate lumbar heating. The heating function operates independently of the vibration massage.
• Massage modi: The chair features 8 vibration nodes and 5 massage modes. Press the MODUS button to cycle through the different massage patterns.
• Intensiteitsniveaus: Adjust the massage intensity using the INTENSITEIT +/- buttons. There are 2 intensity levels.
• Target Zones: Select specific massage zones (BACK, LUMBAR, THIGH, LEG) by pressing the corresponding buttons.
• Tijdklok: Set an auto-off timer for 10, 20, or 30 minutes using the TIJDKLOK knop.

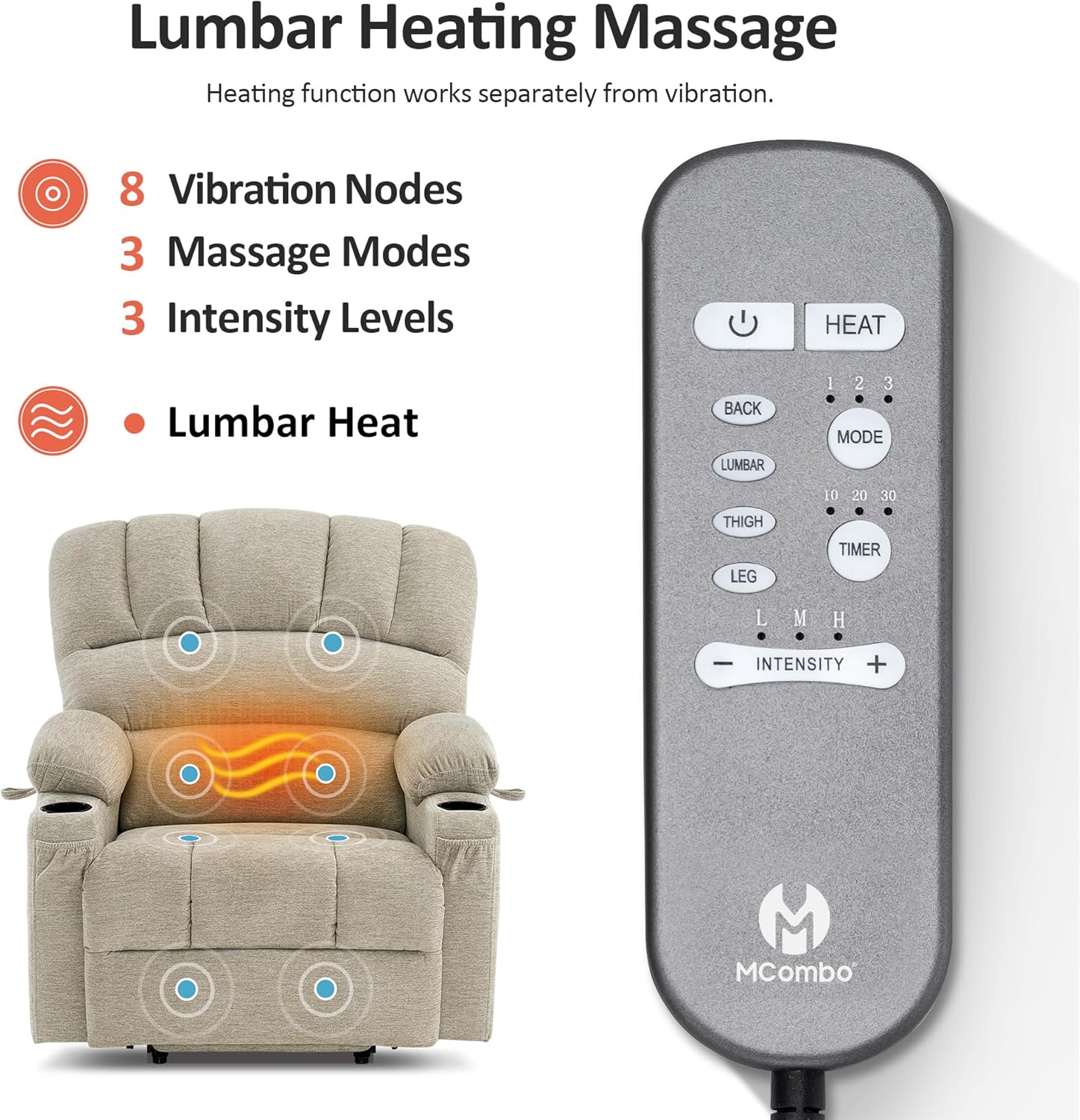

Image: The remote control for heat and massage, detailing the various buttons and an overlay showing the 8 vibration nodes and lumbar heating area on the chair.

5.3 Handige functies

• USB-oplaadpoorten: The chair includes a USB and a Type-C charging port, allowing you to charge your devices while seated.
• Bekerhouders: Two built-in cup holders are located on the armrests for easy access to beverages.
• Zijzakken: Side pockets provide storage for remote controls, magazines, or other small items.

Afbeelding: Gedetailleerd view of the chair's convenient features, including USB/Type-C ports, cup holders, and side pockets.

6. Verzorging en onderhoud

Goed onderhoud verlengt de levensduur en het uiterlijk van uw relaxfauteuil.

• Schoonmaak: Spot clean the fabric with a mild detergent and a damp cloth. Do not use harsh chemicals or abrasive cleaners. Test any cleaning solution on an inconspicuous area first.
• morsen: Dep gemorste vloeistoffen onmiddellijk op met een schone, droge doek.
• Afstoffen: Stof de stoel regelmatig af met een zachte, droge doek.
• Inspectie: Controleer regelmatig alle verbindingen en bevestigingsmiddelen om er zeker van te zijn dat ze goed vastzitten.
• Stroomkabel: Zorg ervoor dat het netsnoer niet bekneld raakt of onder zware voorwerpen komt te liggen.

7. Probleemoplossing

If you encounter issues with your MCombo Power Lift Recliner Chair, refer to the following common solutions:

Als het probleem aanhoudt na het proberen van deze oplossingen, neem dan contact op met de klantenservice van MCombo voor verdere hulp.

8. Specificaties

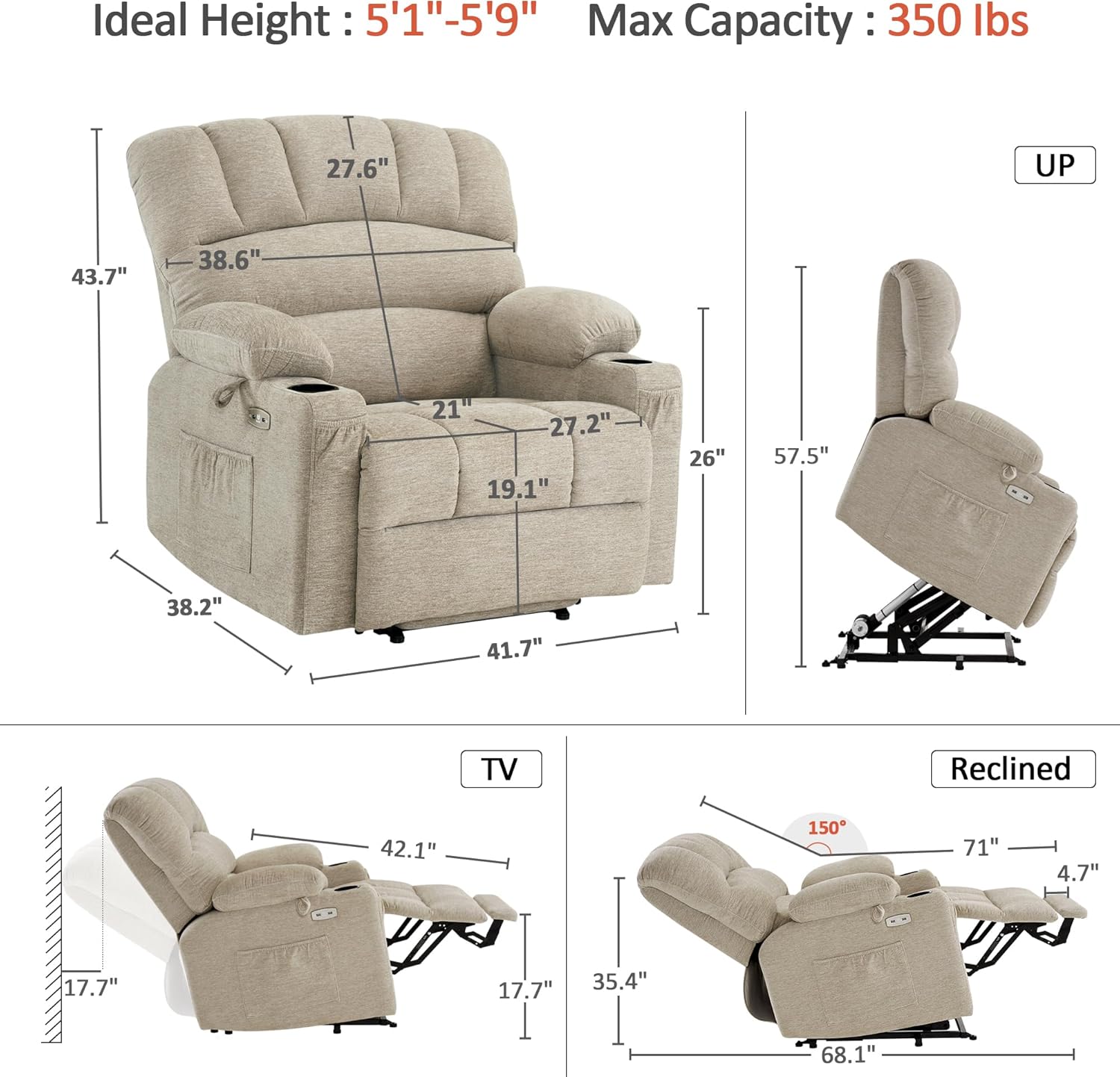

Image: Dimensional diagram of the chair, illustrating measurements for height, width, depth, seat dimensions, and recline angles, along with recommended user height and weight capacity.

9. Garantie en ondersteuning

Your MCombo Power Lift Recliner Chair is backed by a 2 jaar beperkte garantie. This warranty covers free replacements for:

• Kantel-/hefmechanismen
• Elektrische systemen
• Stoffering en kussens
• Houten/metalen frameconstructies

For warranty claims, technical support, or any questions regarding your product, please contact MCombo customer service. Refer to the contact information provided with your purchase documentation or visit the official MCombo webplaats.
