1. Veiligheidsinformatie
Always observe the following safety precautions when operating the Bosch GST 680 Corded Electric Jigsaw to prevent electric shock, fire, and serious injury.
- Veiligheid werkgebied: Houd de werkruimte schoon en goed verlicht. Rommelige of donkere ruimtes zijn een risico op ongelukken. Gebruik geen elektrisch gereedschap in explosieve atmosferen, zoals in de buurt van ontvlambare vloeistoffen, gassen of stof.
- Elektrische veiligheid: Stekkers van elektrisch gereedschap moeten in het stopcontact passen. Wijzig de stekker nooit op enigerlei wijze. Vermijd lichamelijk contact met geaarde oppervlakken zoals leidingen, radiatoren, fornuizen en koelkasten.
- Persoonlijke veiligheid: Always wear eye protection. Use hearing protection when operating for extended periods. Wear a dust mask if operations create dust. Secure loose clothing, jewelry, and long hair.
- Gebruik en onderhoud van gereedschap: Forceer het elektrische gereedschap niet. Gebruik het juiste elektrische gereedschap voor uw toepassing. Haal de stekker uit het stopcontact voordat u aanpassingen uitvoert, accessoires verwisselt of elektrisch gereedschap opbergt.
- Terugslagpreventie: Always hold the jigsaw firmly with both hands. Ensure the workpiece is securely clampred.
2. Product voorbijview
The Bosch GST 680 is a powerful 500W corded electric jigsaw designed for precise cutting in various materials. It features adjustable speed control and orbital action for versatile applications.
Inhoud van het pakket
Verify that all items are present in the package upon unboxing.
The package typically contains the GST 680 Electric Jigsaw, a carrying case, one wood blade, a 4mm hex key, and an anti-splinter guard.
- 1 x Bosch GST 680 Corded Electric Jigsaw
- 1 x Wood Blade
- 1 x Allen Key (Hex Key)
Note: The carrying case and anti-splinter guard may not be included in all regional packages. Please check your specific product details.
3. Instellen
3.1 Het zaagblad bevestigen
- Zorg ervoor dat de decoupeerzaag niet is aangesloten op het stroomnet.
- Zoek het mes clamp mechanism on the front of the jigsaw.
- Insert the shank of the saw blade into the blade clamp until it clicks into place. Ensure the teeth of the blade are facing forward.
- Pull the blade gently to confirm it is securely fastened.
Ensure the blade is correctly inserted and secured before operation.
3.2 De basisplaat afstellen voor schuine sneden
The base plate can be adjusted for bevel cuts up to 45 degrees.
- Loosen the screws securing the base plate using the provided hex key.
- Tilt the base plate to the desired angle (e.g., 45 degrees).
- Tighten the screws firmly to secure the base plate in position.
4. Gebruiksaanwijzing
The Bosch GST 680 Jigsaw offers adjustable speed and orbital settings for optimal cutting performance across various materials.
4.1 In- en uitschakelen
- To switch on the tool, press the On/Off switch.
- To switch off the tool, release the On/Off switch.
4.2 Snelheidsregeling
The pre-selection speed wheel allows you to adjust the stroke rate (800-3100 spm) to match the material being cut.
- Set a lower speed for harder materials like metal or thick wood.
- Set a higher speed for softer materials like thin wood or plastic.
4.3 Afstelling van de orbitale werking
The orbital action lever allows you to select different pendulum stroke settings for varying cutting aggressiveness.
- Instelling 0 (geen orbitale actie): For fine, clean cuts in wood, plastic, and metal.
- Settings I, II, III (Increasing Orbitale actie): For faster, more aggressive cuts in wood. Higher settings are suitable for rough cuts.
4.4 Snijprocedure
- Zet het werkstuk goed vast om te voorkomen dat het tijdens het zagen beweegt.
- Mark the cutting line clearly on the workpiece.
- Place the jigsaw's base plate flat on the workpiece, ensuring the blade is aligned with the cutting line.
- Switch on the jigsaw and allow it to reach full speed before engaging the blade with the material.
- Guide the jigsaw along the marked line with steady, even pressure. Do not force the tool.
- Maintain a firm grip on the ergonomic handle throughout the cutting process.

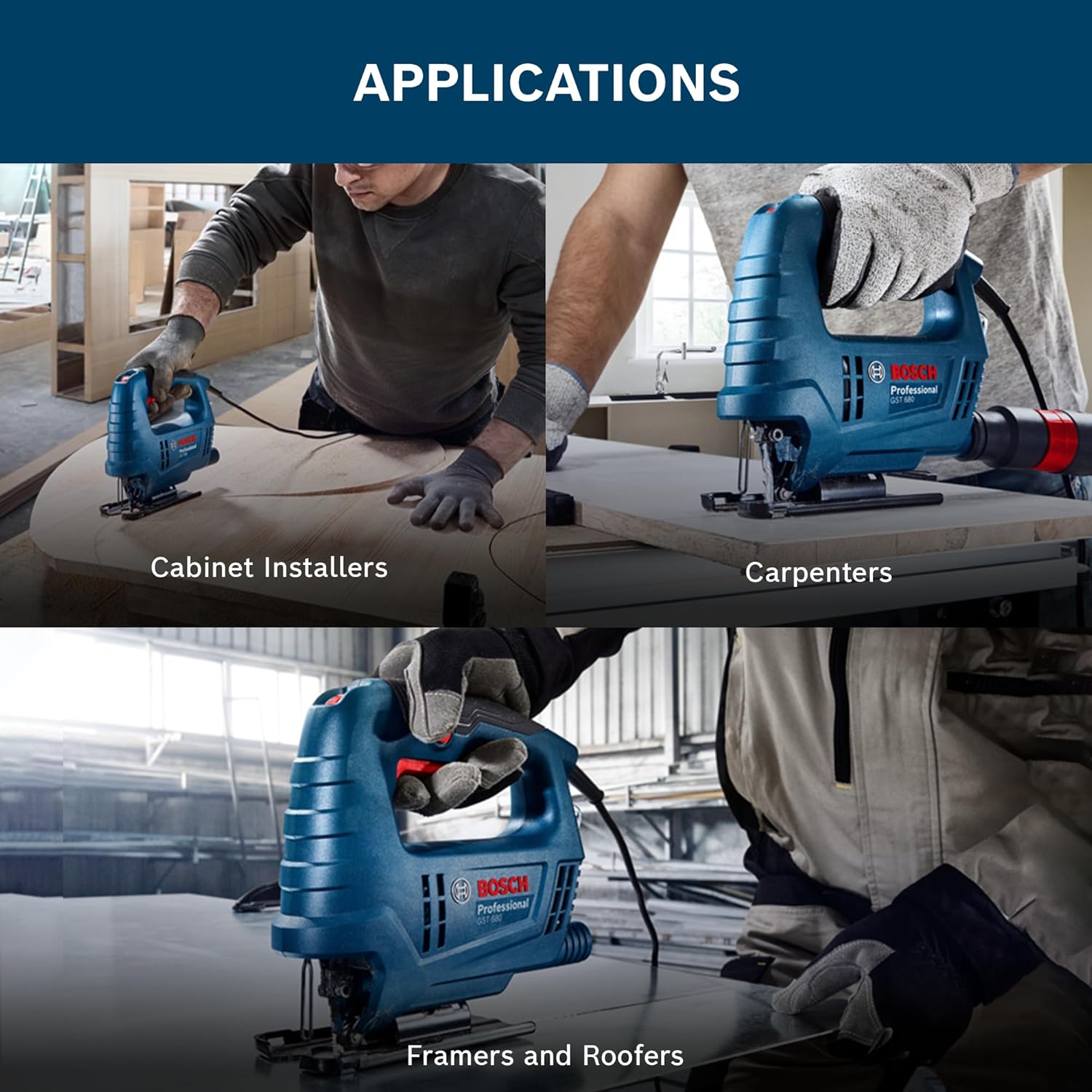

The jigsaw is suitable for straight, curved, and angled cuts in various materials.
5. Onderhoud
Regular maintenance ensures the longevity and optimal performance of your Bosch GST 680 Jigsaw.
- Schoonmaak: After each use, clean the tool, especially the ventilation slots, to prevent dust buildup. Use a soft brush or compressed air. Do not use water or chemical cleaners.
- mes vervangen: Replace dull or damaged saw blades promptly. Always unplug the tool before changing blades.
- Koolborstels: The motor's carbon brushes may need replacement after extended use. This should be performed by a qualified service technician.
- Smering: The tool is factory-lubricated and generally does not require additional lubrication by the user.
- Opslag: Bewaar de puzzel op een droge, veilige plaats, buiten het bereik van kinderen.
6. Probleemoplossing
If you encounter issues with your Bosch GST 680 Jigsaw, refer to the following common problems and solutions.
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Tool start niet | Geen stroomvoorziening; Defecte schakelaar | Check power cord and outlet; Contact service center if switch is faulty. |
| Verminderde snijprestaties | Dull or incorrect blade; Overheating | Replace blade; Use appropriate blade for material; Allow tool to cool down. |
| Overmatige trillingen | Los mes; Beschadigd mes; Intern probleem | Ensure blade is securely fastened; Replace damaged blade; Contact service center. |
| Smoke from workpiece | Dull blade; Incorrect speed; Forcing the tool | Replace blade; Adjust speed setting; Reduce feed pressure. |
Als het probleem aanhoudt na het proberen van deze oplossingen, neem dan contact op met een erkend Bosch-servicecentrum.
7. Specificaties
Detailed technical specifications for the Bosch GST 680 Corded Electric Jigsaw.
Key technical specifications of the Bosch GST 680 Jigsaw.
| Functie | Specificatie |
|---|---|
| Modelnummer | 06015B40F0 |
| Nominaal ingangsvermogen | 500 W |
| Deeltage | 230V |
| Stroke Rate at No Load | 800-3100 spm |
| Saw, Stroke Length | 20mm |
| Cutting Depth (Wood) | 68mm |
| Cutting Depth (Metal) | (Not specified, typically lower than wood) |
| Afschuiningshoek | 45 graden |
| Artikelgewicht | 2.42 kg (2 kg 420 g) |
| Productafmetingen | 28L x 23.5B x 9H Centimeter |
| Energiebron | Elektrische kabel |
| Handvat Materiaal | Rubber |
8. Garantie-informatie
The Bosch GST 680 Corded Electric Jigsaw comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use.
- Bewaar uw aankoopbewijs als bewijs voor garantieclaims.
- The warranty does not cover damage caused by misuse, abuse, unauthorized repairs, or normal wear and tear.
- For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Bosch webplaats.
9. Ondersteuning
For technical assistance, spare parts, or service inquiries regarding your Bosch GST 680 Jigsaw, please contact Bosch customer support.
- Bezoek de officiële Bosch website for service center locations and contact information.
- When contacting support, please have your product model (GST 680) and serial number ready.
