TSPROF Kadet Pro Sharpening Kit Version T User Manual

1. Inleiding

Thank you for choosing the TSPROF Kadet Pro Sharpening Kit Version T. This precision knife sharpening system is designed to provide exceptional sharpness for a wide range of knives, from utility and folding knives to kitchen and hunting knives. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your sharpening kit.

Figure 1: Assembled TSPROF Kadet Pro Sharpening Kit.

2. Product voorbijview en functies

The TSPROF Kadet Pro Version T is an advanced knife sharpening system engineered for precision and ease of use. Key features include:

• Precise Angle Adjustment: The rack and pinion height adjuster allows for sharpening angles from 9° to 28° per side (up to 56° total angle) with 0.1° accuracy.
• Consistent Double-Sided Sharpening: A unique turning mechanism enables flipping the knife to sharpen the other side while maintaining the exact same angle.
• Compact en draagbaar ontwerp: Weighing only 2.1 kg, the Kadet Pro is easy to disassemble for storage and convenient transportation, allowing sharpening anywhere.
• Veelzijdige mescompatibiliteit: Whole-milled clamps securely hold various knife types, including utility, folding, pocket, kitchen, and hunting knives.
• Version T Enhancements: This original non-anodized model of Kadet features an upgraded rack and pinion height adjuster for improved performance.

Figure 2: Rack and pinion angle adjustment for precise control.

3. Installatie-instructies

Follow these steps to assemble your TSPROF Kadet Pro Sharpening Kit:

1. Componenten uitpakken: Haal alle onderdelen voorzichtig uit de verpakking. Controleer of alle onderdelen die op de paklijst staan ​​vermeld, aanwezig zijn.
2. Bevestig de basis: Place the main sharpening unit onto its stable base. Secure it using the provided fasteners, ensuring it is firm and does not wobble.
3. Install the Guide Rod: Insert the horizontal guide rod into the main unit's holder. Ensure it slides smoothly and can be locked into position.
4. Mount the Knife Clamps: Attach the whole-milled knife clamps to the main unit. These clamps are designed to hold the knife blade securely.
5. Secure the Knife: Place your knife blade into the clamps. Use the adjustment screws to tighten the clamps, ensuring the knife is held firmly without movement. The blade spine thickness can be up to 0.27 inches (7 mm). The blade length can range from 1.18 to 15.74 inches (30-400 mm), and blade width from 0.51 inches (13 mm).

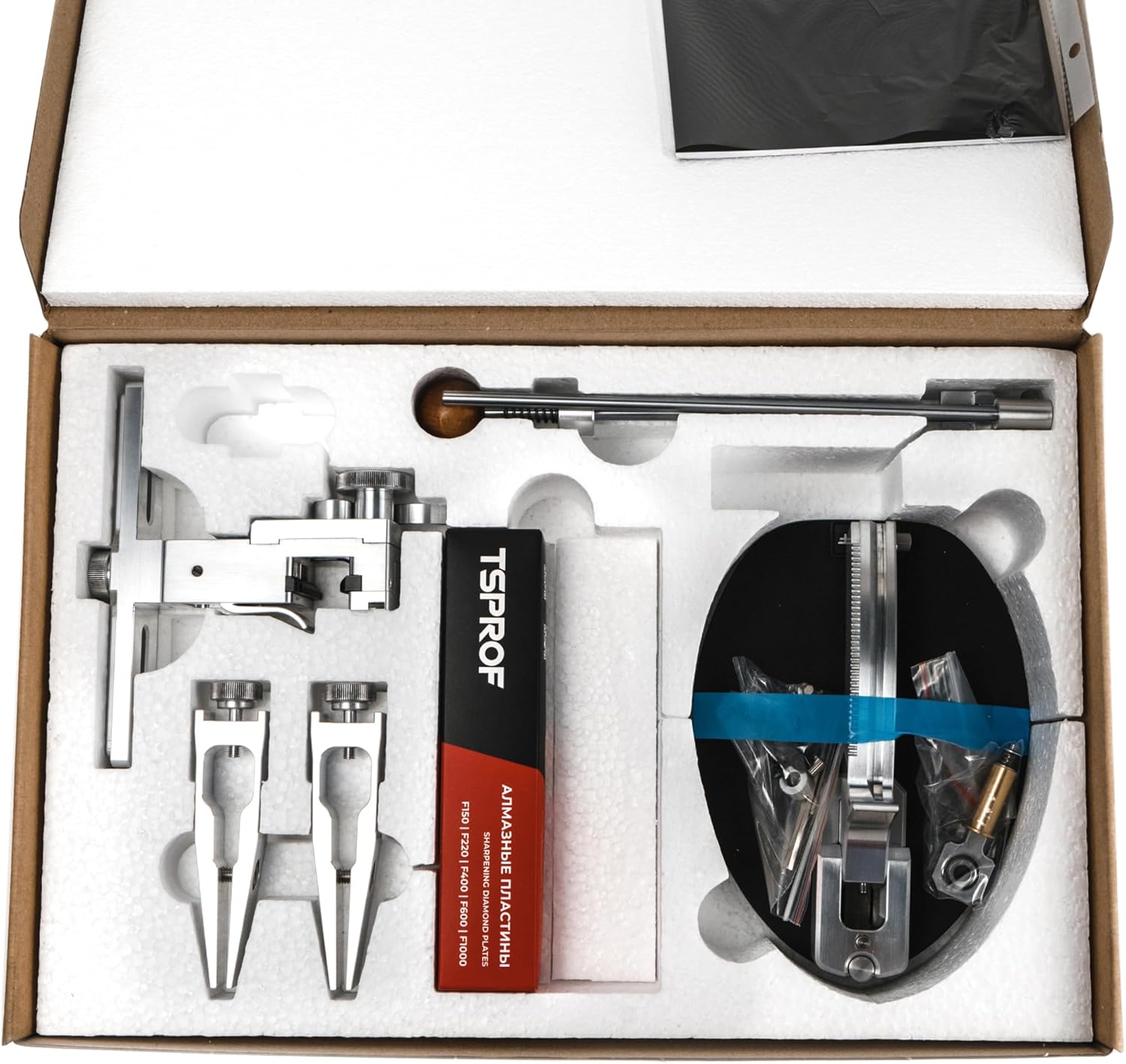

Figure 3: Kit components laid out in the box.

4. Gebruiksaanwijzing

Achieving a razor-sharp edge requires careful attention to detail. Follow these steps for effective sharpening:

1. Set the Sharpening Angle: Use the rack and pinion height adjuster to set your desired sharpening angle. The system allows for precise adjustments from 9° to 28° per side. A digital angle finder (like the AXI CUBE-I, if included or purchased separately) can be used on the guide rod for exact angle measurement.
2. Select Sharpening Stone: Begin with a coarse grit stone (e.g., F150 Extra Coarse) to establish the primary bevel and remove significant material. Progress through finer grits (F220 Coarse, F400 Medium, F600 Fine, F1000 Extra Fine) to refine the edge. The system supports stone lengths up to 8.26 inches (210 mm) and stone thickness from 0.11 to 0.62 inches (3-16 mm).
3. Sharpen One Side: Apply light, consistent pressure while moving the stone along the blade edge. Maintain the set angle throughout the stroke.
4. Flip the Knife: Utilize the turning mechanism to flip the knife to the other side. This mechanism ensures that the same sharpening angle is maintained on both sides of the blade, crucial for a symmetrical and sharp edge.
5. Sharpen the Second Side: Repeat the sharpening process on the second side of the blade, using the same grit progression and technique.
6. Deburr and Strop: After reaching the finest grit, remove any burr formed on the edge. This can be done with a very light pass on a fine stone or by stropping.

Figure 4: Knife secured in clamps, ready for sharpening.

Figure 5: Range of sharpening stones from extra coarse to extra fine.

Officiële productvideo

5. Onderhoud

Proper maintenance ensures the longevity and performance of your sharpening kit:

• Schoonmaak: After each use, clean the sharpening system and stones. Use a soft brush or cloth to remove metal particles and abrasive residue. For stones, a mild detergent and water can be used. Ensure all parts are dry before storage.
• Smering: Periodically apply a small amount of light machine oil to moving parts, such as the guide rod and angle adjustment mechanism, to ensure smooth operation.
• Opslag: Store the kit in a clean, dry place, preferably in its original packaging or a protective case, to prevent dust and damage.
• Steenverzorging: Flatten sharpening stones regularly using a lapping plate or sandpaper on a flat surface to maintain their effectiveness.

6. Probleemoplossing

If you encounter issues with your sharpening kit, consider the following common problems and solutions:

7. Specificaties

8. Garantie en ondersteuning

For warranty information, product support, or to purchase additional accessories and sharpening stones, please visit the official TSPROF webwebsite of neem contact op met hun klantenservice. Bewaar uw aankoopbewijs voor garantieclaims.

Officieel Webwebsite: TSPROF.US
