Osim OS-1202

OSIM uVision Air Eye Massager Instruction Manual

Model: OS-1202

1. Belangrijke veiligheidsmaatregelen

Please read all instructions carefully before using the OSIM uVision Air Eye Massager. Failure to follow these instructions may result in injury or damage to the device.

  • This product is not intended for self-diagnosis or self-treatment of conditions that should be managed by a qualified healthcare provider.
  • Consult your healthcare provider before use if you are under any medication or fall into any of the following categories:
    • Heart diseases
    • High or low blood pressure, deep vein thrombosis (DVT)
    • Zwanger
    • Suikerziekte
    • Individuals fitted with medical implants (e.g., pacemaker, automatic cardiac defibrillator (AICD))
    • Recently underwent surgical operations
    • Those with any bone conditions like fractures, osteoporosis
  • Gebruik het apparaat niet terwijl u autorijdt of zware machines bedient.
  • Buiten bereik van kinderen houden.
  • Haal het apparaat niet zelf uit elkaar en probeer het niet zelf te repareren. Neem contact op met de klantenondersteuning voor hulp.

2. Product voorbijview

The OSIM uVision Air Eye Massager is designed to provide targeted airbag massage and soothing warmth to help alleviate eye fatigue, dark circles, fine lines, and dry eyes. Its foldable and lightweight design ensures portability.

OSIM uVision Air Eye Massager in use by a woman relaxing on a couch

Image: The OSIM uVision Air Eye Massager being worn by a woman relaxing, illustrating its intended use for daily eye care.

Belangrijkste kenmerken:

  • Airbagmassage: Strategically positioned airbags target vital acupressure points around the eyes.
  • Rustgevende warmte: Provides an optimum temperature of 40°C - 49°C to enhance massage benefits.
  • Draagbaar ontwerp: Foldable and lightweight for easy transport.
  • Meerdere programma's: Three specialized massage programs to suit different needs.
  • USB-opladen: Convenient charging for on-the-go use.

3. Instellen en opladen

Het apparaat opladen:

  1. Locate the USB input port on the massager.
  2. Connect the provided USB cable to the massager and a compatible 5V-1A USB power source (e.g., wall adapter, computer USB port).
  3. The charging indicator light will illuminate. A full charge provides up to 4 hours of use.
  4. Zodra de batterij volledig is opgeladen, koppelt u de USB-kabel los.
Close-up of the OSIM uVision Air Eye Massager's USB charging port

Afbeelding: Een gedetailleerde view of the USB charging port on the OSIM uVision Air Eye Massager, highlighting its charging capability.

De riem aanpassen:

The uVision Air features an adjustable strap to ensure a comfortable and secure fit for maximum effectiveness.

  1. Place the massager over your eyes.
  2. Adjust the strap until the device fits perfectly and snugly without being too tight.

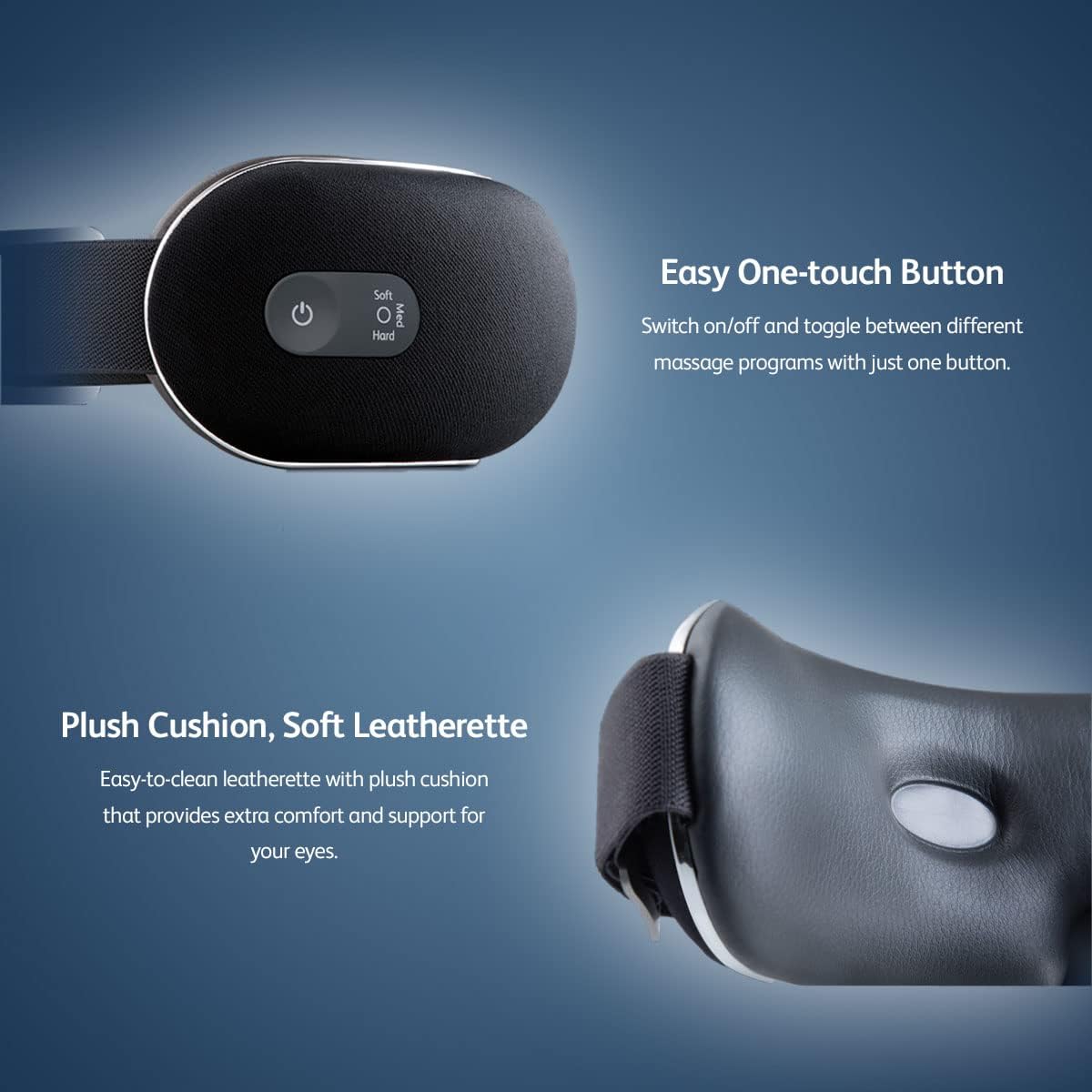

Close-up of the OSIM uVision Air Eye Massager's adjustable strap and control button

Image: A close-up showing the adjustable strap and the one-touch control button of the OSIM uVision Air Eye Massager.

4. Gebruiksaanwijzing

Power On/Off and Program Selection:

The device is operated using a single one-touch button.

  1. Inschakelen: Press and hold the power button for a few seconds until the device activates.
  2. To Select Program: Briefly press the power button to cycle through the available massage programs.
  3. Uitschakelen: Houd de aan/uit-knop opnieuw ingedrukt totdat het apparaat uitschakelt.

Massageprogramma's:

The uVision Air offers three specialized massage programs, each designed for different needs:

  • Soft (Sleep) Mode: Ideal for improving sleep quality and reducing the appearance of dark circles with soothing warmth.
  • Woman sleeping with OSIM uVision Air Eye Massager, illustrating the Soft (Sleep) mode

    Image: A woman sleeping while wearing the OSIM uVision Air, demonstrating the 'For The Nocturnal' program mode for sleep and dark circles.

  • Medium (Energize) Mode: Refreshes tired and dry eyes, especially after long screen exposure, using low airbag massage and soothing warmth.
  • Woman working at a desk with OSIM uVision Air Eye Massager, illustrating the Medium (Energize) mode

    Image: A woman wearing the OSIM uVision Air while working at a desk, illustrating the 'For The Busy Executive' program mode for dry and tired eyes.

  • Hard (Beauty) Mode: Provides a firming effect to address fine lines and wrinkles with high airbag massage.
  • Woman smiling with OSIM uVision Air Eye Massager, illustrating the Hard (Beauty) mode

    Image: A woman smiling while wearing the OSIM uVision Air, demonstrating the 'For The Beauty Lover' program mode for fine lines and wrinkles.

Targeted Acupressure Points:

The airbag massage targets specific acupressure points for maximum benefit:

  • Zān Zhú massage (攒竹穴): Helps with eye fatigue.
  • Shī Zhú Kōng massage (丝竹空穴): Relieves migraine and helps firm droopy eyelids.
  • Tài Yáng massage (太阳穴): Alleviates headache and stress.
  • Sì Bái massage (四白穴): Relieves dry and itchy eyes.

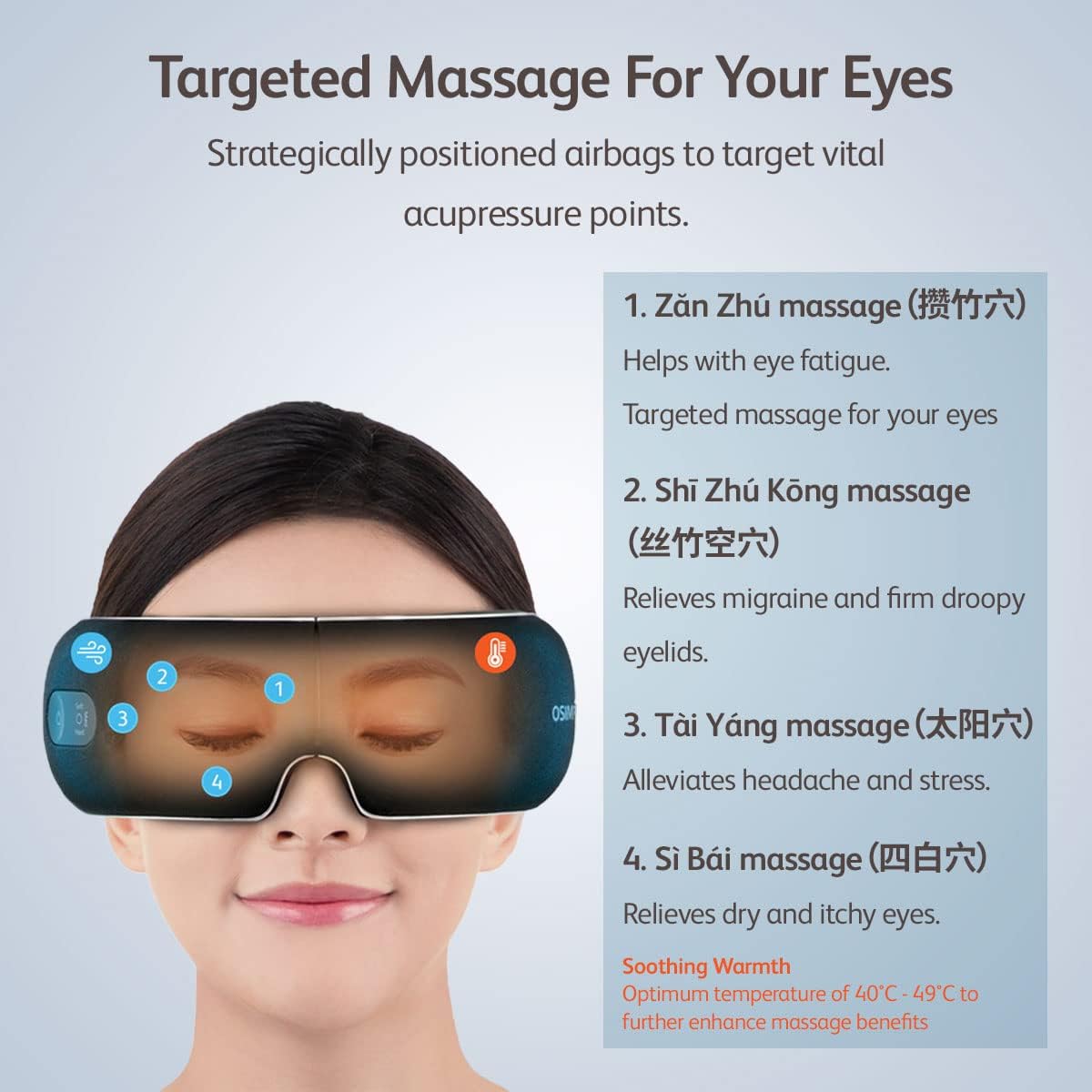

Diagram showing acupressure points around the eye targeted by the massager

Image: A diagram illustrating the specific acupressure points around the eye that the OSIM uVision Air targets for various benefits.

5. Onderhoud en opslag

Schoonmaak:

The uVision Air features easy-to-clean leatherette and plush cushioning.

  • Veeg het oppervlak van de massager af met een zachte, damp lap.
  • Gebruik geen schurende reinigingsmiddelen en dompel het apparaat niet onder in water.
  • Ensure the device is completely dry before storing or using again.

Opslag:

After use, store the massager in a clean, dry place. Its foldable design makes it compact for storage.

OSIM uVision Air Eye Massager shown in its folded, compact state

Image: The OSIM uVision Air Eye Massager displayed in its folded position, emphasizing its lightweight and portable design for easy storage.

6. Probleemoplossing

If you encounter any issues with your OSIM uVision Air Eye Massager, please refer to the following common solutions:

  • Apparaat gaat niet aan: Zorg ervoor dat het apparaat volledig is opgeladen. Sluit het aan op een stroombron en laat het minstens 30 minuten opladen voordat u het opnieuw probeert in te schakelen.
  • No massage or warmth: Check that the device is powered on and a program is selected. If the battery is low, the functions may be limited. Recharge the device.
  • Ongemak tijdens gebruik: Adjust the strap for a more comfortable fit. If discomfort persists, discontinue use and consult a healthcare professional.
  • Problemen met opladen: Ensure the USB cable is securely connected to both the device and the power source. Try a different USB cable or power adapter if available.

If the problem persists after trying these steps, please contact OSIM customer support.

7. Specificaties

SpecificatieDetail
ModelnummerOS-1202
USB-invoer5V --- 1A
Netto gewichtOngeveer 300g
BrutogewichtOngeveer 770g
MateriaalKunststof, siliconen
KleurZwart
EnergiebronCorded Electric (for charging), Cordless (for use)
Speciale kenmerkenFatigue relief, Foldable
Optimum Warmth Temperature40°C - 49°C
Levensduur van de batterijUp to 4 hours of use per full charge

8. Garantie-informatie

OSIM products are manufactured to the highest quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official OSIM webwebsite. Bewaar uw aankoopbewijs voor garantieclaims.

9. Klantenservice

For further assistance, product inquiries, or technical support, please contact OSIM customer service through their official webwebsite of de contactgegevens die op de verpakking van uw product staan.

U kunt de Osim Store on Amazon voor meer informatie.
