Aigostar 3-Outlet Power Strip with Switch (Model: AE-IY1P3H3BPD) Instruction Manual

1. Inleiding

Thank you for choosing the Aigostar 3-Outlet Power Strip. This manual provides essential information for the safe and efficient use of your new power strip. Please read these instructions carefully before use and retain them for future reference.

2. Product voorbijview en functies

The Aigostar 3-Outlet Power Strip (Model AE-IY1P3H3BPD) is designed to provide convenient and safe power distribution for your electronic devices. It features three Schuko Bipasso outlets, a 5-meter long cable, and an integrated on/off switch.

• 3 Schuko Bipasso Outlets: Accommodates 10/16A plugs.
• 5-meterkabel: Provides extended reach for flexible placement.
• Geïntegreerde aan/uit-schakelaar: With an indicator light for easy power control and energy saving.
• 45° Angled Outlets: Designed for convenient connection and disconnection, preventing cable obstruction.
• Duurzame constructie: Made from heat-resistant materials with a copper circuit to support up to 3680W.
• Kinderbeveiligingsvoorziening: Built-in safety mechanism to prevent accidental electric shocks and foreign object insertion.
• Sleutelgatgleuven: Two keyhole slots on the back for wall mounting.

Afbeelding 1: Overview of the Aigostar 3-outlet power strip, highlighting its dimensions (23.2cm length, 5.2cm width, 3.7cm height) and 5-meter cable length. It also shows the 2P+E socket-outlet with switch, max 3680W capacity, and 45-degree design.

3. Veiligheidsinstructies

Om een ​​veilige werking te garanderen en schade te voorkomen, dient u de volgende veiligheidsmaatregelen in acht te nemen:

• Do not exceed the maximum load of 3680W (250V/16A). Overloading can cause overheating and fire hazards.
• Sluit niet meerdere stekkerdozen in serie aan.
• This product is designed for indoor use only. Do not use in wet or damp voorwaarden.
• Verwijderd houden van water en andere vloeistoffen.
• Open of wijzig het stekkerblok niet. Reparaties mogen alleen worden uitgevoerd door gekwalificeerd personeel.
• Ensure the power strip is placed on a stable surface and not covered, allowing for proper ventilation.
• Always insert plugs fully into the outlets.
• Unplug the power strip from the wall outlet when not in use for extended periods.
• The built-in child protection device helps prevent access to live parts, but adult supervision is always recommended around electrical devices.

Afbeelding 2: Illustration of the multiple safety protections of the Aigostar power strip, including one-key switch control, 3G1.0mm² cable, child protection device, and high temperature protection.

Afbeelding 3: Van dichtbij view demonstrating the child protection device within the power strip's outlets, with a baby playing in the background, emphasizing safety.

4. Instellen

1. Uitpakken: Carefully remove the power strip from its packaging. Inspect for any signs of damage.
2. Plaatsing: Choose a dry, stable location away from heat sources and direct sunlight. Ensure the 5-meter cable can reach the wall outlet without being stretched or obstructed.
3. Wandmontage (optioneel): If desired, use the two keyhole slots on the back of the power strip to mount it securely to a wall or desk. Ensure appropriate screws and wall anchors are used for the mounting surface.
4. Aansluiten op stroom: Plug the power strip's main plug into a grounded wall outlet.

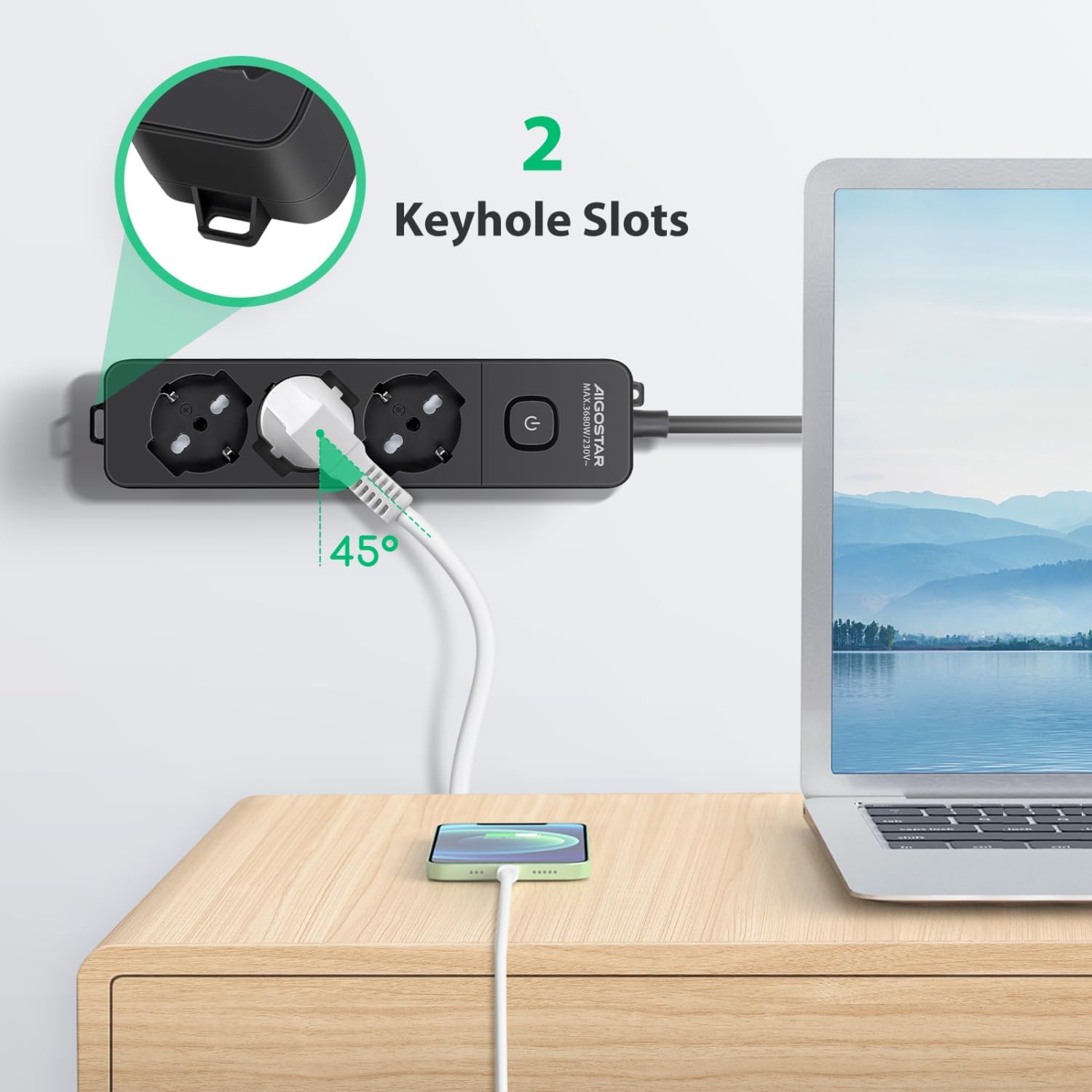

Afbeelding 4: The power strip shown mounted on a wall or desk using its two keyhole slots, demonstrating the 45-degree angled outlets in use with a laptop and phone charger.

5. Gebruiksaanwijzing

1. Aan/uit: Press the integrated on/off switch located on the power strip. The indicator light will illuminate when the power strip is active (ON) and turn off when it is inactive (OFF).
2. Apparaten aansluiten: Insert the plugs of your electronic devices into the available outlets. The 45° angled design allows for easier access and reduces cable clutter.
3. Apparaten loskoppelen: Gently pull the plug directly from the outlet. Do not pull by the cable.
4. Energiebesparing: Utilize the on/off switch to cut power to all connected devices when they are not in use, helping to save energy.

Afbeelding 5: A close-up of the Aigostar power strip, highlighting the single on/off switch and the 45-degree angled outlets, illustrating how it meets electrical charging needs.

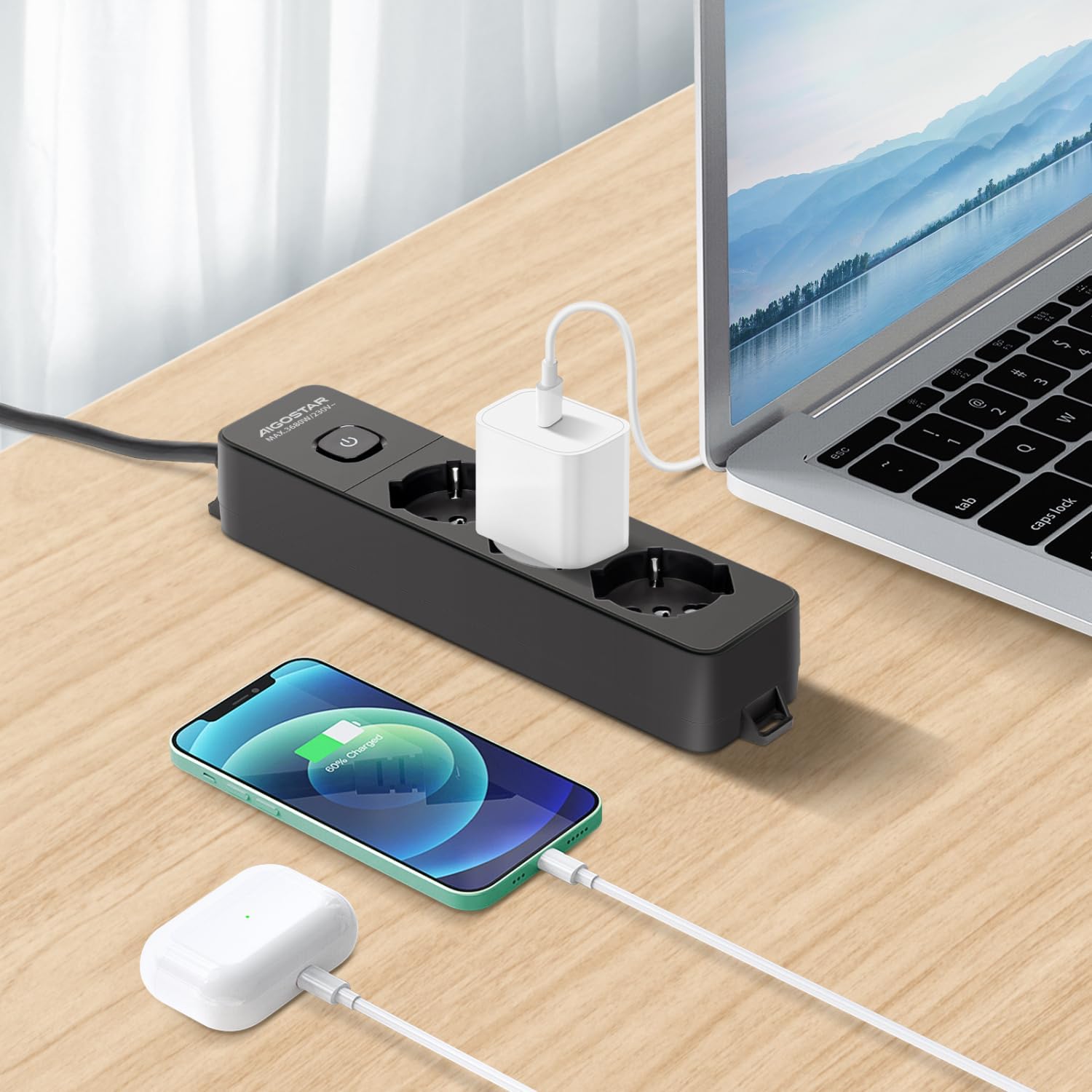

Afbeelding 6: The Aigostar power strip in a typical usage scenario, powering a laptop, smartphone, and wireless earbuds charger on a wooden desk.

6. Onderhoud

• Schoonmaak: Haal de stekkerdoos uit het stopcontact voordat u hem schoonmaakt. Gebruik een zachte, droge doek om het oppervlak af te nemen. Gebruik geen vloeibare reinigingsmiddelen of schurende materialen.
• Opslag: When not in use, store the power strip in a cool, dry place, away from direct sunlight and moisture.
• Inspectie: Periodically inspect the cable and housing for any signs of damage. If damage is found, discontinue use immediately and contact customer support.

7. Probleemoplossing

8. Specificaties

9. Garantie en ondersteuning

Aigostar products are manufactured to high-quality standards. If you encounter any issues with your product, please refer to the troubleshooting section first. If the problem persists, please contact Aigostar customer support.

• Garantie: Please refer to the warranty information provided with your purchase or on the official Aigostar website for details regarding warranty coverage and duration.
• Klantenservice: For technical assistance, product inquiries, or warranty claims, please visit the Aigostar webwebsite of neem contact op met hun klantenservice. Contactgegevens vindt u doorgaans op de productverpakking of het officiële merk. webplaats.

"If you have any questions about our products, you can always contact us and we will be happy to help you."
