Invoering
This manual provides essential information for the safe and effective use of your BaBylissPRO Lo-ProFX High-Performance Low Profile Clipper, Model FX825. Please read all instructions carefully before operating the device.
Instellen
1. Uitpakken en componenten
Carefully remove all items from the packaging. Ensure all components are present before proceeding.
Image 1: BaBylissPRO Lo-ProFX High-Performance Low Profile Clipper with included accessories, including various comb attachments, cleaning brush, oil, and power adapter.
2. De tondeuse opladen
The clipper is equipped with a Lithium-Ion battery. For optimal performance, fully charge the clipper before first use. The LED indicator will show battery status. The clipper supports corded and cordless operation.
Video 1: Demonstrates the battery insertion and power-on sequence for the BaBylissPRO Lo-ProFX Clipper.
3. Blade Adjustment (Zero-Gap)
The graphite wedge blade is zero-gap adjustable for precise cutting. To adjust, ensure the clipper is off and unplugged. Use a screwdriver to loosen the two screws on the blade. Carefully align the moving blade with the fixed blade to achieve the desired closeness without overlapping. Tighten the screws securely.
Gebruiksaanwijzing
1. In-/uitschakelen
To turn the clipper on, slide the power switch located on the side of the unit upwards. To turn off, slide the switch downwards.
2. Using the Taper Arm
The 5-position locking metal taper arm allows for easy adjustment of cutting lengths without changing comb attachments. Move the lever up for a shorter cut and down for a longer cut. The locking mechanism ensures consistent length during use.

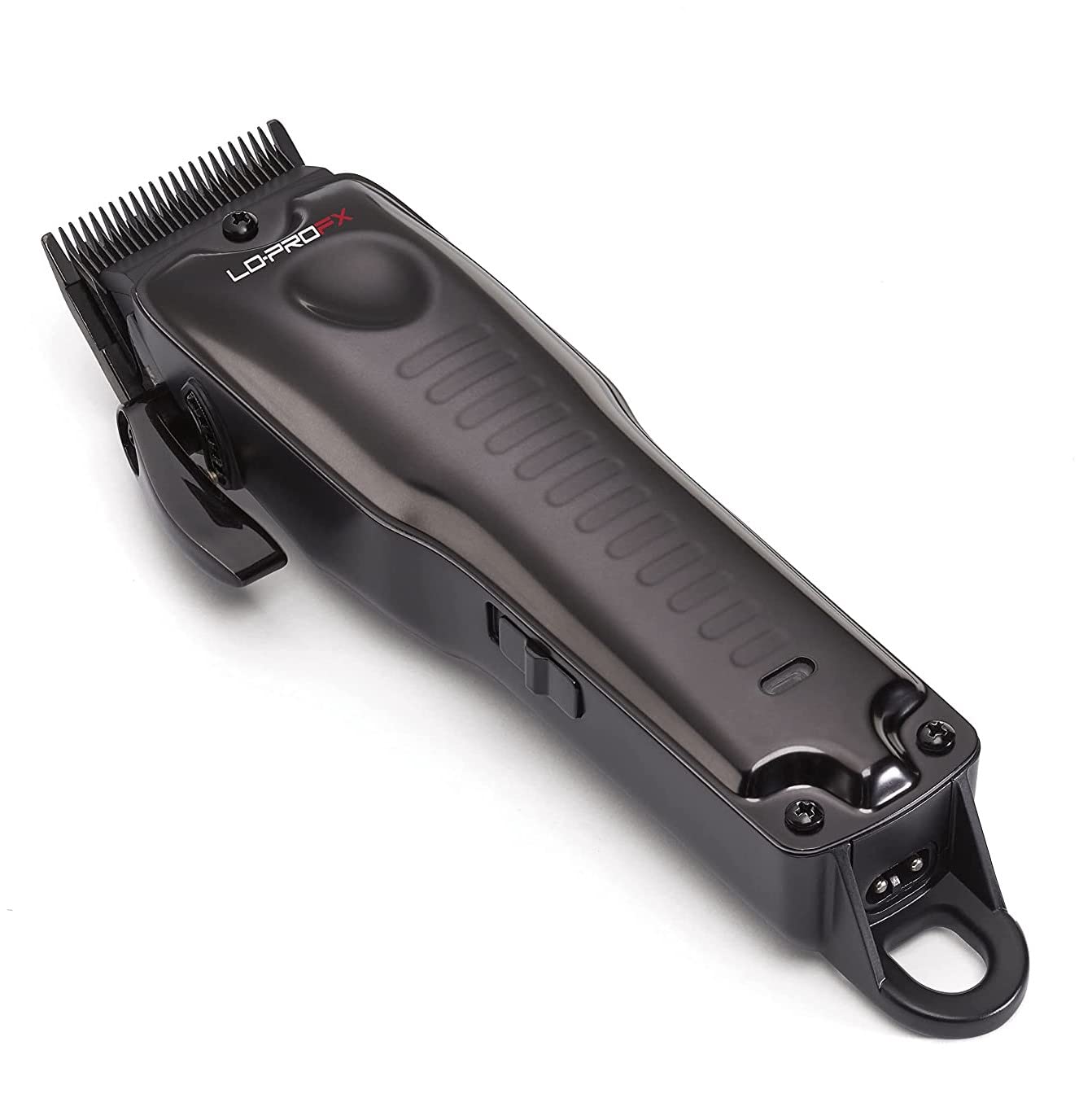

Afbeelding 2: Close-up view of the BaBylissPRO Lo-ProFX Clipper highlighting the 5-position locking metal taper arm for precise length adjustments.
3. Attaching Comb Guides
Select the desired comb guide and firmly attach it to the clipper blade. Ensure it clicks into place securely before use. The clipper comes with various comb attachments for different cutting lengths.
Video 2: Illustrates the features and ergonomic design of the BaBylissPRO Lo-ProFX Clipper, including its grip housing and overall low-profile ontwerp.
Onderhoud
1. De messen reinigen
After each use, turn off and unplug the clipper. Use the provided cleaning brush to remove any loose hair from the blades. The smooth metal shield cover facilitates easy cleaning.
2. De messen oliën
Regular oiling ensures optimal blade performance and longevity. Apply a few drops of the included lubricating oil to the teeth of the blades while the clipper is running. Wipe off any excess oil.
3. Batterijverzorging
To prolong battery life, avoid completely draining the battery before recharging. Store the clipper in a cool, dry place when not in use. The Lithium-Ion battery provides over 2 hours of cordless runtime.
Probleemoplossing
- Clipper gaat niet aan: Ensure the battery is charged or the clipper is plugged into a power source. Check the power switch position.
- Slechte snijprestaties: Clean and oil the blades. Check if the blades are properly aligned (zero-gapped). Ensure the comb attachment is securely fastened.
- Overmatig geluid of trillingen: Reinig en smeer de messen in. Als het probleem aanhoudt, neem dan contact op met de klantenservice.
Specificaties
| Functie | Beschrijving |
|---|---|
| Modelnummer | FX825 |
| Motor | High-Performance/High-Torque Brushless Motor (6,800 RPM, 13,600 SPM) |
| Batterijtype | Lithium-ion (capaciteit 3,300 mAh) |
| Looptijd | 2+ Hours Cordless |
| Bladtype | Graphite Wedge Blade (Zero-Gap Adjustable) |
| Taper Arm | 5-Position Locking Metal Taper Arm |
| Huisvesting | Ultra-Low Profile Metal Shield Cover, Ergonomic Grip Housing |
| Energiebron | Battery Powered (Cord/Cordless, Dual Voltage) |
| Artikelgewicht | 454 Grams (1 Pound) |
| Afmetingen | 3.5 x 5.5 x 9.75 inch |
Garantie en ondersteuning
The BaBylissPRO Lo-ProFX Clipper comes with a 5 jaar beperkte garantie. For warranty claims, technical support, or replacement parts, please refer to the contact information provided in your product packaging or visit the official BaBylissPRO webplaats.
Image 3: Product packaging displaying key features and the 5-year warranty for the BaBylissPRO Lo-ProFX High-Performance Low Profile Clipper.
