Invoering
Thank you for choosing the HOMCOM 2720W Oil Radiator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.
Image: The HOMCOM 2720W Oil Radiator, a white unit with a black digital display, positioned in a modern living room.
Belangrijke veiligheidsinstructies
Volg altijd de basisveiligheidsmaatregelen bij het gebruik van elektrische apparaten om het risico op brand, elektrische schokken en letsel te beperken.
- Lees alle instructies before using this radiator.
- Niet bedekken the radiator. Covering it can lead to overheating and fire.
- Keep flammable materials at least 1 meter (3 feet) away from the radiator.
- Niet gebruiken in bathrooms, laundry areas, or similar wet locations.
- Stekker eruit the radiator when not in use.
- Houd toezicht op kinderen and individuals with reduced physical, sensory, or mental capabilities when the appliance is in use.
- Automatische uitschakeling: This radiator is equipped with an automatic shut-off feature for overheating and accidental tip-overs. If the unit overheats or tips, it will power off automatically.
Image: A visual representation highlighting the radiator's automatic shut-off for overheating and anti-tip protection, showing the unit tilting and a thermometer icon with 'OFF'.
Inhoud van het pakket
Carefully unpack your HOMCOM Oil Radiator and check that all items are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- 1 x Oil Radiator Unit (with 11 heating elements)
- 4 x Swivel Wheels
- 1 x LED Display Control Panel (integrated)
Producteigenschappen
Your HOMCOM Oil Radiator is designed for efficient and comfortable heating with several user-friendly features:
- Efficiënte verwarming: 2290-2720W power suitable for rooms 12-20 m².
- Meerdere verwarmingsmodi: High, Medium, Low, and ECO mode for energy saving.
- Instelbare temperatuur: Set desired temperature between 15-35 °C.
- 24-uurstimer: Programmeer de radiator om automatisch aan of uit te schakelen.
- Stille werking: Provides consistent heat without noise, ideal for bedrooms.
- Draagbaarheid: Equipped with 4 swivel wheels and a handle for easy movement.
- Veiligheidsvoorzieningen: Overheating protection, anti-tip shut-off, and anti-freeze setting.
- Led scherm: Intuitive control panel for easy adjustments.
Afbeelding: Een gedetailleerde view of the LED display panel, illustrating icons for power, heating modes (High/Medium/Low), ECO mode, 24-hour timer, temperature adjustment (15-35°C), and anti-freeze system.
Instellen
- Uitpakken: Remove the radiator and all accessories from the packaging. Keep packaging materials for storage if needed.
- Wielen bevestigen: Turn the radiator upside down. Insert the U-shaped bolts into the holes between the outer fins. Secure the wheel assemblies to the U-bolts using the provided wing nuts. Ensure all four wheels are firmly attached.
- Positionering: Place the radiator on a firm, level surface. Ensure it is at least 1 meter (3 feet) away from walls, furniture, curtains, and other flammable materials. Do not place it directly under a power socket.
- Stroomaansluiting: Steek de stekker van het netsnoer in een geschikt geaard stopcontact (240V).

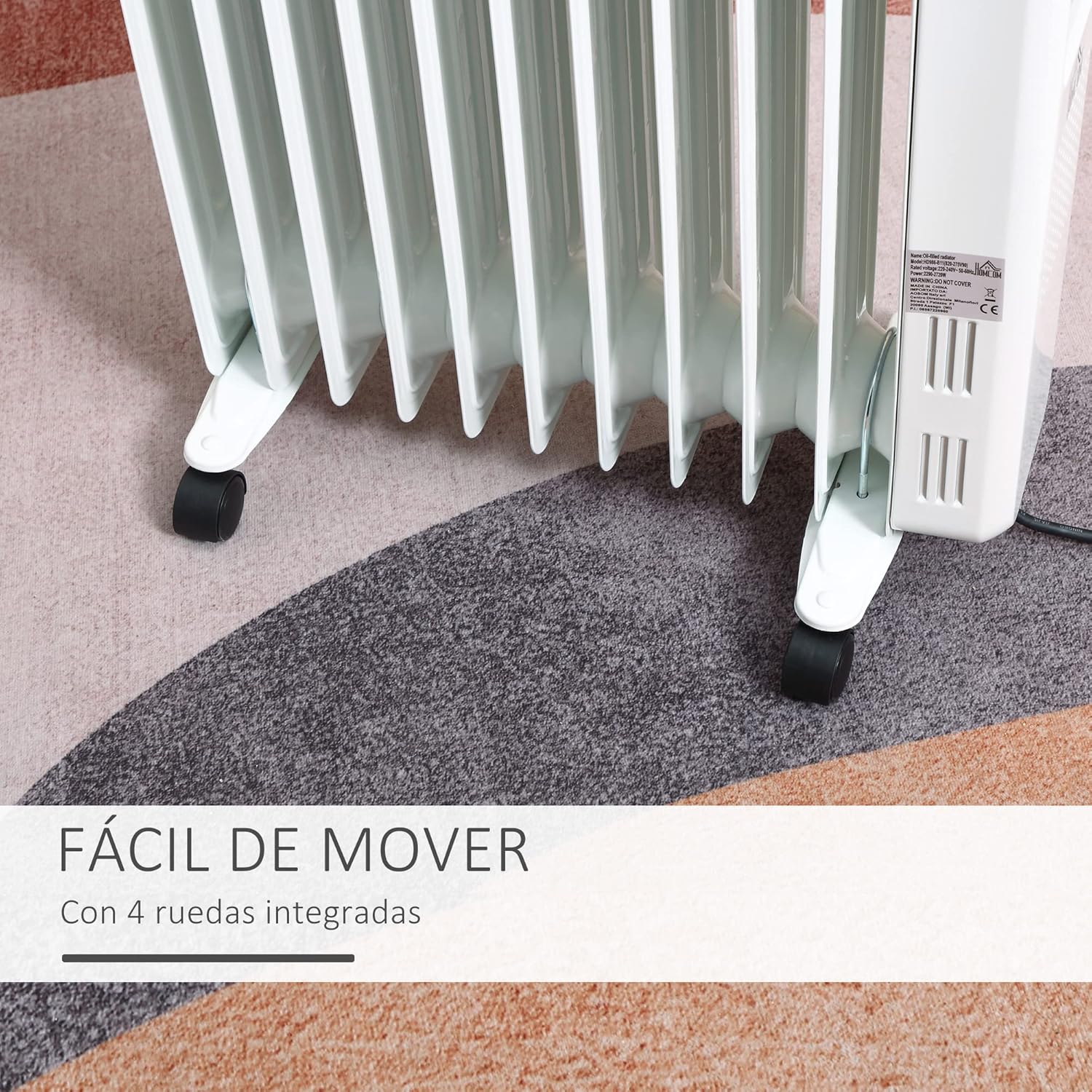

Image: A close-up of the radiator's base, showing the four integrated swivel wheels, emphasizing its easy mobility.
Gebruiksaanwijzing
Maak uzelf vertrouwd met het bedieningspaneel voor optimaal gebruik.
- Aan/uit: Press the power button on the LED display or use the main power switch located on the side of the unit. The LED display will illuminate.
- Temperatuur instellen: Use the 'Up' and 'Down' arrow buttons on the control panel to adjust the desired room temperature between 15°C and 35°C. The radiator will cycle on and off to maintain this temperature.
- Selecteer verwarmingsmodus: Press the 'Mode' button to cycle through the available heating modes: High, Medium, Low, and ECO. The selected mode will be indicated on the display.
- De timer gebruiken: Press the 'Timer' button to activate the 24-hour timer function. Use the 'Up' and 'Down' arrows to set the desired operating duration (in hours). The radiator will automatically turn off after the set time.
- Antivriesinstelling: The radiator includes an anti-freeze function to prevent pipes from freezing in cold environments. This setting automatically activates if the room temperature drops below a certain threshold.
Image: The oil radiator emitting heat in a quiet bedroom, with a sleeping person in the background, illustrating its silent operation and 24-hour timer feature.
Onderhoud
Regelmatig onderhoud zorgt voor een lange levensduur en een efficiënte werking van uw radiator.
- Schoonmaak: Haal altijd de stekker van de radiator uit het stopcontact en laat deze volledig afkoelen voordat u hem schoonmaakt. Veeg de buitenkant schoon met een zachte, vochtige doek.amp doek. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
- Opslag: If storing the radiator for an extended period, clean it thoroughly and store it in a cool, dry place. It is recommended to keep it in its original packaging to protect it from dust and damage.
- Geen intern onderhoud: The oil in the radiator is permanently sealed and never needs refilling. Do not attempt to open the unit for internal maintenance.
Probleemoplossing
Als u problemen ondervindt met uw radiator, raadpleeg dan de volgende veelvoorkomende problemen en oplossingen:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Radiator gaat niet aan. | No power, main switch off, or safety feature activated. | Check power outlet, ensure main switch is ON, and reset if safety shut-off was triggered (unplug for 10 minutes). |
| De radiator schakelt onverwacht uit. | Overheating or tip-over protection activated. | Ensure radiator is not covered and is on a stable surface. Unplug, allow to cool, then restart. |
| Onvoldoende verwarming. | Incorrect mode, low temperature setting, or room size too large. | Select a higher heating mode (High), increase temperature setting, or ensure the room size is within the recommended range (12-20 m²). |
| Het scherm werkt niet. | Stroomprobleem of interne storing. | Controleer de stroomaansluiting. Neem contact op met de klantenservice als het probleem aanhoudt. |
Als het probleem blijft bestaan nadat u deze oplossingen hebt geprobeerd, neem dan contact op met de klantenservice.
Specificaties
| Functie | Specificatie |
|---|---|
| Modelnummer | 820-275V90 |
| Merk | HOMCOM |
| Vermogensafgifte | 2290-2720 W |
| Deeltage | 240 Volt |
| Afmetingen (LxBxH) | 50.5x24x63cm |
| Gewicht | 10.11 kg |
| Verwarmingselementen | 11 |
| Temperatuurbereik | 15-35 °C |
| Dekkingsgebied | 12-20 m² |
| Speciale kenmerken | Automatic shut-off, Timer, Swivel wheels, Silent operation, Adjustable temperature, Anti-freeze |
| Energiebron | Elektrisch met kabel |
| Kleur | Wit |
Image: A diagram illustrating the overall dimensions of the radiator: 50.5 cm (length), 24 cm (width), and 63 cm (height).
Garantie-informatie
This HOMCOM Oil Radiator comes with a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including coverage duration and claim procedures. Keep your proof of purchase for warranty claims.
Klantenservice
For any questions, technical assistance, or warranty claims, please contact your retailer or the HOMCOM customer service department. Contact information can typically be found on the product packaging or the official HOMCOM webplaats.
