Gebruikershandleiding voor de Intel NUC 11 Extreme Kit NUC11BTMi9 Gaming Barebone System

Product voorbijview

The Intel NUC 11 Extreme Kit (NUC11BTMi9) is a high-performance barebone mini PC designed for gaming and demanding applications. It offers uncompromised performance within a compact form factor, allowing users to customize it with their preferred RAM, storage, and operating system.

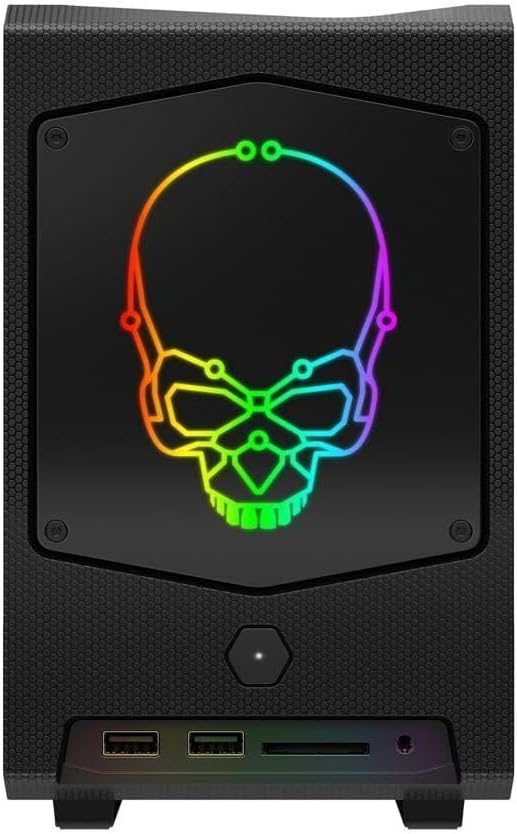

Figuur 1: Voorzijde schuin view of the Intel NUC 11 Extreme Kit, showcasing its compact design and the illuminated skull logo.

Inhoud van het pakket

Controleer of alle onderdelen in het pakket aanwezig zijn voordat u verdergaat met de installatie:

• Intel NUC 11 Extreme Kit (NUC11BTMi9) Barebone System
• Amerikaans netsnoer
• Documentatie (Snelstartgids, Veiligheidsinformatie)

Note: Additional components such as RAM, storage drives, and operating system are sold separately and are required for full system functionality.

Installatiehandleiding

This section outlines the steps required to set up your Intel NUC 11 Extreme Kit. As a barebone system, it requires the installation of memory (RAM) and storage (SSD) before initial use.

1. Geheugen (RAM) installeren

1. Unscrew and remove the top cover of the NUC chassis.
2. Locate the DDR4 SO-DIMM slots on the motherboard.
3. Align the notch on the SO-DIMM module with the notch in the slot.
4. Insert the module at a 45-degree angle and press down firmly until the retaining clips snap into place.
5. Repeat for additional memory modules if applicable.

2. Installing Storage (SSD)

The NUC 11 Extreme Kit supports M.2 NVMe SSDs.

1. Zoek de M.2-sleuven op het moederbord.
2. Plaats de M.2 SSD schuin in de sleuf.
3. Duw de SSD voorzichtig naar beneden en zet hem vast met de meegeleverde schroef.
4. The system also supports Serial ATA/600 interface for additional storage options.

3. Randapparatuur aansluiten

Connect your monitor, keyboard, mouse, and other peripherals to the appropriate ports. The system features 12 USB ports for extensive connectivity.

Afbeelding 2: Achter view of the Intel NUC 11 Extreme Kit, highlighting the array of input/output ports for connecting external devices.

• Weergave: Connect your monitor using HDMI or DisplayPort.
• USB-apparaten: Use the available USB ports for keyboard, mouse, external drives, etc.
• Netwerk: Connect an Ethernet cable for wired network access, or use the integrated Wi-Fi.
• Geluid: Sluit luidsprekers of een koptelefoon aan op de audioaansluitingen.

4. Stroomaansluiting

Connect the provided power cord to the NUC and then to a power outlet.

5. Installatie van het besturingssysteem

Once RAM and storage are installed, you will need to install an operating system (e.g., Windows 10, Linux) from a bootable USB drive or disc.

Gebruiksaanwijzing

This section provides basic instructions for operating your Intel NUC 11 Extreme Kit.

Aan/uitzetten

• Inschakelen: Press the power button located on the front of the unit. The power indicator light will illuminate.
• Uitschakelen:
  • Standard Shutdown: Use the operating system's shutdown function.
  • Geforceerde uitschakeling: Press and hold the power button for 5-10 seconds until the unit powers off. Use this only as a last resort.

Figuur 3: Voorzijde view of the Intel NUC 11 Extreme Kit, showing the power button and front panel connectivity options.

USB-apparaten aansluiten

The NUC 11 Extreme Kit offers numerous USB ports (up to 12) for connecting various peripherals. Devices can be connected or disconnected without needing to shut down the system.

BIOS/UEFI Access

To access the BIOS/UEFI settings, power on the system and repeatedly press the F2 key during startup. This allows configuration of boot order, system settings, and hardware diagnostics.

Onderhoud

Proper maintenance ensures the longevity and optimal performance of your Intel NUC 11 Extreme Kit.

• Schoonmaak: Regularly clean the exterior with a soft, dry cloth. Use compressed air to clear dust from vents and fan areas to ensure proper airflow and prevent overheating. Ensure the system is powered off and unplugged before cleaning.
• Software-updates: Keep your operating system, drivers, and BIOS/UEFI firmware updated to the latest versions. Visit the official Intel support website for driver downloads specific to the NUC11BTMi9 model.
• Ventilatie: Ensure the NUC is placed in a well-ventilated area, away from direct sunlight or heat sources. Do not block the ventilation openings.
• Gegevensback-up: Maak regelmatig een back-up van belangrijke gegevens naar een externe schijf of cloudopslag om gegevensverlies te voorkomen.

Probleemoplossing

This section provides solutions to common issues you might encounter with your Intel NUC 11 Extreme Kit.

Geen stroom / Het systeem gaat niet aan

• Ensure the power cord is securely connected to both the NUC and a working power outlet.
• Controleer of het stopcontact werkt door er een ander apparaat op aan te sluiten.
• Als u een stekkerdoos of overspanningsbeveiliger gebruikt, zorg er dan voor dat deze is ingeschakeld.

Geen weergave-uitvoer

• Check that the monitor is powered on and the video cable (HDMI/DisplayPort) is securely connected to both the NUC and the monitor.
• Probeer een andere videokabel of monitor, indien beschikbaar.
• Ensure RAM modules are properly seated in their slots. Reseat them if necessary.

System Freezes or Crashes

• Ensure the system has adequate ventilation and is not overheating.
• Update your operating system and device drivers to the latest versions.
• Voer een geheugendiagnoseprogramma uit om te controleren op RAM-problemen.
• Check the health of your storage drive.

Perifeer niet gedetecteerd

• Probeer het randapparaat op een andere USB-poort aan te sluiten.
• Zorg ervoor dat de stuurprogramma's voor het randapparaat zijn geïnstalleerd en up-to-date zijn.
• Start het systeem opnieuw op.

Technische specificaties

Below are the key technical specifications for the Intel NUC 11 Extreme Kit (NUC11BTMi9).

Figuur 4: Zijkant view of the Intel NUC 11 Extreme Kit, illustrating its physical dimensions.

Garantie en ondersteuning

Intel provides a limited warranty for its NUC products. For detailed warranty information, technical support, driver downloads, and troubleshooting resources, please visit the official Intel support webplaats.

You can typically find support by searching for "Intel NUC support" or by visiting Intel's Official Support Page.

When contacting support, please have your product model number (NUC11BTMi9) and serial number ready.
