1. Product voorbijview
The ChunHee Solar Sound & Light Alarm (Model SL02-3) is an outdoor security device designed to deter intruders and animals using a loud siren and flashing lights. It is solar-powered with a USB charging backup, making it suitable for various outdoor applications.
Belangrijkste kenmerken:
- 129dB Siren and 6 LED Flash Warning: Provides a powerful deterrent that can be heard and seen from a distance.
- Bewegingssensor: Detects movement within a 5-8 meter range and a 125° sensing angle.
- Duurzaam ontwerp: Sturdy ABS casing with IP65 waterproof and dustproof rating for outdoor use.
- Meerdere bedrijfsmodi: Four selectable modes for different security needs.
- Dubbel opladen: Supports solar charging as the primary power source and USB charging for backup during prolonged cloudy periods.
Figuur 1: Voorzijde view of the ChunHee Solar Sound & Light Alarm, highlighting its compact design and motion sensor.
2. Inhoud van het pakket
Controleer of alle artikelen in uw pakket aanwezig zijn:
- ChunHee Solar Motion Sensor Alarm Light (3 units for this model)
- USB-oplaadkabel (3 stuks)
- Installation Kit (3 sets of screws and wall plugs)
Figure 2: Illustration of the alarm units, USB cables, and installation kit included in the package.
3. Installatie en installatie
Follow these steps to set up and install your ChunHee Solar Sound & Light Alarm:
- Initiële kosten: Before first use, ensure the device is fully charged. Place the solar panel in direct sunlight for at least 8 hours, or use the provided USB cable for DC charging (less than 1 hour).
- Selecteer een locatie: Kies een locatie die ontvangt ample direct sunlight for optimal solar charging. The device should be positioned to cover the desired detection area.
- Montage: Use the included installation kit to securely mount the alarm to a wall, fence post, or other suitable surface. The device features a stainless steel rack for easy screw-in mounting.
- Inschakelen: Locate the ON/OFF button on the back of the device. Press it once to activate the alarm.
Afbeelding 3: Gedetailleerd view of the alarm's back panel, showing the solar panel, ABS casing, motion sensor, stainless steel rack, DC charging port, and ON/OFF button.
Afbeelding 4: Example of mounting the alarm on a fence to create a perimeter alert system.
4. Gebruiksaanwijzing
The ChunHee Solar Sound & Light Alarm features four operating modes. Press the power button on the back of the device to cycle through the modes.
| Modus | Beschrijving | Activering |
|---|---|---|
| Modus 1: 24-hour Sound and Light Alarm | The alarm will activate with both sound and flashing lights upon motion detection, operating continuously for 24 hours. | Druk eenmaal op de aan/uit-knop. |
| Modus 2: 24-hour Flash Silent Alarm | The alarm will activate with flashing lights only upon motion detection, operating continuously for 24 hours without sound. | Press power button a second time. |
| Modus 3: Night Sound and Light Alarm | The alarm will activate with both sound and flashing lights upon motion detection, operating only during nighttime (12 hours). It charges during the day. | Press power button a third time. |
| Modus 4: Night Flash Silent Alarm | The alarm will activate with flashing lights only upon motion detection, operating only during nighttime (12 hours) without sound. It charges during the day. | Press power button a fourth time. |
| Uitschakelen | Schakelt het alarm uit. | Press power button a fifth time. |
Opmerking: To switch between modes, ensure the solar panel is exposed to light (day state) or covered (night state) as appropriate for modes 3 and 4 to register correctly.
Figure 5: Visual representation of the four working modes and how to select them.
Video 1: Demonstration of how to operate the ChunHee Solar Motion Sensor Alarm, including mode switching.
5. Opladen
The alarm supports two charging methods:
- Opladen op zonne-energie: The integrated solar panel charges the internal battery during daylight hours. Ensure the device is placed in an area with direct sunlight for optimal charging. A full solar charge takes approximately 8 hours.
- USB-opladen: For faster charging or during prolonged periods of low sunlight, use the provided USB cable. Connect the cable to the DC charging port on the back of the device and a 5V USB power adapter (not included). DC charging takes less than 1 hour.

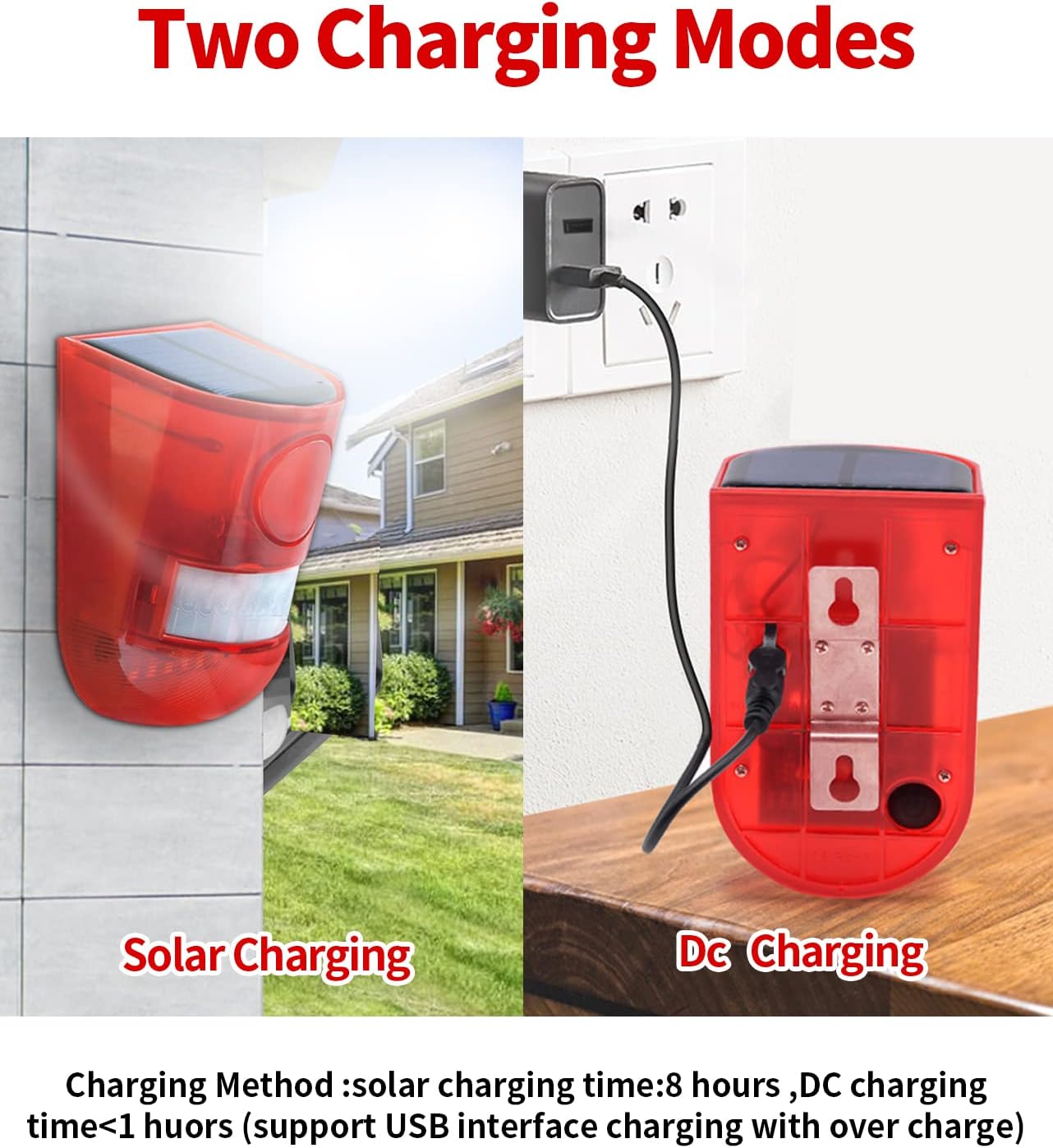

Figure 6: Illustration of the two charging methods: solar charging and DC USB charging.
6. Onderhoud
To ensure optimal performance and longevity of your ChunHee Solar Sound & Light Alarm, follow these maintenance guidelines:
- Zonnepaneel schoonmaken: Veeg het zonnepaneel regelmatig af met een zachte, vochtige doek.amp Gebruik een doek om stof, vuil of ander vuil te verwijderen dat het zonlicht kan blokkeren en de laadefficiëntie kan verminderen.
- Controleer montage: Periodically inspect the mounting screws and bracket to ensure the device remains securely attached.
- Levensduur batterij: The device uses a Lithium-Ion battery. While designed for long-term use, battery performance may degrade over time. Ensure regular charging to maintain battery health.
- Weerbestendigheid: The device is IP65 waterproof and dustproof, designed to withstand outdoor conditions. However, avoid submerging it in water or exposing it to extreme temperatures beyond its operating range.
7. Probleemoplossing
If you encounter issues with your ChunHee Solar Sound & Light Alarm, refer to the following common problems and solutions:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Alarm not activating. | Low battery, incorrect mode selected, motion sensor obstructed. | Charge the device fully. Ensure the correct operating mode is selected. Clear any obstructions from the motion sensor. |
| Siren is too loud/quiet (no volume control). | The device has a fixed siren volume (129dB). | Consider placement further from residential areas if noise is an issue, or use flash-only modes. |
| Valse alarmen. | Movement from trees/foliage, small animals, or strong winds. | Adjust the mounting angle or location to minimize detection of non-threats. Consider using night-only modes if daytime false alarms are frequent. |
| Device not charging via solar. | Insufficient sunlight, dirty solar panel. | Relocate the device to an area with more direct sunlight. Clean the solar panel. Use USB charging as an alternative. |
Video 2: A short video demonstrating the motion detection and alarm activation of the ChunHee Solar Alarm.
8. Specificaties
| Functie | Detail |
|---|---|
| Modelnummer | SL02-3 |
| Merk | ChunHee |
| Energiebron | Op zonne-energie |
| Batterijtype | Lithium-Ion (3 AAA batteries required, included) |
| Deeltage | 5 Volt (DC) |
| Geluidsniveau | 129 decibel |
| Bewegingssensorbereik | 5-8 meter |
| Detectiehoek | 125 graden |
| Controlemethode | Aanraken (knop) |
| Montagetype | Screw-In (Wall-Mounted) |
| Materiaal | Sturdy made & corrosion-resistant plastic (ABS) |
| Productafmetingen | 3.94 x 4.72 x 3.94 cm (10 x 12 x 10 inch) |
| Artikelgewicht | 1.15 pond |
| Gebruik | Binnen/Buiten |
| Waterdichtheidsclassificatie | IP65 |
9. Garantie en ondersteuning
The ChunHee Solar Sound & Light Alarm comes with a 1 jaar garantie vanaf de aankoopdatum.
For technical support, warranty claims, or any questions regarding your product, please contact ChunHee customer service through the retailer where the product was purchased or visit the official ChunHee store page on Amazon: ChunHee Winkel.
