Pit BOSS 820XL Pelletgrill Gebruiksaanwijzing

1. Veiligheidsinformatie

Before operating your Pit BOSS 820XL Pellet Grill, please read this manual thoroughly and retain it for future reference. Failure to follow these instructions could result in property damage, bodily injury, or even death.

• Alleen buitengebruik: Deze grill is uitsluitend bedoeld voor gebruik buitenshuis. Gebruik hem niet binnenshuis of in afgesloten ruimtes.
• Opruiming: Maintain a minimum distance of 10 feet from combustible materials.
• Brandstof: Use only food-grade wood pellets as fuel. Do not use charcoal, lighter fluid, or other accelerants.
• Elektrische veiligheid: Ensure the power cord is not pinched or damaged. Connect to a grounded outlet.
• Hete oppervlakken: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and avoid direct contact.
• Waarschuwing Propositie 65: Dit product kan u blootstellen aan chemicaliën, waaronder koolmonoxide, waarvan in de staat Californië bekend is dat het geboorteafwijkingen of andere reproductieve schade veroorzaakt. Ga voor meer informatie naar www.P65Warnings.ca.gov.

2. Setup and Initial Burn-In

Proper assembly and initial preparation are crucial for the performance and longevity of your pellet grill.

2.1 Montage

Unpack all components and ensure all parts are present. Follow the detailed assembly instructions provided in the separate assembly guide. Typically, assembly involves attaching the legs, wheels, hopper, chimney, and side shelves to the main grill body.

Figuur 2.1: Voorzijde view of the Pit BOSS 820XL Pellet Grill with the lid open, showcasing the internal components and cooking grates. This view is typical during assembly and initial inspection.

2.2 Initial Burn-In (Seasoning)

Before cooking food, perform an initial burn-in to remove any manufacturing oils and prepare the grill for use. This process seasons the internal components.

1. Fill the pellet hopper with your desired food-grade wood pellets.
2. Sluit de grill aan op het stopcontact en zet hem aan.
3. Set the temperature to 350°F (177°C) and allow the grill to run for at least 45 minutes.
4. After 45 minutes, increase the temperature to 450°F (232°C) and run for another 15 minutes.
5. Turn off the grill and allow it to cool completely.

Figure 2.2: The Pit BOSS 820XL Pellet Grill with its lid closed, ready for operation. This image highlights the overall design and integrated pellet hopper on the left.

3. Operating Your Pellet Grill

Understanding the controls and features will help you achieve optimal cooking results.

3.1 Configuratiescherm voorbijview

The digital control board allows you to manage temperature, monitor cooking, and initiate various functions.

Figuur 3.1: Een gedetailleerde view of the Pit BOSS 820XL control panel, showing the digital display, temperature dial, and power button. This is your primary interface for operating the grill.

3.2 Temperatuurregeling

The Pit BOSS 820XL offers a wide temperature range from 180°C tot 500°C. Use the temperature dial on the control panel to set your desired cooking temperature. The grill's auger will automatically feed pellets to maintain the set temperature.

3.3 Pellet Management

The pellet hopper has a capacity of 21 pond. Ensure the hopper always has sufficient pellets during cooking to avoid flame-outs. Monitor pellet levels regularly, especially during long cooks.

3.4 Cooking Modes (8-in-1 Versatility)

Your Pit BOSS 820XL is designed for versatile cooking, offering 8 distinct functions:

• Smoren: Slow cooking with moisture.
• Rook: Low and slow cooking for rich smoky flavor.
• Bakken: Indirect heat for baking items like bread or casseroles.
• Barbecue: Traditional barbecue cooking.
• Grillen: Direct heat cooking over the grates.
• Schroeien: High heat for searing meats and locking in juices.
• Gebraden: Cooking larger cuts of meat with indirect heat.
• Char-Grill: Direct flame grilling for char marks and intense flavor.

Figure 3.2: The Pit BOSS 820XL Pellet Grill in use, demonstrating its versatility with various foods being cooked simultaneously. This image also highlights the 8-in-1 cooking capabilities and the 5-year warranty.

3.5 Flame Broiler Adjusting Bar

The grill features a flame broiler adjusting bar, allowing you to switch between indirect heat for smoking/roasting and direct flame access for searing and char-grilling. Slide the bar to expose the flame pot for direct heat.

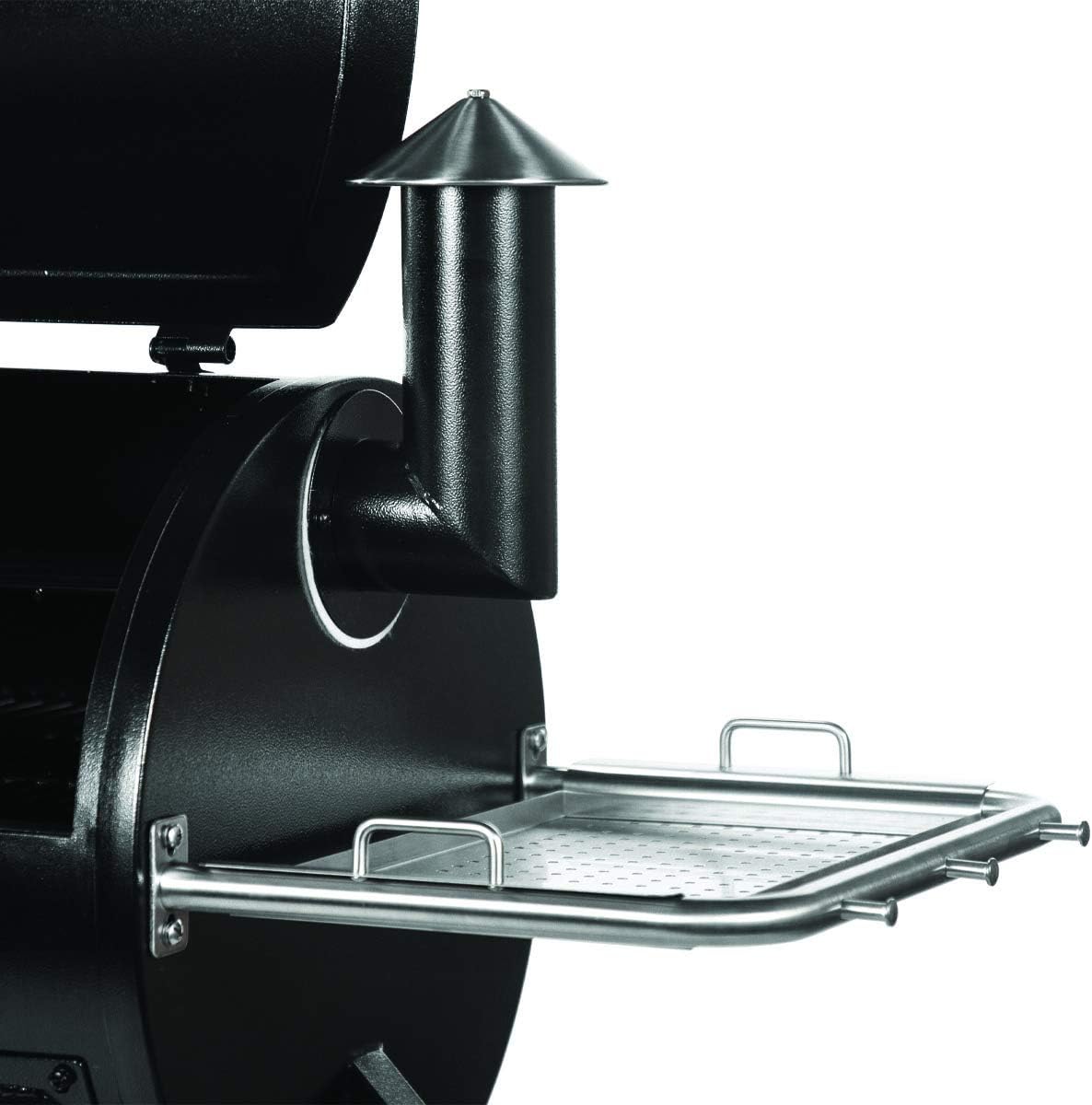

Figuur 3.3: Een close-up view of the Pit BOSS 820XL's side shelf and chimney, indicating the robust construction and convenient workspace. The side shelf is useful for food preparation and holding tools.

4. Onderhoud en reiniging

Regular maintenance ensures your grill operates efficiently and extends its lifespan.

4.1 Ash and Grease Management

Ash accumulation can affect grill performance. After every few uses, or before long cooks, ensure the ash pot and fire pot are clear of ash. A shop vacuum is highly recommended for efficient ash removal.

Regularly clean the grease tray and grease bucket to prevent grease fires. Dispose of grease properly.

4.2 Het reinigen van kookroosters

The porcelain-coated steel grids should be cleaned after each use. Allow them to cool slightly, then scrape off any food residue with a grill brush. For deeper cleaning, remove the grates and wash with warm, soapy water.

4.3 Buitenreiniging

Veeg de buitenoppervlakken af ​​met een damp cloth. Avoid abrasive cleaners that could damage the finish. Store the grill in a dry, covered area when not in use.

5. Problemen met veelvoorkomende problemen oplossen

This section addresses common operational issues you might encounter.

• Grill Not Powering On: Check the power cord connection to both the grill and the outlet. Ensure the outlet is functional.
• Temperatuurschommelingen: Ensure the hopper has sufficient pellets. Clean the fire pot and ash pot to ensure proper airflow. Avoid opening the lid frequently during cooking.
• Geen rookontwikkeling: Verify pellets are feeding correctly into the fire pot. Ensure the fan is operating.
• Flame Broiler Damper Stuck: If the flame broiler adjusting bar becomes difficult to move, it may be due to accumulated grease or debris. Ensure the grill is cool, then carefully clean the mechanism.
• Pellets Not Feeding: Check for blockages in the auger. Ensure pellets are dry and not clumped together.

For issues not covered here, or if problems persist, please contact Pit BOSS customer support.

6. Specificaties

7. Garantie en ondersteuning

7.1 Productgarantie

The Pit BOSS 820XL Pellet Grill comes with a 5 jaar garantie. Please refer to the warranty card included with your product or visit the official Pit BOSS website voor de volledige voorwaarden.

7.2 Klantenservice

For technical assistance, replacement parts, or warranty claims, please contact Pit BOSS customer support. You can find contact information on the official Pit BOSS webwebsite of via uw verkoper.
