1. Inleiding
This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your Pretul Hila-1300P Electric Pressure Washer. Please read all instructions carefully before using the product to ensure proper function and to prevent injury or damage.
The Pretul Hila-1300P is designed for occasional use, specifically for cleaning superficial dirt. It features a dual filter system to protect the machine from particles, a quick-connect hose system, an automatic stop system, and wheels for easy transport.

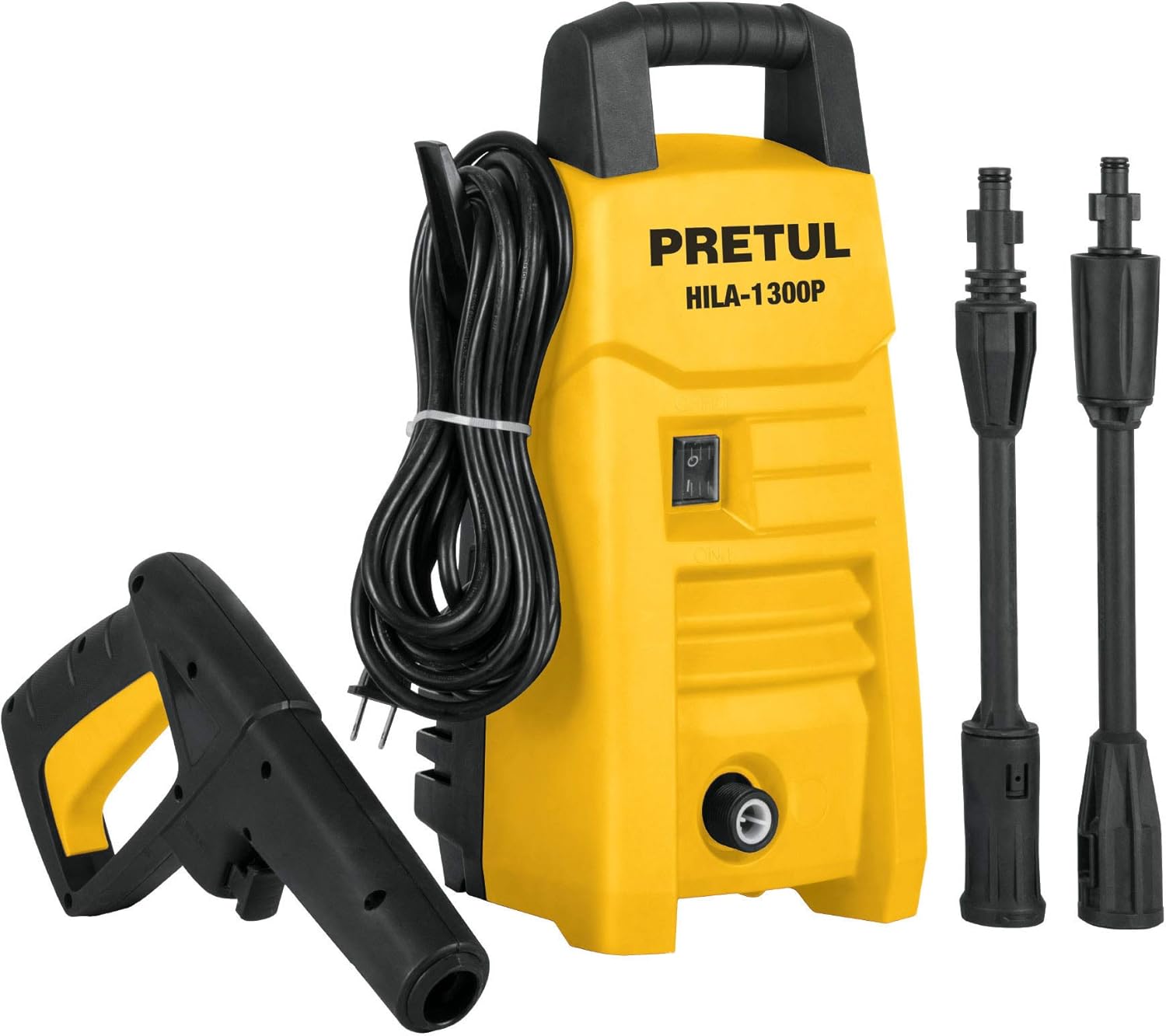

Figuur 1.1: Pretul Hila-1300P Electric Pressure Washer. This image shows the main yellow unit of the pressure washer with its power cord and hose connections.
2. Veiligheidsinformatie
Always observe basic safety precautions when using this electric pressure washer to reduce the risk of fire, electric shock, and personal injury.
- Lees alle instructies: Maak uzelf vertrouwd met de bedieningselementen en het juiste gebruik ervan.
- Aardingsinstructies: This product must be grounded. If it malfunctions or breaks down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
- Voorkom onbedoeld starten: Ensure the switch is in the OFF position before plugging in the unit.
- Houd kinderen uit de buurt: Do not allow children to operate the pressure washer. Keep bystanders at a safe distance.
- Draag veiligheidsuitrusting: Always wear appropriate eye protection, hearing protection, and protective clothing.
- Do not direct spray at people or animals: The high-pressure spray can cause serious injury.
- Controleer op beschadigde onderdelen: Before use, check for any damaged parts. Do not operate if any part is damaged.
- Gebruik geschikte verlengsnoeren: Als u een verlengsnoer gebruikt, zorg er dan voor dat het geschikt is voor gebruik buitenshuis en het vermogen heeft dat overeenkomt met het vermogen van het apparaat. amptijdperk.
- Stroom uitschakelen: Koppel altijd de stroomtoevoer los voordat u onderhouds- of reinigingswerkzaamheden uitvoert.
3. Inhoud van het pakket
Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, do not assemble or operate the pressure washer. Contact customer support.

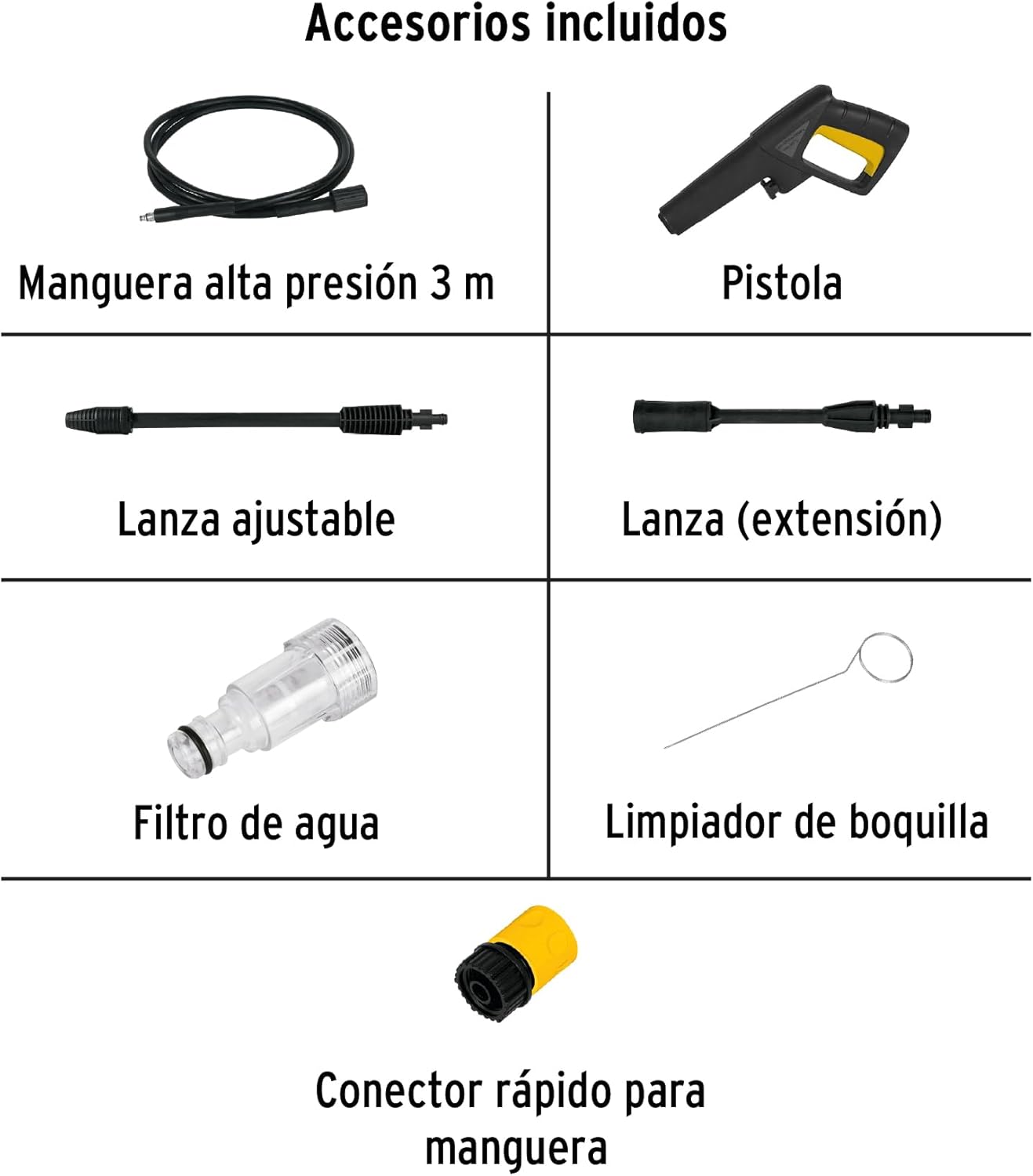

Figuur 3.1: Included Accessories. This image displays the various components that come with the pressure washer, including the high-pressure hose, spray gun, adjustable lance, extension lance, water filter, nozzle cleaner, and quick-connect hose adapter.
Het pakket omvat doorgaans:
- Pretul Hila-1300P Pressure Washer Unit
- High-pressure hose (3 meters)
- Spuitpistool
- Adjustable Lance
- Uitbreidingslans
- Waterfilter
- Nozzle-reiniger
- Quick-connect hose adapter
4. Opstelling en montage
Volg deze stappen om uw hogedrukreiniger in elkaar te zetten vóór het eerste gebruik.
- Wielen bevestigen: If not pre-assembled, attach the wheels to the base of the unit for easy mobility.
- Waterinlaat aansluiten: Screw the quick-connect hose adapter onto the water inlet of the pressure washer. Ensure the water filter is installed inside the inlet to prevent debris from entering the pump.
- Tuinslang aansluiten: Attach your garden hose to the quick-connect adapter. Ensure the garden hose is free of kinks and has a steady water supply.
- Hogedrukslang aansluiten: Connect one end of the high-pressure hose to the outlet on the pressure washer unit and the other end to the spray gun. Tighten securely.
- Spuitpistool in elkaar zetten: Attach the extension lance to the spray gun, then attach the adjustable lance to the extension lance.
- Beheer van netsnoeren: Uncoil the power cord completely before plugging it into an electrical outlet. Ensure the outlet is a grounded, 3-prong receptacle.
Figuur 4.1: Transporting the unit. This image shows a person carrying the yellow pressure washer unit by its handle, demonstrating its portability.
5. Gebruiksaanwijzing
Before starting, ensure all connections are secure and the water supply is turned on. Never run the pressure washer without water.
- Lucht uit het systeem verwijderen: With the water supply on and the unit OFF, squeeze the trigger on the spray gun for approximately 30 seconds to allow air to escape and water to flow through the system. This prevents damage to the pump.
- Start de hogedrukreiniger: Plug the power cord into a grounded electrical outlet. Turn the ON/OFF switch to the 'ON' position. The motor will start.
- Beginnen met schoonmaken: Direct the spray gun nozzle at the surface to be cleaned, maintaining a safe distance. Squeeze the trigger to activate the high-pressure spray. The adjustable lance allows you to change the spray pattern from a concentrated stream to a wide fan.
- Automatisch stopsysteem: The pressure washer features an automatic stop system. The motor will stop when the trigger is released and restart when the trigger is squeezed again. This prolongs motor life and saves energy.
- Reinigingstechniek: Start cleaning from top to bottom, working in small sections. Keep the nozzle moving to avoid damaging surfaces.
Figuur 5.1: Pressure Washer in Use. This image shows a person operating the pressure washer to clean concrete stairs, demonstrating the effective spray pattern.
- Afsluiten: When finished, turn the ON/OFF switch to the 'OFF' position. Turn off the water supply. Squeeze the spray gun trigger to release any remaining pressure in the system. Disconnect the power cord from the outlet.
6. Onderhoud en opslag
Regelmatig onderhoud zorgt voor optimale prestaties en verlengt de levensduur van uw hogedrukreiniger.
- Schoon waterfilter: Regularly inspect and clean the water filter located at the water inlet. Remove any debris to ensure proper water flow and prevent pump damage.
- Mondstukreiniging: If the nozzle becomes clogged, use the provided nozzle cleaner tool to clear any obstructions.
- Rioolwater: After each use, ensure all water is drained from the pump, hose, and spray gun to prevent freezing in cold weather, which can cause severe damage.
- Goed bewaren: Store the pressure washer in a dry, frost-free area. Coil the high-pressure hose and power cord neatly.
Figuur 6.1: Power Cord Management. This image shows a hand coiling the power cord of the pressure washer, illustrating proper storage technique.
7. Probleemoplossing
Raadpleeg dit gedeelte voor veelvoorkomende problemen en hun oplossingen.
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Motor start niet | Geen stroomvoorziening ON/OFF switch is OFF Thermische overbelasting geactiveerd | Controleer de stroomaansluiting en het stopcontact Zet de schakelaar op AAN Allow unit to cool down for 15-30 minutes |
| Lage druk | Onvoldoende watervoorziening Verstopte sproeier Lucht in pomp | Ensure garden hose is fully open and kink-free Clean nozzle with provided tool Purge air from system (see Operating Instructions) |
| Waterlekken | Losse verbindingen Beschadigde O-ringen | Tighten all hose and gun connections Controleer de O-ringen en vervang ze indien ze beschadigd zijn. |
| Motor loopt met tussenpozen | Automatic stop system working normally Lucht in pomp | This is normal operation when trigger is released Ontlucht het systeem |
8. Specificaties
Technical details for the Pretul Hila-1300P Electric Pressure Washer.
- Modelnummer: HILA-1300P (26014)
- Fabrikant: Truper SA de CV
- Druk: 1300 PSI
- Stroom: 1200 W
- Stroomsnelheid: 4.8 liter per minuut
- Energiebron: Elektrisch snoer
- Slanglengte: 3 meter
- Productgewicht: 4.3 kilogram
- Productafmetingen (L x B x H): 90x97x140cm
- Certificering: CSA
9. Garantie-informatie
This Pretul product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and retailer. Please refer to the warranty card included with your product or contact your point of purchase for detailed information.
Bewaar uw aankoopbewijs als bewijs voor eventuele garantieclaims.
10. Klantenservice
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Pretul customer support. Contact information can typically be found on the product packaging, the official Pretul webwebsite of via uw verkoper.
When contacting support, please have your product model number (HILA-1300P or 26014) and purchase date available.
