1. Inleiding
This manual provides essential information for the proper installation, operation, and maintenance of your EARTHQUAKE 10095 Replacement Recoil Assembly R100. Please read this manual thoroughly before attempting any installation or use to ensure safe and efficient operation. Keep this manual for future reference.
2. Veiligheidsinformatie
WARNING: Always prioritize safety when working with power equipment and replacement parts.
- Always disconnect the spark plug wire or remove the battery before performing any maintenance or installation to prevent accidental starting.
- Draag de juiste persoonlijke beschermingsmiddelen (PBM), inclusief een veiligheidsbril en handschoenen.
- Ensure the engine is cool before handling parts to avoid burns.
- Use only genuine EARTHQUAKE replacement parts to ensure compatibility and safety.
- If you are unsure about any installation step, consult a qualified service technician.
- Waarschuwing Propositie 65: Dit product kan chemicaliën bevatten waarvan de staat Californië weet dat ze kanker en geboorteafwijkingen of andere reproductieve schade kunnen veroorzaken.
3. Product voorbijview
The EARTHQUAKE 10095 Replacement Recoil Assembly R100 is a critical component for starting various EARTHQUAKE outdoor power equipment. It houses the pull rope, spring mechanism, and starter pawls that engage with the engine's flywheel to initiate combustion.

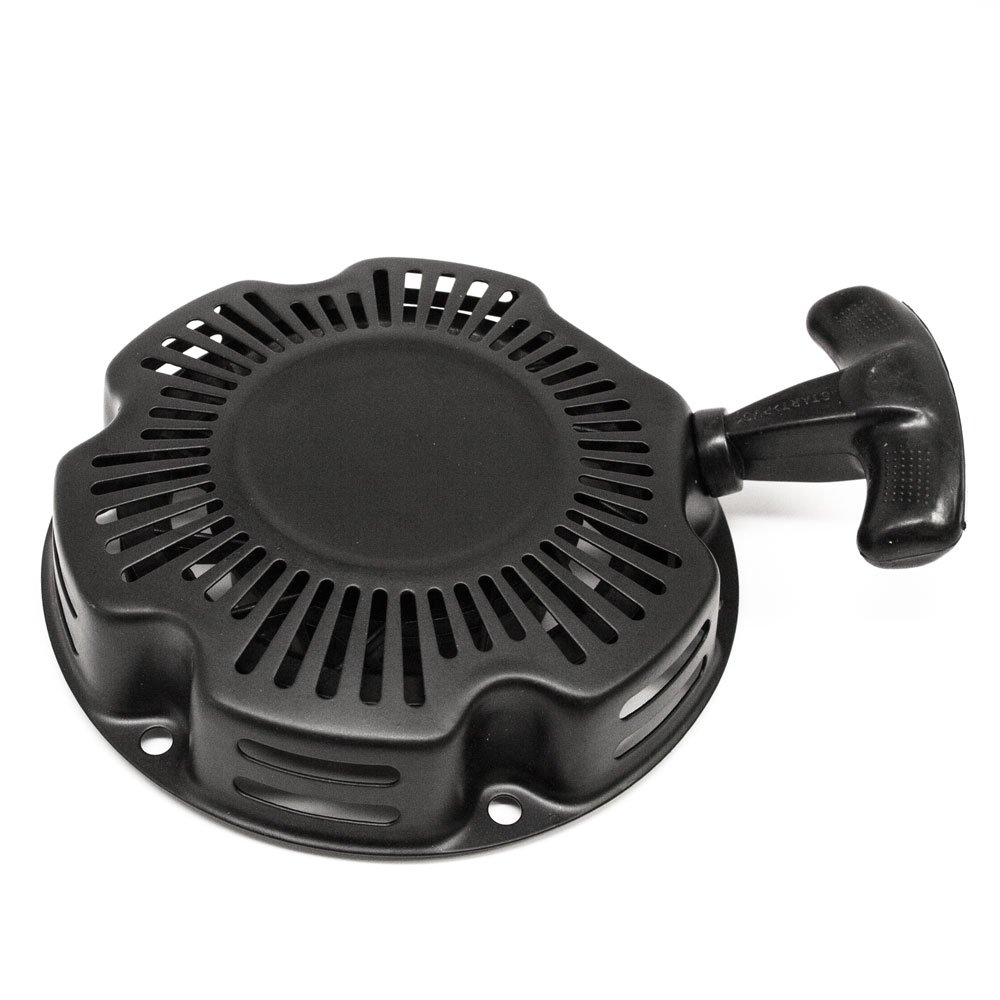

Figure 1: The EARTHQUAKE 10095 Replacement Recoil Assembly R100. This image shows a black recoil starter assembly with a pull handle, designed for starting small engines.
4. Installatie-instructies
This section outlines the general steps for replacing a recoil assembly. Specific procedures may vary depending on your equipment model. Refer to your equipment's primary user manual for detailed instructions.
- Voorbereiding: Zorg ervoor dat de motor uit en afgekoeld is. Koppel de bougiekabel los om te voorkomen dat de motor per ongeluk start.
- Access the Old Assembly: Locate the existing recoil starter assembly on your equipment. It is typically secured by several bolts or screws.
- Oude assemblage verwijderen: Carefully unbolt or unscrew the old recoil assembly. Note the orientation and any washers or spacers.
- Controleer het montagegebied: Clean any debris from the mounting surface on the engine.
- Nieuwe assembly installeren: Position the new EARTHQUAKE 10095 Replacement Recoil Assembly R100 onto the mounting surface, ensuring proper alignment with the engine's flywheel.
- Bevestig de montage: Fasten the new assembly using the original bolts or screws. Tighten them securely but do not overtighten.
- Testdeelname: Gently pull the starter rope a few times to ensure the pawls engage and retract smoothly.
- Bougie opnieuw aansluiten: Sluit de bougiekabel weer aan.
If you encounter any difficulties, it is recommended to seek assistance from a certified service technician.
5. Gebruiksaanwijzing
Once the recoil assembly is correctly installed, follow these general steps to start your equipment:
- Prime/Choke (if applicable): Follow your equipment's specific starting procedure for priming the fuel system or setting the choke.
- Positie: Plaats het apparaat op een stevige, vlakke ondergrond.
- Handgreep: Grasp the recoil starter handle firmly.
- Pull Rope: Pull the starter rope slowly until you feel resistance (the engine's compression stroke).
- Start motor: Give a quick, strong pull on the rope, extending your arm fully. Do not pull the rope to its absolute maximum length.
- Retract Rope: Allow the rope to retract smoothly back into the assembly. Do not let it snap back.
- Herhalen: If the engine does not start, repeat the pulling process.
6. Onderhoud
Regular maintenance helps prolong the life of your recoil assembly.
- Schoonmaak: Periodically clean the exterior of the recoil assembly to remove dirt, grass, and debris. Ensure the ventilation slots are clear.
- Touwinspectie: Inspect the starter rope for fraying, cuts, or excessive wear. Replace the rope if any damage is observed.
- Spring Function: Ensure the rope retracts fully and smoothly after each pull. If it sticks or retracts slowly, the internal spring may require inspection or replacement by a qualified technician.
- Bevestigingsbouten: Periodically check that the mounting bolts securing the recoil assembly to the engine are tight.
7. Probleemoplossing
Here are some common issues and potential solutions for your recoil assembly:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Het touw trekt zich niet volledig terug. | Broken or weak recoil spring; debris inside assembly. | Inspect for debris. If spring is faulty, replacement of the assembly or spring may be required by a technician. |
| Rope is hard to pull. | Engine compression; internal friction; debris. | Ensure engine is not seized. Check for debris. If issue persists, consult a technician. |
| Rope pulls out but does not engage engine. | Worn or broken starter pawls; pawls stuck. | Inspect pawls for damage or sticking. Clean or replace assembly if necessary. |
| Het touw is gerafeld of gebroken. | Normal wear and tear; improper pulling technique. | Replace the starter rope. Ensure proper pulling technique. |
For issues not listed or if solutions do not resolve the problem, contact EARTHQUAKE customer support or a certified service center.
8. Specificaties
- Modelnummer: 10095
- Onderdeeltype: Replacement Recoil Assembly
- Geschatte pakket afmetingen: 1.3 x 1.1 x 0.7 inch
- Geschat gewicht van het artikel: 6.4 ons
- Verenigbaarheid: R100 series (verify with your specific equipment manual)
9. Garantie en ondersteuning
EARTHQUAKE products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty statement included with your original equipment or visit the official EARTHQUAKE webplaats.
For technical assistance, replacement parts, or service inquiries, please contact EARTHQUAKE customer support. When contacting support, please have your equipment's model and serial numbers, along with the part number (10095), readily available.
EARTHQUAKE Customer Support: Refer to your original equipment manual or the EARTHQUAKE brand webwebsite voor contactgegevens.
