Invoering
This manual provides essential information for the proper setup, operation, and maintenance of your SOEHNLE PROFESSIONAL Counting Scale Model 9221. This precision instrument is designed for accurate weighing and counting of items, featuring a large memory for reference weights, quick article access, and a USB interface for PC connection. Please read these instructions carefully before using the device to ensure safe and efficient operation.
Image: The SOEHNLE PROFESSIONAL Counting Scale 9221, displaying its robust design, digital screens, and numeric keypad.
Veiligheidsinstructies
- Always operate the scale on a stable, level surface to ensure accurate measurements.
- Zorg ervoor dat de weegschaal niet wordt blootgesteld aan extreme temperaturen, vochtigheid of direct zonlicht.
- Overbelast de weegschaal niet boven het maximale draagvermogen van 6 kg.
- Houd de weegschaal uit de buurt van sterke elektromagnetische velden, aangezien deze de nauwkeurigheid kunnen beïnvloeden.
- Use only the specified power adapter and battery type (1 x 9V battery) for the device.
- Probeer de weegschaal niet zelf te demonteren of te repareren. Neem contact op met gekwalificeerd servicepersoneel.
- Reinig de weegschaal met een zachte, damp doek. Gebruik geen schurende reinigingsmiddelen en dompel het apparaat niet onder in water.
Instellen
1. Uitpakken
Carefully remove the counting scale from its packaging. Retain the packaging for future transport or storage. Check for any visible damage. If damage is present, do not operate the device and contact your supplier.
2. Voeding
The scale can be powered by the included 9V battery or an appropriate AC adapter (not specified if included, assume external or internal rechargeable). Ensure the battery is correctly inserted according to polarity markings. For AC power, connect the adapter to the scale's power input and then to a suitable power outlet.
3. Plaatsing
Place the scale on a firm, level, and vibration-free surface. Avoid locations near air vents, windows, or machinery that could cause air currents or vibrations, as these can affect measurement accuracy.
4. Initial Zeroing
After powering on, allow the scale a few minutes to warm up. The display should show "0.000" or similar. If not, press the NUL or TARRA button to set the display to zero before weighing.
Gebruiksaanwijzing
1. Aan/uit
Druk op de AAN/UIT button (usually located on the front panel) to turn the scale on or off. The scale will perform a self-test upon startup.
2. Basiswegen
- Ensure the scale is on a stable surface and the display shows zero.
- Place the item(s) to be weighed gently on the center of the weighing platform.
- Read the weight displayed on the GEWICHT screen. The scale supports units in kilograms (kg) and pounds (lb). Use the unit conversion button (if available, often labeled EENHEID or kg / lb) to switch between units.
- To tare (zero out the weight of a container), place the empty container on the platform and press the TARRA button. The display will return to zero, allowing you to weigh only the contents.
3. Telfunctie:
The 9221 scale is optimized for counting. To use the counting function:
- Plaats een bekende sample quantity (e.g., 10, 20, 50 pieces) of the items to be counted on the platform.
- Voer het aantal s inample stukken met behulp van het numerieke toetsenbord.
- Druk op de SAMPLE or STUKS button (refer to specific button labels on your device, often indicated by an icon like →→→ or →→→ with dots). The scale will calculate and store the average piece weight.
- Verwijder de sample and place the bulk quantity of items on the platform. The PIECES display will show the total count.
- De STUK GEWICHT display shows the calculated weight of a single item.
4. Memory Functions (M1-M5, PLU)
The scale features a large memory for 1,000 reference weights and quick access via 5 direct keys (M1-M5).
- Storing Piece Weight: After determining a piece weight (e.g., via sampling), press a memory key (M1-M5) of de VOORDELEN button followed by a numeric code to store the piece weight for that item.
- Recalling Piece Weight: To recall a stored piece weight, simply press the corresponding memory key (M1-M5) or enter the VOORDELEN code and press VOORDELEN again. The scale will then use this stored piece weight for counting.
- Quick Article Access: The 5 direct keys (M1-M5) allow for immediate recall of frequently used item piece weights.
Afbeelding: Gedetailleerd view of the scale's three backlit LCD screens, clearly labeled for Weight, Piece Weight, and Pieces, along with unit indicators (lb, kg) and battery status.

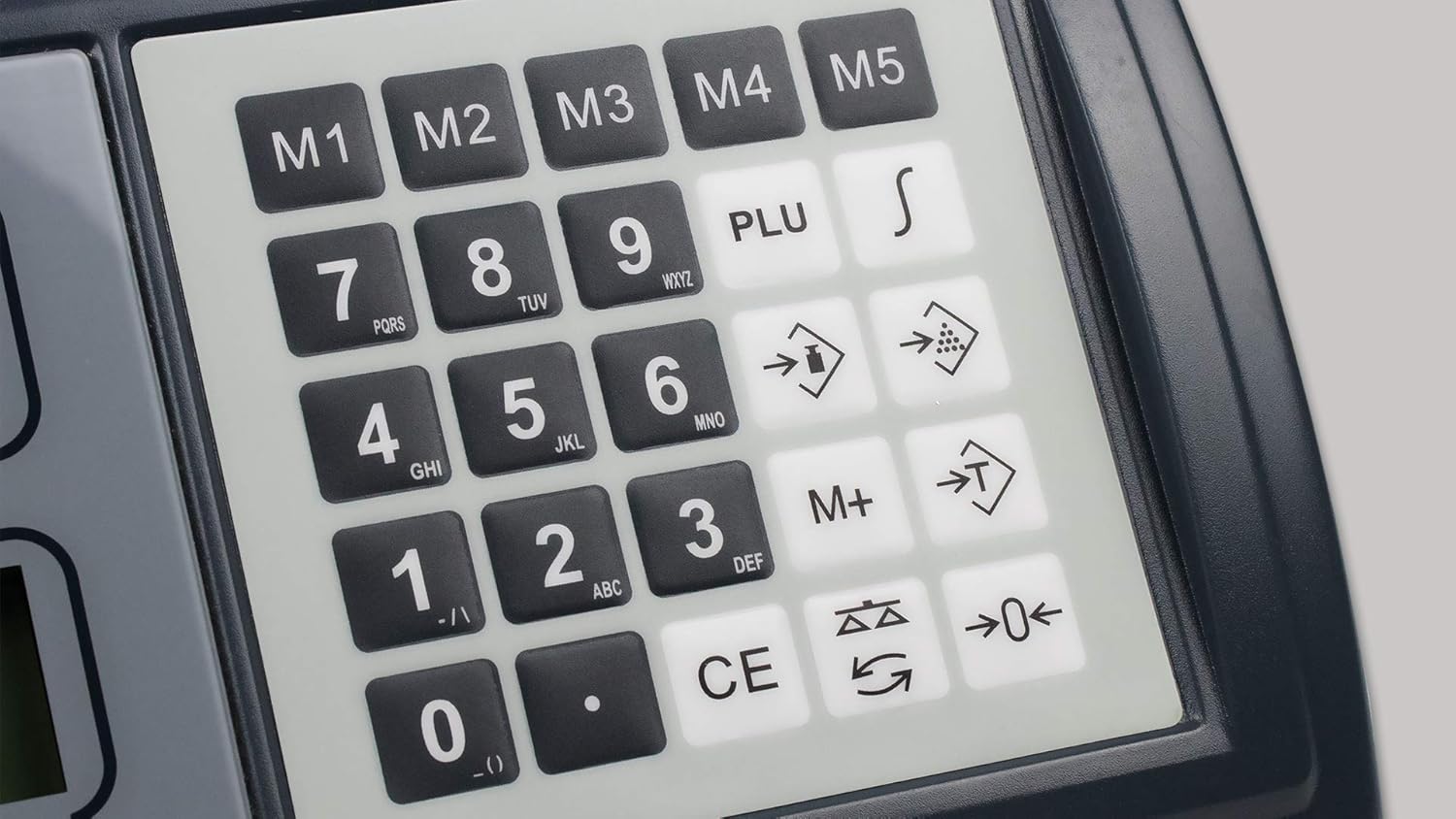

Image: Close-up of the scale's control panel, highlighting the numeric keypad, memory keys (M1-M5), PLU button, and other function keys for counting and tare operations.
5. USB-interface
The scale is equipped with a USB interface for connection to a PC. This allows for data transfer, such as weighing results or inventory data, to compatible software. Refer to the software's documentation for specific connection and data transfer procedures. A USB cable is typically required (check product contents).
Onderhoud
- Schoonmaak: Veeg het oppervlak van de weegschaal af met een zachte, licht vochtige doek.amp cloth. Do not use harsh chemicals, abrasive cleaners, or excessive water. Ensure no liquids enter the internal components.
- Batterij vervangen: When the low battery indicator appears on the display, replace the 9V battery promptly. Ensure the scale is turned off before opening the battery compartment and inserting the new battery with correct polarity.
- Opslag: If the scale will not be used for an extended period, remove the battery to prevent leakage. Store the scale in a dry, dust-free environment at moderate temperatures.
- Kalibratie: While the scale is factory calibrated, periodic checks with certified weights are recommended for professional applications to ensure continued accuracy. Refer to local regulations for calibration requirements.
Probleemoplossing
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| De weegschaal gaat niet aan. | No power, dead battery, or faulty power connection. | Check battery insertion and charge. Ensure AC adapter is securely connected and power outlet is functional. |
| Onnauwkeurige metingen. | Unstable surface, air currents, overload, or need for calibration. | Place on a stable, level surface. Avoid drafts. Do not exceed max capacity. Perform calibration if necessary. |
| Display shows "Err" or error code. | Overload, internal malfunction, or incorrect operation. | Remove excess weight. Turn off and restart the scale. If error persists, contact support. |
| De telfunctie is onjuist. | Onjuiste sample size, inconsistent piece weight, or piece weight not stored correctly. | Waarborgtample pieces are uniform. Re-enter sample quantity accurately. Verify piece weight is correctly stored or calculated. |
Specificaties
- Model: SOEHNLE PROFESSIONAL 9221
- Maximale capaciteit: 6 kg
- Graduatie: 0.2 gram
- Weergavetype: 3 x Backlit LCD (Weight, Piece Weight, Pieces)
- Weergavecijferhoogte: 19mm
- Geheugen: 1,000 reference weights, 5 direct access keys (M1-M5)
- Interface: USB voor PC-aansluiting
- Voeding: 1 x 9V battery (included), AC adapter (optional/external)
- Materiaal: Plastic
- Productafmetingen (L x B x H): 37x44x13.5cm
- Artikelgewicht: 5 kg
- Fabrikant: Soehnle Industriële Oplossingen GmbH
Garantie en ondersteuning
This SOEHNLE PROFESSIONAL product is manufactured by Soehnle Industrial Solutions GmbH. For warranty information, please refer to the warranty card included with your purchase or contact your local distributor. For technical support, service, or spare parts inquiries, please contact Soehnle Industrial Solutions GmbH directly or visit their official webwebsite. Houd uw modelnummer (9221) en aankoopgegevens bij de hand wanneer u contact opneemt met de ondersteuning.
Let op: informatie over de beschikbaarheid van reserveonderdelen is niet opgenomen in de productdetails.
