OWON SDS6062 60MHz Digital Storage Oscilloscope User Manual

1. Inleiding

This manual provides essential information for the safe and effective operation of your OWON SDS6062 Digital Storage Oscilloscope. Please read this manual thoroughly before using the device to ensure proper setup, operation, and maintenance. The SDS6062 is a 2-channel oscilloscope featuring a 60 MHz bandwidth, 500 MS/s sample rate, and a 10M record length, designed for precise electrical signal analysis.

2. Veiligheidsinformatie

Always observe the following safety precautions to prevent injury and avoid damage to the instrument or any connected products. Read these instructions carefully before operation.

• Energiebron: Use only the power adapter supplied with the instrument. Ensure the voltage overeenkomt met uw lokale stroomvoorziening.
• Aarding: The oscilloscope must be properly grounded to prevent electric shock.
• Sondeveiligheid: Do not connect the probe ground lead to a point where a voltage greater than 30V RMS or 42.4V peak is present.
• Omgeving: Operate the device in a well-ventilated area, away from moisture, dust, and direct sunlight. Avoid operating in explosive atmospheres.
• Onderhoud: Laat al het onderhoud over aan gekwalificeerd servicepersoneel. Probeer het apparaat niet zelf te repareren.

3. Inhoud van het pakket

Verify that all items listed below are present in your package. If any items are missing or damaged, contact your supplier.

• OWON SDS6062 digitale opslagoscilloscoopeenheid
• 2 x oscilloscoopprobes
• 1 x Power Cord
• 1 x Probe Adjust Pen
• 1 x USB Data Cable
• 1 x software-cd
• 1 x Gebruikershandleiding (dit document)

4. Product voorbijview

The OWON SDS6062 is a compact and powerful digital storage oscilloscope. It features an 8-inch (800x600) color TFT-LCD screen for clear waveform display and an intuitive control panel for easy operation. Key features include its 60 MHz bandwidth, 500 MS/s real-time sample rate, and 10M record length, making it suitable for a wide range of applications.

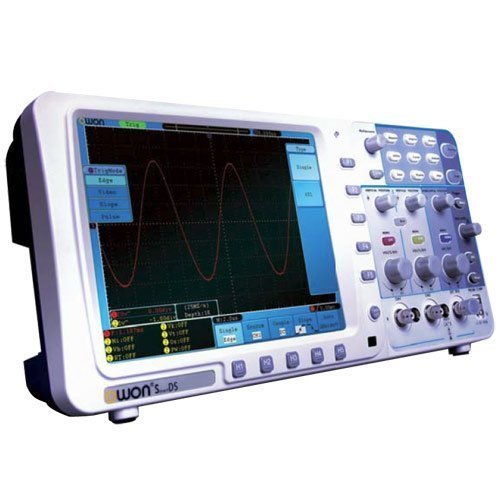

Figuur 4.1: Voorzijde view of the OWON SDS6062 Digital Storage Oscilloscope, showing the display, control knobs, and function buttons.

4.1 Bedieningselementen op het voorpaneel

The front panel includes the main display, vertical controls (VOLTS/DIV, position), horizontal controls (SEC/DIV, position), trigger controls, and various function buttons for menu navigation, measurement, and utility settings.

4.2 Aansluitingen op het achterpaneel

The rear panel provides connectivity options including the power input, USB host and device ports, LAN port for network connectivity, and a VGA port for external display output.

5. Instellen

Follow these steps to set up your OWON SDS6062 oscilloscope for initial use.

5.1 Stroom aansluiten

1. Zorg ervoor dat de oscilloscoop is uitgeschakeld.
2. Connect the supplied power cord to the power input on the rear panel of the oscilloscope.
3. Steek het andere uiteinde van het netsnoer in een geaard stopcontact.

5.2 Aansluiten van de meetpennen

1. Align the BNC connector of the probe with the CH1 or CH2 input on the front panel.
2. Push and twist the connector clockwise until it locks into place.
3. Attach the probe ground clip to the ground terminal of the circuit under test.
4. Set the probe attenuation switch (e.g., 1X or 10X) to match the setting on the oscilloscope's input channel menu.

5.3 Eerste keer inschakelen

1. Druk op de aan/uit-knop op het voorpaneel.
2. The oscilloscope will perform a self-test and display the startup screen.
3. After startup, it is recommended to perform a probe compensation adjustment (refer to Section 7.3).

6. De oscilloscoop bedienen

This section covers basic operation and common functions of the SDS6062.

6.1 Basisafmetingen

To display a signal:

1. Connect a signal source to CH1 or CH2 using a probe.
2. Druk op de AUTOMATISCH INSTELLEN button. The oscilloscope will automatically adjust vertical, horizontal, and trigger settings to display a stable waveform.
3. Pas de VOLTS/DIV knob to change the vertical scale (voltage per divisie).
4. Pas de SEC/DIV knob to change the horizontal scale (time per division).
5. Use the vertical and horizontal POSITIE knobs to move the waveform on the screen.

6.2 Triggersysteem

Het triggersysteem stabiliseert herhalende golfvormen en registreert eenmalige gebeurtenissen.

• Aanzet niveau: Gebruik de TRIGGER NIVEAU draaiknop om het volume in te stellentaghet niveau waarop de trigger optreedt.
• Trigger-modus: Access the trigger menu to select modes like Edge, Pulse, Video, or Slope.
• Triggerbron: Select the input channel (CH1, CH2, EXT, AC Line) that will be used for triggering.

6.3 Meetfuncties

The SDS6062 offers various automatic measurement functions.

• Druk op de MEETEENHEID button to display the measurement menu.
• Select desired measurements such as Vpp, Vmax, Vmin, Freq, Period, Rise Time, etc.

6.4 Connectivity (LAN and VGA)

• LAN: Connect an Ethernet cable to the LAN port on the rear panel to connect the oscilloscope to a network. This allows for remote control and data transfer using compatible software.
• VGA: Use the VGA port to connect an external monitor or projector for larger display of waveforms, useful for presentations or collaborative work.

7. Onderhoud

Goed onderhoud garandeert de lange levensduur en nauwkeurigheid van uw oscilloscoop.

7.1 Reinigen

Maak het instrument regelmatig schoon met een zachte, droge doek.amp Gebruik geen schurende reinigingsmiddelen of oplosmiddelen die de doek kunnen beschadigen.asing or screen. Ensure the device is powered off and unplugged before cleaning.

7.2 Opslag

When not in use, store the oscilloscope in a dry, dust-free environment, away from extreme temperatures and direct sunlight. Use the original packaging or a suitable carrying case for protection during transport.

7.3 Probe Compensation Adjustment

Probe compensation should be adjusted to match the oscilloscope's input characteristics. This ensures accurate measurements.

1. Connect the probe to CH1 and attach the probe tip to the probe compensation output (usually a square wave test point on the front panel).
2. Bevestig de aardingsclip van de meetsonde aan de aardingsaansluiting.
3. Pers AUTOMATISCH INSTELLEN.
4. Use the supplied probe adjust pen to turn the trimmer screw on the probe until the square wave displayed on the screen has flat top and bottom edges (no overshoot or undershoot).

8. Probleemoplossing

In dit gedeelte vindt u oplossingen voor veelvoorkomende problemen die u kunt tegenkomen.

• Geen scherm: Check power connection, ensure the power button is pressed. Adjust screen brightness if necessary.
• No Waveform: Verify probe connection to the input channel and the circuit under test. Ensure the signal source is active. Press AUTOMATISCH INSTELLEN. Check vertical and horizontal scale settings.
• Instabiele golfvorm: Adjust the trigger level. Check trigger mode and source settings. Ensure the signal is within the oscilloscope's bandwidth.
• Onjuiste metingen: Perform probe compensation adjustment (Section 7.3). Ensure probe attenuation settings match the oscilloscope.
• Apparaat reageert niet: Try restarting the oscilloscope. If the issue persists, contact technical support.

9. Specificaties

Technical specifications for the OWON SDS6062 Digital Storage Oscilloscope.

10. Garantie en ondersteuning

OWON products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official OWON website. For technical support, troubleshooting assistance, or service inquiries, please contact your local OWON distributor or the OWON customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
