1. Inleiding
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Baldwin G6310.LLS Left Handed Lever Strength Entrance or Storeroom Mortise Lock. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
The Baldwin G6310.LLS is designed for left-handed door applications, offering robust security and reliable performance for entrance or storeroom doors.
2. Veiligheidsinformatie
WARNING: Failure to follow these instructions may result in product damage, property damage, or personal injury.
- Draag tijdens de installatie altijd de juiste persoonlijke beschermingsmiddelen (PBM), zoals een veiligheidsbril en handschoenen.
- Zorg ervoor dat alle onderdelen aanwezig en onbeschadigd zijn voordat u met de installatie begint.
- Do not modify the lock components. Unauthorized modifications may compromise security and void the warranty.
- Houd kleine onderdelen uit de buurt van kinderen om verstikkingsgevaar te voorkomen.
- Consult a qualified locksmith or professional installer if you are unsure about any step of the installation process.
3. Inhoud van het pakket
Controleer of alle volgende componenten in uw pakket zitten:
- Insteekslot lichaam
- Exterior Lever Handle Assembly (Left Handed)
- Interior Lever Handle Assembly
- Spindel
- Cylinder(s) with Keys
- Sluitplaat
- Stofdoos
- Montageschroeven en bevestigingsmiddelen
- Installatiesjabloon (indien van toepassing)

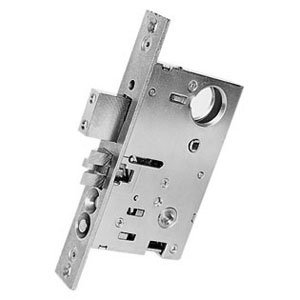

Afbeelding 1: Example of Baldwin G6310.LLS Mortise Lock components. Your package may vary slightly.
4. Installatie en installatie
This section outlines the general steps for installing the Baldwin G6310.LLS Mortise Lock. Specific door preparation may be required. Refer to the provided installation template for precise measurements and drilling instructions.
4.1 Benodigde hulpmiddelen
- Boren met geschikte bits
- Beitel
- Schroevendraaiers (Phillips en Flathead)
- Meetlint
- Potlood
- Hamer
4.2 Installatiestappen
- Bereid de deur voor: Use the provided template to mark and drill holes for the mortise lock body, spindle, and cylinder. Chisel out the mortise pocket in the door edge to accommodate the lock body. Ensure the pocket depth matches the lock body thickness.
- Het insteekslotlichaam installeren: Insert the mortise lock body into the prepared pocket in the door edge. Secure it with the provided screws. Ensure the faceplate is flush with the door edge.
- Cilinder installeren: Insert the cylinder(s) into the lock body from the appropriate side(s) of the door. Secure the cylinder(s) with the set screw(s) located on the mortise lock body faceplate.
- Install Spindle: Insert the spindle through the square hole in the mortise lock body. Ensure it passes through correctly to engage both lever assemblies.
- Install Lever Handles: Attach the exterior (left-handed) and interior lever handle assemblies to the spindle. Secure them with the provided set screws or mounting screws, ensuring they operate smoothly and return to their horizontal position.
- Install Strike Plate and Dust Box: Mark the position for the strike plate on the door frame, aligning it with the mortise lock's latch and deadbolt. Chisel out the recess for the strike plate and dust box. Secure the dust box, then the strike plate, with screws.
- Testbewerking: Close the door and test the operation of the latch, deadbolt, and lever handles from both sides using the key and thumbturn (if applicable). Ensure smooth engagement and disengagement. Adjust the strike plate if necessary for proper alignment.
Figure 2: General illustration of mortise lock installation. Refer to your specific template for precise details.
5. Gebruiksaanwijzing
The Baldwin G6310.LLS is a Left Handed Lever Strength Entrance or Storeroom Mortise Lock. Its operation depends on whether it's configured as an entrance or storeroom function.
5.1 Entrance Function
- Buitenkant: Key retracts latchbolt. Lever retracts latchbolt when unlocked.
- Interieur: Lever always retracts latchbolt for egress.
- Nachtschoot: Operated by key from exterior and thumbturn/key from interior (depending on cylinder type).
5.2 Storeroom Function
- Buitenkant: Key retracts latchbolt. Lever is rigid (always locked).
- Interieur: Lever always retracts latchbolt for egress.
- Nachtschoot: Not typically present or not used in standard storeroom function, or operated by key from exterior and thumbturn/key from interior if present.
Always ensure the door is securely latched and/or deadbolted when leaving the premises.
6. Onderhoud
Regular maintenance will ensure the smooth operation and extend the lifespan of your Baldwin mortise lock.
- Schoonmaak: Reinig de buitenoppervlakken met een zachte, damp cloth. Avoid abrasive cleaners or solvents that may damage the finish. For polished brass, use a non-abrasive brass cleaner if needed, following the cleaner's instructions.
- Smering: Periodically apply a small amount of graphite-based lubricant or a silicone-based spray lubricant to the keyway and internal moving parts of the lock body. Do not use oil-based lubricants as they can attract dust and grime.
- Aanscherping van schroeven: Check all mounting screws and set screws periodically and tighten them if they have become loose. Do not overtighten.
- Inspectie: Inspect the lock for any signs of wear, damage, or misalignment. Address any issues promptly to prevent further damage or security compromise.
7. Probleemoplossing
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Key turns but lock does not operate. | Cylinder set screw loose; internal mechanism disengaged. | Tighten cylinder set screw. If issue persists, consult a locksmith. |
| Lever handle is loose or wobbly. | Lever set screw loose; spindle not properly seated. | Tighten lever set screw. Re-seat spindle if necessary. |
| Latchbolt or deadbolt does not extend/retract smoothly. | Lack of lubrication; debris in mechanism; strike plate misalignment. | Lubricate lock mechanism. Clean out any debris. Adjust strike plate alignment. |
| Door does not latch properly. | Sluitplaat niet goed uitgelijnd; deur hangt door. | Adjust strike plate. Check door hinges for sag. |
8. Specificaties
- Merk: Boudewijn
- Modelnummer: G6310.003.LLS
- Onderdeelnummer: G6310.003.LLS
- ASIN: B006FOCZFI
- UPC-nummer: 829846779501
- Inleveren: Linkshandig
- Functie: Lever Strength Entrance or Storeroom Mortise Lock
- Finish: Gepolijst messing
- Cijfer: ANSI F21 2.50 GRD1 (Commercial Mortise)
- Hoeveelheid artikelpakket: 1
- Datum eerste beschikbaarheid: 2 juli 2010
9. Garantie-informatie
Baldwin products are manufactured to the highest standards and are backed by a limited warranty. For specific warranty terms and conditions applicable to your G6310.LLS Mortise Lock, please refer to the warranty documentation included with your purchase or visit the official Baldwin webwebsite. Bewaar uw aankoopbewijs voor garantieclaims.
10. Klantenservice
If you require further assistance, have questions regarding installation, or need to report a problem, please contact Baldwin customer support:
- Webwebsite: www.baldwinhardware.com
- Telefoon: Refer to the Baldwin website voor regionale contactnummers.
- E-mailadres: Refer to the Baldwin website voor klantenservice-e-mail.
When contacting support, please have your product model number (G6310.003.LLS) and purchase information readily available.
