NWOP 28 Inch Socket Fan Light with Remote Control User Manual

Invoering

This manual provides detailed instructions for the safe and efficient use of your NWOP 28 Inch Socket Fan Light. Please read this manual thoroughly before installation and operation, and retain it for future reference.

Veiligheidsinformatie

• Zorg ervoor dat de stroom is losgekoppeld bij de stroomonderbreker voordat u met de installatie of het onderhoud begint.
• Dit product is ontworpen voor gebruik binnenshuis.
• Probeer het apparaat niet zelf te repareren of aan te passen. Neem contact op met de klantenservice voor hulp.
• Houd de afstandsbediening uit de buurt van water en extreme temperaturen.

Inhoud van het pakket

Controleer of alle componenten aanwezig zijn voordat u met de installatie begint:

• NWOP 28 Inch Socket Fan Light unit
• Afstandsbediening (batterijen niet inbegrepen)
• Afstandsbediening houder
• Socket Extender (if applicable)
• Gebruiksaanwijzing

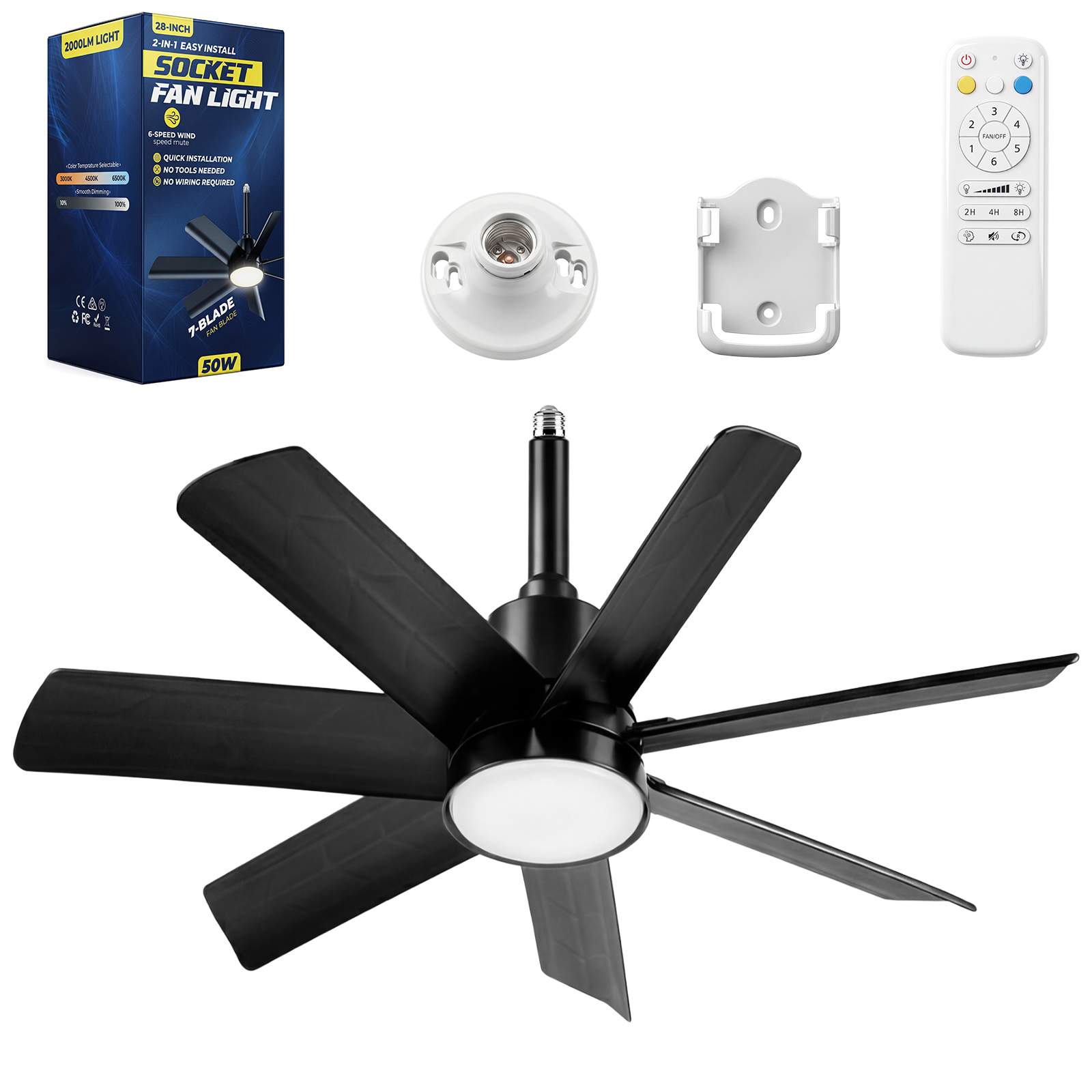

Image: Components of the NWOP 28 Inch Socket Fan Light, showing the fan unit, remote control, and remote control holder. Dimensions are also indicated.

Product voorbijview

The NWOP 28 Inch Socket Fan Light combines illumination and air circulation in a single, easy-to-install unit. Key features include:

• Fan and Light Combo: Provides both lighting and cooling.
• Longer Blades: 11-inch, 7-leaf blades for wider airflow.
• Instelbare kleurtemperatuur: 3000K (Warm White), 4500K (Natural White), and 6500K (Cool White).
• Dimbare helderheid: Instelbaar van 10% tot 100%.
• 6 ventilatorsnelheden: Choose from soft to powerful airflow.
• Geheugenfunctie: Remembers your last light and fan settings.
• Slaaptimer: Automatic shutdown after 2, 4, or 8 hours.
• Stille omkeerbare gelijkstroommotor: Energy-efficient and quiet operation, with modes for summer (forward) and winter (reverse).

Afbeelding: Overview of the NWOP Ceiling Fan Light, highlighting its 2-in-1 LED light and fan functionality, 3 light color options, super quiet operation, and 2000 lumens brightness.

Image: Comparison illustrating the new upgraded design of the NWOP socket fan light, featuring larger dimensions, more fan blades, and simplified installation compared to older models.

Instellen en installeren

The NWOP Socket Fan Light is designed for quick and easy installation into standard E26/E27 light bulb sockets without the need for special tools or wiring.

1. Maak de socket klaar: Ensure the power to the light fixture is turned off at the circuit breaker before beginning.
2. Messen bevestigen: Carefully install the fan blades into the main unit. Ensure they are securely clicked into place.
3. Schroef in de socket: Screw the fan light unit into an E26/E27 light bulb socket. If your socket is deep, use the included socket extender for a proper fit. Tighten securely but do not overtighten.
4. Herstel de stroom: Schakel de stroom weer in via de stroomonderbreker.

Image: Installation guide for the NWOP Socket Fan Light, demonstrating the process of attaching blades and screwing the fan into a standard E26/E27 light socket.

Gebruiksaanwijzing

Use the included remote control to operate your NWOP Socket Fan Light.

Image: Remote control diagram showing buttons for On/Off/Fan Pairing, Light Switch, Color Temperature Switch, Wind Speed Adjustment (1-6), Fan Off, Brightness Adjustment, Timer Setting (2H, 4H, 8H), Memory Function, Motor Rollover (Reversible Motor), and Mute Switch.

Functies van de afstandsbediening:

• On/Off/Fan Pairing: Powers the unit on or off. Press and hold for pairing if needed.
• Lichtschakelaar: Hiermee schakel je de ledlamp aan of uit.
• Kleurtemperatuurschakelaar: Cycles through 3000K (Warm White), 4500K (Natural White), and 6500K (Cool White).
• Wind Speed Adjustment (1-6): Adjusts fan speed from 1 (soft) to 6 (powerful).
• Ventilator uit: Schakelt de ventilator uit.
• Helderheidsaanpassing: Increases or decreases light brightness (10%-100%).
• Timer Setting (2H, 4H, 8H): Sets the fan and light to automatically turn off after 2, 4, or 8 hours.
• Geheugenfunctie: The unit will recall the last used light and fan settings when turned back on.
• Motor Rollover (Reversible Motor): Changes the direction of fan rotation for summer (downward airflow) or winter (upward airflow).
• Mute-schakelaar: Silences operational beeps.

Image: Visual representation of the 6-speed fan settings, showing different levels of airflow from soft to powerful, suitable for various activities.

Image: Display of the timed shutdown feature (2, 4, or 8 hours) and the adjustable LED brightness (10%-100%) and color temperatures (3000K Warm, 4500K Natural, 6500K Bright).

Image: Explanation of the reversible DC motor, demonstrating how forward rotation provides a cooling breeze for summer and reverse rotation enhances air circulation for winter.

Onderhoud

Regular maintenance ensures optimal performance and longevity of your fan light.

• Schoonmaak: Before cleaning, ensure the power is off. Wipe the fan blades and light cover with a soft, damp doek. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
• Afstoffen: Periodically dust the unit to prevent accumulation that could affect performance.
• Bladinspectie: Check fan blades periodically for any damage or looseness.

Probleemoplossing

Specificaties

Garantie en ondersteuning

NWOP is committed to providing quality products and customer satisfaction.

Garantie-informatie:

Specific warranty details may vary. Please refer to your purchase documentation or contact customer support for precise warranty terms.

Klantenservice:

For technical assistance, troubleshooting, or warranty claims, please contact NWOP customer support. We offer 24-hour online technical support.

Contact information can typically be found on the product packaging or the official NWOP webplaats.

Image: NWOP's commitment to customer care, emphasizing fast after-sales service, superior product quality, and round-the-clock online technical support.
