Invoering
Thank you for choosing the MySmile MS202B Cordless Ultrasonic Retainer Cleaner. This device utilizes advanced 48kHz high-frequency ultrasonic technology to provide thorough and gentle cleaning for various oral appliances and small items. Please read this manual carefully before use to ensure proper operation and maintenance.
Producteigenschappen
- 48kHz High-Frequency Ultrasonic Cleaning: Generates millions of nano-scale bubbles for deep cleaning.
- Snoerloos ontwerp: Equipped with a 4000mAh battery for portability.
- Inhoud: 200 ml. Suitable for various dental appliances and small items.
- Meerdere reinigingsmodi: One-button control with four distinct cleaning modes.
- UVC Light Sterilization: Integrated UVC lights for enhanced hygiene.
- Stille werking: Designed for a peaceful cleaning experience.
Inhoud van het pakket
Controleer het pakket op de volgende items:
- MySmile MS202B Ultrasonic Cleaner Unit
- USB-oplaadkabel
- Pincet
- Gebruiksaanwijzing
Image: Contents of the MySmile MS202B package. It includes the main cleaning unit, a USB charging cable, a pair of tweezers, and the user manual.
Veiligheidsmaatregelen
Om een veilige werking te garanderen en schade aan het apparaat of letsel te voorkomen, dient u de volgende voorzorgsmaatregelen in acht te nemen:
- Always use cold water for cleaning.
- Do not immerse the main unit in water. Only the cleaning tank is designed for liquid.
- Buiten bereik van kinderen houden.
- Do not disassemble or attempt to repair the device. Contact customer support if issues arise.
- Zorg ervoor dat de oplaadpoort droog is voordat u de USB-kabel aansluit.
- This device is for cleaning purposes only and is not a medical device.
Instellen
Het apparaat opladen
- Sluit de USB-oplaadkabel aan op de oplaadpoort van het apparaat.
- Sluit het andere uiteinde van de USB-kabel aan op een compatibele USB-stroomadapter (niet meegeleverd) of op een USB-poort van een computer.
- The indicator light will show charging status. A full charge typically takes approximately 75 minutes.

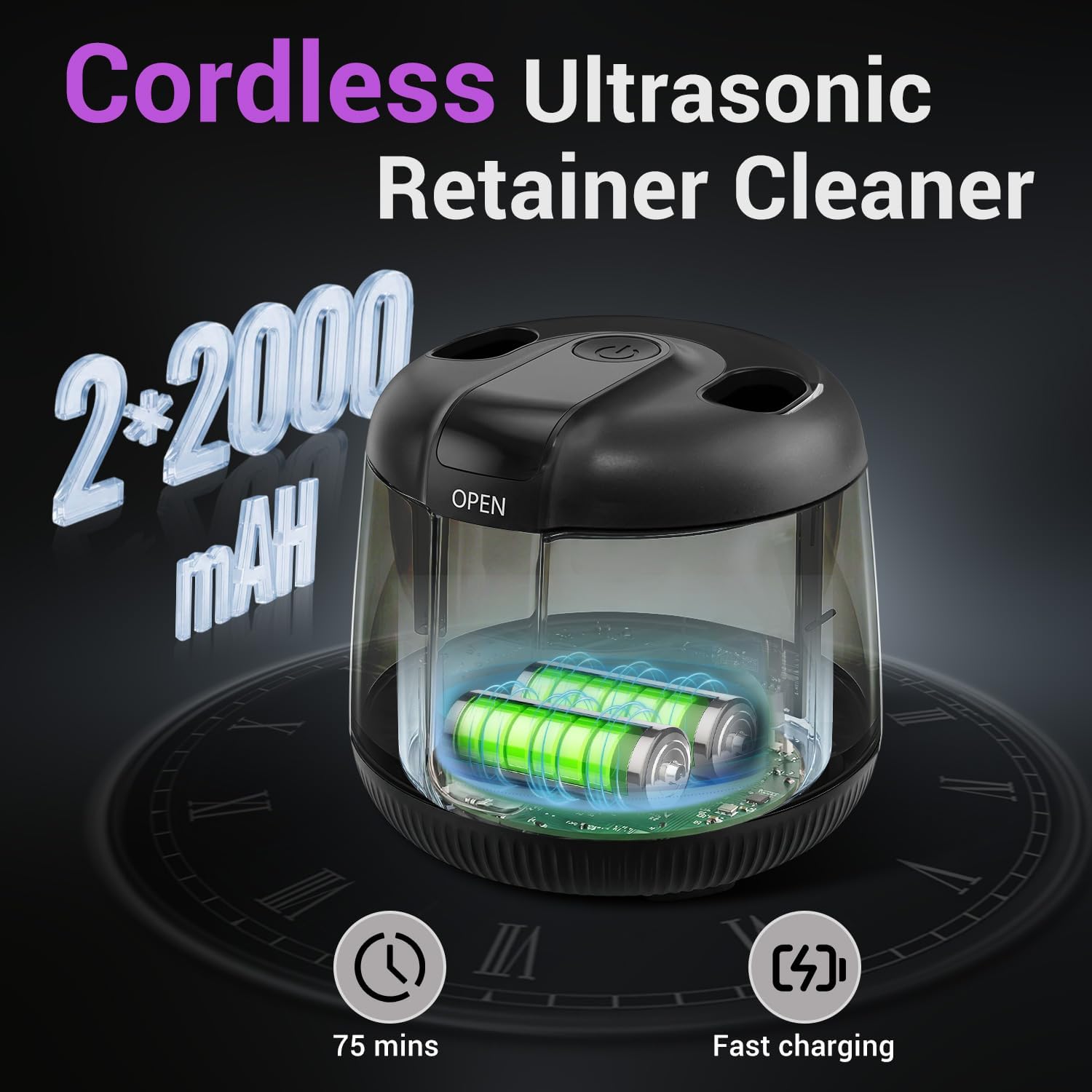

Image: Illustration of the MySmile MS202B's internal battery, highlighting its cordless nature and fast charging capability, with a full charge taking about 75 minutes.
Voorbereiden voor het eerste gebruik
- Zorg ervoor dat het apparaat volledig is opgeladen.
- Open the lid of the cleaning tank.
- Fill the tank with cold water up to the MAX fill line. You may add a small amount of non-abrasive cleaning solution specifically designed for oral appliances if desired.
Gebruiksaanwijzing
Placing Items for Cleaning
The MySmile MS202B is suitable for cleaning various items:
- Retainers, Dentures, Mouthguards, Night Guards, Aligners
- Tandenborstelkoppen
- Jewelry (waterproof only)
- Small waterproof watches
Carefully place the item(s) into the cleaning tank, ensuring they are fully submerged in water. Do not overfill the tank.
Image: A diagram illustrating the versatility of the MySmile MS202B, showing it can clean retainers, dentures, mouthguards, toothbrush heads, and jewelry.
Een reinigingsmodus selecteren
The device features a one-button control with four cleaning modes:
- Mode 1 (300s Clean + UV): Press the power button once for a 300-second ultrasonic cleaning cycle with UVC sterilization.
- Mode 2 (600s Clean + UV): Press the power button twice for a 600-second ultrasonic cleaning cycle with UVC sterilization.
- Mode 3 (600s UV Only): Press the power button three times for a 600-second UVC sterilization cycle only.
- Mode 4 (600s Clean Only): Press the power button four times for a 600-second ultrasonic cleaning cycle only.
The digital display will show the remaining time for the selected cycle.
Image: Close-up of the MySmile MS202B's control panel, detailing the four available cleaning modes: 300s Clean+UV, 600s Clean+UV, 600s UV, and 600s Clean. The digital display shows the timer.
Na het schoonmaken
- Once the cycle is complete, the device will automatically turn off.
- Carefully open the lid and remove your item(s) using the provided tweezers or by hand.
- Rinse the cleaned item(s) thoroughly under running water.
- Empty the water from the cleaning tank and wipe it dry.
Onderhoud
Het apparaat schoonmaken
- After each use, empty the water from the cleaning tank.
- Wipe the inside of the tank with a soft, damp lap.
- Veeg de buitenkant van het apparaat schoon met een droge doek.
- Gebruik geen schurende schoonmaakmiddelen of agressieve chemicaliën.
Opslag
Store the device in a cool, dry place away from direct sunlight and moisture when not in use. Ensure the tank is empty and dry before storage.
Probleemoplossing
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Apparaat gaat niet aan. | Batterij bijna leeg of niet opgeladen. | Laad het apparaat volledig op. |
| De reinigingsprestaties zijn slecht. | Insufficient water, items not fully submerged, or excessive dirt. | Ensure water level is adequate. Pre-rinse heavily soiled items. Use a longer cleaning cycle. |
| Apparaat stopt tijdens gebruik. | Battery low or cycle completed. | Recharge the device. Check the digital display for cycle completion. |
| Ongebruikelijk geluid tijdens bedrijf. | Normal ultrasonic vibration sound. | This is normal. If the noise is excessively loud or unusual, contact customer support. |
Specificaties
- Model: MS202B
- Ultrasone frequentie: 48kHz
- Batterijcapaciteit: 4000mAh (2x 2000mAh)
- Tankinhoud: 200ml
- Oplaadtijd: Ongeveer 75 minuten
- Afmetingen: Ongeveer 4.5 inch (hoogte) x 4 inch (diameter)
- Fabrikant: Mijn lach
Image: The MySmile MS202B cleaner demonstrating its compact and portable size, measuring approximately 4.5 inches in height and 4 inches in width, fitting easily into a travel pouch.
Garantie en ondersteuning
MySmile products are designed for quality and reliability. For warranty information, technical support, or any questions regarding your MS202B Cordless Ultrasonic Retainer Cleaner, please contact MySmile customer service through the retailer where you purchased the product or visit the official MySmile webplaats.
Bewaar uw aankoopbewijs voor garantieclaims.
