Wattive BHT-006GCLW WiFi Smart Thermostat User Manual

Invoering

Thank you for choosing the Wattive BHT-006GCLW WiFi Smart Thermostat. This device is designed to provide intelligent temperature control for your boiler heating system, offering convenience through remote access, programmable schedules, and voice control. Please read this manual carefully before installation and operation to ensure proper use and safety.

The Wattive BHT-006GCLW Smart Thermostat features Wi-Fi smart control, shared management, and an LED display. It is compatible with Smart Life, Google Home, and Alexa for convenient home automation.

Veiligheidsinformatie

• De installatie moet worden uitgevoerd door een gekwalificeerde elektricien, in overeenstemming met de plaatselijke elektrische voorschriften.
• Schakel altijd de stroom uit bij de stroomonderbreker voordat u de thermostaat installeert of onderhoudt.
• This thermostat operates on 220V AC. Ensure your power supply matches this requirement.
• Stel de thermostaat niet bloot aan water of overmatige vochtigheid.
• Buiten bereik van kinderen houden.

Product voorbijview

The Wattive BHT-006GCLW thermostat offers a clear LED display and intuitive touch controls for easy operation. It integrates seamlessly with smart home ecosystems for enhanced control.

The thermostat's LED display shows current room temperature, heating status, time, and day. Touch controls allow for manual/programmable mode selection, temperature adjustment (Up/Down), Wi-Fi status, and power on/off.

Belangrijkste kenmerken:

• WiFi-connectiviteit: Control your heating system remotely via the "Smart Life" app.
• Stembesturing: Compatibel met Amazon Alexa en Google Assistant voor handsfree bediening.
• Programmeerbare schema's: Set weekly schedules (e.g., 5+1+1 days) with up to six daily periods for energy efficiency.
• Nauwkeurige temperatuurregeling: Maintains desired temperature with an accuracy of ±1°C.
• Gedeeld beheer: Allow family members to control the thermostat via the app.
• Led scherm: Clear, color LCD display with touch-sensitive buttons.

Installatie

This thermostat is suitable for installation in standard 86mm flush-mounted boxes or European 60mm flush-mounted boxes. Ensure compatibility with your boiler system before proceeding.

This thermostat is designed for use with 3A boiler systems. It is not compatible with electric floor heating systems.

Installatiestappen:

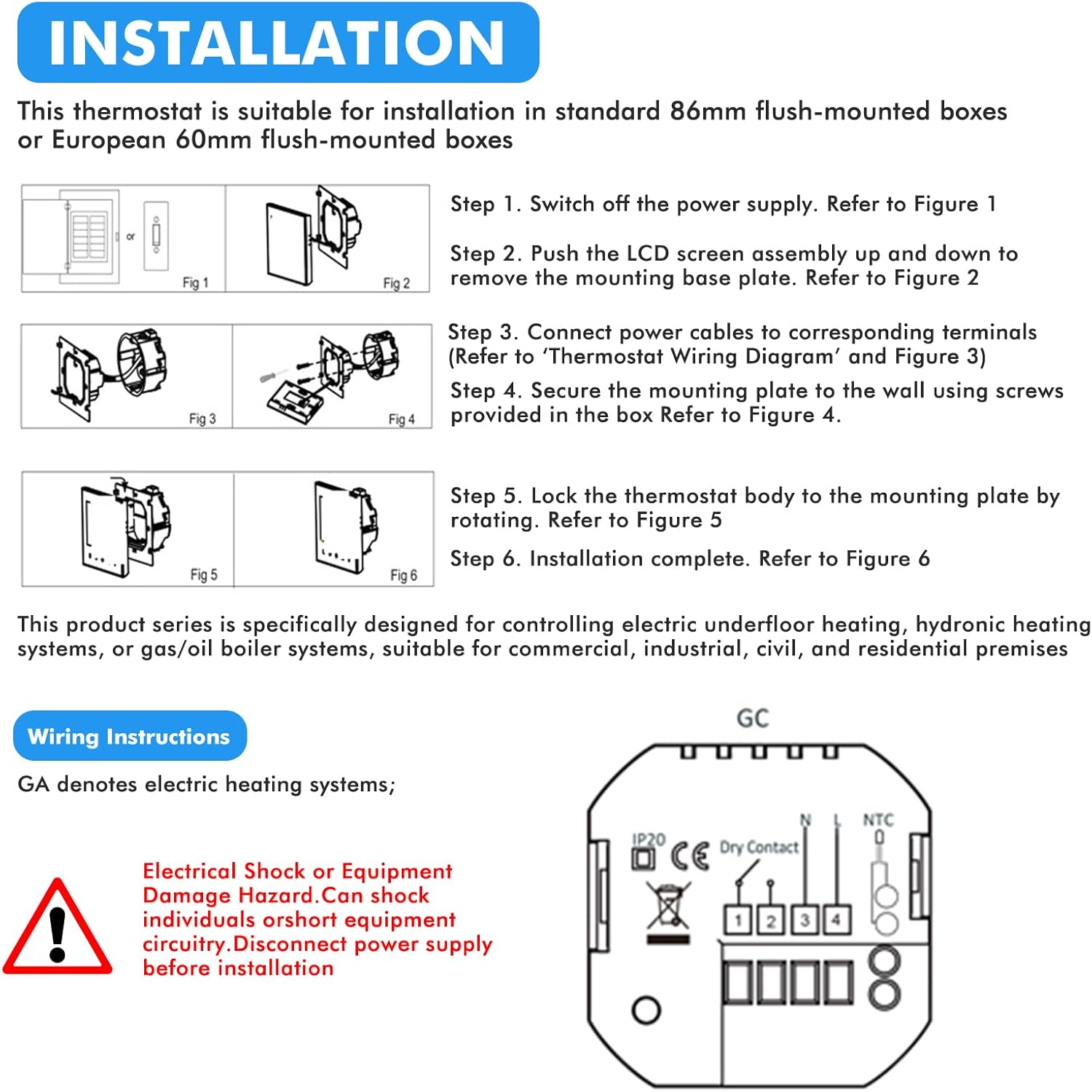

1. Stap 1: Switch off the power supply to your heating system at the main circuit breaker.
2. Stap 2: Gently push the LCD screen assembly upwards and downwards to detach it from the mounting plate.
3. Stap 3: Connect the power cables to the corresponding terminals on the thermostat. Refer to the 'Wiring Diagram' section for detailed connections.
4. Stap 4: Secure the mounting plate to the wall using the screws provided in the package.
5. Stap 5: Rotate the thermostat body onto the mounting plate until it locks securely into place.
6. Stap 6: Installation is complete. Restore power to the heating system.

Installation involves switching off power, removing the LCD screen, connecting power cables, securing the mounting plate, and locking the thermostat body. Refer to the wiring diagram for electrical connections.

Bedradingsschema

The Wattive BHT-006GCLW (GC model) is designed for boiler/wall-mounted boiler heating systems. It uses potential-free contacts to control the boiler.

The wiring diagram illustrates connections for live wire, neutral wire, and dry contacts to the boiler. Terminals 1 and 2 are for dry contacts, 3 and 4 for 95-240V AC power. Ensure proper electrical safety during installation.

Bedrading instructies:

• Terminals 1 en 2: Used for connecting the dry contacts of the boiler. These contacts are potential-free and provide an ON/OFF signal to the boiler.
• Terminals 3 en 4: For 95-240V AC power supply. Connect the live wire to one and the neutral wire to the other.
• Terminals 5 en 6: For connecting external sensors (if applicable). If no external sensor is used, no connections are required for these terminals.

Waarschuwing: Electrical Shock or Equipment Damage Hazard. Disconnect power supply before installation. Improper wiring can cause damage to the thermostat or boiler.

Gebruiksaanwijzing

Handmatige modus:

In manual mode, the thermostat maintains a constant temperature set by the user. Use the Up/Down arrows on the display to adjust the desired temperature. The thermostat will heat until this temperature is reached and then maintain it.

Programmeerbare modus:

The programmable mode allows you to set a weekly schedule with different temperatures for various times of the day. The thermostat supports a "5+1+1" schedule (weekdays, Saturday, Sunday) with six programmable periods per day. Refer to the app or the thermostat's advanced settings for detailed schedule configuration.

App Control (Smart Life):

1. Download de "Smart Life"-app vanuit de app store van je smartphone.
2. Registreer of log in op uw account.
3. Add the thermostat as a new device (ensure your phone is connected to a 2.4 GHz Wi-Fi network).
4. Follow the in-app instructions to connect the thermostat to your Wi-Fi network.
5. Once connected, you can remotely control the temperature, set schedules, and manage other settings from anywhere.

Spraakbesturing (Alexa/Google Assistant):

After connecting your thermostat to the Smart Life app, you can link your Smart Life account to Amazon Alexa or Google Home. This enables voice commands for temperature adjustment.

Control your thermostat hands-free using voice commands with Amazon Alexa or Google Assistant. Simply say 'Alexa, set the temperature to 28°C' or 'Hey Google, set the temperature to 28°C'.

• Example-opdrachten:
• "Alexa, stel [Naam thermostaat] in op 22 graden."
• "Hé Google, wat is de temperatuur van [Naam thermostaat]?"
• "Alexa, zet [Naam thermostaat] aan."

Specificaties

Below are the technical specifications for the Wattive BHT-006GCLW Smart Thermostat:

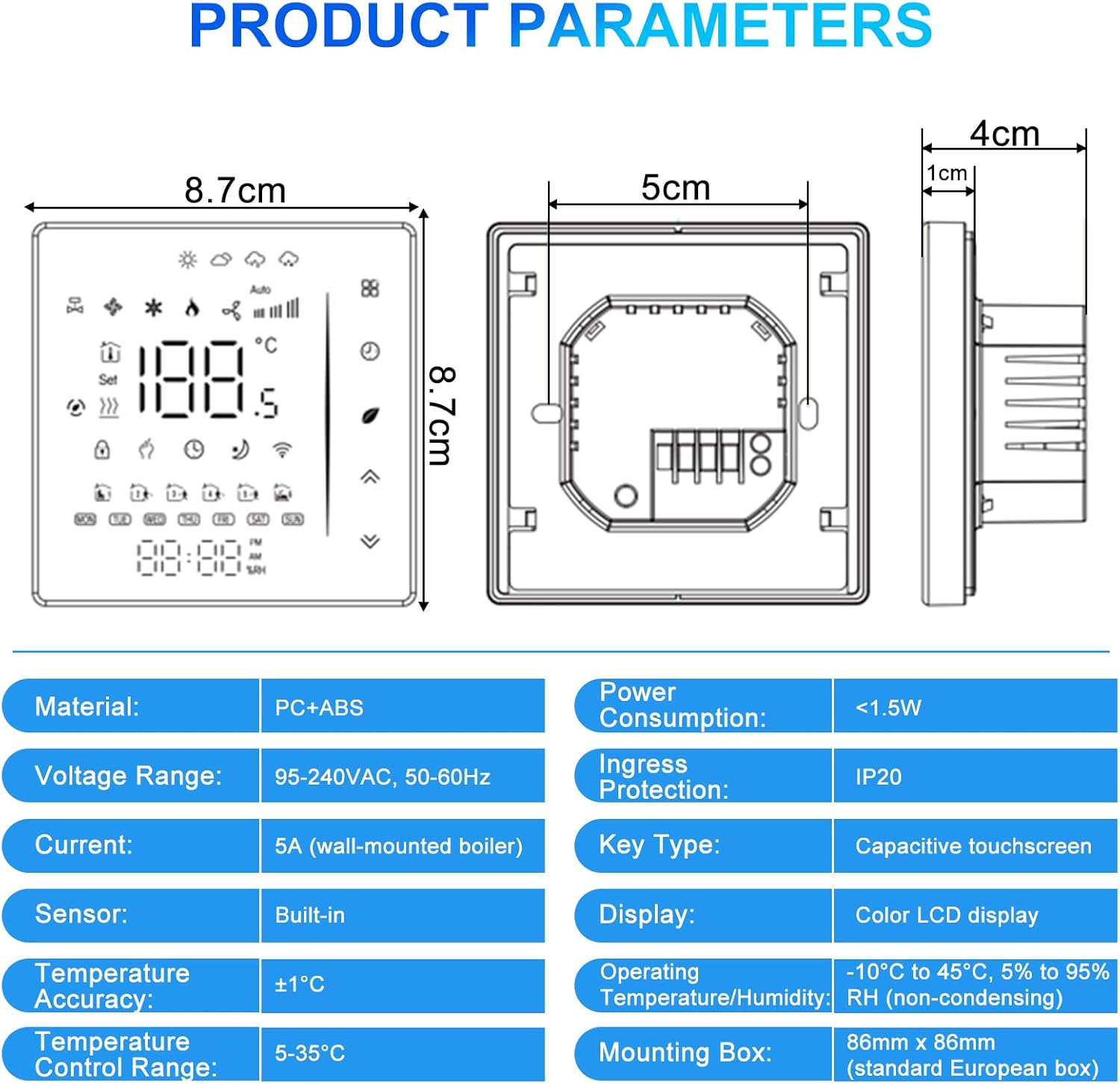

Key specifications include PC+ABS material, 95-240VAC voltage range, 5A current, built-in sensor, ±1°C temperature accuracy, 5-35°C control range, <1.5W power consumption, IP20 ingress protection, capacitive touchscreen, color LCD display, and compatibility with 86mm x 86mm mounting boxes.

Probleemoplossing

• Thermostaat gaat niet aan: Check the main power supply and wiring connections (Terminals 3 & 4). Ensure the circuit breaker is ON.
• Boiler not heating: Verify the thermostat is in heating mode and the set temperature is above the current room temperature. Check boiler connections (Terminals 1 & 2).
• Problemen met de wifi-verbinding: Ensure your router is broadcasting a 2.4 GHz Wi-Fi signal. Restart your router and the thermostat. Re-attempt the pairing process in the Smart Life app.
• Onjuiste temperatuurmeting: Zorg ervoor dat de thermostaat niet wordt blootgesteld aan direct zonlicht, tocht of warmtebronnen die de interne sensor kunnen beïnvloeden.
• Stembesturing werkt niet: Confirm that your Smart Life account is correctly linked to Alexa or Google Home. Check your internet connection.

Onderhoud

• Reinig het display van de thermostaat en casinReinig met een zachte, droge doek. Gebruik geen schuurmiddelen of oplosmiddelen.
• Zorg ervoor dat de ruimte rond de thermostaat vrij is van obstakels, zodat de temperatuur nauwkeurig kan worden gemeten.
• Periodically check for firmware updates through the Smart Life app to ensure optimal performance and security.

Garantie en ondersteuning

This Wattive product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the documentation included with your purchase or contact your retailer. For technical support, troubleshooting assistance, or further inquiries, please contact Wattive customer service through the contact information provided on our official webwebsite of uw aankoopplatform.

The Wattive Smart Thermostat is suitable for various applications, including residential homes, hotels, restaurants, and offices, providing intelligent temperature control.
