WholeFire LED Flashlight WF1585 User Manual

Model: WF1585 | Brand: WholeFire

Invoering

Thank you for choosing the WholeFire LED Flashlight WF1585. This powerful and versatile flashlight is designed for various indoor and outdoor activities, offering exceptional brightness, multiple lighting modes, and a durable, waterproof construction. Please read this manual carefully to ensure proper use and maintenance of your device.

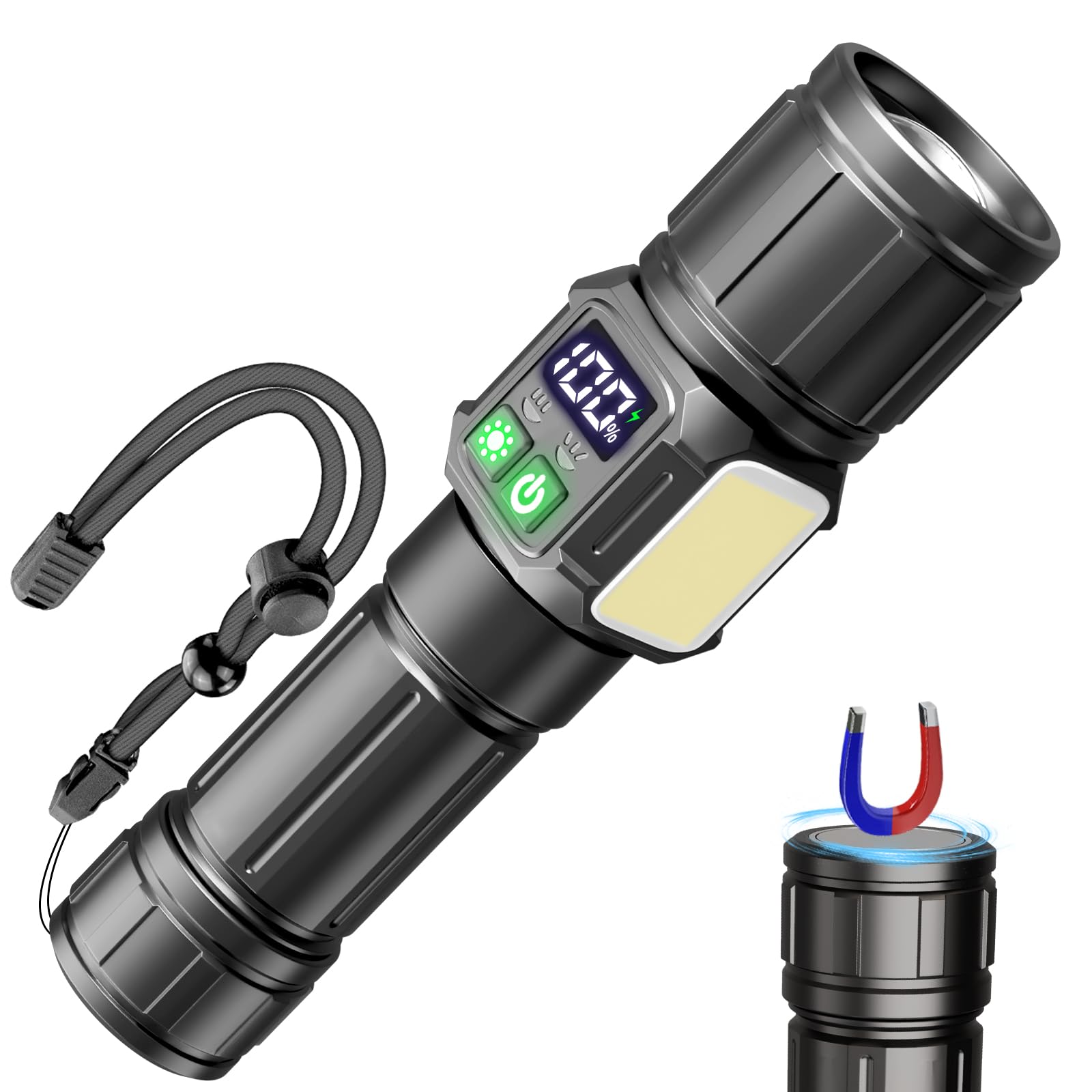

WholeFire LED Flashlight WF1585

Image: The WholeFire LED Flashlight WF1585, showcasing its compact design and powerful main light.

Installatie en eerste gebruik

1. Batterijinstallatie (indien van toepassing)

The WholeFire WF1585 flashlight requires one Lithium-ion battery (not included). To install the battery:

  1. Schroef de staartdop van de zaklamp los.
  2. Insert the Lithium-ion battery with the positive (+) end facing towards the flashlight head.
  3. Schroef de staartdop weer stevig vast.

2. Eerste keer opladen

Before first use, fully charge the flashlight. The device features a multi-way charging system.

  • Connect the included USB cable to the flashlight's charging port.
  • Connect the other end of the USB cable to a USB power source (e.g., USB socket, laptop, car charger).
  • The LCD power display will show the charging progress. Charge until it reaches 100%.
WholeFire LED Flashlight WF1585 Multi-ways of Charging

Image: The flashlight connected to a power strip via USB for charging, demonstrating its multi-way charging capability.

WholeFire LED Flashlight WF1585 LCD Power Display

Image: A close-up of the flashlight's LCD power display, showing the battery percentage.

Gebruiksaanwijzing

1. Aan/uit

Druk op de aan/uit-knop aan de zijkant van de zaklamp om deze in of uit te schakelen.

2. Schakelen tussen verlichtingsmodi

The WF1585 features 9 distinct lighting modes, divided into main light and COB side light functions.

  • Main Light Modes (5 modes): Press the power button repeatedly to cycle through High, Medium, Low, Strobe, and SOS.
  • COB Side Light Modes (4 modes): To activate the COB side light, press the dedicated COB button. Press repeatedly to cycle through Warm Strong, Warm Soft, Red Light, and Red Strobe.
WholeFire LED Flashlight WF1585 9 Lighting Modes

Image: Visual representation of the 9 lighting modes, including main beam (High, Medium, Low, Strobe, SOS) and COB side light (Yellow Strong, Yellow Weak, Red Light, Red Flash).

3. Verstelbare focus (zoomfunctie)

The flashlight head can be extended or retracted to adjust the beam from a focused spotlight to a wide floodlight.

  • In de schijnwerpers: Extend the flashlight head forward for a concentrated, long-distance beam.
  • Schijnwerper: Retract the flashlight head backward for a broad, wide-angle illumination.
WholeFire LED Flashlight WF1585 Adjustable Focus

Image: Demonstrates the adjustable focus feature, showing the flashlight beam as a tight spotlight and a wide floodlight in outdoor settings.

4. Magnetic Base Function

The tail cap of the flashlight is equipped with a strong magnet, allowing it to be securely attached to any ferrous metal surface for hands-free operation.

WholeFire LED Flashlight WF1585 Magnetic Suction

Image: The flashlight attached to a metal surface using its magnetic base, with a visual representation of magnetic force.

Onderhoud

1. Schoonmaken

  • Veeg de behuizing van de zaklamp schoon met een zachte, damp lap.
  • Gebruik geen schuurmiddelen of oplosmiddelen, aangezien deze de afwerking kunnen beschadigen.
  • Houd de lens schoon voor een optimale lichtopbrengst. Gebruik indien nodig een lensreinigingsdoekje.

2. Opslag

  • Bewaar de zaklamp op een koele, droge plaats, uit de buurt van direct zonlicht.
  • If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong battery life. Recharge every 3-6 months.

3. Waterbestendigheid

The WF1585 has an IPX65 waterproof rating, meaning it is protected against low-pressure water jets from any direction. It can be used in rain or wet conditions but cannot be immersed in water voor langere tijd.

WholeFire LED Flashlight WF1585 Waterproof

Image: The flashlight shown in a rainy outdoor environment, illustrating its waterproof capability.

Probleemoplossing

ProbleemMogelijke oorzaakOplossing
Zaklamp gaat niet aan.
  • Batterij is leeg.
  • Batterij is niet correct geplaatst.
  • De staartkap zit los.
  • Laad de batterij volledig op.
  • Controleer de polariteit van de batterij en plaats deze correct terug.
  • Draai de staartdop vast.
Het licht is zwak of flikkert.
  • Lage batterijlading.
  • Vuile lens.
  • Laad de batterij op.
  • Maak de lens schoon met een zachte doek.
De zaklamp laadt niet op.
  • De USB-kabel is defect of niet goed aangesloten.
  • Probleem met de stroomvoorziening.
  • Ensure USB cable is securely connected. Try a different cable.
  • Probeer een andere USB-voedingsbron.

Productspecificaties

ModelnummerWF1585
MerkWholeFire
LichtbrontypeLED
Helderheid (wit licht)10,000 lumen (max.)
Aantal verlichtingsmodi9 (5 Main Light, 4 COB Side Light)
BatterijtypeLithium-ion (1 required, not included)
EnergiebronOp batterijen, oplaadbaar via USB
MateriaalAluminiumlegering van ruimtevaartkwaliteit
WaterdichtheidsclassificatieIPX65 (Resistant to water jets, not immersion)
Afmetingen (L x B x H)17 x 4.2 x 3.5 cm (6.7 x 1.65 x 1.38 inch)
Gewicht225 gram (0.5 lbs)
Speciale kenmerkenHigh Lumens, Adjustable Focus, Adjustable Light Mode, High Power, Weather Resistant, Magnetic Base, LCD Power Display
Componenten inbegrepen1 Flashlight, USB Cable

Garantie-informatie

Specific warranty details for the WholeFire LED Flashlight WF1585 are not provided in this manual. Please refer to the product packaging or contact your retailer or the manufacturer directly for warranty terms and conditions.

Klantenservice

If you encounter any issues or have questions regarding your WholeFire LED Flashlight WF1585, please contact the seller or manufacturer for assistance. Keep your purchase receipt or order number handy when contacting support.
