Eridanus slim toilet ERI-ST210-S Gebruikershandleiding

1. Inleiding

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Eridanus Smart Toilet, Model ERI-ST210-S. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Veiligheidsinformatie

Observe all safety warnings and instructions to prevent injury or damage. Improper installation, operation, or maintenance can lead to electric shock, water leakage, or other hazards.

Elektrische veiligheid

Ensure the toilet is connected to a properly grounded electrical outlet.
Dompel het product niet onder in water en spuit geen water rechtstreeks op elektrische componenten.
Haal de stekker van het apparaat uit het stopcontact voordat u onderhouds- of reinigingswerkzaamheden uitvoert.
Do not use if the power cord is damaged. Contact qualified service personnel for repair.

Waterveiligheid

Zorg ervoor dat de wateraansluitingen goed vastzitten om lekkages te voorkomen.
Gebruik geen schurende reinigingsmiddelen of chemicaliën die de oppervlakken of interne onderdelen van het toilet kunnen beschadigen.

Algemene veiligheid

Dit apparaat is niet bedoeld voor gebruik door personen (inclusief kinderen) met verminderde fysieke, sensorische of mentale vermogens, of met een gebrek aan ervaring en kennis, tenzij zij onder toezicht staan of instructies hebben gekregen over het gebruik van het apparaat door een persoon die verantwoordelijk is voor hun veiligheid.
Keep children supervised to ensure they do not play with the appliance.

Diagram illustrating various safety functions of the smart toilet, including prevention of low temperature scald, overheating prevention, 12V safety voltage, leakage protection, water pressure protection, and IPX4 waterproof rating.

Figuur 2.1: Various Safety Functions

3. Product voorbijview

The Eridanus Smart Toilet ERI-ST210-S is a one-piece tankless bidet toilet designed for enhanced hygiene and comfort. It integrates multiple advanced features for a superior bathroom experience.

Belangrijkste kenmerken

Custom Wash Modes: Rear wash, bidet wash, and oscillating spray.
Self-Cleaning Adjustable Nozzle: Stainless steel wand with adjustable spray angle.
Instant Heating & Comfort Control: On-demand warm water, air drying, adjustable water temperature, air temperature, and seat warmth.
Powerful & Efficient Flush: Power-assisted flush, foot-sensor flush, off-seat auto flush, and blackout flush.
Built-In Cleaning & Freshening: Pre-wetting and air freshener.
Modern Interface & Lighting: Sleek screen display, side control knob, ambient lighting, and soft night light.
ADA Height: Elongated heated seat designed for comfort and accessibility.

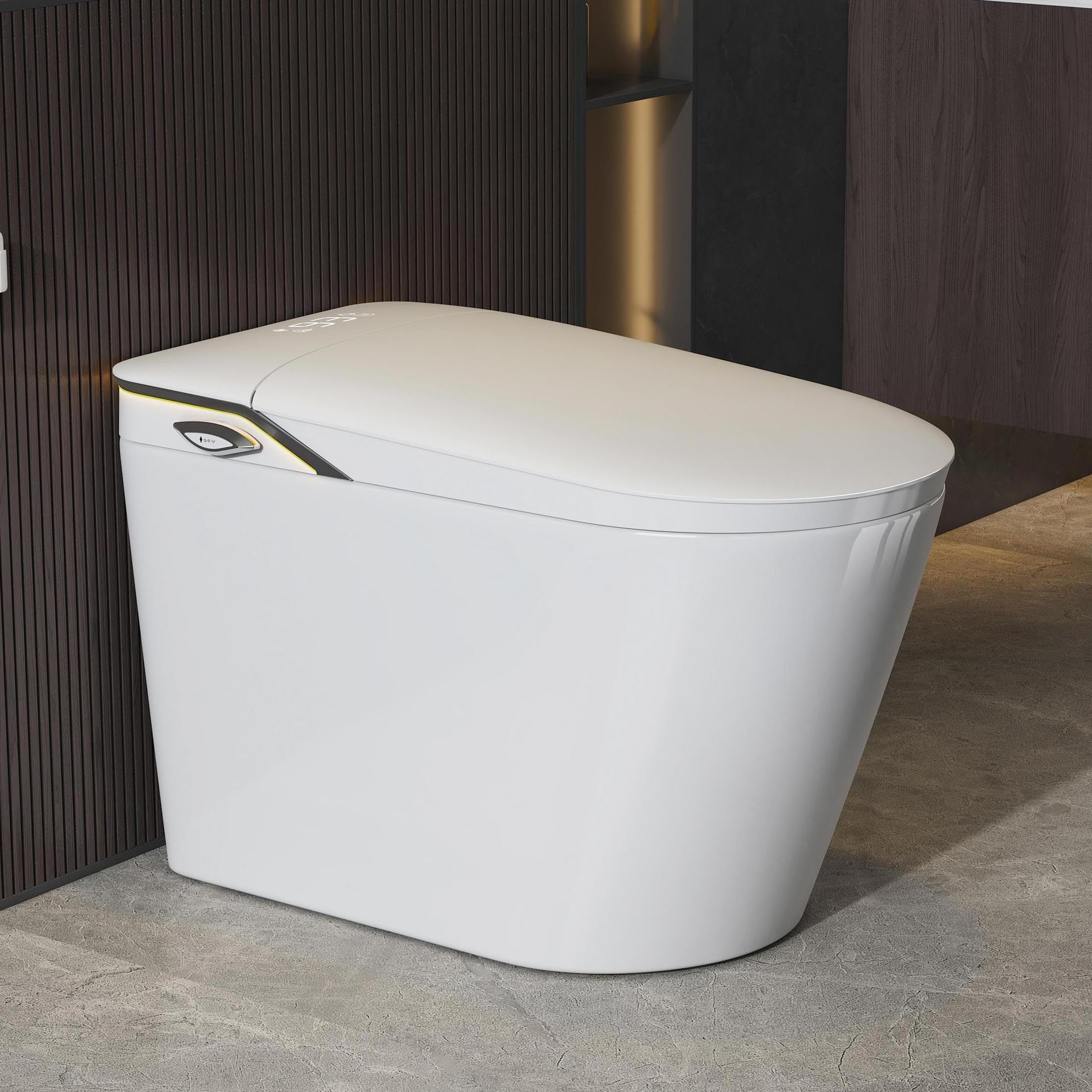

Eridanus Smart Toilet ERI-ST210-S, a sleek white one-piece toilet with a closed lid, showcasing het moderne ontwerp.

Figuur 3.1: Eridanus Smart Toilet ERI-ST210-S

Van dichtbij view of the advanced bidet system's nozzle extending from the toilet rim, demonstrating the water spray.

Figuur 3.2: Advanced Bidet System

Intern view of the toilet showing the instant heating element for water, with blue and red indicators for cold in and warm out.

Figuur 3.3: Instant Heated Water System

Boven het hoofd view of the toilet seat with illuminated heating elements visible, indicating the warm comfort seat feature.

Figuur 3.4: Warm Comfort Seat

4. Installatie en installatie

This section outlines the components included and provides guidance for the physical installation of the Eridanus Smart Toilet ERI-ST210-S. Professional installation is recommended.

Meegeleverde componenten

Refer to the diagram below for a visual representation of the included parts.

Diagram showing product dimensions of the smart toilet and a list of included accessories: Wax Ring, Remote Control, Flange & Mounting Bolts, Shut-off Valve (1/2 inch NPT x 3/4 inch), Toilet Inlet Adapter (3/4 inch G x 7/8 inch), User Manual, and Footprint Template. An optional shut-off valve (3/8 inch x 3/4 inch G) is also shown as not included but available upon request.

Figuur 4.1: Product Dimensions and Included Parts

Slimme toiletunit
Wasring
Afstandsbediening
Flange & Mounting Bolts
Shut-off Valve (1/2" NPT x 3/4")
Toilet Inlet Adapter (3/4" G x 7/8")
Gebruikershandleiding (dit document)
Voetafdruk sjabloon

Note: An optional Shut-off Valve (3/8" x 3/4" G) is not included but may be available upon request.

Installatiestappen (samenvatting)

Prepare the installation area, ensuring water and electrical connections are available.
Install the flange and mounting bolts according to standard plumbing practices.
Place the wax ring onto the flange.
Carefully position the smart toilet unit over the flange and secure it with the mounting bolts.
Connect the water supply line to the toilet inlet adapter and then to the shut-off valve.
Sluit het netsnoer aan op een geaard stopcontact.
Test op lekkages en correcte werking.

For detailed installation instructions, refer to the separate Installation Guide provided with your product.

5. Gebruiksaanwijzing

The Eridanus Smart Toilet offers various functions for personalized hygiene and convenience. Familiarize yourself with the control methods and settings.

Flushing Operations

The toilet supports multiple flushing methods:

Spoelen met voetsensor: A sensor at the base of the toilet detects foot movement for hands-free flushing.
Automatische spoeling buiten de stoel: Het toilet spoelt automatisch door zodra de gebruiker opstaat en van de bril weggaat.
Bedieningsknop aan de zijkant: A knob on the side of the toilet allows manual flushing.
Afstandsbediening: Use the remote to initiate a flush.
Stroomuitval doorspoelen: Ensures flushing capability even during power outagen.

Boven het hoofd view of the smart toilet with callouts indicating four touchless auto flush options: Foot Sensing Flush, Off-Seat Auto Flush, Flush by Side Knob, and Flush by Remote Control. The remote control is also shown.

Figuur 5.1: Touchless Auto Flush Options

Diagram illustrating the sequence of off-seat flush and foot-sensor flush for both women (manual lid opening, using, off-seat/foot-sensor flush, manual lid closing) and men (manual lid & seat opening, using, foot-sensor flush, manual seat & lid closing).

Figuur 5.2: Off-seat and Foot-Sensor Flush Operation

cutaway view of the toilet bowl showing the powerful automatic flush system with 360-degree inner-wall flushing, strong siphon flushing, and jet push dirt mechanisms. A 'Blackout Flush' indicator is also present.

Figuur 5.3: Powerful Automatic Flush System

Bidet and Washing Functions

The integrated bidet system provides customizable cleaning options:

Arc-shape Spray Wand: Designed to prevent contact with waste, ensuring hygiene.
Wasmodi: Select between Rear Wash, Bidet Wash (for feminine hygiene), and Oscillating Spray for a wider cleaning area.
Instelbare watertemperatuur: Choose from Room Temp, 93°F, 96°F, and 99°F.
Instelbare waterdruk: Select from Low, Medium, Strong, and Ultra Strong settings.

Image showing the arc-shape spray wand in action, with options for 4 water temperatures (Room Temp, 93°F, 96°F, 99°F) and 4 pressure levels (Low, Medium, Strong, Ultra Strong). Also depicts Bidet Wash, Rear Wash, Oscillating Mode, and Self Cleaning Wand functions.

Figuur 5.4: Arc-shape Spray Wand and Wash Settings

Comfortfuncties

Verwarmde stoel: Enjoy adjustable seat warmth with multiple temperature settings (Room Temp, 93°F, 96°F, 99°F).
Warme luchtdroger: After washing, use the warm air dryer with adjustable temperature settings (Room Temp, 95°F, 113°F, 131°F) to reduce toilet paper usage.
Soft Close Lid and Seat: Voorkomt dichtslaan en vermindert geluid.
Night Light & Digital Display: A soft night light illuminates the bowl for nighttime use, and a digital display shows current settings like water temperature, seat temperature, and wind temperature.

Image showing the efficient warm air dryer with 4 temperature settings (Room Temp, 95°F, 113°F, 131°F) and the comfortable heated seat with 4 temperature settings (Room Temp, 93°F, 96°F, 99°F).

Figuur 5.5: Warm Air Dryer and Heated Seat Controls

Boven het hoofd view of the smart toilet in a dark setting, showing the illuminated night light within the bowl and a digital display above the seat indicating settings like water temperature (93°F).

Figuur 5.6: Night Light and Digital Display

Controlemethoden

Bedieningsknop aan de zijkant: Provides quick access to core functions like flushing, air drying, oscillating wash, rear wash, and bidet wash.
Slimme afstandsbediening: A wireless remote control allows for comprehensive adjustment of all settings, including wash modes, water/seat/wind temperature, water pressure, and self-cleaning.

Image showing the streamlined stylish control knob on the side of the toilet, with icons for air drying, flushing session, oscillating wash, rear wash, and bidet wash. Below it, the smart remote control is displayed with various buttons for stop, spray/massage, bidet/massage, dryer, flush, water temp, seat temp, wind temp, light, gentle-cleaning, self-clean, pressure adjustment, and forward/backward nozzle movement.

Figuur 5.7: Control Knob and Smart Remote

6. Onderhoud

Regular maintenance ensures the longevity and hygienic operation of your Eridanus Smart Toilet.

Zelfreinigende functies

Zelfreinigende toverstaf: The stainless steel bidet wand automatically cleans itself before and after each use.
Pre-Wet Function: The toilet bowl is automatically moistened when you sit down, which helps prevent waste from sticking and improves flushing efficiency.
Luchtverfrisser: A built-in air freshener helps maintain a pleasant bathroom environment.

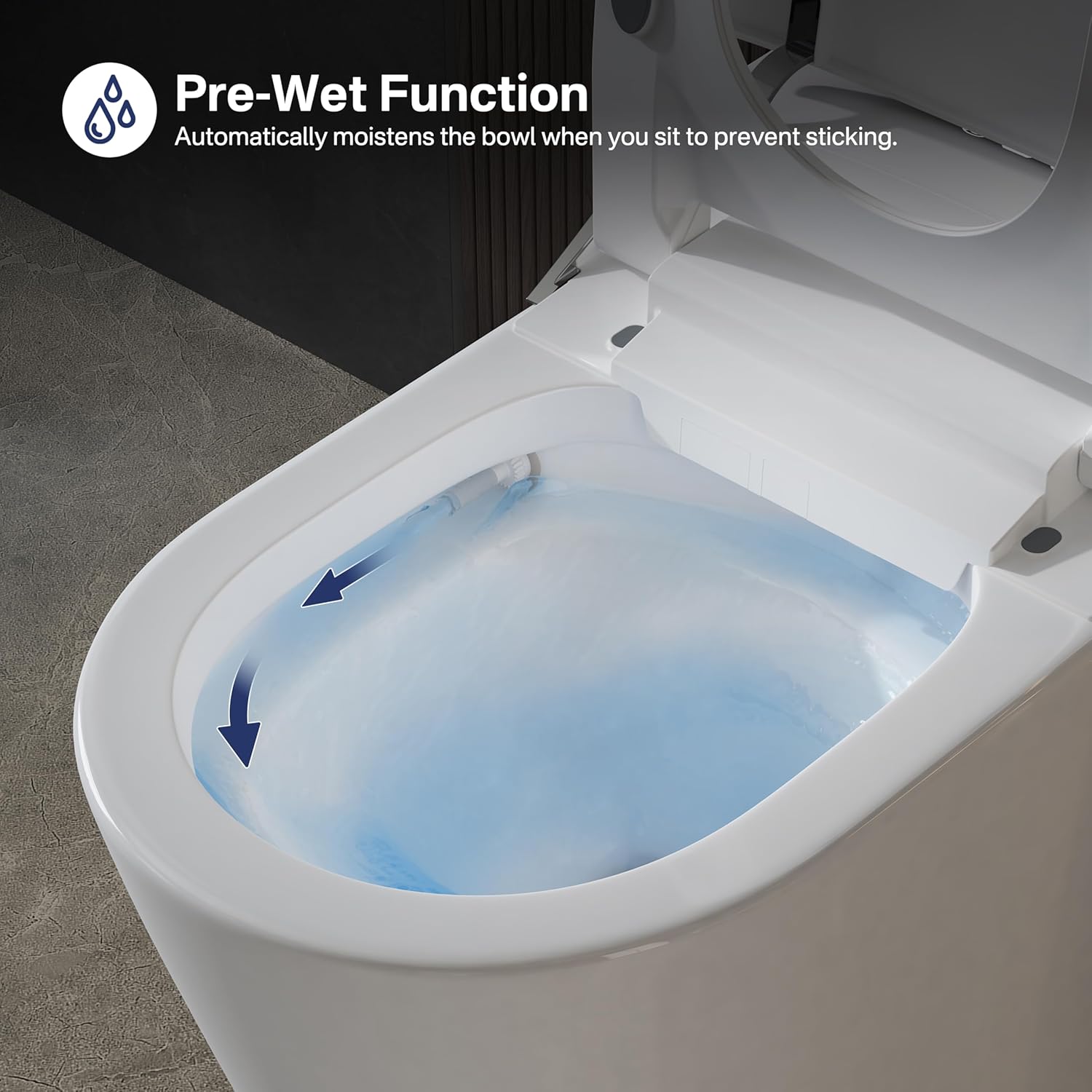

Van dichtbij view of the toilet bowl with water swirling, illustrating the Pre-Wet Function which automatically moistens the bowl to prevent sticking.

Figuur 6.1: Pre-Wet Function

Algemene schoonmaak

Buitenkant: Veeg de buitenoppervlakken af met een zachte, damp doek en een milde, niet-schurende reiniger.
Zitplaats: Clean the seat with a soft cloth and a gentle, non-corrosive bathroom cleaner.
Mondstuk: While the wand is self-cleaning, occasional manual inspection and gentle cleaning with a soft brush may be performed if necessary. Ensure the power is disconnected before any manual cleaning of the nozzle.
Gebruik niet: Avoid using harsh chemicals, abrasive pads, or strong acids/alkalis, as these can damage the ceramic or electronic components.

7. Probleemoplossing

This section addresses common issues you might encounter with your Eridanus Smart Toilet. For problems not listed here, contact customer support.

Probleem	Mogelijke oorzaak	Oplossing
No power/Unit unresponsive	Stroomkabel losgekoppeld, stroomonderbreker uitgeschakeld, stroom uitgevallentage.	Controleer de stroomaansluiting, reset de stroomonderbreker en controleer de stroomvoorziening.
No water or weak spray	Water supply valve closed, water pressure low, nozzle clogged.	Open water supply valve, check household water pressure, clean nozzle.
Verwarmde stoel wordt niet warm	Seat heating function off, temperature setting too low.	Activate seat heating via remote/control knob, increase temperature setting.
Flushing issues (e.g., weak flush, no flush)	Water supply issue, sensor obstruction, internal mechanism fault.	Check water supply, ensure sensors are clean and unobstructed, contact support if issue persists.
Waterlekkage	Losse verbindingen, beschadigde afdichtingen.	Tighten connections, inspect seals, contact support immediately.

8. Specificaties

Detailed technical specifications for the Eridanus Smart Toilet ERI-ST210-S.

Modelnummer: ERI-ST210-S
Kleur: Wit
Materiaal: Keramiek (toilet), polypropyleen (PP) (zitting)
Installatietype: Op de vloer gemonteerd
gelijksoortig: Siphon Jet, Power-assisted, Foot-sensor, Off-seat Auto Flush, Blackout Flush
Watertemperatuurinstellingen: Kamertemperatuur, 93°F, 96°F, 99°F
Air Dryer Temperature Settings: Kamertemperatuur, 95°F, 113°F, 131°F
Waterdrukniveaus: Low, Medium, Strong, Ultra Strong
ADA Compliant Height: Yes (17 inches from floor to seat)

Diagram comparing the ergonomic comfort height of the Eridanus toilet (17 inches) with a standard toilet (15 inches), showing improved posture for the user.

Figuur 8.1: Ergonomic Comfort Height (ADA Compliant)

Figuur 8.2: Productafmetingen

Dimensie	Meting
Totale lengte	27 1/2 inch
Totale breedte	16 9/10 inch
Totale hoogte	18 7/10 inch
Zithoogte	17 inch

9. Garantie en ondersteuning

Eridanus is committed to providing quality products and excellent customer service.

Garantie-informatie

Your Eridanus Smart Toilet ERI-ST210-S comes with a one-year limited after-sales supportDit omvat:

Beschikbaarheid van reserveonderdelen
Prompt technical assistance
30 dagen eenvoudig retourneren

Klantenservice

Our customer service team is available 24/7 to assist with any inquiries or issues you may have. For support, please refer to the contact information provided in your product packaging or visit the official Eridanus webplaats.

We offer lifetime service for our products, ensuring continued support beyond the initial warranty period.
