1. Inleiding
Thank you for choosing the Roadstar RDM-710DSP Bluetooth 3xUSB Car Stereo. This manual provides essential information for the proper installation, operation, and maintenance of your new car stereo. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
The RDM-710DSP is a mechless car stereo designed to provide high-quality audio and versatile connectivity options for your vehicle. It features Bluetooth 5.0 for wireless audio streaming and hands-free calling, three USB inputs for media playback, and a sophisticated Digital Sound Processor (DSP) with a 32-band equalizer for precise audio customization.
2. Producteigenschappen
- Mechless Car Stereo design (no CD/DVD mechanism)
- Multi-color display with seven selectable color options
- Digital Sound Processor (DSP) with 32-band equalizer
- TDA7388 amplifier for robust audio output
- Bluetooth 5.0 for wireless audio streaming and hands-free communication
- Three USB inputs for diverse media playback and charging
- FM radio tuner (5807)
- Six RCA outputs for external ampLifier-verbindingen
- Speciale subwooferuitgang
- High Pass Filter (HPF) and Low Pass Filter (LPF) functions for audio crossover management
- Time and day display function
- ISO standards compliant for easy installation
- Folder selection feature for organized media browsing
- Controllable via included remote control
- Mobile application control support
3. Inhoud van het pakket
Controleer het pakket op de volgende items:
- Roadstar RDM-710DSP Car Stereo Unit
- kabelboom
- Montagemateriaal (schroeven, beugels)
- Afstandsbediening
- Gebruikershandleiding (dit document)
Als er onderdelen ontbreken of beschadigd zijn, neem dan onmiddellijk contact op met uw dealer.
4. Veiligheidsinformatie
- Installatie: Always have the unit installed by a qualified technician to prevent damage to the unit or your vehicle. Incorrect wiring can cause fire or electrical shock.
- Voeding: Sluit het apparaat alleen aan op een 12V DC-voeding met negatieve aarding.
- Veilig rijden: Do not operate the unit in a way that distracts you from driving. Always keep your attention on the road.
- Volume niveau: Keep the volume at a level where you can still hear outside traffic sounds. Excessive volume can impair your hearing.
- Vocht: Do not expose the unit to moisture or water to prevent electrical shock.
- Schoonmaak: Gebruik een zachte, droge doek voor het reinigen. Gebruik geen schurende reinigingsmiddelen of oplosmiddelen.
5. Installatie en installatie
5.1 bedradingsverbindingen
The RDM-710DSP is designed to be ISO standards compliant, simplifying wiring. Refer to the wiring diagram provided with the unit for specific connections. Ensure all connections are secure and properly insulated to prevent short circuits.
- Stroom: Connect the yellow wire to the constant 12V supply, the red wire to the accessory 12V supply (switched by ignition), and the black wire to a good chassis ground.
- Sprekers: Connect speaker wires to the corresponding vehicle speaker wires. Pay attention to polarity (+/-).
- Antenne: Connect the vehicle's FM antenna to the antenna input.
- RCA-uitgangen: Voor extern amplifiers, connect the six RCA outputs (Front L/R, Rear L/R, Subwoofer) to your amplifier's ingangen.
5.2 Het apparaat monteren
Insert the metal mounting sleeve into the dashboard opening. Bend the tabs outward to secure the sleeve. Slide the RDM-710DSP unit into the mounting sleeve until it clicks into place. Ensure the unit is firmly secured.
5.3 Eerste inschakeling
After installation, turn on your vehicle's ignition. The unit should power on. Follow any on-screen prompts for initial setup, such as setting the clock.

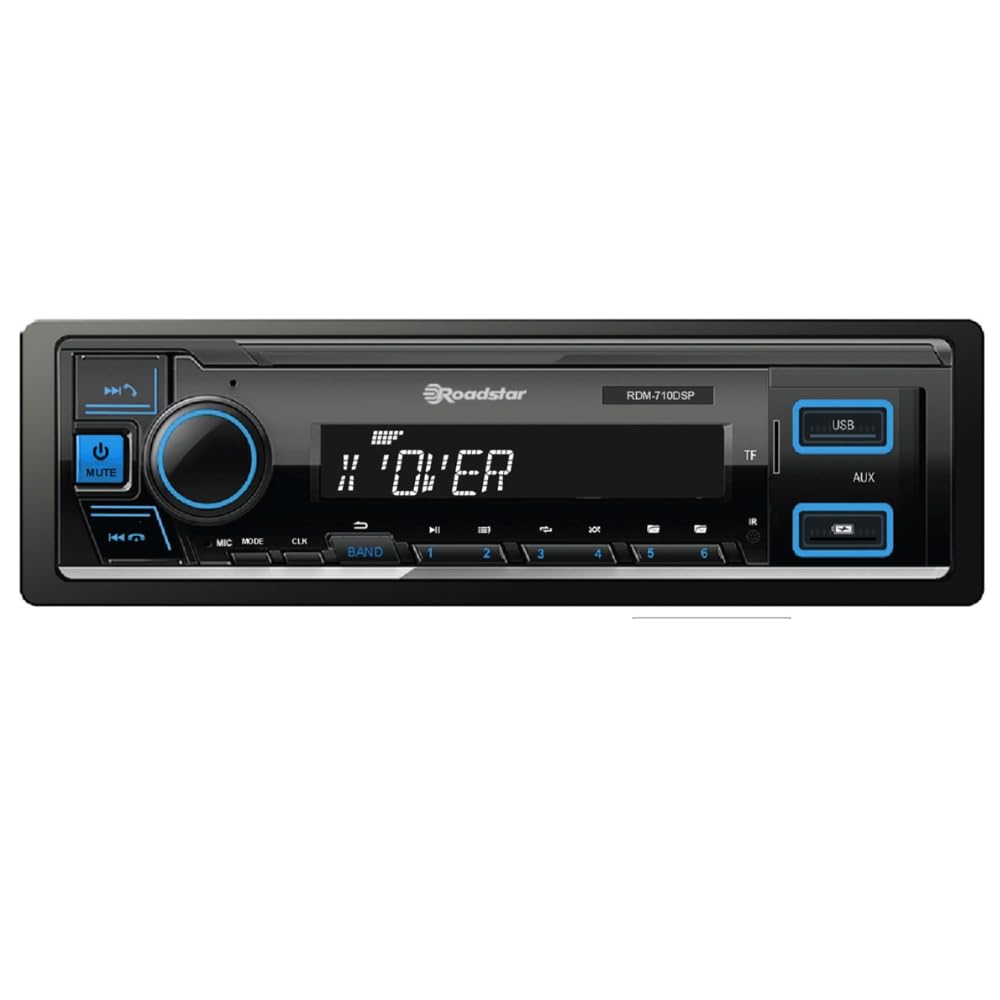

Figuur 1: Voorkant view of the Roadstar RDM-710DSP Car Stereo. This image displays the main unit with its multi-color display, control buttons, and USB ports.
6. Gebruiksaanwijzing
6.1 Basisbedieningen
- Aan/uit-knop: Druk hierop om het apparaat AAN / UIT te zetten.
- Volumeknop: Draai om het volume aan te passen. Druk om de audio-instellingen te openen.
- Modusknop: Press to cycle through available sources (FM, Bluetooth, USB1, USB2, USB3, AUX).
- Weergave: The multi-color display shows current source, track information, radio frequency, time, and day. You can customize the display color through the settings menu.
6.2 Afstandsbediening en mobiele app
The unit can be controlled using the included remote control. Point the remote control towards the unit's IR sensor. For advanced control, download the dedicated mobile application from your smartphone's app store. Pair your phone via Bluetooth to use the app.
7. Bluetooth-connectiviteit
7.1 Een Bluetooth-apparaat koppelen
- Turn on the RDM-710DSP and select the Bluetooth source using the Mode button.
- Schakel Bluetooth in op uw mobiele apparaat en zoek naar beschikbare apparaten.
- Select "RDM-710DSP" from the list of found devices.
- Voer indien gevraagd de pincode in (meestal "0000").
- Once paired, the unit will confirm the connection, and you can stream audio or make calls.
7.2 Bluetooth-audiostreaming (A2DP)
After pairing, you can play music from your Bluetooth-enabled device. Use the unit's controls or your phone to play, pause, skip tracks, and adjust volume.
7.3 Handsfree bellen (HFP)
When a call comes in, the unit will display the caller ID (if supported). Press the Answer button on the unit or remote to accept the call. Use the unit's microphone for communication and the car speakers for audio output.
8. USB-weergave
The RDM-710DSP features three USB inputs. Connect a USB flash drive containing audio files (e.g., MP3, WMA) to any of the USB ports. The unit will automatically switch to USB mode and begin playback.
- Navigatie: Use the forward/backward buttons to skip tracks. Use the folder selection feature to browse through directories on your USB device.
- Ondersteunde formaten: The unit supports common audio formats. Refer to the technical specifications for a complete list.
- Opladen: USB ports may also provide charging capabilities for compatible devices.
9. Radiobediening
Press the Mode button to select FM radio. The unit will display the current frequency.
- Auto Scan: Press and hold the seek buttons to automatically scan for and store strong stations.
- Handmatig afstemmen: Briefly press the seek buttons to manually tune to the next frequency.
- Vooraf ingestelde zenders: Use the numeric buttons (if available on the unit or remote) to select preset stations.
10. Geluidsinstellingen
The RDM-710DSP features a powerful Digital Sound Processor (DSP) to customize your audio experience.
- Equalizer: Access the 32-band equalizer through the audio settings menu. Adjust individual frequency bands to tailor the sound to your preference.
- HPF/LPF: High Pass Filter (HPF) and Low Pass Filter (LPF) settings allow you to define the frequency range sent to your speakers and subwoofer, optimizing sound quality and preventing distortion.
- Subwoofer-uitgang: Adjust the subwoofer level and phase through the audio settings.
- RCA-uitgangen: The six RCA outputs provide clean, pre-amplified signals for connecting external amplifiers, allowing for a more powerful and customized sound system.
11. Onderhoud
- Het apparaat schoonmaken: Use a soft, dry cloth to wipe the front panel. Do not use harsh chemicals, solvents, or abrasive cleaners, as they may damage the finish or display.
- USB-poorten: Keep USB ports free from dust and debris.
- Algemene zorg: Zorg ervoor dat het apparaat niet langdurig wordt blootgesteld aan extreme temperaturen, direct zonlicht of overmatige vochtigheid.
12. Probleemoplossing
If you encounter problems with your RDM-710DSP, refer to the following table for common issues and solutions.
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Geen stroom | Onjuiste bedrading; doorgebrande zekering; contact van het voertuig uitgeschakeld | Check power and ground connections; Replace fuse if necessary; Turn vehicle ignition ON. |
| Geen geluid | Volume too low; Mute function active; Incorrect speaker wiring; Amplifier not powered (if external) | Increase volume; Deactivate mute; Check speaker connections and polarity; Ensure external amplier wordt gevoed. |
| Bluetooth maakt geen verbinding | Bluetooth not enabled on phone; Unit not in pairing mode; Device already paired to another unit | Enable Bluetooth on your phone; Ensure unit is in Bluetooth mode; Forget device on phone and re-pair. |
| USB-apparaat niet herkend | Niet ondersteund file system; Damaged USB device; Incompatible file formaat | Ensure USB is FAT32 formatted; Try a different USB device; Check supported file formaten. |
| Afstandsbediening werkt niet | Dead battery; Obstruction between remote and unit; Remote not pointed correctly | Replace remote battery; Remove obstructions; Point remote directly at the unit's IR sensor. |
Als het probleem blijft bestaan nadat u deze oplossingen hebt geprobeerd, neem dan contact op met de klantenservice.
13. Specificaties
| Functie | Specificatie |
|---|---|
| Model | RDM-710DSP |
| Merk | Wegster |
| Bluetooth-versie | 5.0 |
| USB-poorten | 3 |
| Equalizer | 32-bands DSP |
| RCA-uitgangen | 6 (Front L/R, Rear L/R, Subwoofer) |
| Ampverrijker IC | TDA7388 |
| Stemapparaat | FM (5807) |
| Gewicht | 0.65 kilogram |
| Meegeleverde componenten | Autoradio |
14. Garantie en ondersteuning
14.1 Garantie-informatie
Warranty information for the Roadstar RDM-710DSP is not specified in the product details. Please refer to your purchase receipt or contact your retailer for details regarding warranty coverage and terms.
14.2 Klantenservice
For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact your authorized Roadstar dealer or visit the official Roadstar website voor ondersteuningsbronnen.
