1. Inleiding
Thank you for choosing the Hepa Pro 20-Gallon Professional Wet/Dry Vacuum. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.
The Hepa Pro 20 is designed for heavy-duty cleaning tasks in professional and industrial environments, capable of handling both dry debris and liquids with its advanced HEPA filtration system.

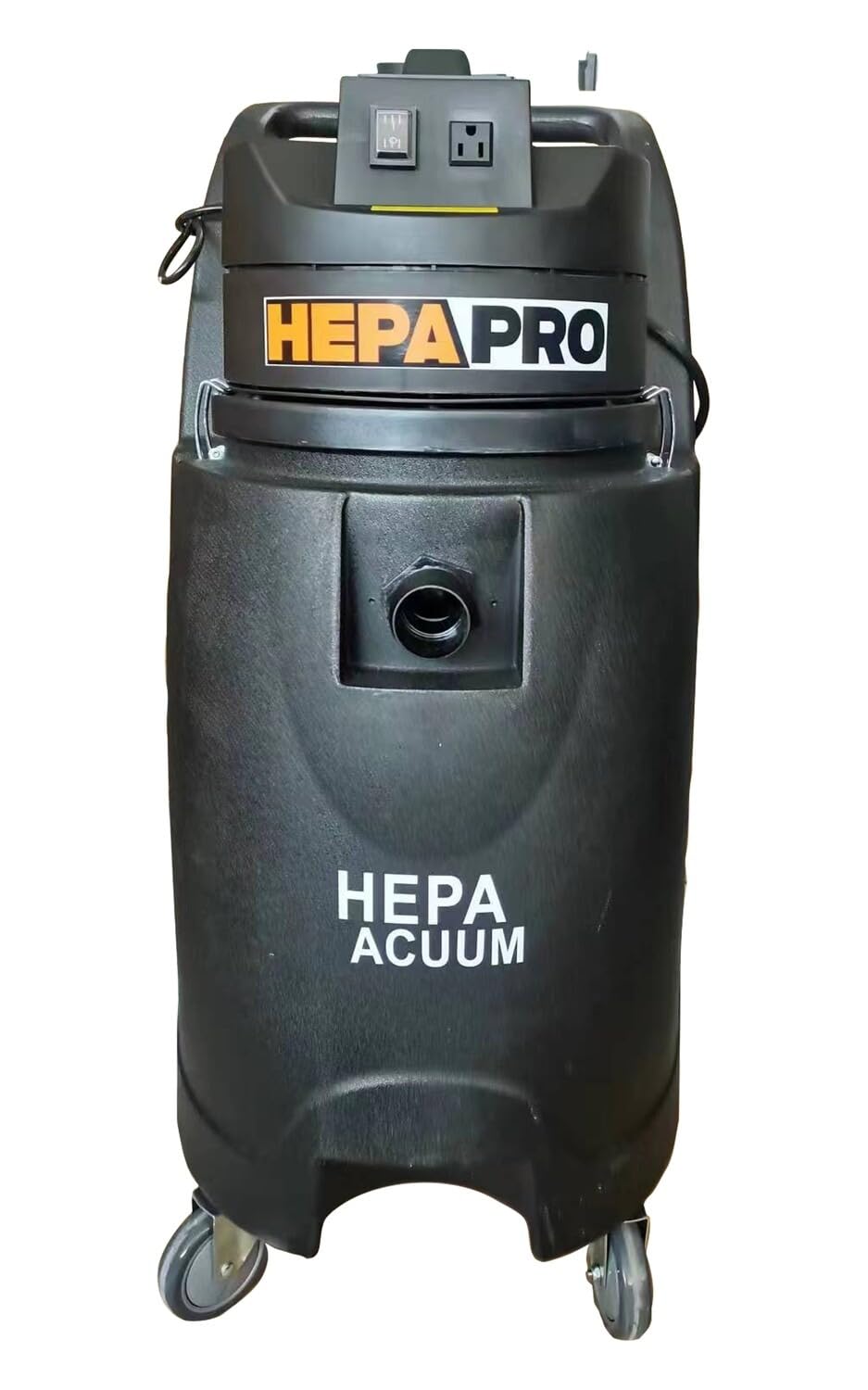

Figure 1: Hepa Pro 20-Gallon Professional Wet/Dry Vacuum. This image shows the complete vacuum unit with its black finish, large tank, and wheeled base.
2. Veiligheidsinformatie
WAARSCHUWING: Lees alle veiligheidswaarschuwingen en instructies voordat u dit product gebruikt. Het niet opvolgen van de waarschuwingen en instructies kan leiden tot een elektrische schok, brand en/of ernstig letsel.
- Always disconnect the power cord from the electrical outlet before performing any adjustments, changing accessories, or storing the vacuum.
- Do not operate the vacuum in the presence of flammable liquids, gases, or explosive dusts.
- Ruim geen brandende of rokende voorwerpen op, zoals sigaretten, lucifers of hete as.
- Do not pick up toxic, carcinogenic, or other hazardous materials without proper personal protective equipment and specialized filters.
- Ensure the HEPA filter is correctly installed and undamaged when handling hazardous materials like asbestos, lead, or silica.
- Houd haar, losse kleding, vingers en alle lichaamsdelen uit de buurt van openingen en bewegende delen.
- Gebruik het product alleen zoals beschreven in deze handleiding. Gebruik alleen de door de fabrikant aanbevolen hulpstukken.
- Niet gebruiken met een beschadigd snoer of stekker. Als de stofzuiger niet naar behoren werkt, is gevallen, beschadigd is geraakt, buiten is blijven staan of in het water is gevallen, breng hem dan terug naar een servicecentrum.
- Trek niet aan het koord of draag het niet, gebruik het koord niet als handvat, sluit de deur niet aan het koord en trek niet aan het koord rond scherpe randen of hoeken. Houd het snoer uit de buurt van verwarmde oppervlakken.
- Trek niet aan het snoer om de stekker eruit te trekken. Pak de stekker vast, niet het snoer om de stekker eruit te trekken.
- Raak de stekker of stofzuiger niet aan met natte handen.
- Dit apparaat is niet bedoeld voor gebruik door personen (inclusief kinderen) met beperkte fysieke, sensorische of mentale vermogens, of met een gebrek aan ervaring en kennis, tenzij zij onder toezicht staan of instructies hebben gekregen over het gebruik van het apparaat door een persoon die verantwoordelijk is voor hun veiligheid.
3. Inhoud van het pakket
Carefully unpack your Hepa Pro 20-Gallon Professional Wet/Dry Vacuum and ensure all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.
- Hepa Pro 20-Gallon Vacuum Unit (with integrated handle and rotational molded polyethylene tank)
- HEPA Filter System (pre-installed or requiring installation)
- Large Rear Wheels (2)
- Front Swivel Casters (2)
- Zuigslang
- Extension Wands (quantity may vary)
- Vloermondstuk
- Spleetmondstuk
- Nuttige mondstuk
- Gebruikershandleiding (dit document)
4. Opstelling en montage
Follow these steps to assemble your Hepa Pro 20-Gallon Professional Wet/Dry Vacuum:
- Wielen bevestigen: Invert the tank. Insert the large rear wheels into their designated slots on the rear of the tank base. Secure them firmly. Attach the front swivel casters to the front of the tank base using the provided hardware. Ensure all wheels rotate freely.
- Filterinstallatie (indien niet vooraf geïnstalleerd): For dry vacuuming, ensure the HEPA filter is securely seated over the filter cage. For wet vacuuming, the HEPA filter should be removed or protected by a foam filter (if included and specified for wet use). Refer to the filter section for detailed instructions.
- Bevestig slang: Connect the large end of the vacuum hose to the intake port on the tank. Twist or push firmly until it is securely locked in place.
- Accessoires bevestigen: Connect the desired extension wands and nozzle (e.g., floor nozzle, crevice tool) to the working end of the vacuum hose.
- Stroomaansluiting: Ensure the power switch is in the 'OFF' position before plugging the vacuum into a grounded 120V electrical outlet.
5. Gebruiksaanwijzing
The Hepa Pro 20-Gallon Professional Wet/Dry Vacuum is designed for versatile cleaning. Always ensure the correct filter configuration for your task.
5.1 Droog stofzuigen
- Zorg ervoor dat het HEPA-filter schoon is en correct is geïnstalleerd.
- Connect the hose and desired dry vacuuming accessories.
- Sluit het netsnoer aan op een geaard stopcontact van 120 V.
- Turn the power switch (located on top of the unit) to the 'ON' position.
- Begin vacuuming. Empty the tank when it is full or suction decreases.
- After use, turn the power switch to 'OFF' and unplug the unit.
5.2 Natzuigen
CAUTION: Remove the HEPA filter before wet vacuuming to prevent damage to the filter and motor. If a foam filter is provided for wet use, install it according to its instructions.
- Remove the HEPA filter. Ensure the liquid shut-off mechanism is clear of debris.
- Connect the hose and desired wet vacuuming accessories.
- Sluit het netsnoer aan op een geaard stopcontact van 120 V.
- Zet de aan/uit-schakelaar op 'AAN'.
- Begin vacuuming liquids. The liquid shut-off mechanism will automatically stop suction when the tank is full to prevent overflow.
- When the liquid shut-off activates, turn the power switch to 'OFF' and unplug the unit. Empty the tank immediately.
- After use, turn the power switch to 'OFF' and unplug the unit. Clean the tank thoroughly.
6. Onderhoud
Regular maintenance ensures optimal performance and extends the life of your Hepa Pro vacuum.
6.1 Filterreiniging en -vervanging
- HEPA filter: For dry debris, tap the filter gently to dislodge dust. For heavy contamination, the HEPA filter may be cleaned with a soft brush or compressed air. Do not wash the HEPA filter with water unless specifically instructed by the manufacturer, as this can damage the filter media. Replace the HEPA filter periodically or when suction significantly decreases despite cleaning.
- Foam Filter (if applicable for wet use): Rinse the foam filter with water and allow it to air dry completely before reinstallation.
6.2 Tankreiniging
After wet vacuuming, always empty and rinse the tank thoroughly with water to prevent mold, mildew, and odors. For dry debris, simply empty the tank into a waste receptacle.
6.3 Hose and Accessories
Inspect the hose and accessories regularly for blockages, cracks, or damage. Clear any blockages. Clean accessories with water and mild detergent if necessary, and allow them to dry completely before storage.
6.4 Opslag
Store the vacuum in a clean, dry area, away from extreme temperatures. Wrap the power cord neatly. Ensure the tank is empty and clean before storage.
7. Probleemoplossing
Raadpleeg de onderstaande tabel voor veelvoorkomende problemen en hun oplossingen.
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Stofzuiger gaat niet aan. | No power to outlet; Power cord not plugged in; Power switch is off; Faulty power cord/plug. | Check circuit breaker/fuse; Ensure cord is fully plugged in; Turn power switch to 'ON'; Inspect cord/plug for damage, contact service if damaged. |
| Verlies van zuigkracht. | Tank is full (wet vac); Filter is clogged; Hose or accessories are blocked; Leaks in hose connections; Tank lid not sealed properly. | Empty tank; Clean/replace filter; Clear blockages in hose/accessories; Check and secure all connections; Ensure tank lid is latched securely. |
| Motor draait, maar geen zuigkracht. | Hose not connected; Blockage in hose/accessories; Tank lid not sealed; Filter missing or improperly installed. | Connect hose securely; Clear blockages; Ensure tank lid is latched; Install filter correctly. |
| Liquid shut-off activates prematurely. | Tank is full; Float mechanism is stuck or obstructed. | Empty tank; Inspect and clear any debris around the float mechanism. |
8. Specificaties
The following are the technical specifications for the Hepa Pro 20-Gallon Professional Wet/Dry Vacuum (Model: 125-1212-20).
- Modelnaam: Hepa Pro
- Modelnummer: 125-1212-20
- Merk: Algemeen
- Fabrikant: Sterling
- Capaciteit: 20 gallons
- Energiebron: Elektrische kabel
- Deeltage: 120 Volt
- Wattage: 550 Watt
- Amptijdperk: 14.5 Amps
- Motorvermogen: 1.5 PK
- Filtertype: HEPA-filter
- Speciale eigenschap: HEPA Filtration, Wet/Dry Capability, Wheeled Base, Liquid Shut-off Mechanism
- Geluidsniveau: 70 decibel
- Reinigingspadbreedte: 14 inch
- Artikelgewicht: 8.5 pond
- Artikelafmetingen (L x B x H): 24" x 18" x 36"
- Binnen-/buitengebruik: Binnen
- Kleur: Zwart
- Controlemethode: Touch (Power Switch)
9. Garantie en ondersteuning
For information regarding the product warranty, please refer to the warranty card included with your purchase or contact the manufacturer, Sterling, directly. Keep your proof of purchase for warranty claims.
For technical support, replacement parts, or service inquiries, please contact your retailer or the manufacturer using the contact information provided at the time of purchase.
