Wiwreenm 230W 7R Moving Head DJ Light Instruction Manual

1. Inleiding

This manual provides essential information for the safe and effective operation of your Wiwreenm 230W 7R Moving Head DJ Light. Please read these instructions carefully before installation and use. Keep this manual for future reference.

Veiligheidsmaatregelen

• Zorg ervoor dat de voeding overeenkomt met de voltage vereisten van het apparaat.
• Sluit het apparaat altijd aan op een geaard stopcontact.
• Gebruik het apparaat niet als het netsnoer beschadigd is.
• Vermijd directe blootstelling van de ogen aan de lichtbron.
• Zorg voor voldoende ventilatie rondom het apparaat om oververhitting te voorkomen.
• Onderhouds- en reparatiewerkzaamheden mogen uitsluitend worden uitgevoerd door gekwalificeerd personeel.

2. Producteigenschappen

The Wiwreenm 230W 7R Moving Head DJ Light is designed to produce powerful stage effects with advanced optics and light source technology. Key features include:

• Dynamische lichteffecten: 13 colors with rainbow effects, 14 linear color mixing gobos, and 48 prisms with scaling effects.
• LED Apertures: Equipped with 27*0.5W LED apertures for simultaneous strobing and multiple built-in operating effects.
• Besturingsopties: Supports 18 standard DMX512 channels and RDM protocol with two-way addressing.
• Geluidsactivering: Built-in microphone for voice control, with an ERR indicator for sound detection.
• Eenvoudige installatie: Features two quick-lock lamp hook brackets for rapid setup and removal.
• Foutindicatie: An ERR indicator light and status messages display fault troubles for convenient handling.
• Efficiënt ontwerp: High efficiency, low energy consumption, and unique heat dissipation for extended equipment life and stability.

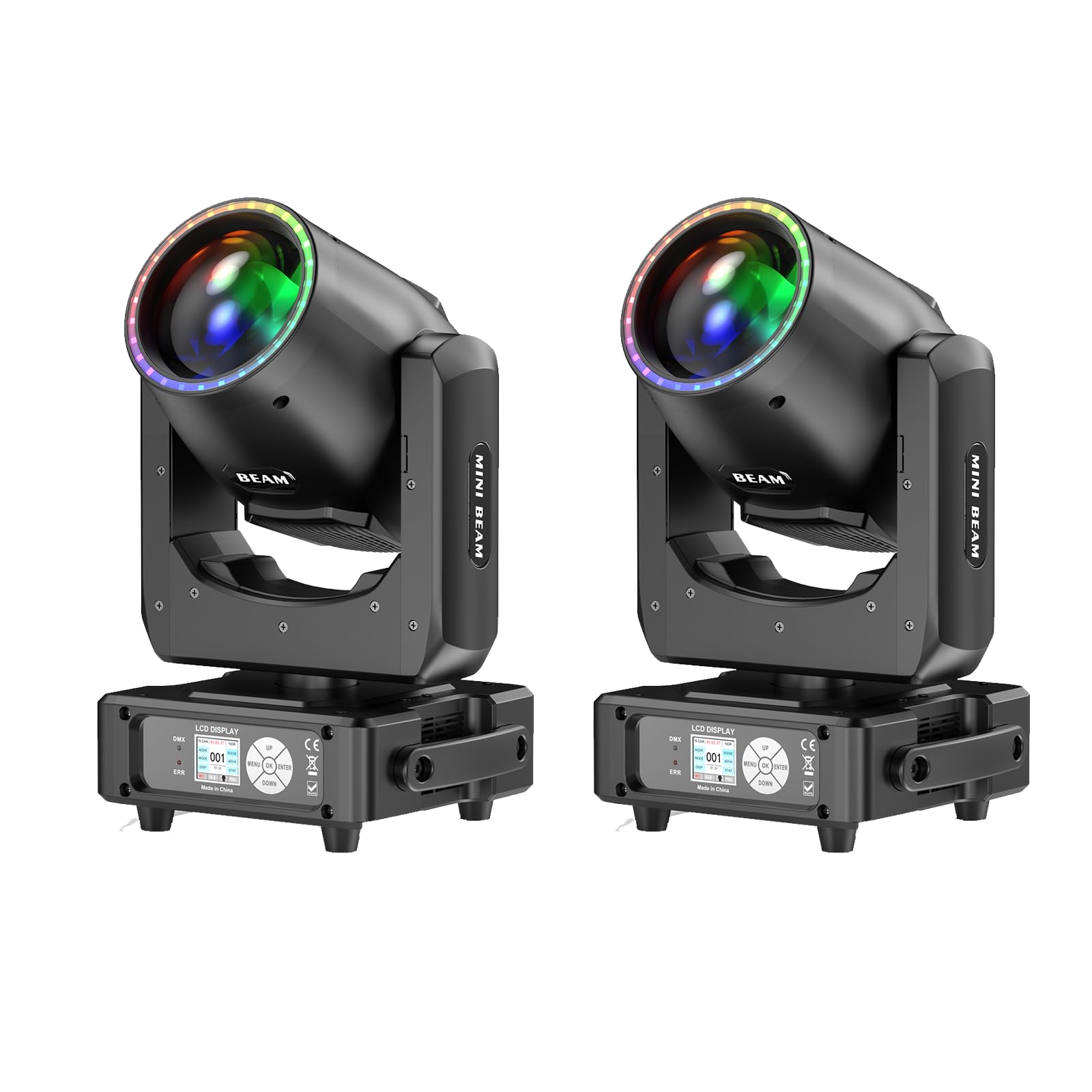

Figuur 2.1: Voorzijde view of the Wiwreenm 230W 7R Moving Head DJ Light showcasing various light effects including fade, jump, pulse, strobe, and halo effects.

Figure 2.2: Illustration of the 14 available colors and 14 gobo patterns for diverse stage effecten.

Afbeelding 2.3: Examples of various lighting effects, including different gobo projections, color washes, and prism patterns.

3. Installatie en installatie

3.1 Uitpakken

Carefully remove the light fixture and all accessories from the packaging. Inspect the unit for any signs of damage during transit. Report any damage to your supplier immediately.

3.2 Montage

The fixture can be mounted in various positions (floor, truss, wall) using the included quick-lock lamp hook brackets. Ensure the mounting surface or truss is capable of supporting the weight of the fixture. Always use safety cables when suspending the unit.

• Attach the quick-lock brackets securely to the bottom of the fixture.
• For truss mounting, attach the clamps to the brackets and secure them to the truss.
• For floor placement, ensure the unit is on a stable, level surface.

Figure 3.1: Product dimensions and included components, including power cables and quick-lock mounting brackets.

Figure 3.2: The moving head light demonstrating its 540° X-axis and 270° Y-axis rotation for flexible positioning.

3.3 Verbindingen

• Stroomaansluiting: Connect the provided power cable to the power input on the fixture and then to a suitable power outlet.
• DMX-aansluiting: For DMX control, connect a DMX cable from your DMX controller to the DMX IN port of the first fixture. For multiple fixtures, daisy-chain them by connecting the DMX OUT of the first fixture to the DMX IN of the next.

4. Gebruiksaanwijzing

The Wiwreenm 230W 7R Moving Head DJ Light offers multiple operating modes and effects.

4.1 Bedieningspaneel

The unit features an LCD display and control buttons (MENU, UP, DOWN, ENTER) for navigating settings and selecting modes.

4.2 DMX512-modus

This mode allows for precise control over all functions using a DMX controller. The fixture supports 18 DMX channels and RDM protocol for two-way addressing.

• Set the DMX address for each fixture using the control panel. Ensure each fixture has a unique address.
• Refer to the DMX channel chart (typically provided in a separate DMX manual or appendix) for specific channel functions (e.g., Pan, Tilt, Color, Gobo, Strobe).

4.3 Geluidsgeactiveerde modus

The built-in microphone enables the light to react to ambient sound, creating dynamic effects synchronized with music. To activate:

• Navigate to the sound-activated mode option on the LCD display.
• Select and confirm the mode. The light will now respond to sound input.
• The ERR indicator may flash to show sound detection.

4.4 Master-Slave-modus

Connect multiple fixtures via DMX cables. Set one fixture as the 'Master' and the others as 'Slave' units. The slave units will mimic the master's movements and effects.

4.5 Effects Control

• Kleuren: Cycle through 13 distinct colors and rainbow effects.
• Gobo's: Select from 14 linear gobo patterns.
• Prisma's: Engage the 48-facet prism for multi-beam effects.
• strobe: Adjust strobe speed and intensity.
• Vorst: Apply a frost effect for a softer light output.

5. Onderhoud

Regular maintenance ensures optimal performance and longevity of your moving head light.

5.1 Reinigen

• Koppel de stroom los voordat u gaat schoonmaken.
• Gebruik een zachte, pluisvrije doek om de buitenkant van het armatuur af te vegen.
• For optical lenses and mirrors, use a specialized lens cleaning solution and a soft cloth to avoid scratches.
• Periodically clean ventilation openings to ensure proper airflow.

5.2 Opslag

When not in use, store the fixture in a dry, dust-free environment. If possible, use the original packaging or a protective case.

6. Probleemoplossing

In dit gedeelte worden veelvoorkomende problemen besproken waarmee u te maken kunt krijgen.

6.1 ERR Indicator

If the ERR indicator light is continuously on, a fault has been detected. The LCD display will show a status message indicating the nature of the problem. Consult the specific error codes (if available in a separate technical manual) or contact customer support.

6.2 Veelvoorkomende problemen

• Geen stroom: Check the power cable connection and the power outlet. Ensure the main power switch on the unit is ON.
• Geen lichtopbrengst: Controleer de lamp is functioning. Check DMX settings if in DMX mode, or ensure a program is selected in auto/sound mode.
• Geen DMX-besturing: Check DMX cable connections. Ensure DMX addresses are correctly set and unique for each fixture. Verify the DMX controller is sending signals.
• Fixture Not Moving: Check for any physical obstructions. Ensure Pan/Tilt channels are active in DMX mode or that the selected program includes movement.
• Oververhitting: Ensure ventilation openings are clear and the ambient temperature is within operating limits.

7. Specificaties

Detailed technical specifications for the Wiwreenm 230W 7R Moving Head DJ Light.

8. Garantie en ondersteuning

8.1 Fabrieksgarantie

This product comes with a 30-day manufacturer's warranty. Please retain your proof of purchase for any warranty claims.

8.2 Optionele beschermingsplannen

Extended protection plans may be available for purchase separately. These plans typically offer coverage beyond the standard manufacturer's warranty.

8.3 Klantenservice

If you require assistance, have questions, or encounter any issues not covered in this manual, please contact Wiwreenm customer support. We aim to reply within 24 hours to help resolve any problems.

For support, please visit the official Wiwreenm store or contact your retailer.
