Invoering
This manual provides instructions for the installation, operation, and maintenance of the Generic 69357000 Motor Exhaust Side Assembly. This motor is designed as a direct replacement for the vent/exhaust side of specific Nutone models, including 9605, 9665, 9605N, 9665N, and H965. It is important to ensure compatibility with your existing unit before proceeding with installation. This assembly includes the motor, blower wheel, and a round mounting plate, offering a straightforward replacement solution.
Veiligheidsinformatie
Please read all safety instructions carefully before installation or operation. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Stroom loskoppelen: Always ensure that the power supply to the ventilation unit is completely disconnected at the circuit breaker or fuse box before attempting any installation, maintenance, or repair.
- Gekwalificeerd personeel: Installatie en onderhoud mogen uitsluitend door gekwalificeerd personeel worden uitgevoerd.
- Correcte aarding: Ensure the motor is properly grounded according to local electrical codes.
- Componenten inspecteren: Before installation, inspect all components for any damage. Do not install damaged parts.
- Elektrische specificaties: Verify that the electrical specifications of the motor (120-Volt, 60HZ, 0.9-Amps) match your electrical supply.
Inhoud van het pakket
Controleer of alle componenten aanwezig en onbeschadigd zijn voordat u met de installatie begint:
- 1 x Motor
- 1 x Metal Blower Wheel
- 1 x Round Mounting Plate

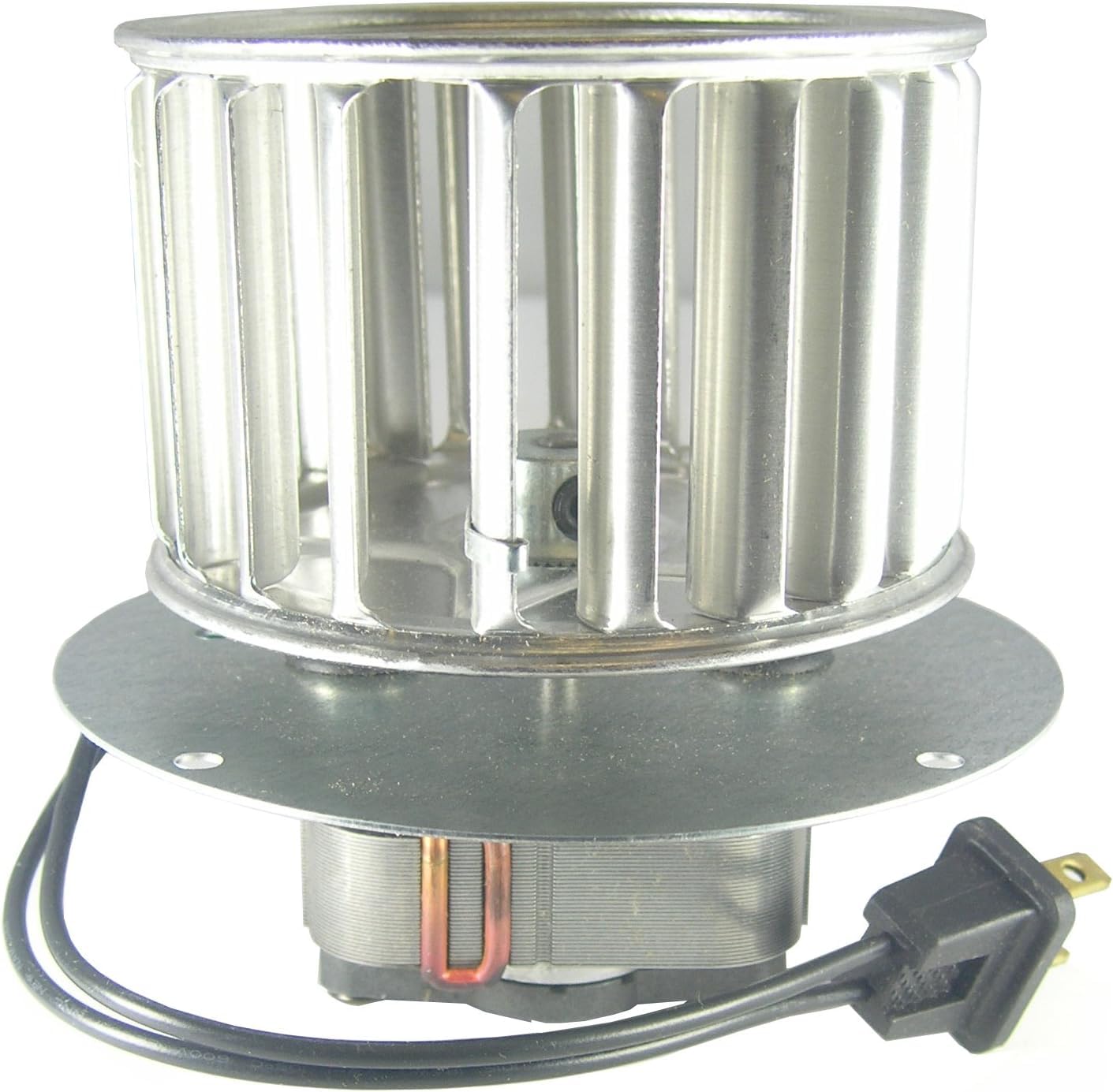

Figuur 1: Generic 69357000 Motor Exhaust Side Assembly. This image displays the Generic 69357000 motor exhaust side assembly. It features a metal blower wheel, a round mounting plate, and electrical wiring with a standard two-prong plug and a ground wire. The motor is designed for replacement in compatible Nutone ventilation units.
Instellen en installeren
This motor assembly is designed for easy installation, typically taking only a few minutes. Follow these steps carefully:
- Stroom loskoppelen: Before starting, ensure the power to the ventilation unit is turned off at the main circuit breaker.
- Toegang tot de unit: Remove the grille and any necessary housing covers to access the existing motor assembly within your Nutone ventilation unit.
- Oude motor verwijderen: Carefully unplug the old motor's electrical connector. Unscrew or unclip the old motor assembly from its mounting position. Note how the old motor was oriented for correct installation of the new one.
- Nieuwe motor installeren: Position the new Generic 69357000 motor assembly into the housing. Secure it using the existing screws or clips. Ensure the round mounting plate is flush and stable.
- Sluit de stekker aan: Plug the new motor's standard two-prong connector into the corresponding receptacle in the ventilation unit. Ensure the ground wire (if present and separate) is securely connected to the unit's ground terminal.
- Eenheid opnieuw in elkaar zetten: Replace any housing covers and the grille that were removed.
- Herstel de stroom: Turn the power back on at the circuit breaker and test the ventilation unit to ensure proper operation.
Opmerking: This motor is specifically for the exhaust/vent side. If you require a motor for the heater side, please refer to model 69355000.
Gebruiksaanwijzing
Once correctly installed, the Generic 69357000 Motor Exhaust Side Assembly operates automatically as part of your ventilation unit. Simply activate your fan unit using its standard controls (e.g., wall switch) to engage the motor and blower wheel for exhaust ventilation.
Onderhoud
Regular maintenance helps ensure optimal performance and longevity of your motor assembly.
- Stroomonderbreking: Schakel altijd de stroom uit voordat u onderhoud uitvoert.
- Reinig het ventilatorwiel: Periodically remove the grille and gently clean any dust or debris from the metal blower wheel using a soft brush or vacuum cleaner. Accumulation of dust can reduce efficiency and increase noise.
- Controleer de bedrading: Annually, inspect the electrical wiring and connections for any signs of wear, fraying, or loose connections.
- Smering: This motor is typically sealed and does not require lubrication. Do not attempt to lubricate the motor unless specifically instructed by the manufacturer.
Probleemoplossing
If you encounter issues with your motor assembly, refer to the following common troubleshooting steps:
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Motor start niet. | Geen stroomvoorziening. Losse elektrische aansluiting. Defecte motor. | Controleer stroomonderbreker/zekering. Ensure motor is securely plugged in. Als er stroom aanwezig is en de aansluitingen goed vastzitten, moet de motor mogelijk vervangen worden. |
| Motor runs but is noisy. | Dust/debris on blower wheel. Blower wheel unbalanced. Motorlagers versleten. | Disconnect power and clean blower wheel. Inspect blower wheel for damage or imbalance. If noise persists after cleaning, motor may need replacement. |
| Verminderde luchtstroom. | Clogged blower wheel. Blocked exhaust duct. | Disconnect power and clean blower wheel. Check exhaust ducting for obstructions. |
Als het probleem niet is opgelost met de stappen voor probleemoplossing, neem dan contact op met de klantenservice of een gekwalificeerde elektricien.
Specificaties
| Functie | Specificatie |
|---|---|
| Modelnummer | 69357 |
| Verenigbaarheid | Nutone 9605, 9605N, 9665, 9665N, H965 (Exhaust Side) |
| Deeltage | 120 Volt |
| Frequentie | 60 Hz |
| Amptijdperk | 0.9 Amps |
| Materiaal | Aluminium, Metaal |
| Blower Wheel Dimensions | 3-3/4" x 2-7/16" with 7/32" bore |
| Meegeleverde componenten | Motor, mounting bracket, metal blower wheel |
| Artikelgewicht | 0.95 kilogram |
Garantie-informatie
Dit product valt onder de standaard fabrieksgarantie tegen materiaal- en fabricagefouten. Voor de specifieke garantievoorwaarden verwijzen wij u naar de productverpakking of neem contact op met de winkel waar u het product heeft gekocht. Bewaar uw aankoopbewijs voor garantieclaims.
Steun
For technical assistance, questions regarding installation, or to report a defective product, please contact the retailer or manufacturer directly. Provide your product model number (69357) and a detailed description of the issue to facilitate support.
