CASAINC Thermostatic Shower System User Manual

1. Inleiding

Thank you for choosing the CASAINC Thermostatic Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions thoroughly before installation and retain them for future reference.

This system features a 12-inch wall-mounted rain showerhead, a multi-function handheld spray, and six adjustable body jets, all controlled by a thermostatic valve for a consistent and comfortable showering experience.

2. Veiligheidsinformatie

• Professionele installatie aanbevolen: Installation should be performed by a qualified plumber in accordance with local plumbing and building codes.
• Thermostatische klep: The system is equipped with a cUPC certified pressure-balanced thermostatic valve. This technology maintains a stable water temperature, preventing sudden changes due to water pressure fluctuations.
• Scald Prevention: The safety lock on the thermostatic control knob is preset to 40°C (104°F) to prevent accidental scalding. To exceed this temperature, the safety override button must be pressed.
• Waterdruk: Ensure your home's water pressure is within the recommended range for optimal performance.
• Hot and Cold Water Supply: Connect the hot water supply to the 'H' inlet and the cold water supply to the 'C' inlet on the valve body. Incorrect connection can lead to improper function and potential hazards.
• Inspectie: Before installation, inspect all components for any damage. Do not install damaged parts.

3. Inhoud van het pakket

Controleer of alle onderstaande onderdelen aanwezig en onbeschadigd zijn voordat u met de installatie begint.

Image: All components included in the CASAINC Thermostatic Shower System package.

• Thermostatic Mixing Valve Body
• 12-inch Wall-Mounted Rain Showerhead
• Shower Arm for Rain Showerhead
• Handdouche
• Shower Hose (59-inch stainless steel)
• Handdouchehouder
• 6 Concealed Body Jets
• Control Panel/Trim Plate
• Montagemateriaal (schroeven, ankers)
• Installatiehandleiding
• Beschermende handschoenen

4. Productafmetingen

Refer to the diagram below for detailed product dimensions to ensure proper planning and installation.

Image: Diagram showing the dimensions of the 12-inch showerhead (15.7" x 12" x 3.5"), handheld spray (10.6" length), body jets (2" x 2"), and control panel (7.9" x 5.1").

• Rain Showerhead: 12 inches (square), with a total arm length of approximately 15.7 inches from the wall.
• Handheld Spray: Ongeveer 10.6 inch lang.
• Carrosseriejets: Each jet measures 2 inches by 2 inches.
• Configuratiescherm: Approximately 7.9 inches in height and 5.1 inches in width.
• Shower Hose: 59 inches (stainless steel).

5. Belangrijkste kenmerken

• Thermostatische regeling: Maintains a consistent water temperature, preventing fluctuations. Features a safety lock at 40°C (104°F).
• Meerdere functies: Offers three distinct showering functions:
  • 12-inch Wall-Mounted Rain Showerhead
  • Handheld Spray with 3 spray modes (Rain Shower, Massage, Massage+Rain Shower)
  • 6 Adjustable Body Jets


  Image: Close-up of the handheld showerhead demonstrating its three spray functions: Rain Shower, Massage, and a combination of Massage and Rain Shower.
• Gelijktijdige werking: All three functions (rain shower, handheld spray, body jets) can be operated simultaneously.
• 360-Degree Adjustable Components: Both the 12-inch rain showerhead and the 6 body jets feature 360-degree angle adjustment for personalized coverage.


  Image: Illustration highlighting the 360-degree adjustability of the 12-inch stainless steel shower head and the 6 concealed body jets.

• Verborgen installatie: Designed for a sleek, integrated look with American standard NPT1/2 connectors compatible with various pipe types.
• Duurzame constructie: Made with a brass structure for quality and longevity, finished in Matte Black.

6. Installatie en installatie

This section provides general guidelines. Refer to the detailed installation guide included in your package for specific steps and diagrams. Professional installation is highly recommended.

1. Voorbereiding:
   • Sluit de hoofdkraan van de waterleiding af voordat u met de werkzaamheden begint.
   • Clear the installation area and gather all necessary tools.
   • Controleer of alle artikelen in het pakket aanwezig en onbeschadigd zijn.
2. Klepinstallatie:
   • Install the thermostatic mixing valve body into the wall, ensuring it is level and at the correct depth according to the included template.
   • Connect the hot and cold water supply lines to the marked inlets (H for hot, C for cold).
   • Connect the outlet lines to the rain showerhead, handheld spray, and body jets. The system uses American standard NPT1/2 connectors.

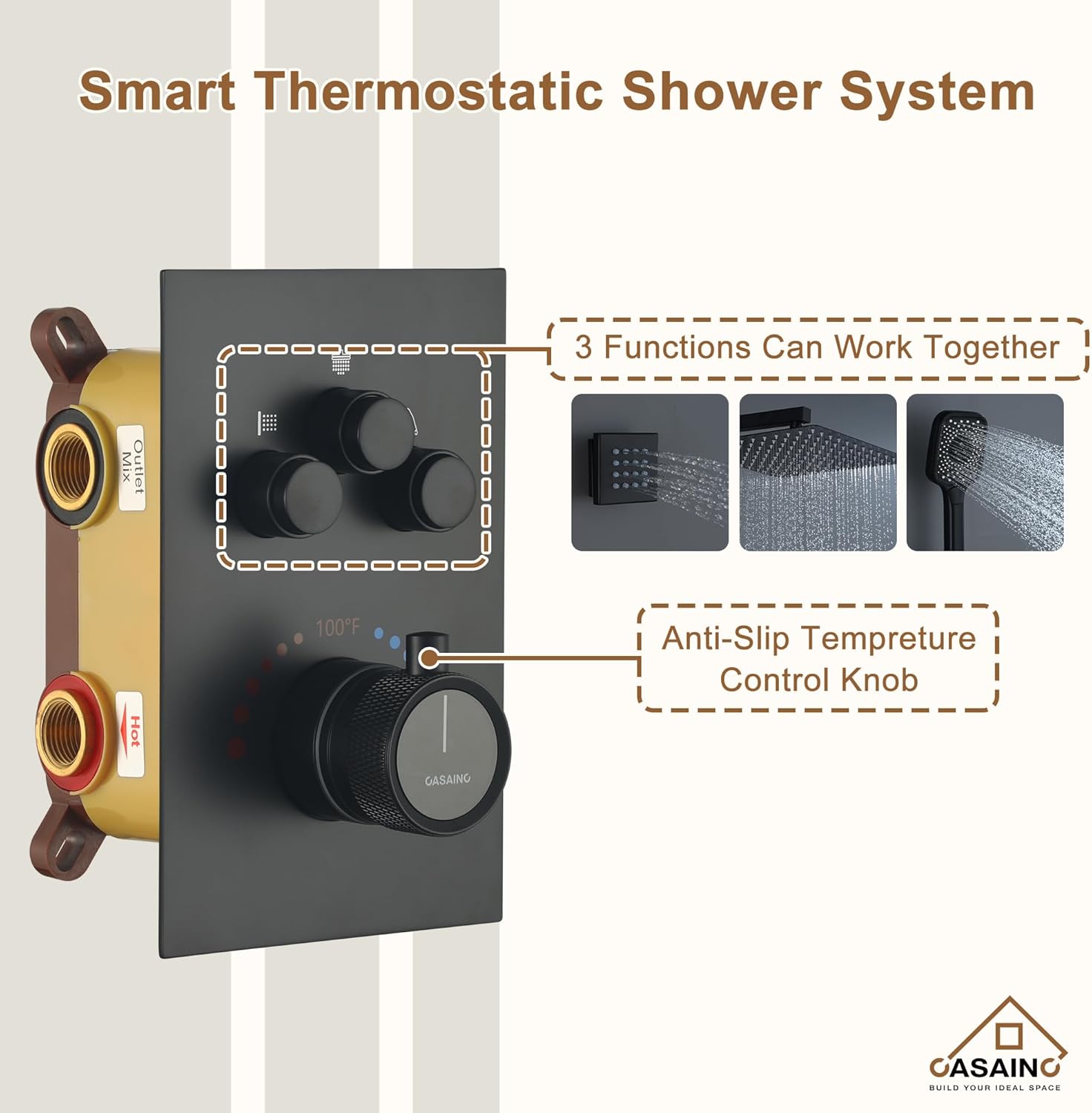

   Image: Diagram illustrating the thermostatic valve body with hot and cold water inlets, outlet mix, and the anti-slip temperature control knob set at 100°F.
3. Componentinstallatie:
   • Install the shower arm and attach the 12-inch rain showerhead.
   • Mount the handheld shower holder and connect the shower hose and handheld spray.
   • Install the 6 body jets into their designated positions.
4. Installatie van de bekleding:
   • Once all plumbing connections are secure and tested, install the decorative trim plate and control knobs.
5. Lektest:
   • Zet de hoofdkraan langzaam open en controleer alle aansluitingen op lekkages. Repareer eventuele lekkages onmiddellijk.

7. Gebruiksaanwijzing

Your CASAINC Thermostatic Shower System is designed for intuitive control and a personalized showering experience.

Afbeelding: Een volledige view of the CASAINC Thermostatic Shower System with the rain shower, handheld spray, and body jets actively dispensing water in a modern bathroom setting.

• Temperatuurregeling:
  • The large bottom knob controls the water temperature. Rotate it to adjust.
  • The safety lock is set at 40°C (104°F). To increase the temperature beyond this point, press and hold the safety override button located on the knob while rotating.
  • The thermostatic valve will maintain your selected temperature even if water pressure fluctuates.
• Functie Selectie:
  • The three smaller knobs above the temperature control are for selecting the shower functions.
  • Each knob corresponds to a specific function: rain shower, handheld spray, or body jets.
  • Turn a knob to activate its corresponding function. You can activate one, two, or all three functions simultaneously.
• Handheld Spray Modes:
  • The handheld spray features a selector on its head to switch between Rain Shower, Massage, and a combined Massage+Rain Shower mode.
• Carrosserie-jetafstelling:
  • The individual body jets can be rotated 360 degrees to direct the water flow as desired.

8. Onderhoud

Regelmatig schoonmaken en onderhoud zorgen voor een lange levensduur en optimale prestaties van uw douchesysteem.

• De afwerking schoonmaken:
  • For the Matte Black finish, use a soft, damp doek en milde zeep.
  • Gebruik geen schurende reinigingsmiddelen, agressieve chemicaliën of schuursponsjes, want deze kunnen de afwerking beschadigen.
  • Veeg het droog met een zachte doek om watervlekken te voorkomen.
• Cleaning Showerhead and Body Jets:
  • Periodically clean the nozzles of the rain showerhead, handheld spray, and body jets to remove mineral deposits. Many nozzles are made of silicone and can be cleaned by gently rubbing them with your finger.
  • For stubborn deposits, use a solution of white vinegar and water. Soak the affected parts if removable, or apply the solution with a cloth. Rinse thoroughly afterward.
• Thermostatische cartridge:
  • If you experience inconsistent temperature control, the thermostatic cartridge may need cleaning or replacement. This should be performed by a qualified professional.

9. Probleemoplossing

In dit gedeelte worden veelvoorkomende problemen besproken. Voor problemen die hier niet worden vermeld, kunt u contact opnemen met de klantenservice.

10. Specificaties

• Modelnummer: CS6219-12MB-CA
• Merk: CASAINC
• Kleur: Mat Zwart
• Materiaal: Stainless Steel (main components), Brass (valve body), Plastic (handle material)
• Afwerkingstype: Ongepolijst
• Aantal handgrepen: 1 (for temperature control)
• Montagetype: Muurbevestiging
• Afmeting douchekop: 12 inch
• Number of Body Jets: 6
• Handheld Spray Functions: 3 (Rain Shower, Massage, Massage+Rain Shower)
• Slanglengte: 59-inch stainless steel
• Ventiel type: Thermostatic, Pressure-Balanced (cUPC certified)
• Connection Standard: NPT1/2

11. Garantie en ondersteuning

CASAINC is committed to providing high-quality products and excellent customer service.

• Garantie: We provide a 5-year service warranty for any non-artificial product quality problems in any part of the shower system.
• Klantenservice: If you have any questions, require assistance with installation, or encounter any issues with your product, please contact CASAINC customer service. We offer 24-hour online support.
• Contactgegevens: Please refer to the contact details provided on the CASAINC official webwebsite of de documentatie die bij uw aankoop is meegeleverd.
