FRANKE 115.0600.095 Centro Kitchen Faucet Instruction Manual

Invoering

This manual provides detailed instructions for the installation, operation, and maintenance of your FRANKE 115.0600.095 Centro Kitchen Faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Veiligheidsinformatie

Belangrijk: Always turn off the main water supply before beginning any installation or maintenance work on the faucet. It is recommended that installation be performed by a qualified plumber to ensure compliance with local plumbing codes and safety standards. Use appropriate tools and wear protective gear during installation.

• Zorg ervoor dat alle verbindingen goed vastzitten om lekkages te voorkomen.
• Draai de verbindingen niet te vast, aangezien dit schade aan componenten kan veroorzaken.
• Protect the faucet's chrome finish from abrasive materials or harsh chemicals.

Inhoud van het pakket

Controleer of alle componenten aanwezig zijn voordat u met de installatie begint:

• FRANKE 115.0600.095 Centro Kitchen Faucet
• Montagemateriaal
• Aansluitslangen

Instellen en installeren

The FRANKE 115.0600.095 Centro Kitchen Faucet is designed for deck mounting with a single hole installation. Follow these general steps for installation:

1. Maak het montageoppervlak klaar: Ensure the sink or countertop has a mounting hole with a diameter of Ø35 mm. The maximum deck thickness should be considered for proper installation.
2. Installeer de kraan: Insert the faucet body into the mounting hole. Secure it from underneath the sink using the provided mounting hardware (washer and nut). Ensure the faucet is oriented correctly before fully tightening.
3. Waterleidingen aansluiten: Attach the hot and cold water supply lines to the corresponding inlets on the faucet. Connect the other ends to your hot and cold water supply valves. Hand-tighten first, then use a wrench for a quarter turn to ensure a leak-free seal.
4. Controleer op lekken: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are detected, tighten the connections slightly until the leak stops.

A detailed technical diagram providing all necessary measurements and installation specifications for the faucet. Note the Ø35 mm mounting hole and 150° spout rotation.

Gebruiksaanwijzing

The FRANKE 115.0600.095 Centro Kitchen Faucet features a single mixer lever positioned at the top for easy control of water flow and temperature. The spout has a fixed position but offers a 150° rotation for convenience.

• Waterstroom- en temperatuurregeling: Move the lever upwards to increase water flow and downwards to decrease it. Move the lever left for hot water and right for cold water.
• Waterbesparende technologie: This faucet incorporates a two-stage flow reduction system. When opening the lever, it will initially stop at a halfway point, naturally limiting water flow to reduce consumption by up to 50%. For a full flow, simply push the lever further upwards past this resistance point.
• Laminar Jet: The special design of the aerator provides a compact and crystal-clear water stream, significantly reducing splashing during use.
• Draaiing van de tuit: The faucet spout can be rotated up to 150 degrees, allowing for flexible use across different sink bowls or areas.

The faucet is shown installed in a kitchen environment, highlighting its design and functionality in a typical setting.

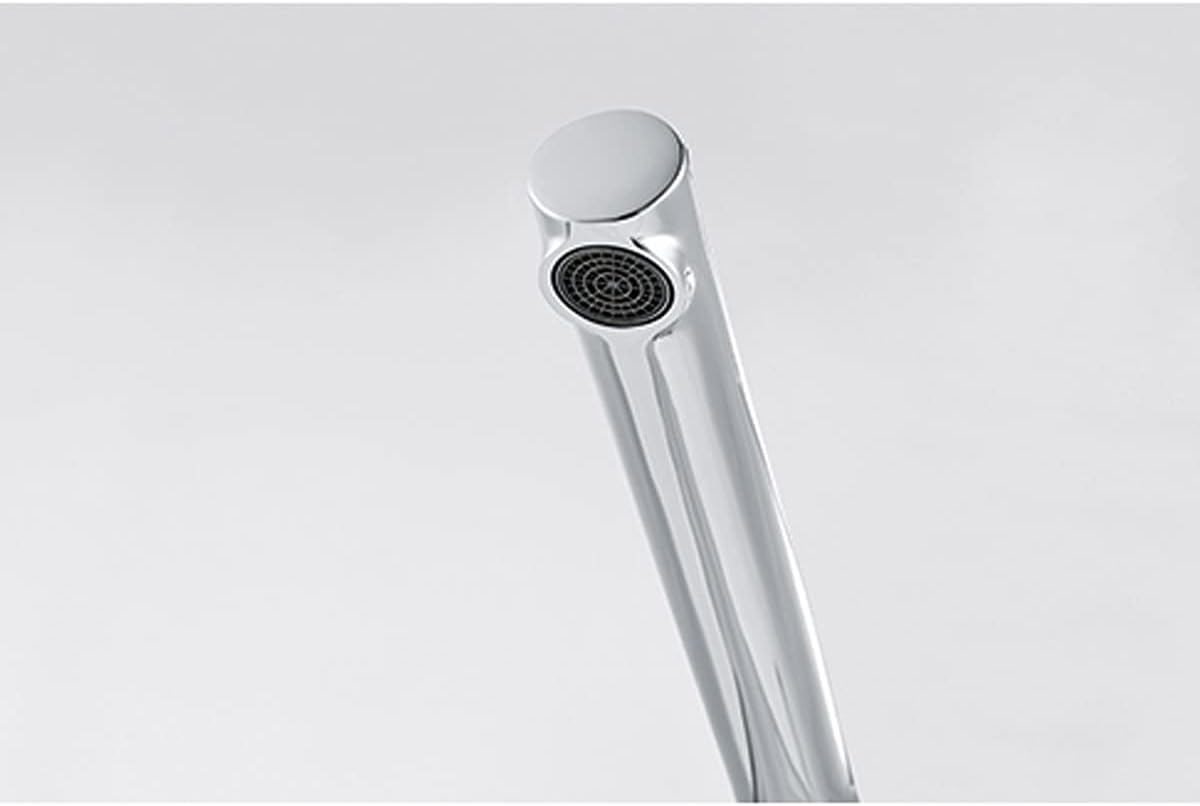

Deze afbeelding toont een gedetailleerd view of the faucet's aerator, which produces a compact and splash-reducing laminar water stream.

Onderhoud en verzorging

To maintain the appearance and functionality of your FRANKE 115.0600.095 Centro Kitchen Faucet, follow these care guidelines:

• De afwerking schoonmaken: Clean the chrome finish regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
• Vermijd agressieve chemicaliën: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or cleaners containing bleach, acids, or alcohol, as these can damage the chrome finish and internal components.
• Beluchterreiniging: If water flow becomes restricted, the aerator may be clogged with mineral deposits. Unscrew the aerator from the spout, clean it under running water, and remove any debris. Reassemble the aerator securely.

Probleemoplossing

Als u problemen ondervindt met uw kraan, raadpleeg dan de volgende veelvoorkomende problemen en oplossingen:

Specificaties

• Modelnummer: 115.0600.095
• Type: High-pressure mixer faucet
• Finish: Chroom
• Patroon: Ceramic cartridge Ø 35 mm
• Mixer Lever Position: Bovenkant
• Draaiing van de tuit: 150°
• Diameter montagegat: Ø35mm
• Uitlooptype: Vaste uitloop
• Material (Handle/Lever): Keramiek
• Productafmetingen: 23.7 x 25.3 x 5 cm (bij benadering)
• Artikelgewicht: 2.33 kg
• Speciale kenmerken: Water Saving Technology, Laminar Jet

Garantie en ondersteuning

For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official Franke website. Contact Franke customer service for assistance with parts, service, or any questions not covered in this manual.
