Invoering
This manual provides essential information for the safe and proper assembly, operation, and maintenance of your ARCADE1UP Frogger Arcade Game with Riser. Please read all instructions carefully before use and retain this manual for future reference.
The ARCADE1UP Frogger Arcade Game brings the classic arcade experience into your home. Navigate Frogger across busy highways and treacherous rivers to reach home safely. This unit features a 17-inch color display, full-size joystick, and buttons, and comes with a matching riser for an authentic arcade height.

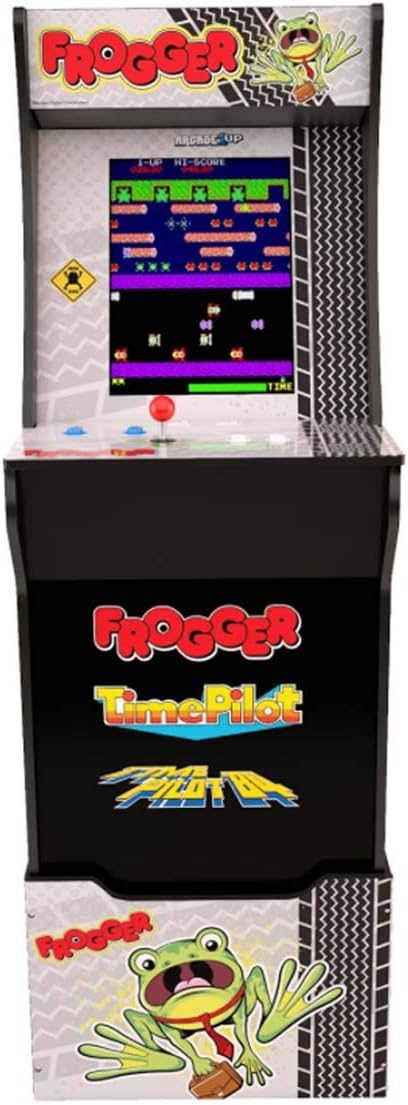

Afbeelding: Voorzijde view of the ARCADE1UP Frogger Arcade Game cabinet with its matching riser, showcasing the game screen and control panel.
Veiligheidsinformatie
- Elektrische veiligheid: Always connect the power adapter to a grounded outlet. Do not expose the unit to water or excessive moisture. Disconnect power before cleaning or servicing.
- Montage: Ensure all components are securely fastened during assembly. Adult supervision is recommended during assembly.
- Plaatsing: Place the arcade unit on a stable, level surface. Avoid placing it in direct sunlight or near heat sources.
- Kinderen: This product contains small parts and electrical components. Keep out of reach of small children during assembly.
- Ventilatie: Blokkeer de ventilatieopeningen niet. Zorg voor voldoende luchtcirculatie rondom het apparaat om oververhitting te voorkomen.
Inhoud van het pakket
Controleer of alle hieronder vermelde componenten in uw pakket aanwezig zijn:
- ARCADE1UP Frogger Arcade Cabinet
- Matching Riser
- Stroomadapter
- Joystick (pre-installed)
- Control Buttons (pre-installed)
- Assembly Hardware (screws, cam locks, etc.)
- Gebruiksaanwijzing (dit document)
Afbeelding: Zijkant view of the ARCADE1UP Frogger Arcade Game cabinet, showing its profile and wooden paneling.
Montage en installatie
Assembly of the ARCADE1UP Frogger Arcade Game and its riser typically involves connecting pre-fabricated panels using included hardware. Follow the detailed assembly instructions provided in the separate assembly guide that came with your unit.
- Componenten uitpakken: Haal alle onderdelen voorzichtig uit de verpakking en controleer ze aan de hand van de inhoudsopgave op de verpakking.
- Assemble Riser: If using the riser, assemble it first according to its specific instructions. Ensure all connections are tight and stable.
- Kast monteren: Follow the step-by-step instructions to assemble the arcade cabinet. Pay close attention to cable routing and connections for the display and control panel.
- Attach Cabinet to Riser: Once both are assembled, securely attach the arcade cabinet to the riser using the designated hardware.
- Stroomaansluiting: Connect the power adapter to the arcade unit's power input, then plug it into a standard electrical outlet.
The assembled machine stands approximately 57.8 inches tall with the riser. Its dimensions are 45.8 inches H (57.8 inches H with riser) x 22.75 inches D x 19 inches W.

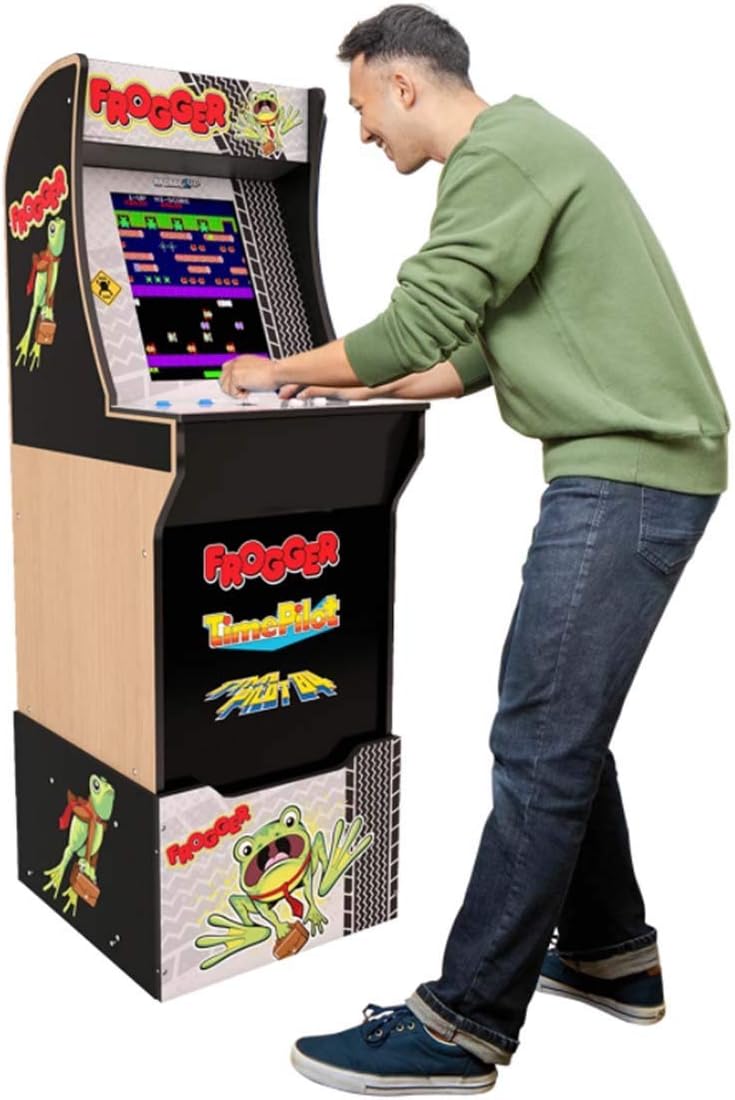

Image: A person standing and playing the ARCADE1UP Frogger Arcade Game, demonstrating the unit's operational height with the riser.
Gebruiksaanwijzing
This section details how to power on, play, and adjust settings on your arcade unit.
- Inschakelen: Locate the power switch, usually on the back or bottom of the control panel. Flip the switch to the 'ON' position. The display will illuminate, and the game will start.
- Spelverloop:
- Start spel: Press the '1 Player' or '2 Player' button to begin a game.
- Beweging: Use the joystick to control Frogger's movement (up, down, left, right).
- Actie: Frogger typically uses only directional controls. Refer to the on-screen instructions for specific game mechanics.
- Volumeregeling: A volume control knob or button is typically located on the control panel or behind the unit. Adjust to your preferred sound level.
- Uitschakelen: To turn off the unit, flip the power switch to the 'OFF' position.
Afbeelding: Close-up view of the ARCADE1UP Frogger control panel, showing the joystick, player buttons, and volume controls.
Onderhoud
- Schoonmaak: Use a soft, dry cloth to wipe down the cabinet and control panel. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by a dry wipe. Avoid abrasive cleaners or excessive moisture.
- Zorg voor weergave: Clean the screen with a soft, lint-free cloth specifically designed for electronics. Do not spray cleaners directly onto the screen.
- Opslag: If storing the unit for an extended period, disconnect it from power and cover it to protect against dust. Store in a cool, dry place.
Probleemoplossing
| Probleem | Mogelijke oorzaak | Oplossing |
|---|---|---|
| Geen stroom/apparaat gaat niet aan. | Power adapter not connected, power outlet not working, power switch off. | Ensure power adapter is securely plugged into the unit and a working outlet. Check power switch position. |
| Geen geluid. | Volume turned down, internal speaker connection issue. | Adjust the volume control. If problem persists, contact customer support. |
| Controls (joystick/buttons) not responding. | Loose internal connection, component malfunction. | Ensure all internal connections are secure (refer to assembly guide). If issue continues, contact customer support. |
| Screen is blank or distorted. | Loose display cable, display malfunction. | Check display cable connections. Power cycle the unit. If problem persists, contact customer support. |
Specificaties
- Modelnummer: 815221021365
- Merk: ARCADE1UP
- Spel: Frogger
- Weergave: 17-inch kleuren-LED
- Type controller: Bedieningshendel
- Aantal spelers: 1
- Werkingsmodus: Handmatig
- Assembled Dimensions (without Riser): 19 cm B x 22.75 cm D x 45.8 cm H
- Assembled Dimensions (with Riser): 19 cm B x 22.75 cm D x 57.8 cm H
- Materiaal: Plastic
- UPC-nummer: 815221021365
Garantie en ondersteuning
For warranty information, technical support, or replacement parts, please refer to the warranty card included with your product or visit the official ARCADE1UP webplaats. U kunt ook een bezoek brengen aan de ARCADE1UP-winkel op Amazon voor meer productinformatie.
Houd uw modelnummer (815221021365) en aankoopdatum bij de hand wanneer u contact opneemt met de klantenservice.
