Quictent 10'x20' Heavy Duty Carport Instruction Manual

1. Inleiding

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Quictent 10'x20' Heavy Duty Carport. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and maintenance are crucial for the carport's stability and longevity.

2. Veiligheidsinformatie

WAARSCHUWING: Het niet opvolgen van deze veiligheidsinstructies kan leiden tot ernstig letsel of schade aan het product.

• Locatiekeuze: Choose a level, clear area for assembly. Avoid placing the carport near power lines, trees, or other structures that could cause damage.
• Windomstandigheden: This carport is designed for temporary use and is not intended for permanent installation or use in high wind conditions (above 15 mph). Strong winds can cause structural failure. If strong winds are anticipated, disassemble the carport or secure it with additional heavy-duty anchors.
• Verankering: Always use all provided stakes and anchors. For increased stability, especially in areas prone to moderate winds, consider purchasing additional heavy-duty anchors or securing the frame to concrete footings.
• Sneeuw en ijs: Do not allow snow or ice to accumulate on the canopy. Heavy loads can cause the frame to collapse. Regularly clear snow and ice from the roof.
• Montage: Assembly requires at least two adults. Wear appropriate safety gear, such as gloves, during assembly. Do not attempt to assemble in strong winds or adverse weather conditions.
• Brandgevaar: Keep all heat sources and open flames away from the canopy fabric. The fabric is not fireproof.
• Inspectie: Periodically inspect all connections, ropes, and anchors to ensure they are secure and in good condition. Replace any damaged parts immediately.

3. Onderdelenlijst

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact Quictent customer service for assistance.

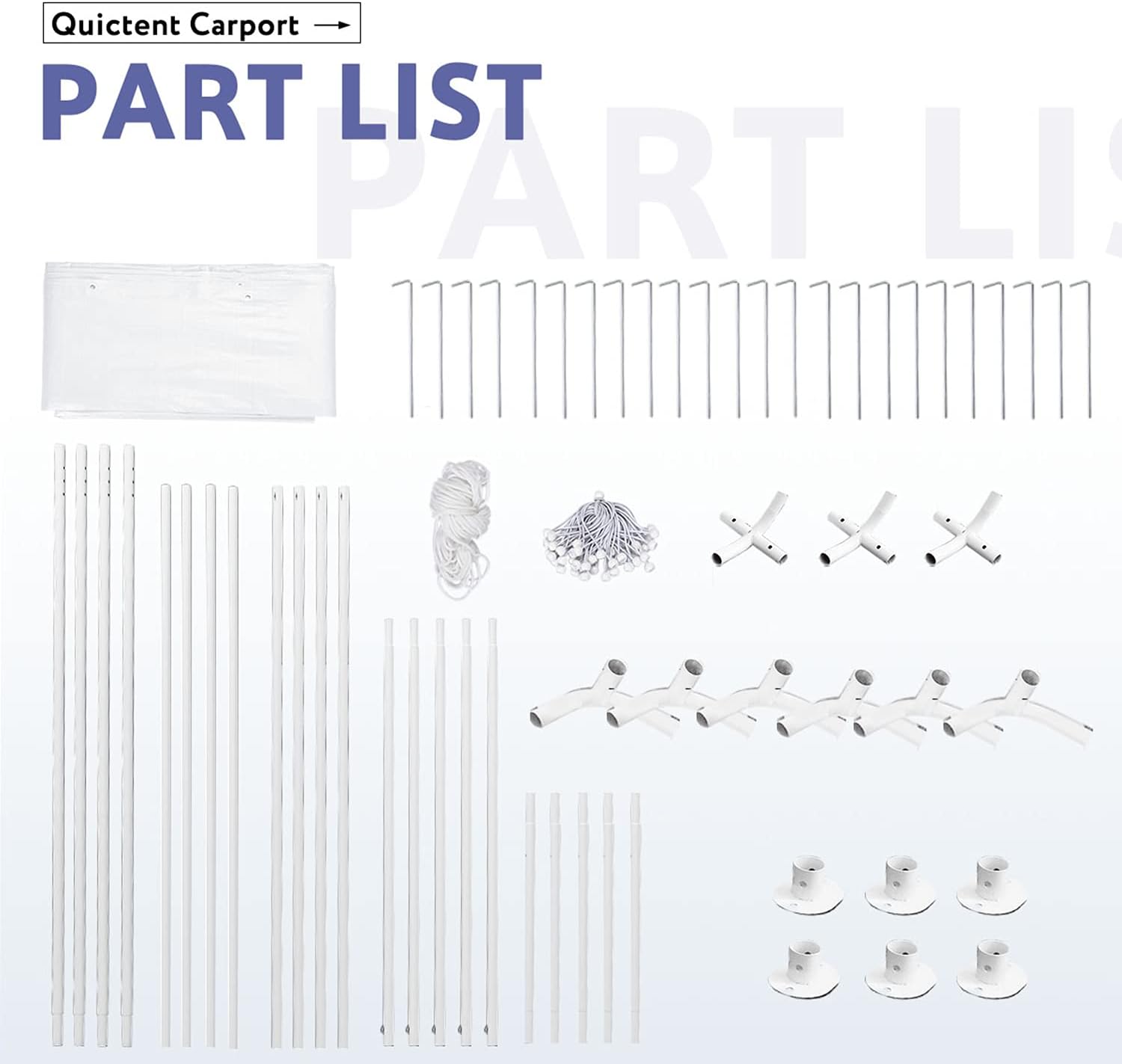

Afbeelding: A comprehensive layout of all components included with the Quictent 10'x20' Carport, including poles, connectors, ropes, stakes, and the canopy cover.

The image above illustrates the various components. Refer to your specific packaging for a detailed itemized list and quantity of each part.

4. Opstelling en montage

Voor de montage zijn doorgaans twee personen nodig. Volg de onderstaande stappen zorgvuldig.

1. Uitpakken en onderdelen identificeren: Lay out all components and identify them using the parts list. Separate poles by length and type, and connectors by shape.
2. Monteer het dakframe: Begin by connecting the roof poles and connectors according to the diagram in your specific instruction booklet. Ensure all connections are secure.
3. Bevestig de beenstokken: Once the roof frame is complete, attach the vertical leg poles to the roof frame connectors.
4. Frame omhoog brengen: With assistance, carefully raise the assembled frame to its full height. Ensure the frame is stable before proceeding.
5. Install the Canopy Cover: Drape the polyethylene canopy cover over the assembled frame. Ensure the cover is centered and evenly distributed. Secure the cover to the frame using the provided bungee cords or ties. The roof is designed with a vertical streamline to prevent water accumulation.


   Afbeelding: Illustration showing the vertical streamline roof design of the carport, demonstrating how water runs off to prevent accumulation on the 100% waterproof polyethylene material.

6. Attach End Panels (if applicable): If your model includes end panels, attach them to the frame using the integrated zippers or ties.
7. Veranker de carport: Securely anchor each leg of the carport to the ground using the provided stakes and ropes. For optimal stability, ensure stakes are driven fully into the ground at an angle away from the carport. Consider additional anchoring for enhanced stability.


   Afbeelding: A fully assembled Quictent 10'x20' carport standing in an outdoor setting, showcasing its complete structure and white canopy.

The frame features 3-layer coated white steel pipes (38*0.8MM) for durability, consisting of a galvanized layer, spray layer, and waterproof layer. The trapezoidal structure design is intended to increase wind resistance under normal conditions.

Afbeelding: Doorsnede view illustrating the three layers of the steel pipe: a galvanized layer, a spray layer, and a waterproof layer, indicating the pipe's robust construction.

Afbeelding: Diagram highlighting the trapezoidal structure design of the carport, emphasizing its stable and durable construction intended to increase wind resistance.

5. Bediening en gebruik

The Quictent carport is designed to provide temporary shelter for vehicles, boats, or outdoor equipment. It offers protection from sun, light rain, and dust.

• UV-bescherming: The canopy fabric is industrial-grade UV resistant PE fabric, designed to protect items from high temperatures and UV radiation.

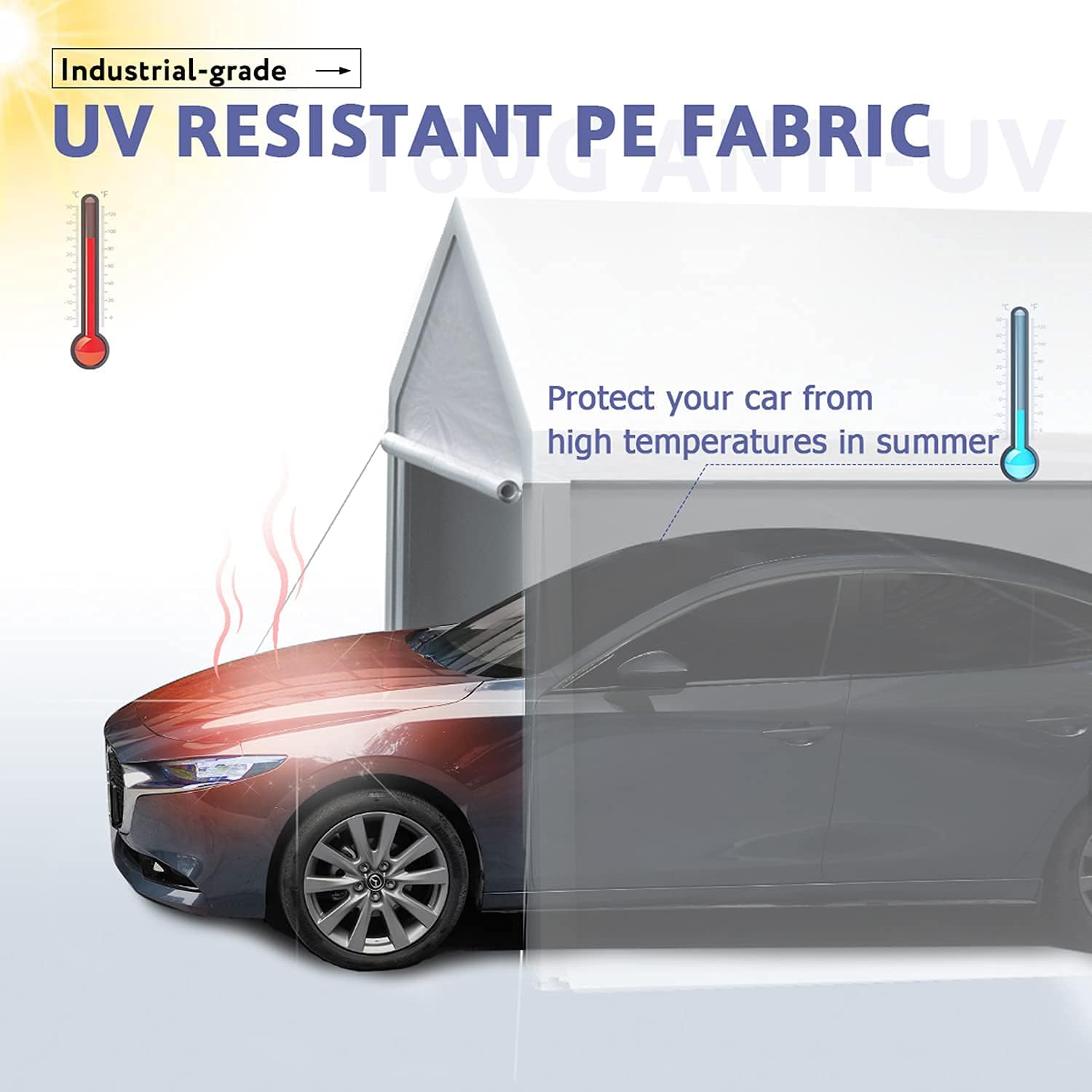

  Afbeelding: Illustration demonstrating the UV resistant PE fabric protecting a car from high temperatures in summer, with a thermometer indicating temperature reduction.
• Ventilatie: Ensure adequate ventilation if storing items that require airflow.
• Beperkingen: As noted in the safety section, this carport is not suitable for extreme weather conditions, including heavy snow, strong winds, or prolonged exposure to severe elements.

6. Onderhoud

Regelmatig onderhoud verlengt de levensduur van uw carport.

• Het reinigen van de luifel: Clean the canopy fabric periodically with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the UV coating and waterproof properties. Rinse thoroughly and allow to air dry completely before storage.
• Frame-inspectie: Regularly check all frame connections for tightness. Ensure no poles are bent or damaged.
• Anchor Check: Frequently inspect the ground anchors and ropes. Re-tighten or re-secure them as needed, especially after windy conditions. Stakes can loosen over time.
• Opslag: If disassembling for storage, clean and dry all components thoroughly. Store poles and connectors in a dry place to prevent rust. Fold the canopy neatly to prevent creases and tears.

7. Probleemoplossing

• Carport Instability / Stakes Pulling Out:
  Oorzaak: Insufficient anchoring, loose stakes, or strong winds.
  Oplossing: Ensure all stakes are driven deep into the ground. Use additional, longer, or heavier-duty anchors (e.g., auger anchors, concrete weights) for improved stability. This carport is not designed for high winds; disassemble if severe weather is expected.
• Canopy Tearing / Holes:
  Oorzaak: Abrasion against frame, prolonged exposure to harsh elements, or manufacturing defect.
  Oplossing: Inspect the frame for sharp edges and cover them if found. Patch small tears with a suitable repair kit. For significant damage, a replacement cover may be necessary.
• Wateraccumulatie op het dak:
  Oorzaak: Improper canopy tension or extreme weather.
  Oplossing: Ensure the canopy is pulled taut and evenly distributed over the frame. The roof is designed to shed water, but heavy rainfall can still cause pooling if not properly tensioned.
• Bent or Broken Poles:
  Oorzaak: Excessive stress from wind, snow, or improper assembly.
  Oplossing: Replace damaged poles immediately. Do not attempt to use a carport with compromised structural integrity.

8. Specificaties

Afbeelding: A diagram illustrating the dimensions of the Quictent carport, showing a length of 20 feet, a width of 10 feet, and a peak height of 8.7 feet, with a side height of 6.5 feet.

9. Garantie en ondersteuning

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Quictent website. You may also contact Quictent customer service directly for assistance with parts, assembly, or any product-related inquiries.

Quictent Store Link: Visit the Quictent Store on Amazon
