Product voorbijview
De AMP Research BedStep is a frame-mounted, retractable truck step designed to provide easier access to your truck bed. It can be installed on either side of the truck box and deploys or retracts with a simple foot nudge. This product is proudly made in the USA with global materials.

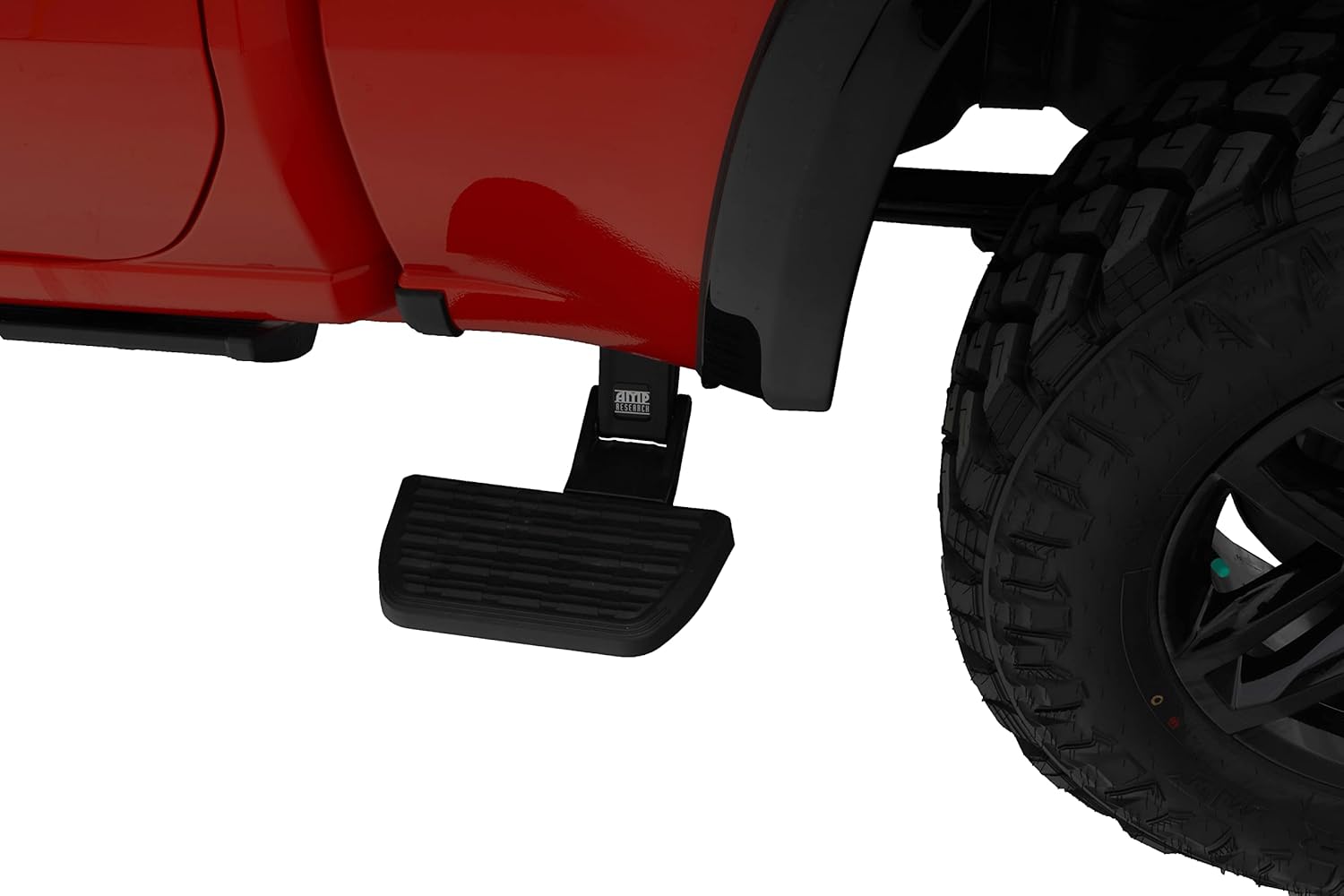

Afbeelding: De AMP Research BedStep shown in its deployed position, providing a sturdy step for bed access.
Belangrijke veiligheidsinformatie
- Zorg er altijd voor dat de BedStep volledig is uitgeklapt en stabiel staat voordat u erop stapt.
- Do not exceed the maximum weight limit of 300 lbs on the BedStep.
- Houd handen en voeten uit de buurt van bewegende onderdelen tijdens het uitklappen en inklappen.
- Regularly inspect the BedStep for any signs of damage or loose components.
- WAARSCHUWING: Dit product bevat chemicaliën waarvan de staat Californië weet dat ze kanker en reproductieve schade veroorzaken. Ga voor meer informatie naar www.P65Warnings.ca.gov.
Inhoud van het pakket
Controleer of alle componenten aanwezig zijn voordat u met de installatie begint:
- BedStep Assembly
- Montagemateriaal
- Installatie-instructies
Specificaties
| Functie | Detail |
|---|---|
| Modelnummer | 75417-01A |
| Merk | AMP Onderzoek |
| Materiaal | Aluminium, roestvrij staal |
| Buitenafwerking | Geschilderd (zwart) |
| Artikelafmetingen (L x B x H) | 21 x 10 x 7 inch |
| Gewichtslimiet | 300 pond |
| Type voertuigonderhoud | Vrachtwagen |
| Automobiel pasvorm type | Voertuigspecifieke pasvorm |
| UPC | 815410014512 |
Verenigbaarheid
Dit AMP Research BedStep (Model 75417-01A) is designed to fit the following vehicles:
- 2019 - 2024 RAM 2500
- 2019 - 2024 RAM 3500
Note: This product specifically excludes Dually models.
Installatie-instructies
The BedStep comes with all necessary hardware and vehicle-specific installation instructions. It is crucial to read and precisely follow the provided instructions for proper and safe installation.
- Review Instructies: Before starting, thoroughly read the entire installation guide provided in the package. Familiarize yourself with all steps and required tools.
- Verzamel hulpmiddelen: Ensure you have all the necessary tools as specified in the instruction manual. Some users have noted the need for a 17/32 drill bit for certain installations.
- Positionering: The BedStep mounts behind the cab, forward of the rear wheel. It can be installed on either the driver or passenger side. Carefully determine the optimal mounting location, considering any existing vehicle components like running boards or suspension.
- Test pasvorm: Before drilling or making permanent modifications, test fit the BedStep assembly with all bolts to ensure proper alignment and clearance. This is especially important to avoid interference with plastic trim or suspension components.
- Veilige montage: Follow the instructions for drilling and securing the frame-mounted brackets. Ensure all bolts are tightened to the specified torque settings.
- Laatste aanpassingen: After initial installation, check the step's deployment and retraction. Adjust as needed to ensure smooth operation and proper alignment when retracted.
Image: Illustration of the BedStep components and mounting points on a truck chassis, highlighting the installation area.
Afbeelding: Een gedetailleerde view of the BedStep's robust mechanism, showing the pivot points and construction.
Gebruiksaanwijzing
De AMP Research BedStep is designed for simple, foot-activated operation:
- Implementeren: With your foot, gently nudge the BedStep downwards. The step will pivot and extend into its deployed position, providing a stable platform.
- Intrekken: Using your foot, push the BedStep upwards and inwards towards the truck frame. The step will retract and store itself discreetly out of sight.
Image: A person demonstrating the use of the BedStep to easily access items in the truck bed.
Onderhoud
De AMP Research BedStep is engineered for durability and minimal maintenance:
- Self-Lubricating Bushings: The step features self-lubricating bushings designed for all-weather performance, requiring no additional lubrication.
- Periodieke inspectie: Periodically inspect all mounting hardware and pivot points for tightness and any signs of wear or damage. Ensure no debris is obstructing the step's movement.
- Schoonmaak: Clean the step and its components with mild soap and water as needed to remove dirt and grime. Avoid harsh chemicals that could damage the finish.
Probleemoplossing
Als u problemen ondervindt met uw AMP Research BedStep, consider the following:
- Stap wordt niet soepel uitgerold/ingetrokken:
- Check for obstructions around the pivot points or the step itself.
- Ensure all mounting hardware is securely fastened. Loose bolts can affect operation.
- Fitment Issues (e.g., hitting vehicle components):
- Review the installation instructions carefully. Some installations may require minor adjustments to the mounting position to clear factory running boards or suspension components.
- Ensure the step is correctly aligned with the angle of the truck bed when retracted.
- Ongebruikelijke geluiden:
- Inspect for loose hardware or components that may be rubbing.
- While the bushings are self-lubricating, extreme conditions might warrant a check for debris.
If troubleshooting steps do not resolve the issue, contact AMP Neem contact op met de klantenservice voor hulp.
Garantie en ondersteuning
AMP Research stands behind its products with a comprehensive warranty:
- Garantieperiode: This product is covered by a 5-year/60,000-mile warranty.
- Dekking: De garantie dekt materiaal- en fabricagefouten bij normaal gebruik.
- Claimproces: Voor garantieclaims of technische ondersteuning kunt u de contactgegevens in de productverpakking raadplegen of de officiële website bezoeken. AMP Onderzoek webplaats.
Neem voor meer hulp contact op met: AMP Research customer service directly.
