Puig 1295H V-Tech Line Touring Windscreen User Manual

Invoering

Welcome to the user manual for your Puig 1295H V-Tech Line Touring Windscreen. This windscreen is engineered from 4mm high-impact acrylic, providing superior resistance against impacts, adverse weather conditions, and prolonged UV exposure. Its aerodynamic design, developed in a wind tunnel, optimizes airflow to reduce turbulence and enhance rider comfort and stability. The angular shape offers effective wind protection for the rider's torso, improving the riding experience on long journeys or demanding conditions.

Veiligheidsinformatie

Lees en begrijp alle veiligheidsinstructies vóór installatie en gebruik. Het niet opvolgen van deze instructies kan leiden tot letsel of schade aan het product of de motorfiets.

• Professional installation is recommended to ensure correct fitment and safety.
• Always wear appropriate safety gear when working on your motorcycle.
• Zorg ervoor dat de motorfiets stabiel staat en uitgeschakeld is voordat u met de installatie begint.
• Regularly check all fasteners for tightness, especially after the first few rides, as vibrations can cause them to loosen.
• Do not modify the windscreen or mounting hardware, as this may compromise its structural integrity and void the warranty.

Inhoud van het pakket

Please verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact your retailer immediately.

• 1x Puig 1295H V-Tech Line Touring Windscreen (Smoked)
• 1x Mounting Hardware Kit (includes brackets, bolts, washers, etc. - specific components may vary, refer to included diagram)

Compatibele modellen

This Puig 1295H V-Tech Line Touring Windscreen is specifically designed for the following Honda Forza models:

• Honda Forza 125: 2015, 2016, 2017, 2018, 2019, 2020
• Honda Forza 300: 2018, 2019, 2020

Installatie en installatie

Installation is designed to be quick and straightforward, utilizing the original anchor points of your motorcycle. While no advanced technical knowledge is strictly required, professional installation is recommended for optimal safety and performance.

Benodigde gereedschappen

• Schroevendraaierset (kruiskop en platte kop)
• Inbussleutel set
• Torque Wrench (recommended for precise tightening)
• Zachte doek

Installatiestappen

1. Motorfiets voorbereiden: Park your motorcycle on a stable, level surface. Turn off the engine and ensure it is cool.
2. Remove Original Windscreen (if applicable): Carefully remove the existing windscreen and its mounting hardware. Refer to your motorcycle's service manual for specific instructions. Keep all original parts in case you wish to reinstall them later.
3. Identificeer bevestigingspunten: Locate the original anchor points on your motorcycle where the new windscreen will be installed.
4. Bevestig beugels: If your Puig windscreen comes with separate mounting brackets, attach them to the motorcycle's anchor points using the provided hardware. Hand-tighten the fasteners only at this stage.
5. Positie voorruit: Carefully place the Puig 1295H windscreen onto the attached mounting brackets. Ensure proper alignment.
6. Secure Windscreen: Secure the windscreen to the brackets using the remaining hardware from the kit.
7. Eindvastzetten: Once the windscreen is correctly positioned and all hardware is in place, progressively tighten all fasteners. Use a torque wrench if possible, adhering to the torque specifications provided in the Puig installation guide (usually included with the product) or your motorcycle's service manual. Do not overtighten.
8. Controleer de beveiliging: Gently shake the windscreen to ensure it is firmly in place and does not wobble. Check all connections for security before riding.

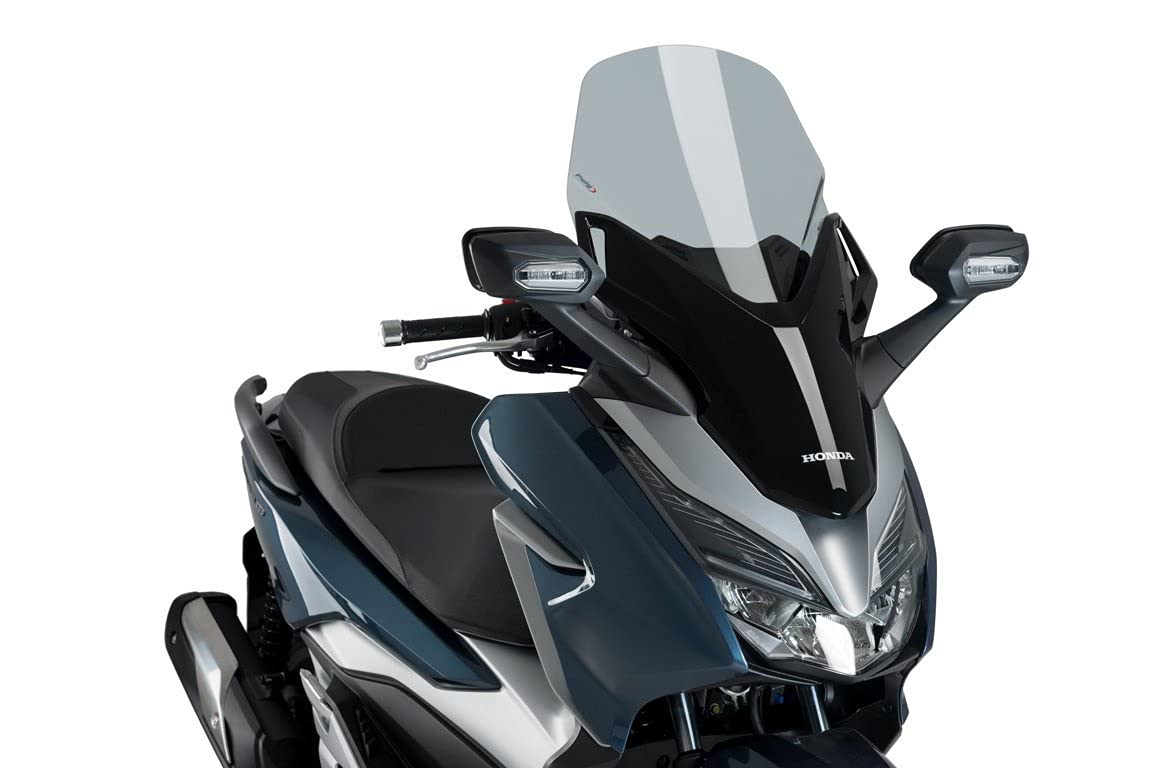

Image: Puig 1295H V-Tech Line Touring Windscreen installed on a Honda Forza scooter. This image illustrates the windscreen's appearance and fitment on a compatible motorcycle.

Gebruiksaanwijzing

The Puig 1295H V-Tech Line Touring Windscreen is designed to enhance your riding experience by providing superior wind protection and improved aerodynamics. Once correctly installed, no specific operational steps are required beyond regular motorcycle operation. The windscreen functions passively to deflect wind and reduce turbulence.

Onderhoud

Schoonmaak

To maintain the clarity and durability of your acrylic windscreen:

• Use only mild soap (e.g., dish soap) and lukewarm water with a soft, non-abrasive cloth or sponge.
• Avoid abrasive cleaners, solvents, window cleaning sprays, or harsh chemicals (e.g., ammonia-based products), as these can damage the acrylic surface, causing hazing or cracking.
• Spoel grondig af met schoon water om alle zeepresten te verwijderen.
• Dry the windscreen with a clean, soft microfiber cloth to prevent water spots and streaks. Do not wipe the screen when dry, as this can cause scratches.

Inspectie

• Regularly check all mounting hardware (bolts, nuts, brackets) for tightness. Vibrations from riding can loosen fasteners over time.
• Inspect the windscreen for any signs of damage, such as cracks, deep scratches, or excessive wear. Replace the windscreen if its integrity is compromised, as this can affect safety and performance.

Probleemoplossing

Excessive Wind Noise or Turbulence

• Probleem: Increased wind noise or turbulence experienced by the rider.
• Oplossing: Ensure the windscreen is correctly installed and all fasteners are tightened according to the instructions. Verify compatibility with your specific motorcycle model and year. Aerodynamic performance can be influenced by rider height, helmet type, and riding posture.

Loose Windscreen

• Probleem: The windscreen feels loose or vibrates excessively during operation.
• Oplossing: Re-check all mounting bolts and nuts. Tighten them securely, but do not overtighten, which could damage the acrylic or mounting points. If the issue persists, inspect the mounting hardware for wear or damage.

Specificaties

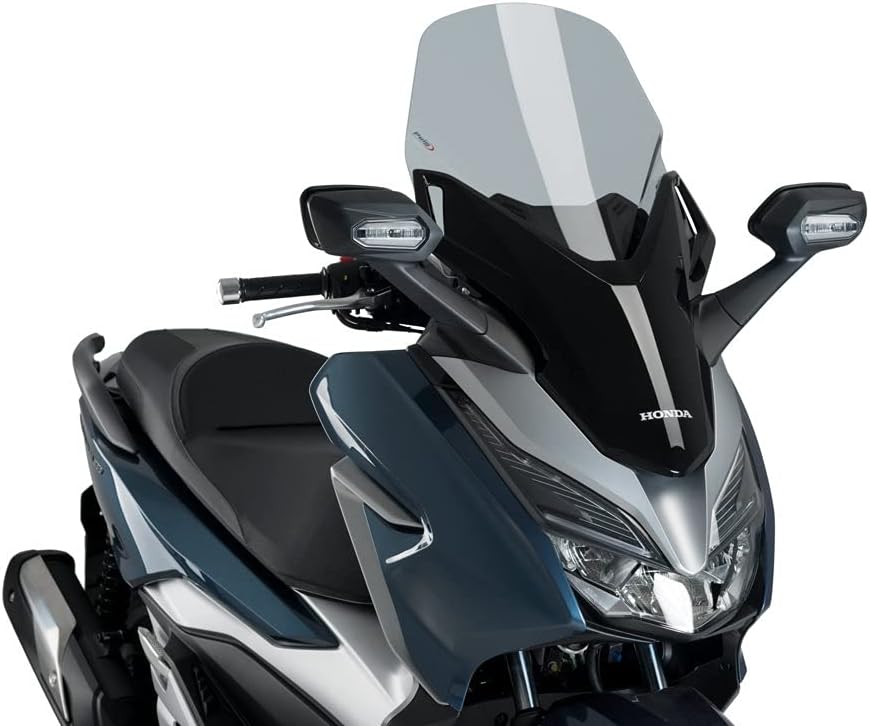

Afbeelding: Close-up view of the Puig 1295H V-Tech Line Touring Windscreen. This image highlights the design and material of the windscreen.

Garantie-informatie

This Puig 1295H V-Tech Line Touring Windscreen comes with a twee jaar fabrieksgarantie from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accidents, misuse, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for any warranty claims.

Klantenservice

For technical assistance, installation queries, or warranty claims, please contact your authorized Puig dealer or visit the official Puig webplaats.

Officieel Webwebsite: www.puighitechparts.com

For general inquiries, refer to the contact information provided by your retailer.
