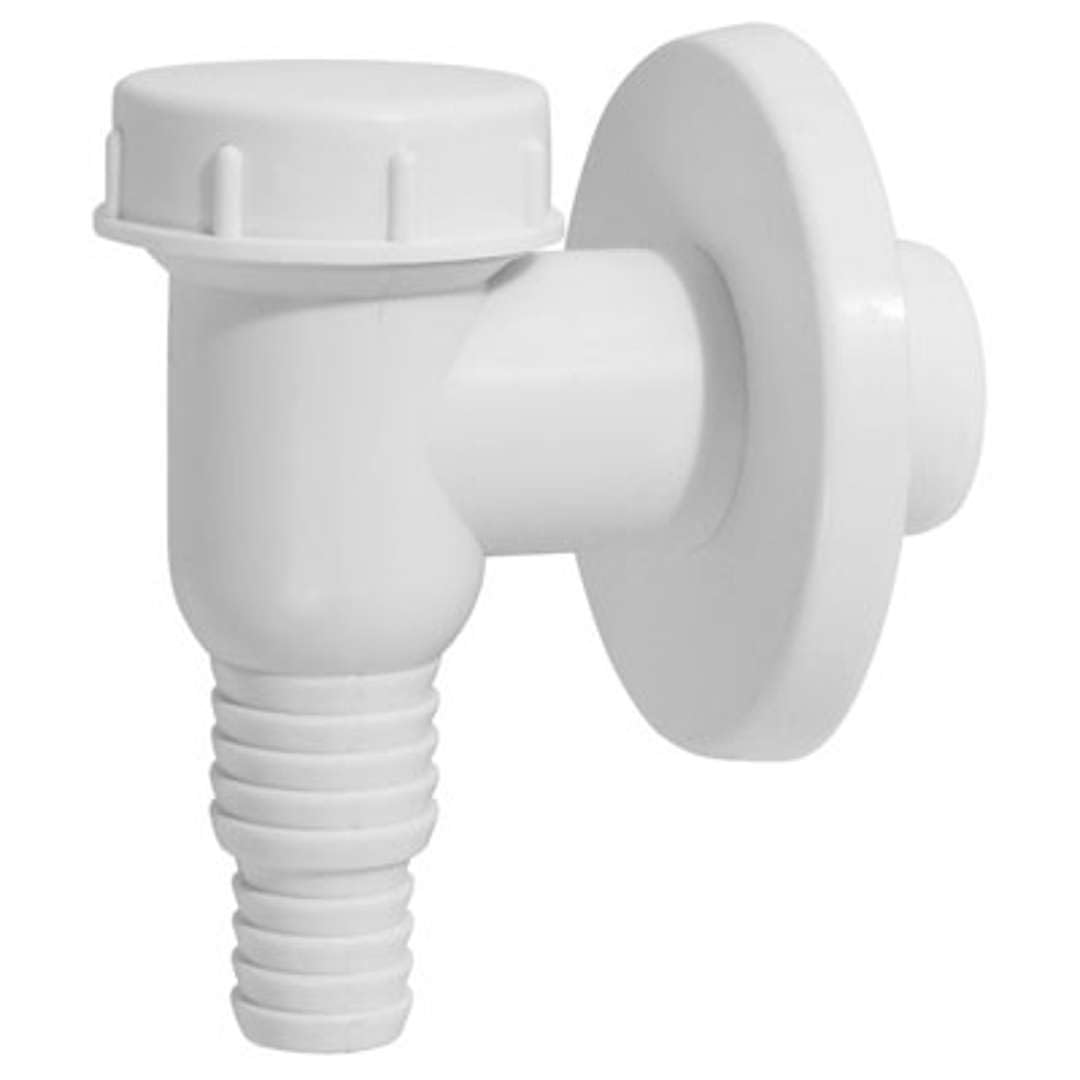

AlcaPlast APS2 Siphon Instruction Manual

Instellen en installeren

The AlcaPlast APS2 siphon is designed for straightforward installation. Follow these steps to ensure proper setup:

1. Bereid het verbindingspunt voor: Ensure the HT (High-Temperature) pipe where the siphon will be connected is clean and free from obstructions.
2. Connect the Siphon: Simply insert the siphon's outlet into the HT pipe. The design allows for a secure fit.
3. Attach Appliance Hose: Connect the drainage hose from your washing machine, dishwasher, or heat pump dryer to the siphon's inlet. The siphon accommodates hose diameters between 19 mm and 23 mm. Ensure the connection is tight to prevent leaks.
4. Controleer op lekken: After installation, run a test cycle on your appliance to check for any leaks at the connections.

Figuur 1: Technical drawing of the AlcaPlast APS2 siphon. This diagram illustrates the dimensions of the siphon, including overall length (70mm), height (100mm), and connection diameters (Ø19-Ø23mm for the hose, Ø32mm for the wall connection, and Ø79mm for the wall plate) for accurate installation and planning.

Gebruiksaanwijzing

The AlcaPlast APS2 siphon operates automatically once installed. Its mechanical design ensures that wastewater drains efficiently while preventing foul odors from returning through the pipework. No manual intervention is required for its basic operation.

Ensure that the appliance's drain hose is securely connected to the siphon and that the siphon itself is properly seated in the HT pipe. The siphon is designed to handle water temperatures up to 95 °C, making it suitable for hot water discharge from washing machines and dishwashers.

Onderhoud

Regular maintenance helps ensure the longevity and efficient operation of your AlcaPlast APS2 siphon. The siphon features an accessible maintenance opening for easy cleaning.

• Periodieke reiniging: Periodically check the siphon for any accumulated debris, lint, or food particles that might impede drainage.
• Accessing the Maintenance Opening: The siphon is designed with an opening that allows for easy access to the internal mechanism for cleaning. Refer to the product diagram for the location of this opening.
• Reinigingsprocedure: Carefully open the maintenance access. Remove any visible blockages or buildup. Rinse the internal components with water if necessary. Reassemble securely after cleaning.
• Vermijd agressieve chemicaliën: Do not use strong chemical drain cleaners, as these can damage the plastic components of the siphon.

Probleemoplossing

If you encounter issues with your AlcaPlast APS2 siphon, consider the following troubleshooting steps:

• Langzame drainage: If water is draining slowly, the most common cause is a blockage. Access the maintenance opening and clear any debris.
• Lekkages bij aansluitingen: Ensure all connections, especially where the appliance hose meets the siphon and where the siphon meets the HT pipe, are tight and properly sealed. Check for damaged gaskets or seals.
• Geuren: While the mechanical siphon is designed to prevent odors, if you detect them, ensure the siphon is correctly installed and that there are no blockages allowing air to pass. Clean the siphon thoroughly.
• Appliance Error Codes: If your appliance displays a drainage error, first check the siphon for blockages before contacting appliance support.

If problems persist after attempting these steps, it is recommended to consult a qualified plumber.

Specificaties

Garantie en ondersteuning

For specific warranty information regarding your AlcaPlast APS2 siphon, please refer to the documentation provided at the time of purchase or contact your retailer. Information regarding spare parts availability is not directly provided in the product specifications.

For technical support or further assistance, please contact Alcaplast customer service or your product supplier.
