Eurolite FD-32+1 DMX Dimmer Panel User Manual

1. Inleiding

Thank you for choosing the Eurolite FD-32+1 DMX Dimmer Panel. This manual provides essential information for the safe and efficient operation of your device. Please read these instructions carefully before initial use and keep them for future reference. This device is designed for professional stage and show applications, offering precise DMX control over lighting fixtures.

2. Veiligheidsinstructies

Neem altijd de volgende veiligheidsmaatregelen in acht om elektrische schokken, brand of schade aan het apparaat te voorkomen.

• Elektrische veiligheid: Ensure the power supply matches the device's requirements (9V - 12V / 300 mA DC). Disconnect power before cleaning or servicing.
• Omgeving: Do not expose the device to rain, moisture, or extreme temperatures. Operate in a dry, well-ventilated area.
• Behandeling: Avoid strong impacts or dropping the device. Do not open the housing or attempt repairs yourself; refer servicing to qualified personnel.
• Ventilatie: Ensure proper airflow around the unit to prevent overheating. Do not block ventilation openings.

3. Product voorbijview

The Eurolite FD-32+1 DMX Dimmer Panel is a compact DMX controller designed for precise control of lighting effects. It features multiple faders for individual channel control and a master fader for overall intensity adjustment.

3.1 Bedieningselementen op het voorpaneel

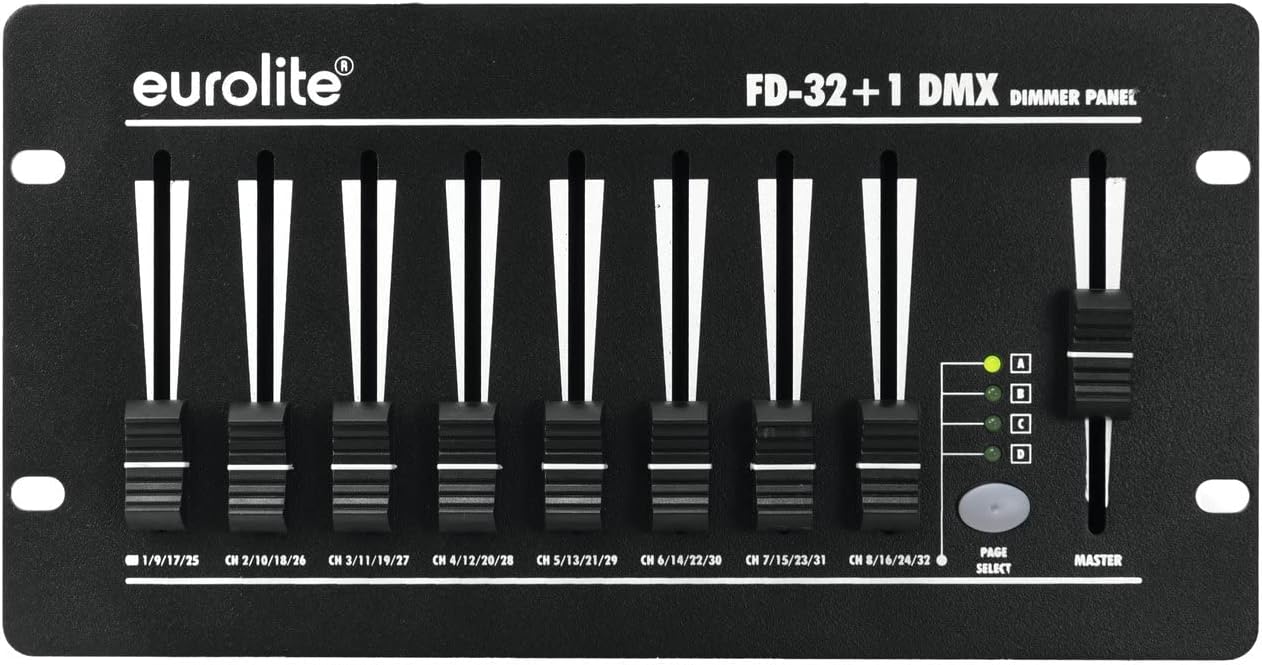

Afbeelding 1: Voorkant view of the Eurolite FD-32+1 DMX Dimmer Panel. This image displays the eight individual channel faders, the master fader on the right, and the 'PAGE SELECT' button with its corresponding indicator LEDs (A, B, C, D).

Het frontpaneel omvat:

• Kanaalfaders (1-8): Control the intensity of individual DMX channels. Each fader is labeled with its corresponding channel range (e.g., CH 1/9/17/25).
• Hoofdfader: Controls the overall output intensity of all active channels.
• PAGE SELECT Button: Cycles through four pages (A, B, C, D) to access a total of 32 DMX channels (8 channels x 4 pages).
• Page Indicator LEDs (A, B, C, D): Indicate the currently selected page.

3.2 Aansluitingen op het achterpaneel

Afbeelding 2: Achterkant view of the Eurolite FD-32+1 DMX Dimmer Panel. This image shows the power input (DC INPUT), DMX OUT connector, and the main power switch.

The rear panel provides the necessary connections:

• DC INPUT (9V - 12V / 300 mA DC): Power input connector for the external power adapter.
• DMX-UIT: 3-pin XLR connector for sending DMX signals to compatible lighting fixtures.
• POWER-schakelaar: De hoofdschakelaar voor het apparaat is de aan/uit-schakelaar.

4. Instellen

Follow these steps to set up your DMX Dimmer Panel:

1. Uitpakken: Carefully remove the device from its packaging. Inspect for any signs of damage during transit.
2. Plaatsing: Place the dimmer panel on a stable, flat surface, such as a table (Bordsmontering). Ensure adequate ventilation around the unit.
3. Stroomaansluiting: Sluit de meegeleverde stroomadapter aan op de DC-INGANG on the rear panel. Plug the adapter into a suitable power outlet.
4. DMX-aansluiting: Connect a 3-pin DMX cable from the DMX UIT connector on the dimmer panel to the DMX IN of your first DMX-compatible lighting fixture. Daisy-chain additional fixtures as required.
5. Inschakelen: Draai de STROOM switch on the rear panel to the 'ON' position. The unit should power up.

5. Gebruiksaanwijzing

This section details how to operate your Eurolite FD-32+1 DMX Dimmer Panel.

5.1 Basisbediening

1. Inschakelen: Ensure the unit is powered on using the switch on the rear panel.
2. Selecteer pagina: Druk op de PAGINA KIEZEN button to cycle through pages A, B, C, and D. The corresponding LED will illuminate to indicate the active page. Each page controls a different set of 8 DMX channels. For exampon:
   • Page A: Channels 1-8
   • Page B: Channels 9-16
   • Page C: Channels 17-24
   • Page D: Channels 25-32
3. Adjust Channel Intensity: Move the individual channel faders (1-8) up or down to control the intensity of the assigned DMX channels on the selected page. Moving a fader up increases intensity, while moving it down decreases intensity.
4. Adjust Master Intensity: Gebruik de MEESTER fader to control the overall output intensity of all active channels on the currently selected page. This acts as a global dimmer for the page.

5.2 DMX-adressering

The FD-32+1 sends DMX signals starting from channel 1. Ensure your DMX lighting fixtures are addressed correctly to respond to the channels controlled by the dimmer panel. For example, if a fixture is set to DMX address 1, it will respond to fader 1 on Page A. If a fixture is set to DMX address 9, it will respond to fader 1 on Page B.

6. Onderhoud

Regelmatig onderhoud zorgt voor een lange levensduur en optimale prestaties van uw apparaat.

• Schoonmaak: Gebruik een zachte, droge doek om de buitenkant van het apparaat schoon te maken. Gebruik geen vloeibare reinigingsmiddelen of oplosmiddelen.
• Vervanging van zekering: If the unit does not power on, check the fuse located near the power input on the rear panel. Replace it with a fuse of the exact same type and rating. Refer to the specifications for fuse details.
• Opslag: Wanneer u het apparaat gedurende langere tijd niet gebruikt, bergt u het op in een droge, stofvrije omgeving, bij voorkeur in de originele verpakking.

7. Probleemoplossing

Als u problemen ondervindt, raadpleeg dan de volgende handleiding voor probleemoplossing:

8. Specificaties

• Merk: Eurolite
• Model: 70063830 (FD-32+1 DMX Dimmer Panel)
• Montagetype: Tafelmontage
• Artikelgewicht: 1250 gram
• Stroomverbruik: 9V - 12V DC, 300 mA
• DMX-kanalen: 32 (8 faders x 4 pages)
• DMX-uitgang: 3-pin XLR

9. Garantie en ondersteuning

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your authorized Eurolite dealer. Keep your proof of purchase for any warranty claims.
