InstallGear 14 Gauge AWG Speaker Cable Instruction Manual

Invoering

This manual provides detailed instructions for the proper installation, operation, and maintenance of your InstallGear 14 Gauge AWG Speaker Cable. Designed for optimal audio signal transmission, this cable is suitable for various applications including home, automotive, and marine audio systems. Please read this manual thoroughly before use to ensure safe and effective performance.

Functies

• 14 Gauge AWG: A lower gauge number indicates a thicker wire, which provides less resistance to current flow, ensuring efficient power delivery to your speakers. This 100-foot (30.5m) cable is designed for robust performance.
• Soft Touch Jacket: The cable features a flexible, soft-touch jacket that simplifies routing and installation, reducing tangles and maintaining its shape.
• Rugged PVC Jacket: A durable PVC jacket enhances the cable's physical properties, offering flexibility, elasticity, and impact resistance for long-lasting use in diverse environments.
• Easy Polarity Identification: One conductor of the cable is marked with a black stripe, allowing for quick and accurate polarity identification. Correct polarity is crucial to prevent damage to audio equipment and ensure proper sound reproduction.
• Copper Clad Aluminum (CCA): CCA wiring provides a cost-effective and good conductor for transmitting audio signals, making it an economical choice for various speaker wire applications.

Image: The InstallGear 14 Gauge Speaker Wire, highlighting its soft touch, rugged white jacket, and the striped jacket for easy polarity identification. The image also indicates the 100ft length.

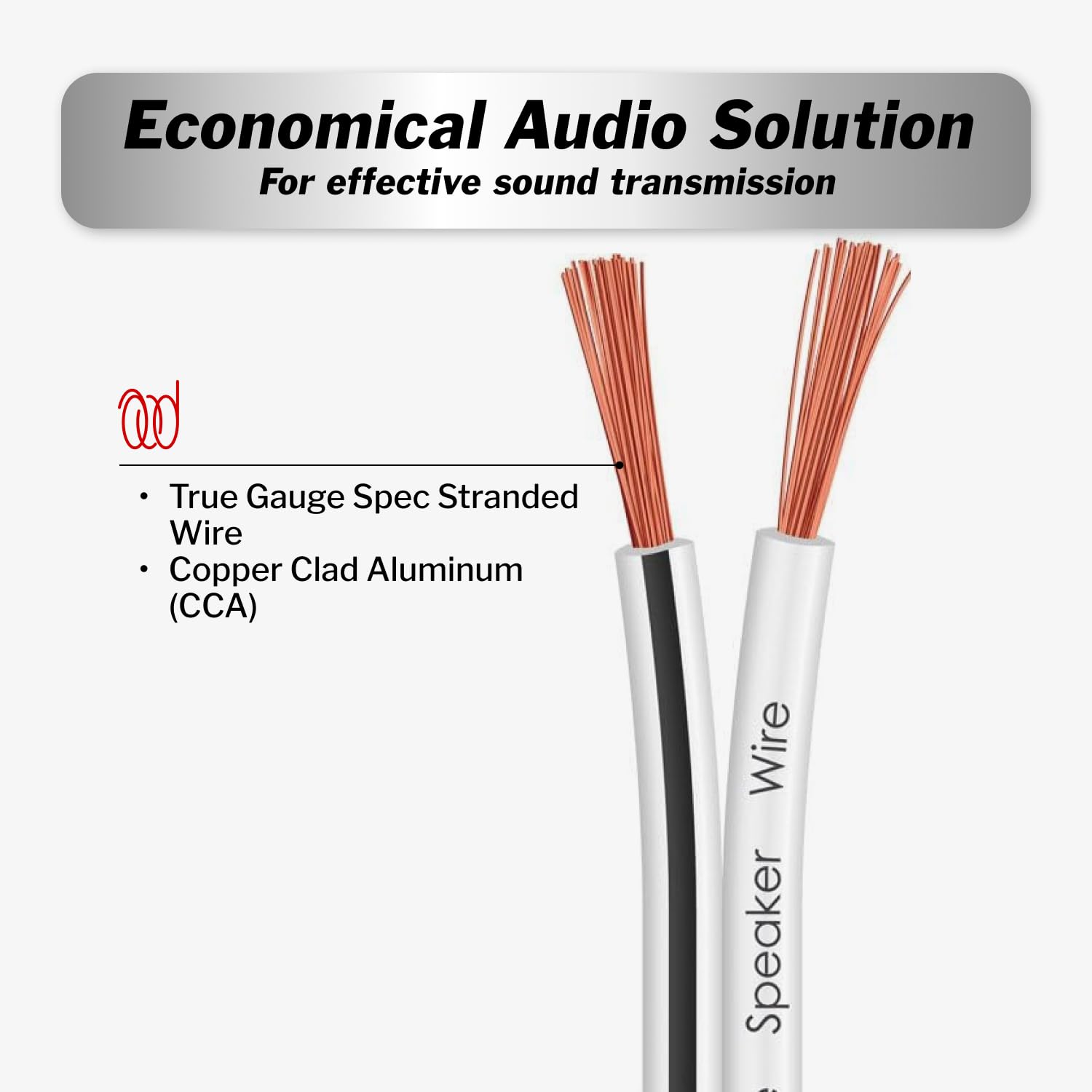

Image: A diagram illustrating the construction of the speaker wire, emphasizing its true gauge spec stranded wire and Copper Clad Aluminum (CCA) composition for effective sound transmission.

Instellen

1. Unroll and Measure: Carefully unroll the required length of speaker cable for your setup. Avoid kinks or sharp bends that could damage the wire.
2. Strip the Wire: Using a wire stripper, carefully remove approximately 1/2 inch (1.27 cm) of the outer jacket from both ends of each speaker wire segment. Twist the exposed strands tightly to prevent fraying. The flexible jacket makes this process straightforward.
3. Polariteit identificeren: Observe the black stripe on one of the conductors. This stripe helps identify the positive (+) or negative (-) terminal consistently across your speakers and amplifier/receiver. Maintaining correct polarity is essential for optimal sound quality and to prevent phase issues.
4. Neem contact op met de sprekers: Connect the stripped ends of the speaker wire to the corresponding terminals on your speakers. Typically, the striped wire connects to the positive (+) terminal (often red), and the unmarked wire connects to the negative (-) terminal (often black). Ensure a secure connection.
5. Verbinden met Ampversterker/ontvanger: Connect the other end of the speaker wire to the corresponding speaker output terminals on your amplifier or receiver, again matching polarity (striped to positive, unmarked to negative). Ensure all connections are firm and free from loose strands that could cause short circuits.

Bediening

Once properly connected, your InstallGear 14 Gauge AWG Speaker Cable will transmit audio signals from your amplifier or receiver to your speakers. The 14 gauge thickness and CCA construction are designed to provide a clear and consistent audio experience. Ensure your amplifier and speakers are powered on and set to appropriate volume levels. The cable's design minimizes signal loss over typical lengths, contributing to the overall fidelity of your audio system.

Image: A home audio setup featuring a television, receiver, and floor-standing speakers, illustrating a typical application where InstallGear speaker wire would be used to connect components for optimal sound.

Image: A professional audio studio environment with mixing consoles and studio monitors, demonstrating the use of InstallGear speaker wire in a high-fidelity audio setting.

Afbeelding: Een collage-showasing diverse applications for InstallGear speaker wire, including car and truck audio systems, outdoor speaker installations, off-road vehicle audio, and marine audio setups.

Onderhoud

The InstallGear speaker cable is designed for durability and requires minimal maintenance. To ensure longevity and consistent performance:

• Verbindingen inspecteren: Periodically check all connections to speakers and audio equipment to ensure they remain tight and free from corrosion. Loose connections can degrade sound quality.
• Kabelgeleiding: Avoid placing heavy objects on the cable or routing it through areas where it might be pinched or severely bent, as this can damage the internal conductors.
• Schoonmaak: If necessary, gently wipe the cable's exterior with a dry, soft cloth to remove dust or dirt. Do not use harsh chemicals or abrasive cleaners.
• Opslag: When not in use, store the cable coiled loosely in a dry, cool place away from direct sunlight and extreme temperatures.

Probleemoplossing

If you experience issues with your audio system, consider the following troubleshooting steps related to your speaker cable:

• Geen geluid:
  • Verify that all speaker cable connections at both the speaker and amplifier/receiver ends are secure and correctly inserted.
  • Check for any breaks or cuts in the cable's insulation that could indicate internal damage.
• Distorted or Weak Sound:
  • Ensure correct polarity. Incorrectly wired positive and negative terminals can cause phase cancellation, leading to weak bass or distorted sound.
  • Inspect for any frayed strands at the connection points that might be touching other terminals, causing a short circuit.
  • Confirm that the cable gauge is appropriate for the length of the run and the power output of your amplifier. While 14 gauge is versatile, very long runs or high-power systems might benefit from a lower gauge (thicker) wire.
• Onderbroken geluid:
  • Check for loose connections that may be making intermittent contact.
  • Examine the cable for any signs of physical stress or damage along its length.

Specificaties

Garantie-informatie

For specific warranty details regarding your InstallGear speaker cable, please refer to the product packaging or contact InstallGear customer support directly. Keep your proof of purchase for any warranty claims.

Klantenservice

If you have any questions, require technical assistance, or need further support, please visit the official InstallGear webwebsite of neem contact op met hun klantenservice. Contactgegevens vindt u doorgaans op de productverpakking of op de officiële website van het merk. webplaats.
