Givi TST9000 Specific Side Bag Frames

1. Inleiding

The Givi TST9000 specific side bag frames are designed to provide a secure and stable mounting solution for Givi ST601 Sport-T Line side bags on compatible motorcycles. These frames ensure proper positioning and support for your luggage, enhancing both safety and convenience during travel. This manual provides essential information for the correct installation, operation, and maintenance of your TST9000 frames.

2. Veiligheidsinformatie

• Always ensure all fasteners are securely tightened before riding.
• Do not exceed the maximum weight capacity specified for your motorcycle or the Givi ST601 side bags.
• Regularly inspect the frames for any signs of wear, damage, or loose components.
• Raadpleeg een gekwalificeerde motorfietsmonteur als u twijfelt over een van de installatiestappen.

3. Installatie en installatie

Benodigde gereedschappen: Metric wrench set, Allen key set, torque wrench (recommended).

1. Componenten uitpakken: Carefully remove all parts from the packaging and verify against the included parts list (if available). Ensure no components are missing or damaged.
2. Identificeer bevestigingspunten: Locate the designated mounting points on your motorcycle. These typically include existing bolt locations near the passenger footpegs and under the rear seat or fender. Refer to your motorcycle's service manual for specific details if necessary.
3. Beginhaakjes bevestigen: Secure any primary support brackets to the motorcycle frame using the provided hardware. Do not fully tighten bolts at this stage.
4. Mount Side Frames: Position the TST9000 side frames onto the attached brackets and other designated mounting points. Align all holes and insert the remaining bolts.
5. Afstellen en vastdraaien: Once all bolts are in place, ensure the frames are properly aligned and level. Gradually tighten all bolts to the manufacturer's specified torque settings, working in a cross-pattern if applicable.
6. Eindinspectie: Double-check all fasteners for tightness and ensure the frames are securely mounted and do not interfere with any motorcycle components (e.g., exhaust, suspension, turn signals).

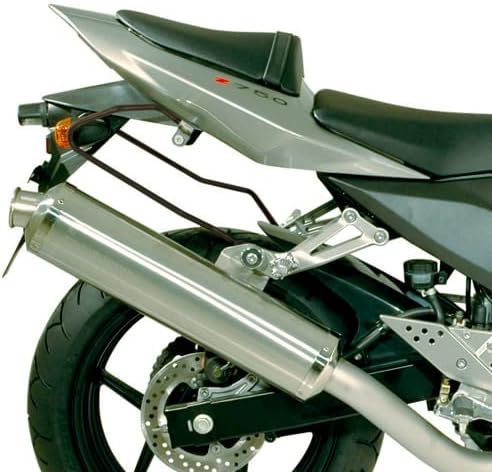

Image: Givi TST9000 side bag frames securely installed on the rear section of a motorcycle, providing a mounting platform for luggage.

4. Operating with ST601 Side Bags

The TST9000 frames are specifically designed for Givi ST601 Sport-T Line side bags. Follow these steps to attach and detach your bags:

• Attaching Bags: Align the mounting points on the ST601 side bags with the corresponding attachment points on the TST9000 frames. Secure the bags using their integrated locking mechanism or straps as per the ST601 bag instructions. Ensure a firm and secure fit.
• Detaching Bags: Release the locking mechanism or straps on the ST601 bags and carefully lift them off the frames.
• Gewichtsverdeling: Always distribute weight evenly between the two side bags. Avoid placing heavy items exclusively on one side.

5. Onderhoud

• Regelmatige inspectie: Controleer regelmatig of alle bouten en bevestigingsmiddelen goed vastzitten. Door trillingen tijdens het rijden kunnen ze na verloop van tijd losraken.
• Schoonmaak: Reinig de lijsten met milde zeep en water. Vermijd schurende reinigingsmiddelen of oplosmiddelen die de afwerking kunnen beschadigen.
• Corrosiepreventie: If the frames are made of steel, consider applying a rust-inhibiting spray or wax, especially if riding in wet or corrosive environments.

6. Probleemoplossing

• Frames Not Fitting Correctly: Verify that the TST9000 frames are compatible with your specific motorcycle model. Ensure all components are oriented correctly as per the installation guide.
• Side Bags Not Securing: Check for any obstructions between the bags and the frames. Inspect the bag's mounting mechanism and the frame's attachment points for damage or misalignment.
• Ratelen of trillingen: Re-tighten all mounting bolts to the specified torque. Ensure no parts are loose or making contact with other motorcycle components.

7. Specificaties

• Model: Givi TST9000 (GITST9000)
• Fabrikant: Geef
• Verenigbaarheid: Designed for Givi ST601 Sport-T Line Side Bags
• Materiaal: Typically constructed from robust steel tubing (specific material may vary by production batch).
• Fabrikant onderdeelnummer: GITST9000
• Wereldwijd handelsidentificatienummer (GTIN): 08019606200273

8. Garantie en ondersteuning

Givi products are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, claims, or technical support, please refer to the official Givi website or contact your authorized Givi dealer. Keep your proof of purchase for warranty purposes.
