Invoering
This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Briggs & Stratton 703221 Cable & Spring Assembly. This component is an Original Equipment Manufacturer (OEM) authorized replacement part designed to fit various Briggs & Stratton models, ensuring optimal performance and compatibility. Please read these instructions carefully before proceeding with any installation or maintenance.
Veiligheidsinformatie
Always prioritize safety when working with machinery and replacement parts. Failure to follow safety guidelines can result in injury or damage to equipment.
- Stroom loskoppelen: Before beginning any work, ensure the equipment is turned off and disconnected from its power source (e.g., remove spark plug wire, disconnect battery).
- Draag beschermende kleding: Gebruik geschikte persoonlijke beschermingsmiddelen, zoals een veiligheidsbril en handschoenen.
- Raadpleeg de handleiding van de apparatuur: Refer to your specific equipment's owner's manual for detailed safety procedures and component locations.
- Beveiligde uitrusting: Zorg ervoor dat de apparatuur stabiel staat en niet onverwacht kan bewegen tijdens de installatie.
- Handle Springs with Care: Springs can store energy. Exercise caution when handling to prevent sudden release and potential injury.
Installatie
The Briggs & Stratton 703221 Cable & Spring Assembly is a critical component, often used in recoil starter mechanisms or control systems. The exact installation procedure may vary slightly depending on your specific equipment model. Always refer to your equipment's service manual for precise instructions.
Benodigde gereedschappen:
- Appropriate wrenches or sockets (sizes may vary)
- Tang
- Schroevendraaier (indien van toepassing)
Algemene installatiestappen:
- Apparatuur voorbereiden: Ensure the equipment is off, cooled down, and the spark plug wire is disconnected to prevent accidental starting.
- Bestaande assemblage lokaliseren: Identify the old cable and spring assembly that needs replacement. Note its routing and connection points.
- Oude assemblage verwijderen: Carefully detach the old cable and spring. This may involve unhooking the spring from its anchor point and disconnecting the cable from its control lever or mechanism.
- Nieuwe assembly installeren: Connect the new Briggs & Stratton 703221 Cable & Spring Assembly.
- Spring verbinden: Securely attach the spring end to its designated anchor point on the equipment. Ensure it is seated correctly and provides the necessary tension.
- Routekabel: Route the cable along the same path as the original, ensuring it is not pinched or obstructed.
- Kabel aansluiten: Attach the cable end to the appropriate control lever or mechanism. Verify that it allows for full range of motion without binding.
- Testfunctionaliteit: Once installed, gently test the mechanism the cable and spring control (e.g., recoil starter, brake lever) to ensure smooth operation and proper engagement/disengagement.
- Stroom weer aansluiten: Sluit de bougiekabel of de accu weer aan.

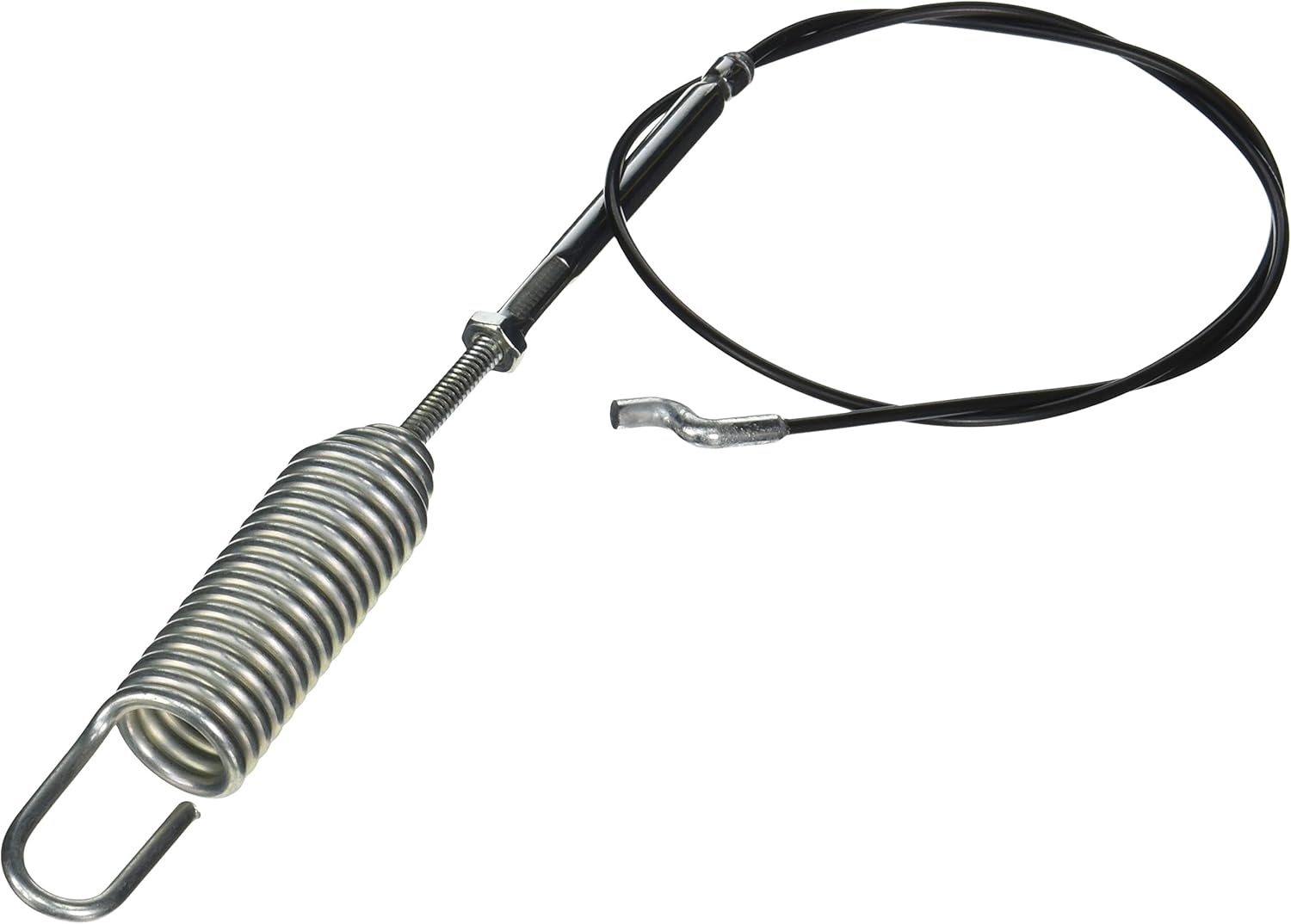

Afbeelding 1: The Briggs & Stratton 703221 Cable & Spring Assembly. This image displays the complete assembly, featuring the coiled metal spring with a hook at one end, connected to a threaded rod and nut, which then transitions into a black protective casing for the cable, ending with a metal Z-bend or similar connector. This component is crucial for various engine functions, often related to starter mechanisms or control linkages.
Bediening (controle na installatie)
After installation, it is important to verify the correct operation of the assembly and the equipment it controls.
- Soepele beweging: Ensure the cable moves freely without sticking or excessive friction.
- Juiste spanning: Confirm the spring provides adequate tension for its intended function (e.g., returning a lever to its home position, engaging a starter).
- Full Engagement/Disengagement: Test the mechanism to ensure it fully engages and disengages as designed.
- No Abnormal Noises: Listen for any unusual sounds during operation that might indicate improper installation or component interference.
Onderhoud
As an OEM replacement part, the 703221 Cable & Spring Assembly is designed for durability. Regular maintenance of the overall equipment will help prolong the life of this component.
- Regelmatige inspectie: Periodically inspect the cable and spring for signs of wear, fraying, corrosion, or damage.
- Schoonheid: Keep the area around the cable and spring free from dirt, debris, and excessive moisture.
- Smering (indien van toepassing): If your equipment's manual recommends lubrication for control cables or spring mechanisms, follow those guidelines. Avoid over-lubrication, which can attract dirt.
- Vervangen indien beschadigd: If any part of the assembly shows significant wear or damage, replace it immediately to prevent equipment malfunction or safety hazards.
Probleemoplossing
If you experience issues after installing the 703221 Cable & Spring Assembly, consider the following common troubleshooting steps:
- Mechanism Not Engaging/Disengaging:
- Check cable routing for kinks or obstructions.
- Verify cable connections at both ends are secure.
- Ensure the spring is correctly hooked and providing tension.
- Sticking or Binding:
- Inspect the cable for damage or fraying within its casing.
- Ensure the cable is not routed too tightly around corners.
- Check for debris or corrosion at pivot points.
- Insufficient Spring Tension:
- Confirm the spring is correctly installed and not stretched or damaged.
- Verify the anchor points for the spring are intact.
If problems persist, consult a qualified service technician or refer to your equipment's specific service manual.
Specificaties
- Onderdeelnummer: 703221
- Type: Cable & Spring Assembly
- Fabrikant: Briggs & Stratton
- Productafmetingen: Ongeveer 1 x 1 x 1 inch (verpakkings-/verzendafmetingen)
- Artikelgewicht: Ongeveer 2.39 gram
- Oorsprong: Gefabriceerd in de Verenigde Staten.
- Verenigbaarheid: Fits various Briggs & Stratton models (refer to your equipment's manual for specific compatibility)
Garantie en ondersteuning
As an Original Equipment Manufacturer (OEM) part, the Briggs & Stratton 703221 Cable & Spring Assembly is designed to meet the brand's quality standards. For specific warranty information, please refer to the documentation provided with your original Briggs & Stratton equipment or contact Briggs & Stratton customer support directly.
Voor verdere hulp, technische ondersteuning of om erkende servicecentra te vinden, kunt u terecht op de officiële website van Briggs & Stratton. webwebsite of raadpleeg de handleiding van uw apparatuur.
